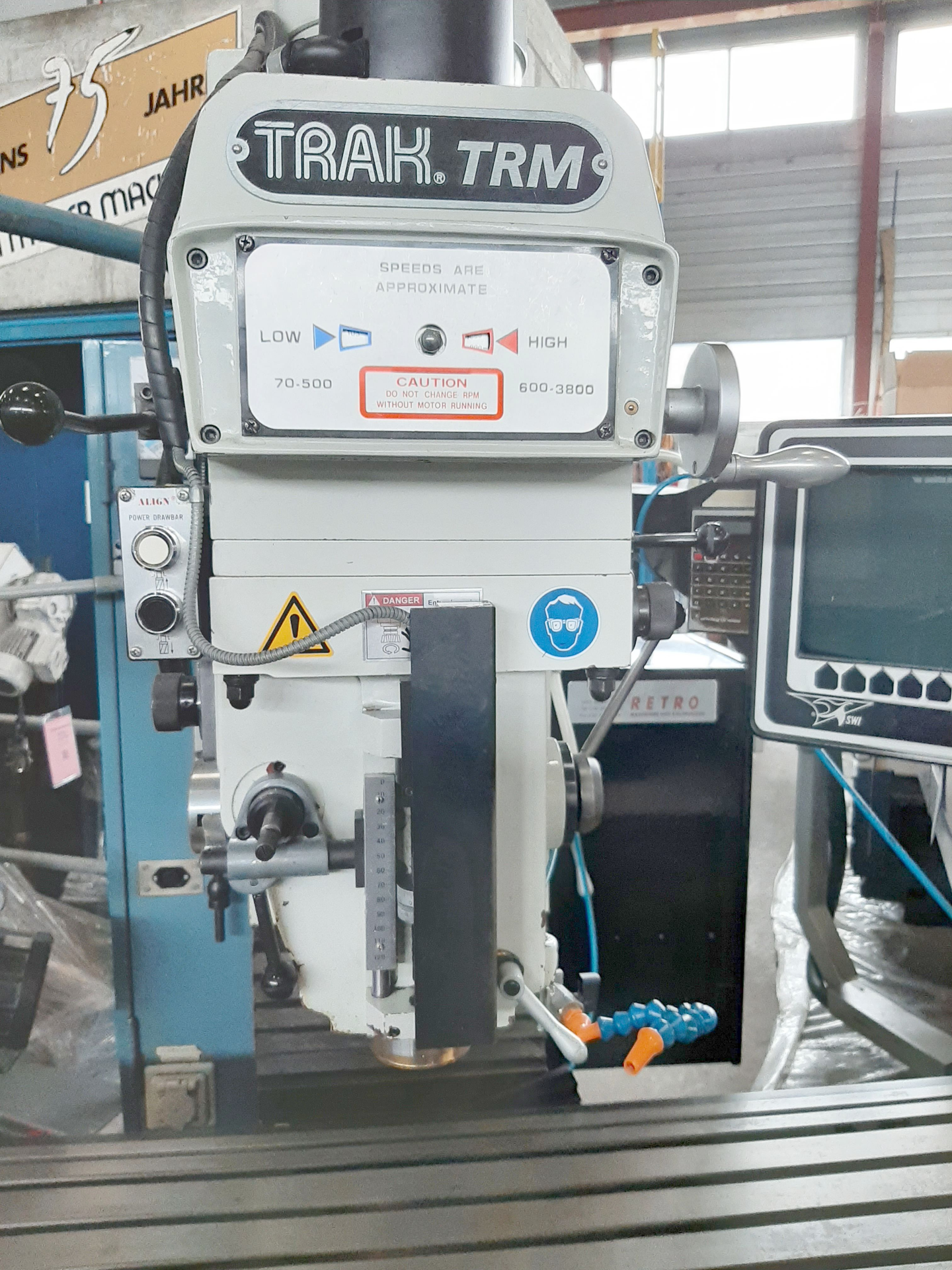

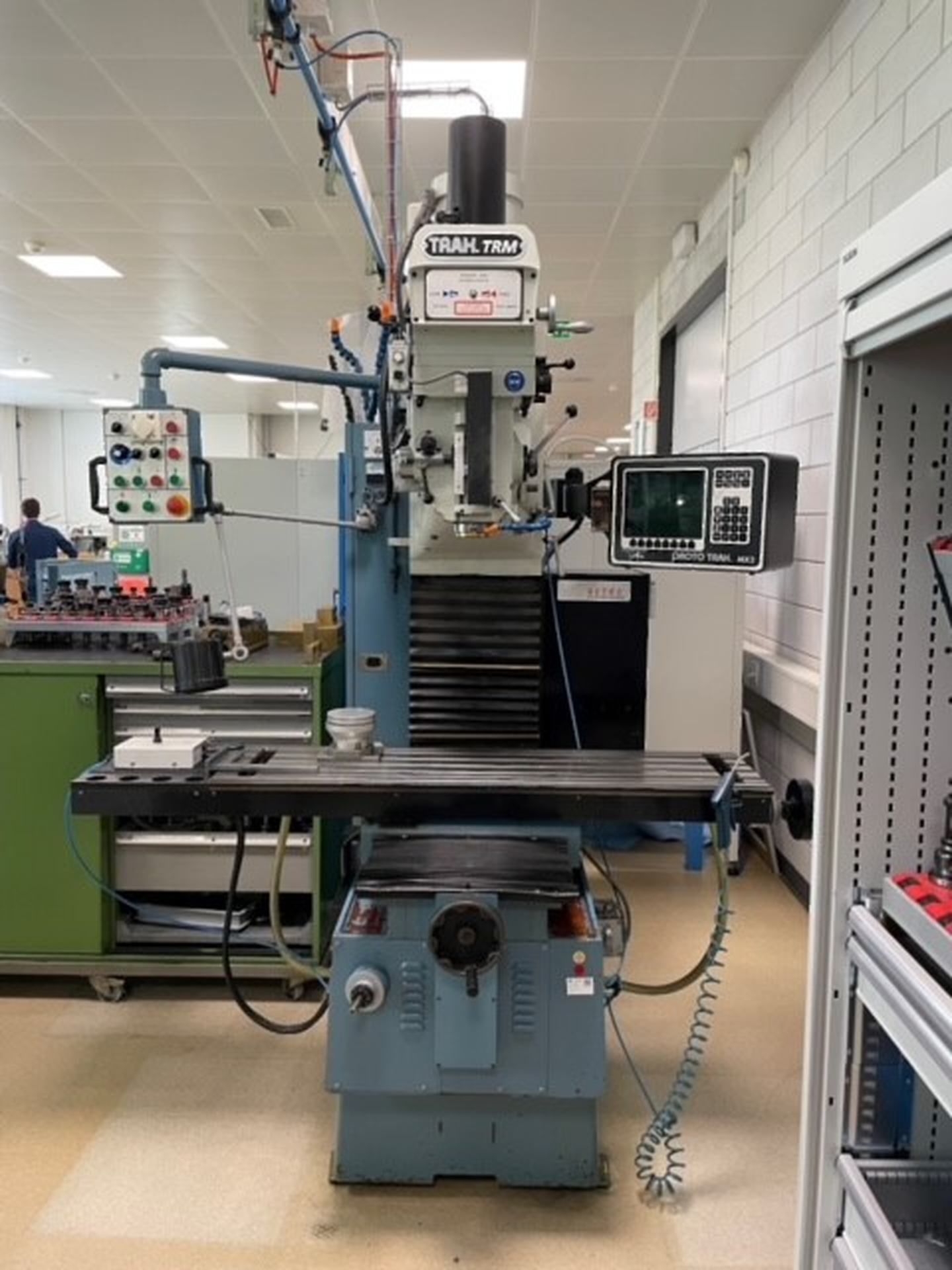

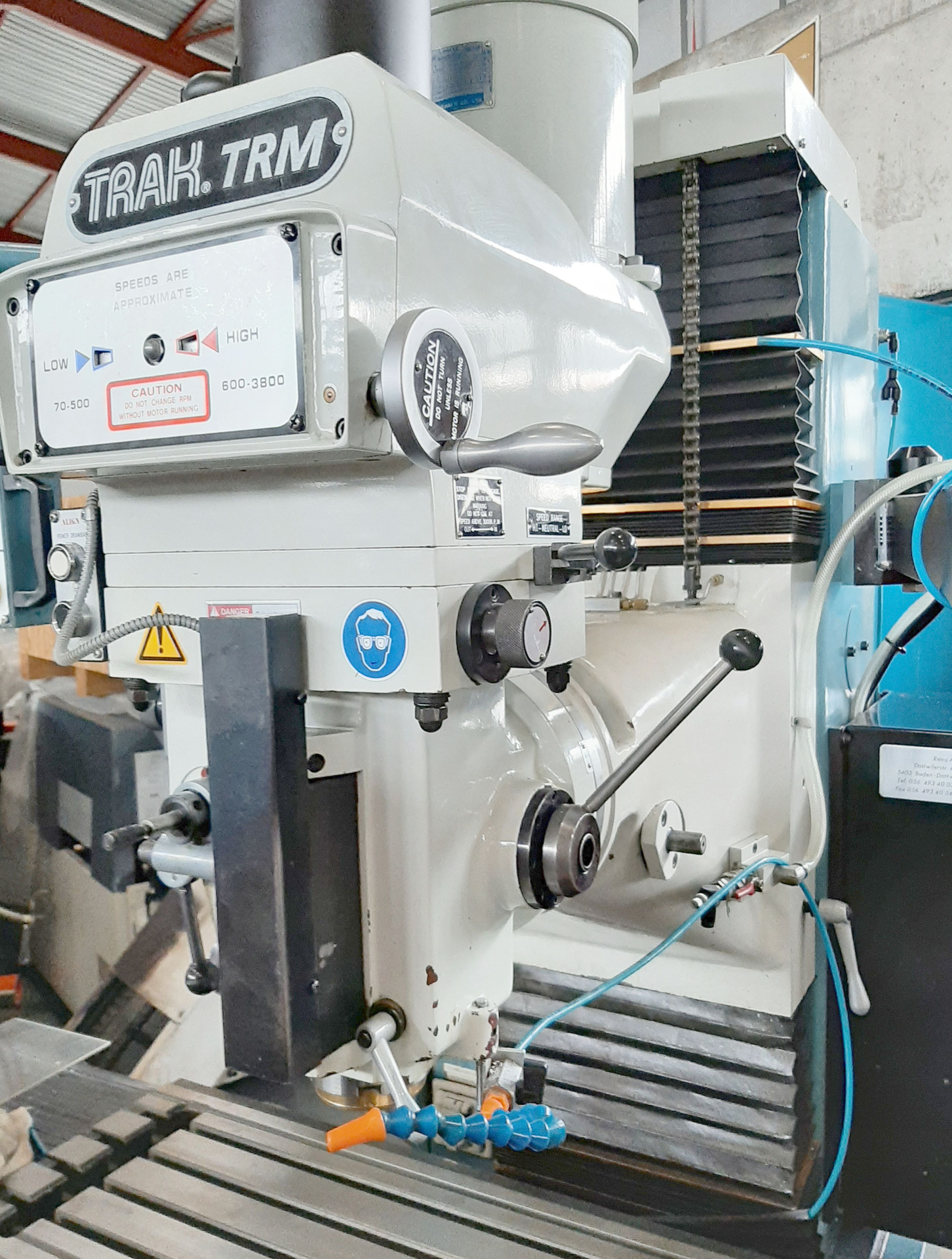

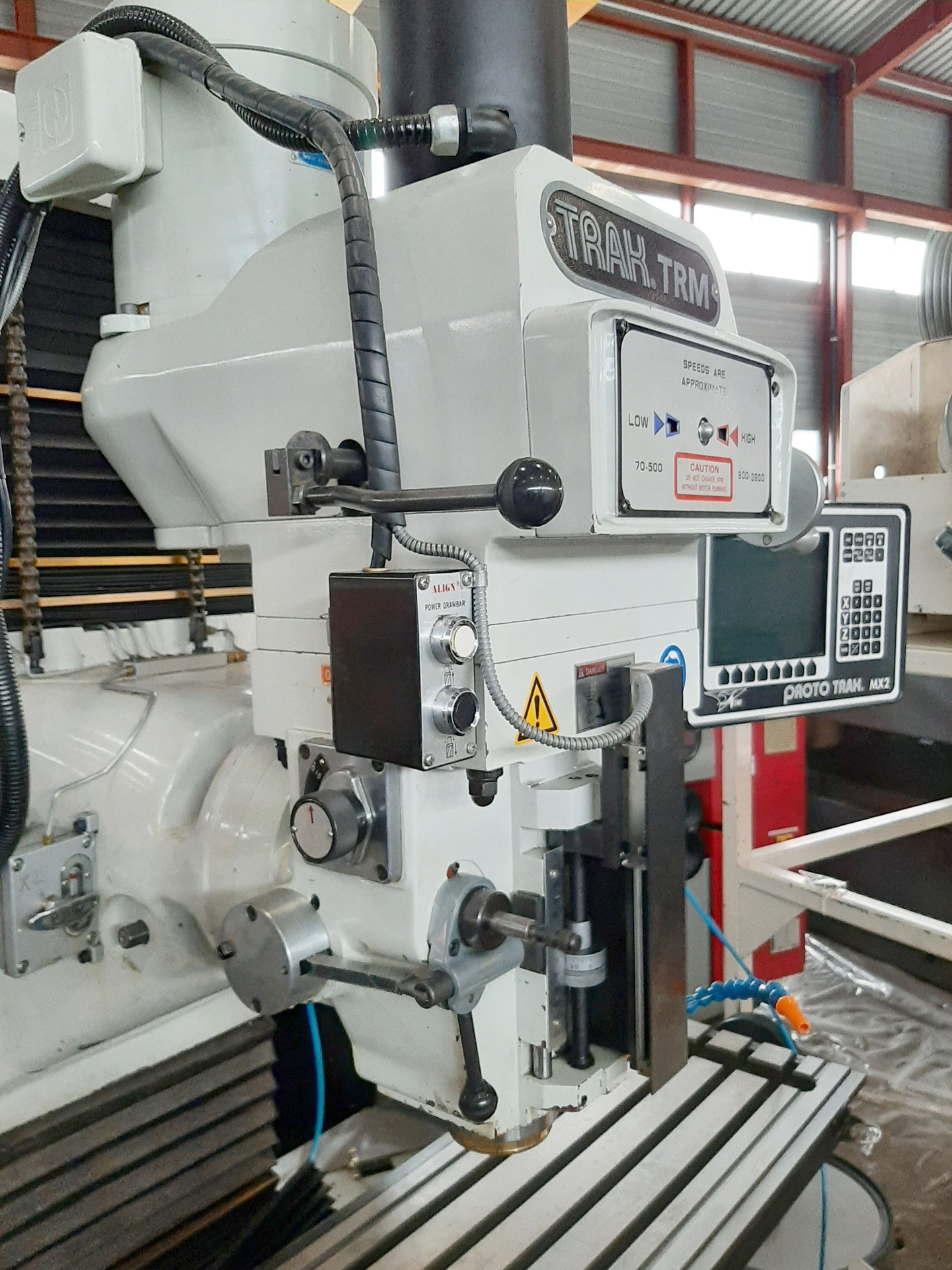

TRAK TRM is a CNC milling machine of precision, high accuracy and reliability. 3 axes, spindle nose SK40, spindle speeds 70–4200 t/min. Table 1270×255 mm, 3 T‑slots 16 mm (spacing 64 mm), table load max 600 kg. Travels X 800 mm, Y 450 mm, spindle stroke (controlled) 600 mm. Voltage 50 Hz 3x 220 V. Built to achieve tight tolerances; suited to automotive, aerospace, medical and machine‑tool sectors.
| Number of axis total | 3 |
| Spindle nose: | SK40 |
| Spindle speeds: | |
| from | 70 t/min |
| up to | 4200 t/min |

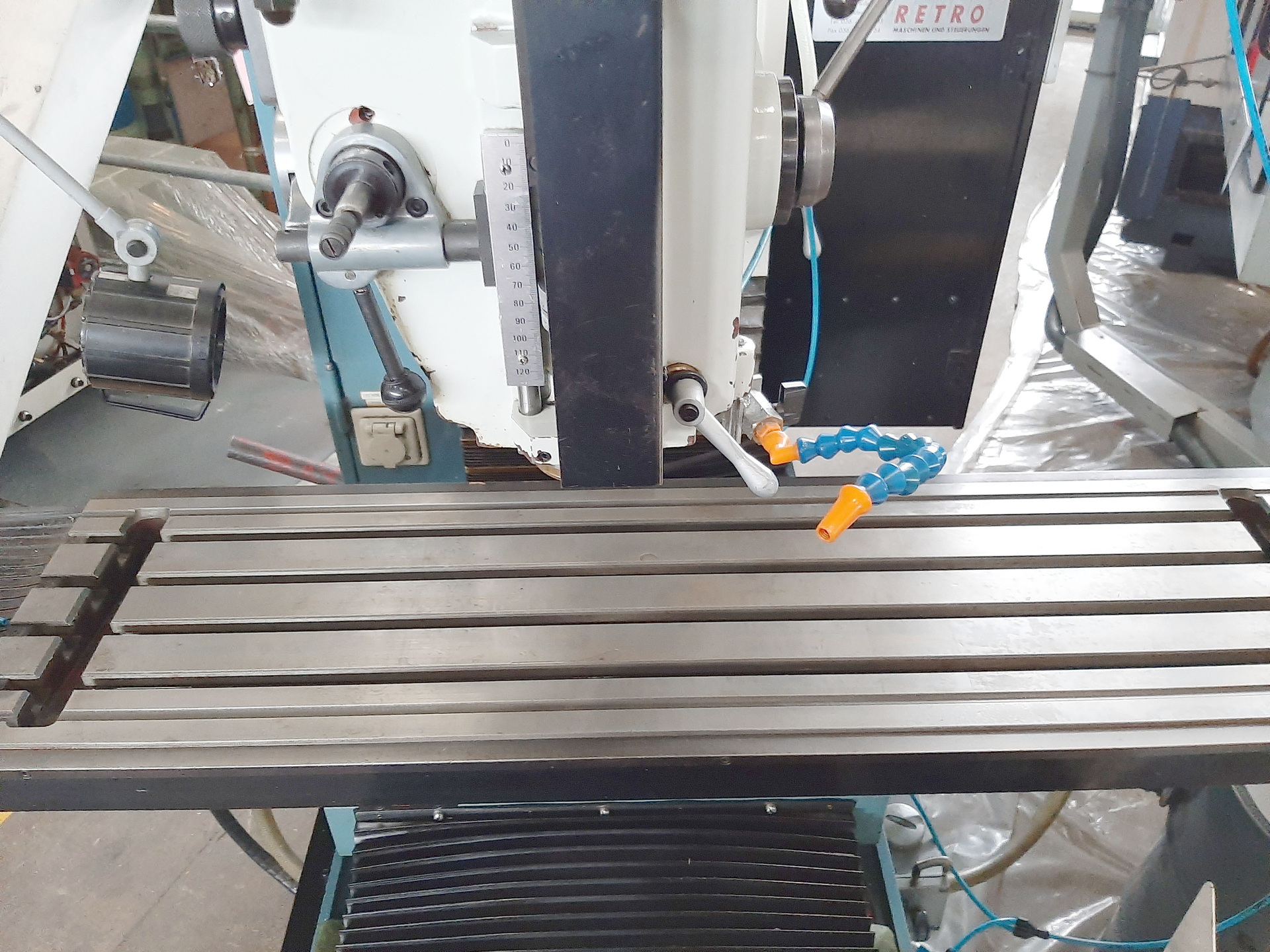

| Table length | 1270 mm |
| Table width | 255 mm |
| Number of T-channels | 3 |
| T-channel width | 16 mm |
| Distance of the T-slots | 64 mm |
| Table load max. | 600 kg |
| Travels: | |
| X axis | 800 mm |
| Y axis | 450 mm |
| Spindle stroke (controlled) | 600 mm |
| Voltage 50 Hz 3x | 220 Volt |
| Various accessories: | |
| Coolant system | |
| Central lubrification |
