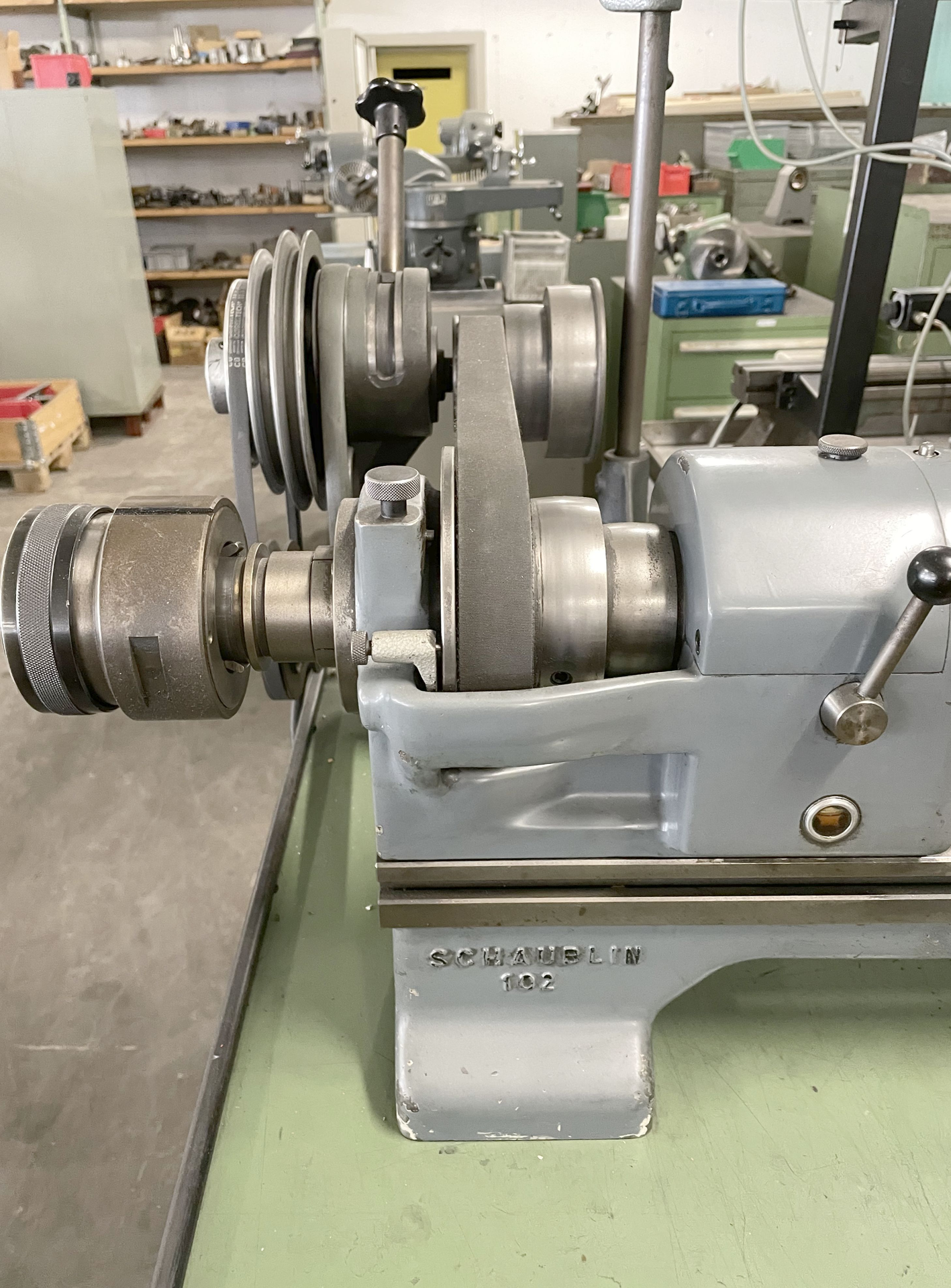

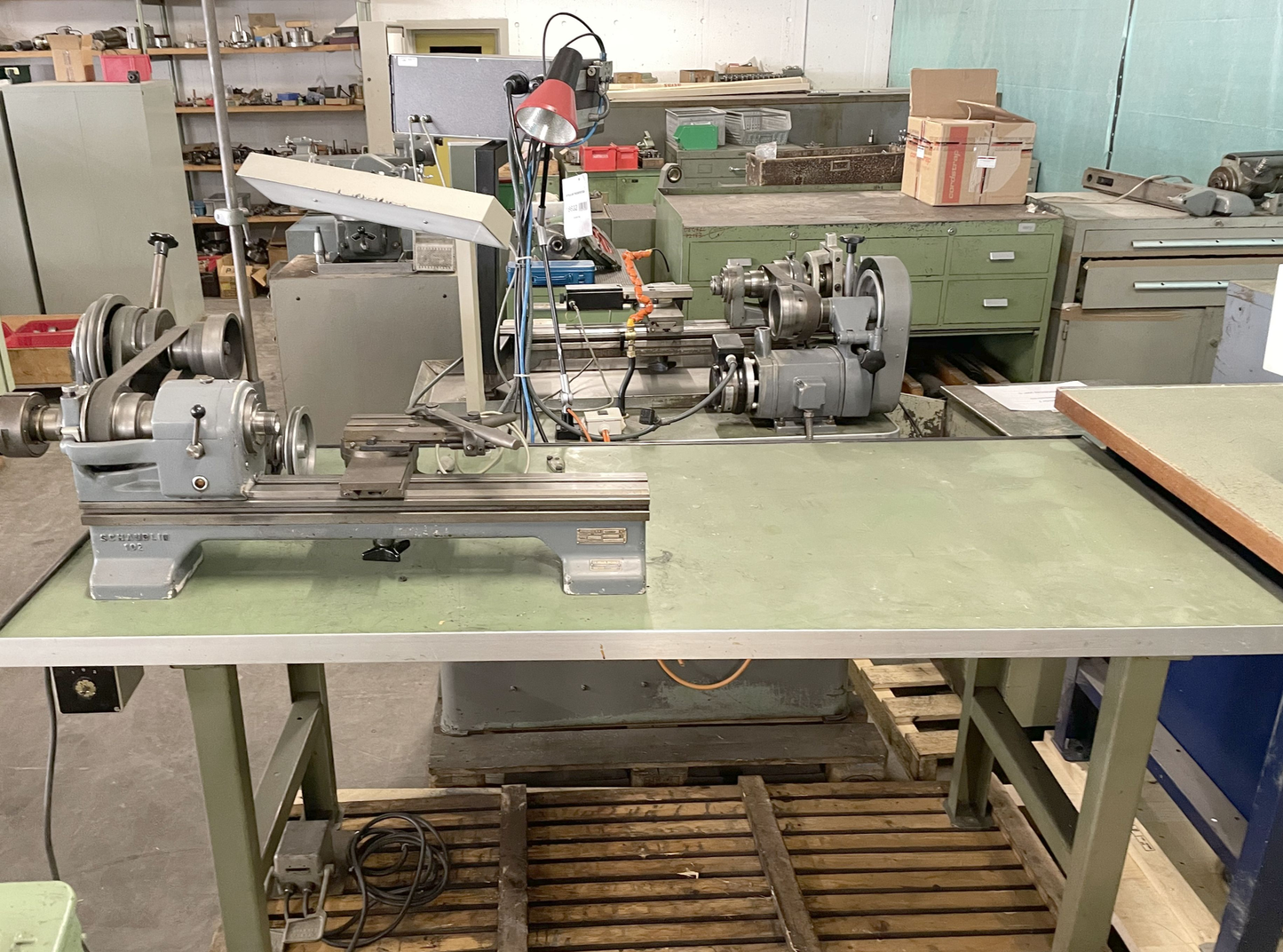

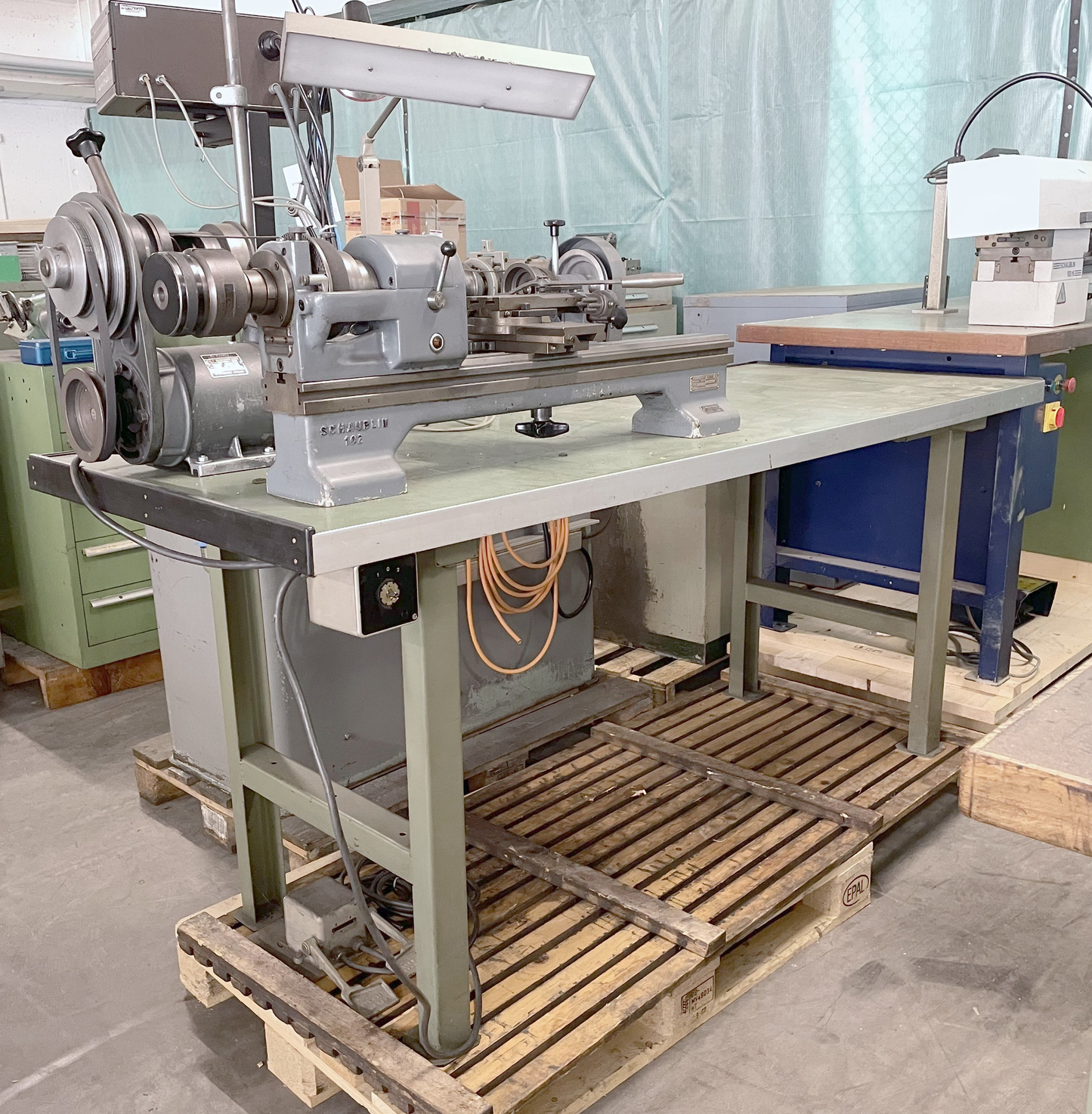

022490 - SCHAUBLIN 102
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
SCHAUBLIN 102 is a toolmakers' lathe of high precision, engineered for superior accuracy and reliability. Capacities: centre height 102 mm, distance between centres 350 mm, swing over cross-slide 120 mm, swing over bed 200 mm, spindle bore 20 mm, collet type 20 W, tailstock taper 2 CM. Specs: spindle speeds 55–3000 rpm, spindle motor 1.5 CV, total power 2 CV, supply 3x 380 V 50 Hz, weight ~500 kg, machine dims L1300×W600×H1300 mm; bench L2000×W800×H900 mm. Delivers tight tolerances; suited to watchmaking, toolmaking, automotive, aerospace and medical sectors.
| Centre height | 102 mm |
| Distance between centres | 350 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Spindle hole | 20 mm |
| Inner taper type | 20 W |
| Taper spindle threaded | |
| Spindle speeds: | |
| from | 55 t/min |
| up to | 3000 t/min |
| Taper in tailstock: | 2 CM |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 1.5 CV |
| Total power required | 2 CV |
| Machine's weight about | 500 kg |
| Overall dimensions machine: | |
| Length | 1300 mm |
| Width | 600 mm |
| Height | 1300 mm |
| Various accessories: | |
| On work bench: | |
| Working bench: | |
| Length | 2000 mm |
| Width | 800 mm |
| Height | 900 mm |
| Lamp | |
| Quick closing attachment | |

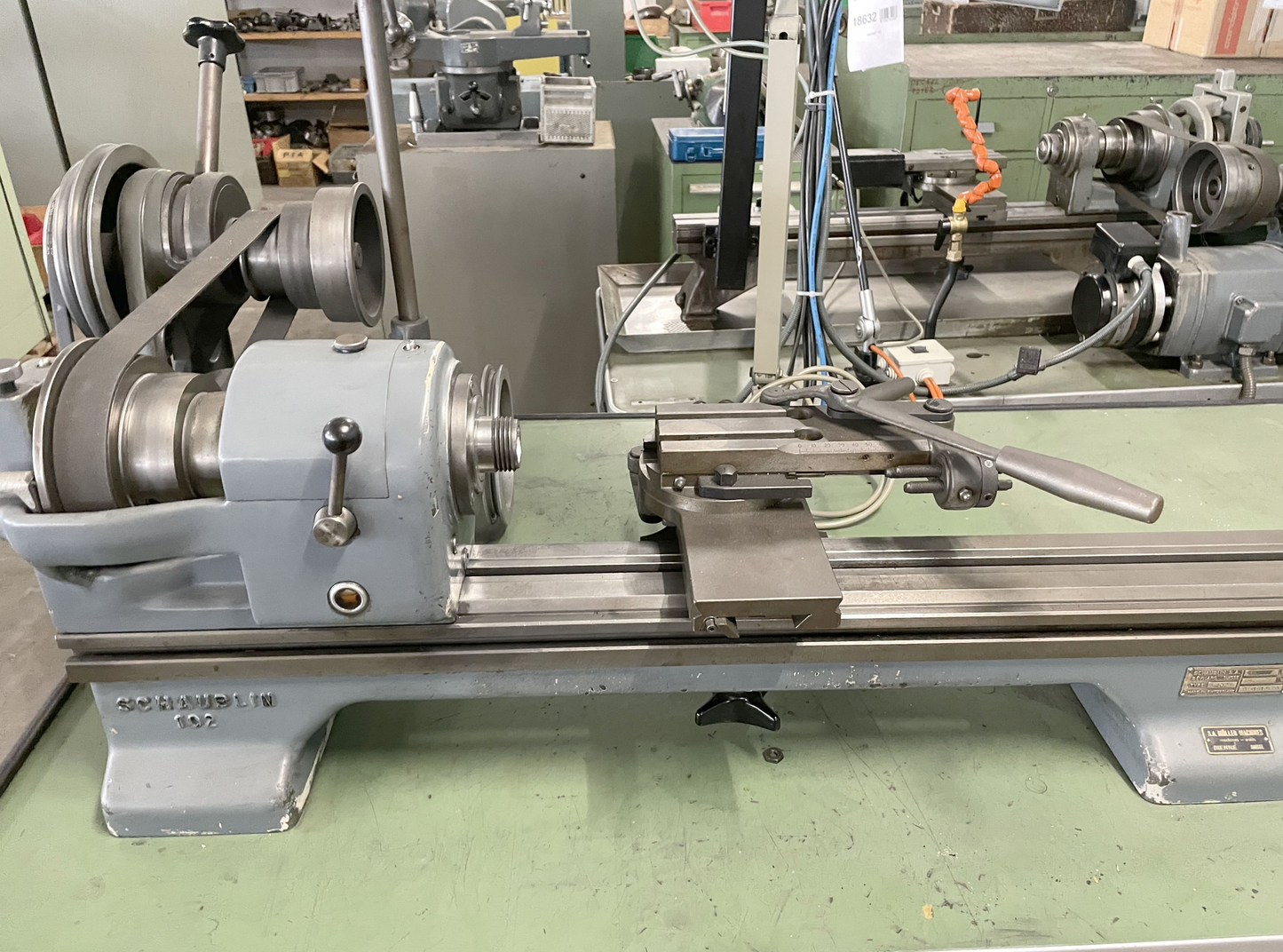

| Lever operated cross slide |
