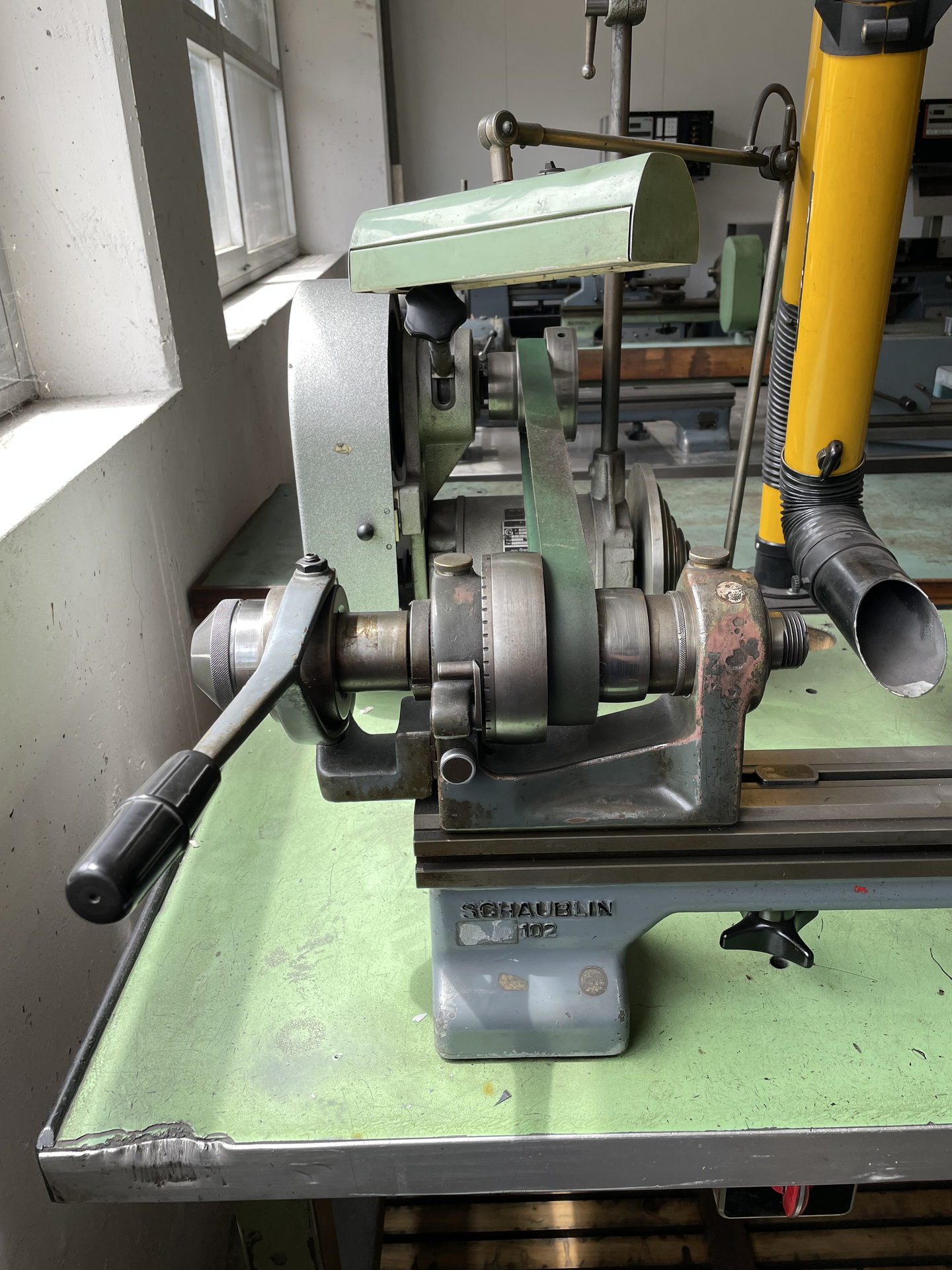

SCHAUBLIN 102 is a Toolmakers lathe, engineered for precision, high accuracy and reliability. Capacities: centre height 102, distance between centres 350, swing over cross-slide 120, swing over bed 200, spindle hole 20, collet 20 W, tailstock taper 2 CM. Specs: 55–3000 t/min, spindle motor 1.5 CV, 3x380 V 50 Hz, total power 2 CV, weight ≈500 kg, dims 1300×600×1300; bench 1800×800×900. Accessories: lamp, belt-tensioning device for milling/grinding, quick closing attachment. Suitable for tight tolerances in watchmaking, automotive, aerospace and medical.
Technical specifications are subject to change without notice
| Centre height | 102 mm |
| Distance between centres | 350 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Spindle hole | 20 mm |
| Inner taper type | 20 W |
| Taper spindle threaded | |
| Spindle speeds: | |
| from | 55 t/min |
| up to | 3000 t/min |
| Taper in tailstock: | 2 CM |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 1.5 CV |
| Total power required | 2 CV |
| Machine's weight about | 500 kg |
| Overall dimensions machine: | |
| Length | 1300 mm |
| Width | 600 mm |
| Height | 1300 mm |
| Various accessories: | |
| On work bench: | |
| Working bench: | |
| Length | 1800 mm |
| Width | 800 mm |
| Height | 900 mm |
| Lamp | |
| Belt-tensioning device for milling/grinding att. | |
| Quick closing attachment |
