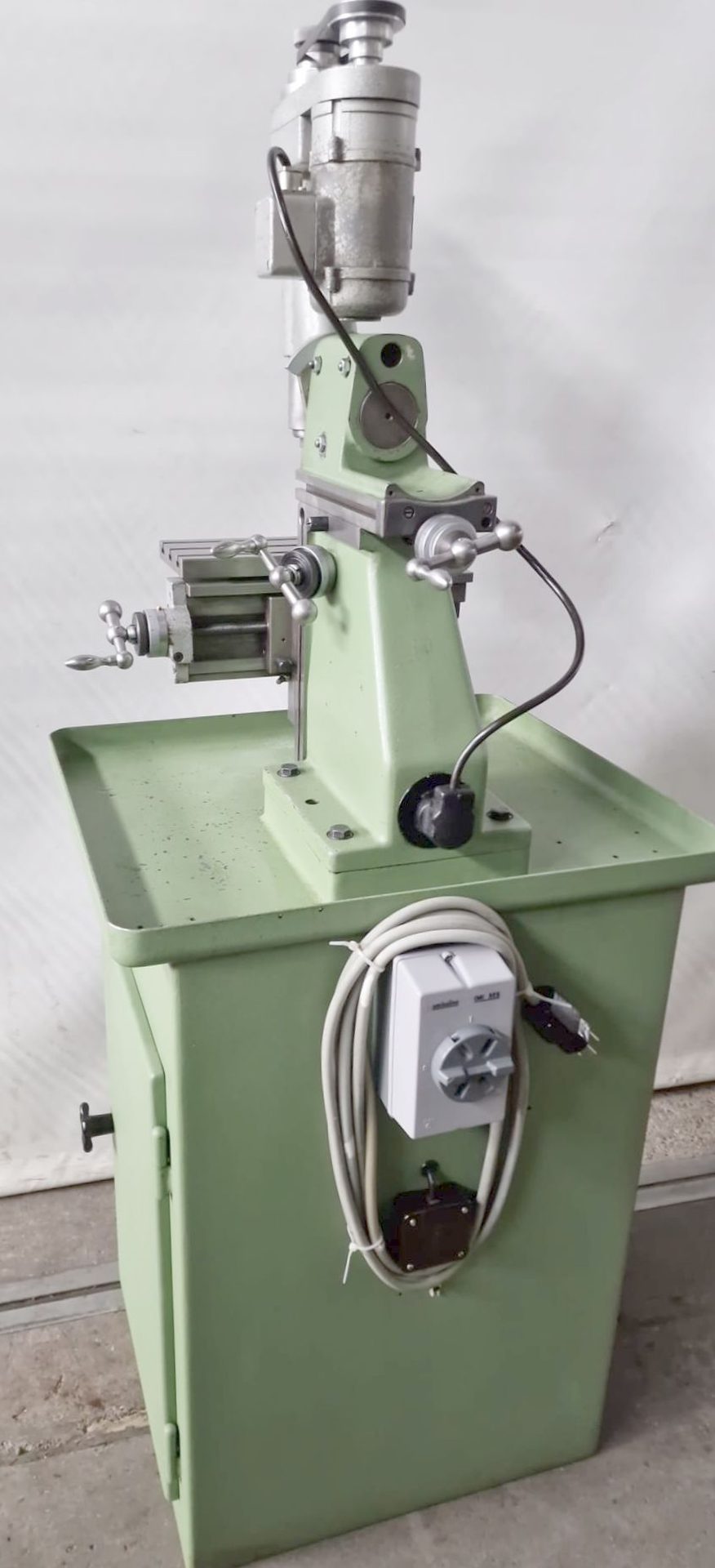

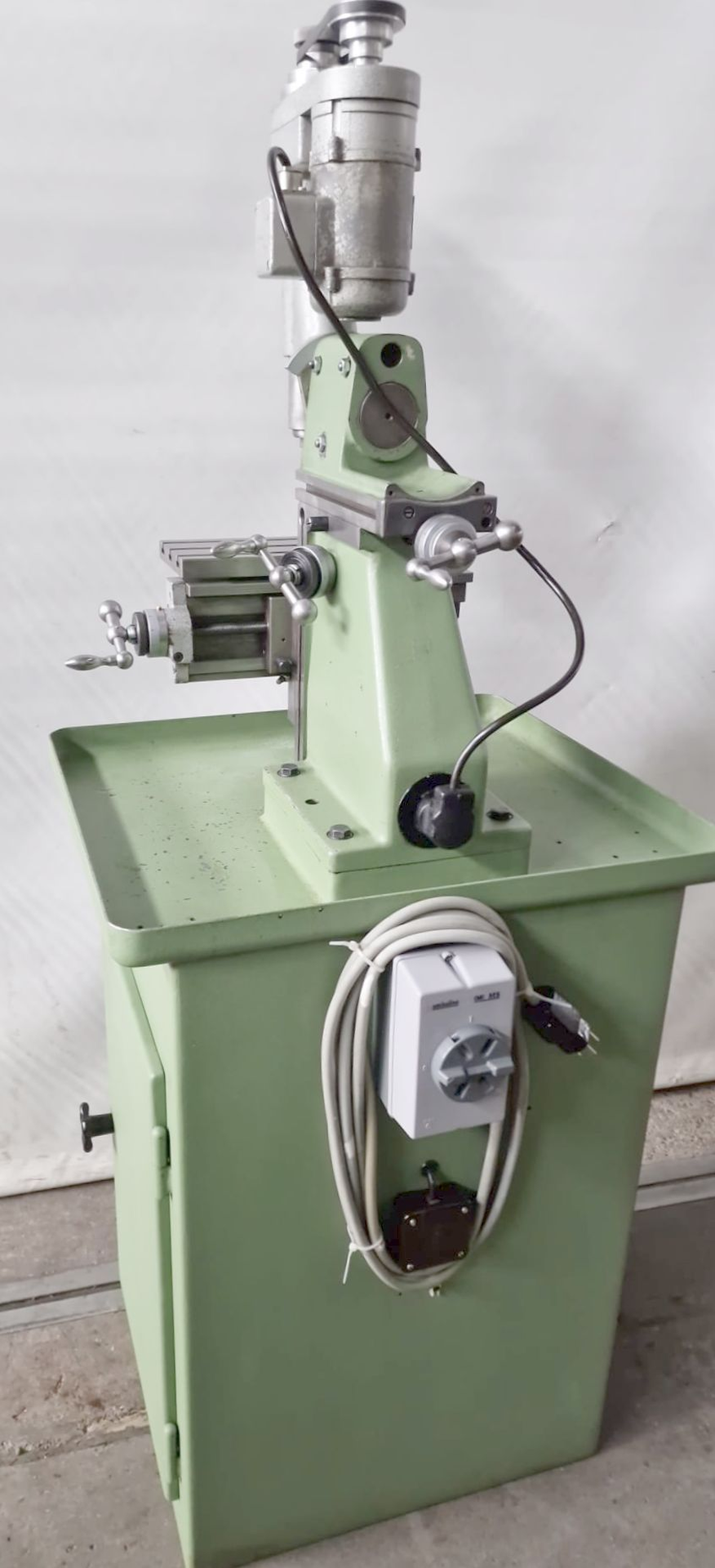

SIXIS S 101 is a Universal milling machine, engineered for precision machining with high accuracy and reliability. Travels: X 150 mm, Y 100 mm, Z 150 mm. Main specs: 6 steps; 125–4000 rpm; spindle taper 12 W; voltage 3x 380 V 50 Hz; weight ≈120 kg; overall dimensions L1500×W700×H620 mm. Accessories: rigid table, vertical milling head. Designed to achieve tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace and medical.
| Longitudinal travel (X-axis) | 150 mm |
| Transversal travel (y axis) | 100 mm |
| Vertical travel (z axis) | 150 mm |
| Spindle speeds: | |
| number (steps) | 6 |
| from | 125 t/min |
| up to | 4000 t/min |
| Taper in spindle: | 12 W |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 120 kg |
| Overall dimensions machine: | |
| Length | 1500 mm |
| Width | 700 mm |
| Height | 620 mm |
| Various accessories: | |
| Rigide table | |
| Vertical milling head |
