RAUSCH RS3 800 is a vertical broaching machine, engineered for precision, high accuracy and reliability. Max stroke 1250 mm, traction 10,000 kp; workpiece Ø 380 mm, broach Ø85 mm, tool shank 40 mm. Cutting speed stepless 1–8 m/min, return 36 m/min. Voltage 3x380 V 50 Hz, installed power 11 kW; dims L1400×W1250×H3600 mm. Accessories: set of broaches. Delivers tight tolerances; typical applications: automotive, toolmaking, aerospace, medical.
Technical specifications are subject to change without notice
| Max. length of stroke | 1250 mm |
| Traction power | 10000 kp |
| vertical | |
| Table size: | |
| Length | 340 mm |
| Width | 220 mm |
| Cutting speed: | |
| stepless | |
| from | 1 m/min |
| up to | 8 m/min |
| Return stroke speed | 36 m/min |
| Work-piece diameter | 380 mm |
| broach diameter | 85 mm |
| Broaching tool receiv.dm | 40 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Total installed power | 11 kW |
| Overall dimensions machine: | |
| Length | 600 mm |
| Width | 500 mm |
| Height | 1500 mm |
| Various accessories: | |

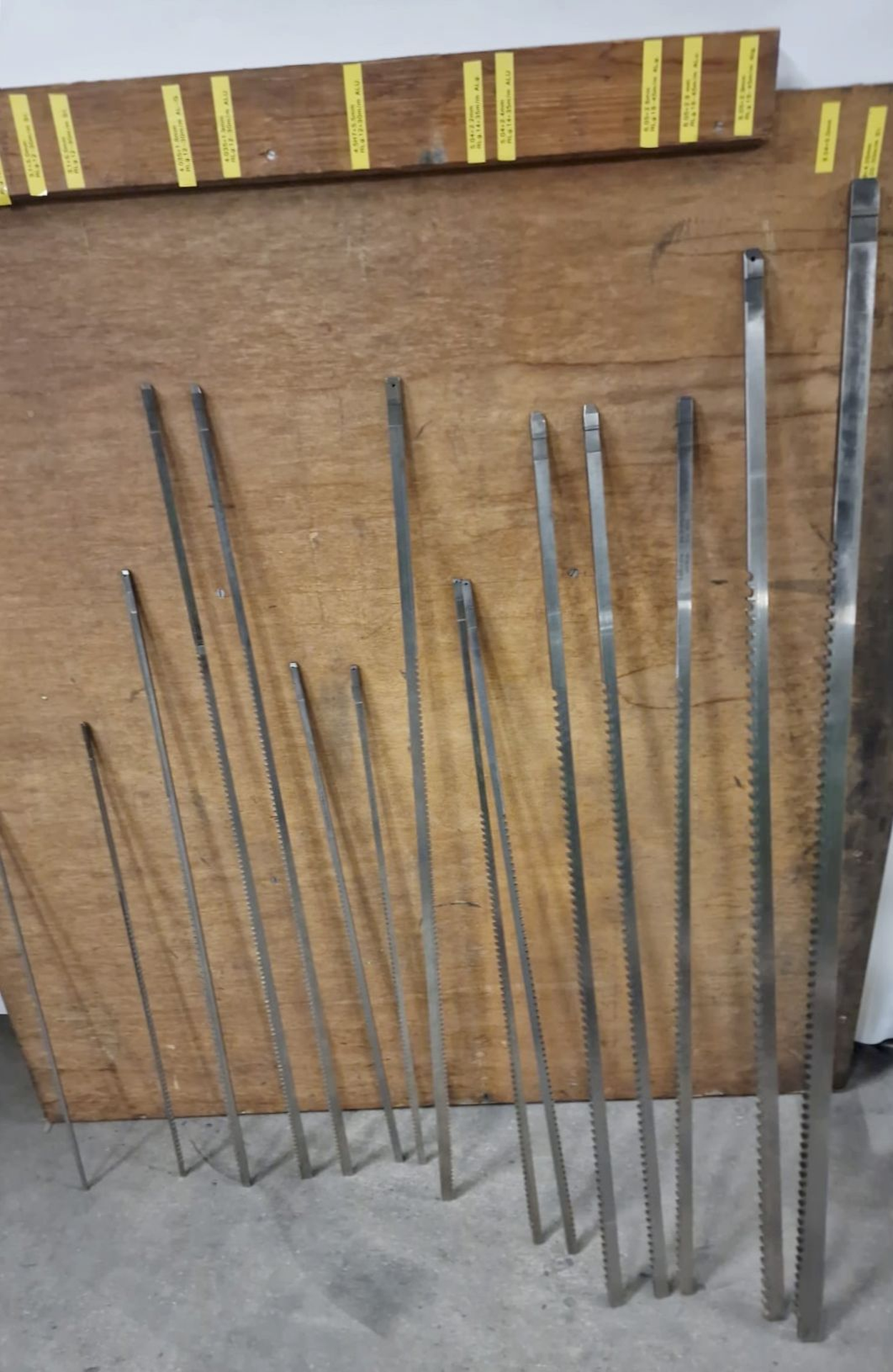

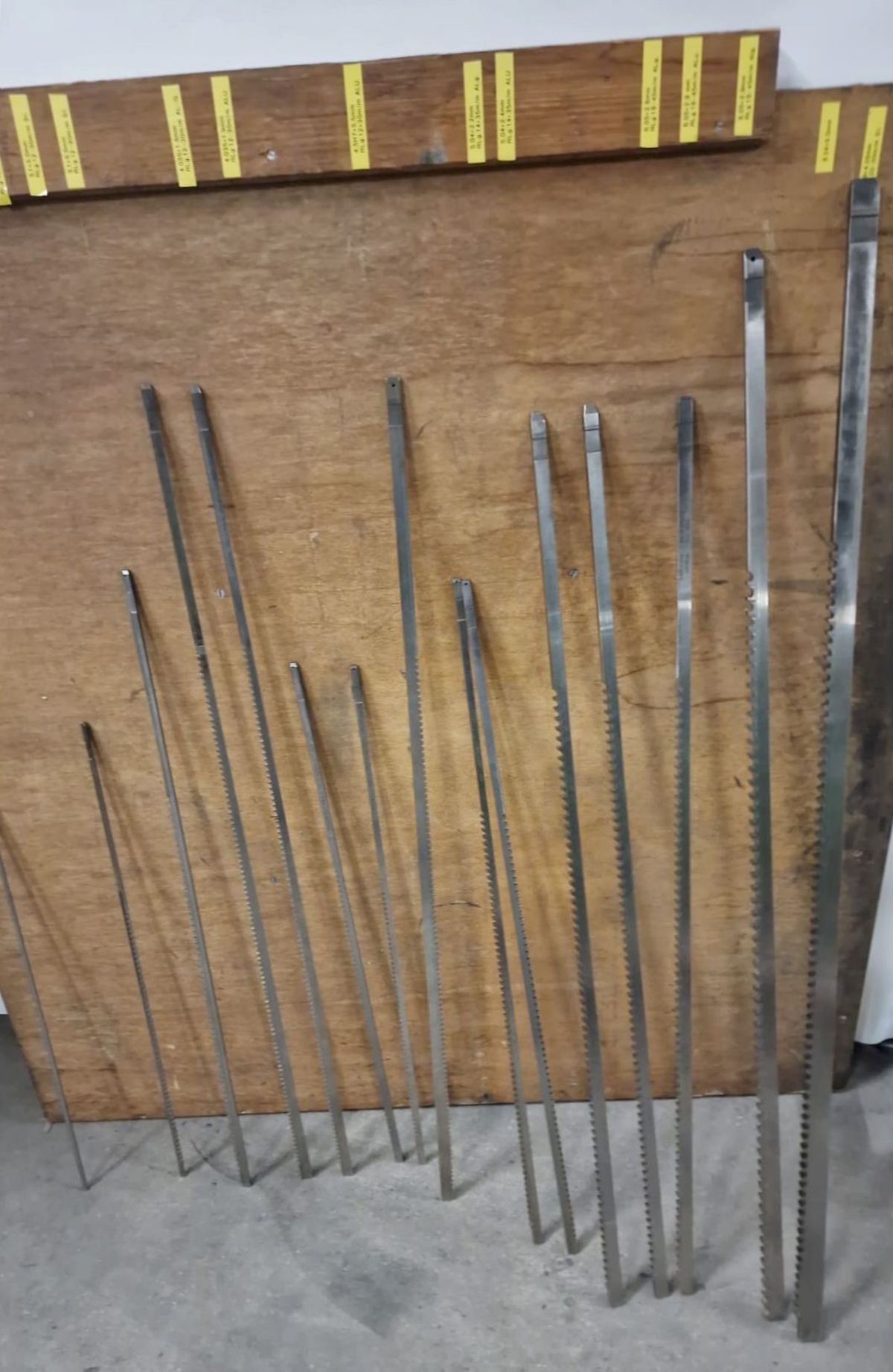

| Set of broaches |
