SCHAUBLIN 102-82
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
SCHAUBLIN 102-82 is a Toolmakers lathe built for precision work with high accuracy and reliability. Capacities: centre height 102 mm; distance between centres 375 mm; swing over cross-slide 120 mm; swing over bed 200 mm; spindle hole 25 mm; collet type 25 W; tailstock taper 2 CM. Technical specs: stepless spindle speeds 280–3000 t/min; 3x380 V 50 Hz; spindle motor 1.5 CV; weight approx. 550 kg; dimensions L1200 × W700 × H1400 mm. Accessories: lamp, drilling tailstock and hand rest. Delivers tight tolerances; typical applications include watchmaking, toolmaking, automotive, aerospace and medical industries.
| Centre height | 102 mm |
| Distance between centres | 375 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Spindle hole | 25 mm |
| Inner taper type | 25 W |
| Taper spindle threaded | |
| Spindle speeds: | |
| stepless | |
| from | 280 t/min |
| up to | 3000 t/min |
| Taper in tailstock: | 2 CM |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 1.5 CV |
| Machine's weight about | 550 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 700 mm |
| Height | 1400 mm |

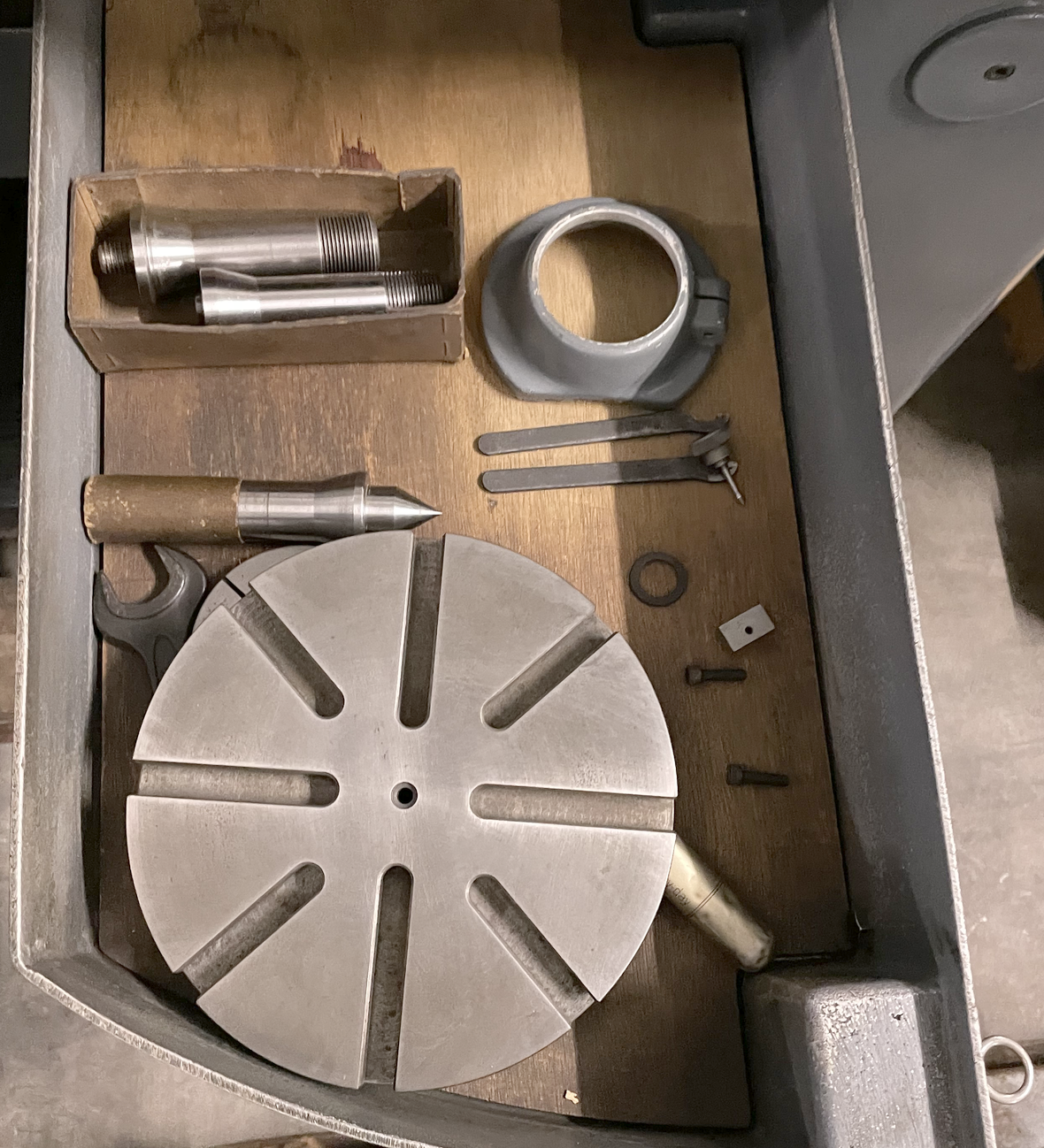

| Various accessories: | |
| Lamp | |
| Face plate diameter | mm |
| Drilling tailstock | |
| Hand rest |
