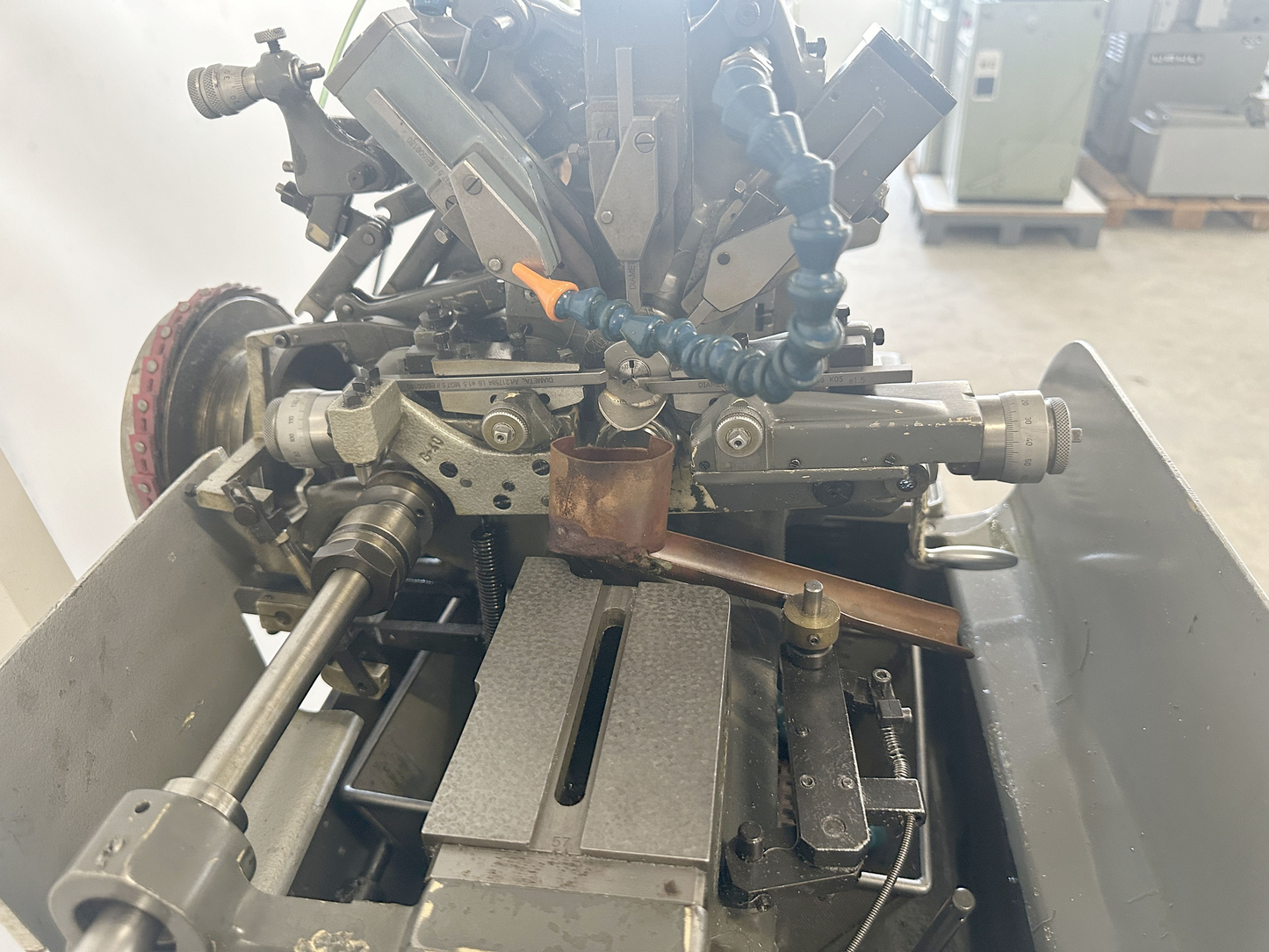

TORNOS T 4 is an Automatic lathe designed for precision, high accuracy and reliability. Diameter of work admitted 4 mm; with flat cames max turning length 28 mm; spindle hole 6 mm; max treading diameter 4 M; number of tool cutters 5. Main specs: 14 spindle speeds from 2000 to 12000 t/min; voltage 50 Hz 3x 380 V; total power 1.5 CV; machine weight about 350 kg; dimensions L1000 x W700 x H1300 mm. Accessories: lamp, parts catcher. Delivers tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.
| Diameter of work admitted | 4 mm |
| Max. turning length: | |
| with flat cames | 28 mm |
| Spindle hole | 6 mm |
| Max. treading diameter | 4 M |
| Number of tool cutters | 5 |
| Spindle speeds: | |
| Number of spindle speeds | 14 |
| from | 2000 t/min |
| up to | 12000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 1.5 CV |
| Machine's weight about | 350 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 700 mm |
| Height | 1300 mm |
| Various accessories: | |
| Lamp | |
| Parts catcher |
