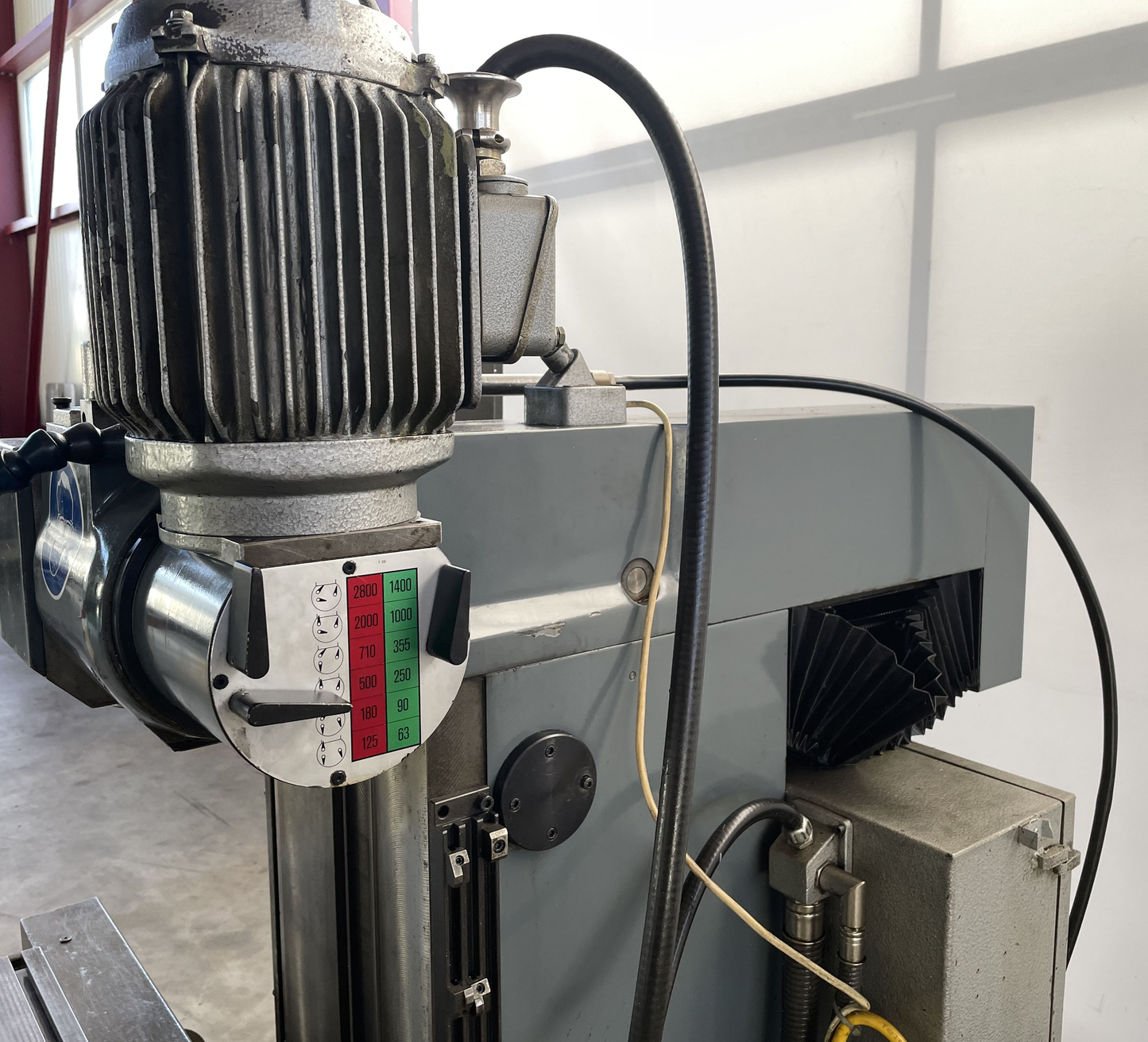

SCHAUBLIN 22 is a Universal milling machine for precision machining, highly accurate and reliable. Table 650×250 mm; travels X330 Y400 Z475 mm; quill 60 mm. Spindle ISO30, 12 speeds 63–2800 t/min. Feeds X 4–500, Z 2–200 mm/min; rapids X 2.5 m/min Z 1.0 m/min. Voltage 3×380 V 50 Hz; motor 2.2 CV; weight ~950 kg; overall 1600×1100×1650 mm. Equipment: 3‑axis DRO, lamp, chip tray. Delivers tight tolerances; applications: automotive, watchmaking, machine tools, aerospace, medical.
| Table length | 650 mm |
| Table width | 250 mm |
| Longitudinal travel (X-axis) | 330 mm |
| Transversal travel (y axis) | 400 mm |
| Vertical travel (z axis) | 475 mm |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 63 t/min |
| up to | 2800 t/min |
| Taper in spindle | 30 ISO |
| Feeds stepless: | |
| longitudinal from | 4 mm/min |
| up to | 500 mm/min |
| vertical from | 2 mm/min |
| up to | 200 mm/min |
| Vertical quill travel | 60 mm |
| Rapid traverse: | |
| longitudinal | 2.5 m/min |
| vertical | 1.0 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 2.2 CV |
| Machine's weight about | 950 kg |
| Overall dimensions machine: | |
| Length | 1600 mm |
| Width | 1100 mm |
| Height | 1650 mm |
| Various accessories: | |
| Digital readout number of axis: | 3 |
| Lamp | |
| Chip tray |
