TRENNJAEGER TEBA240CF-NC
Type: TEBA240CF-NC
Manufacturer: TRENNJAEGER
Group: Band saw
Subgroup: Band saw
Year: 2002
Stock: 022351
TRENNJAEGER TEBA240CF-NC is a band saw engineered for precision, high accuracy and reliable operation. Cut capacity round/square/flat up to 240 mm; cutting speed 30–90 m/min. Roll Ø300 mm; band 2170×27×1 mm. Supply 3x400 V 50 Hz, 2.8 kW; weight ≈750 kg; dimensions 2100×1500×1450 mm. Accessories: set of saw bands, roller conveyor, coolant 25 l. Delivers tight tolerances; suited to automotive, tooling, aerospace and medical sectors.
| Cut range: round up to | 240 mm |
| Square | 240 mm |
| Flat | 240 mm |
| Cutting speed: | |
| from | 30 m/min |
| up to | 90 m/min |
| Roll diameter | 300 mm |
| Band length | 2170 mm |
| Band width | 27 mm |
| Sheet thickness | 1 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Power | 2.8 kW |
| Machine's weight about | 750 kg |
| Overall dimensions machine: | |
| Length | 2100 mm |
| Width | 1500 mm |
| Height | 1450 mm |
| Various accessories: | |

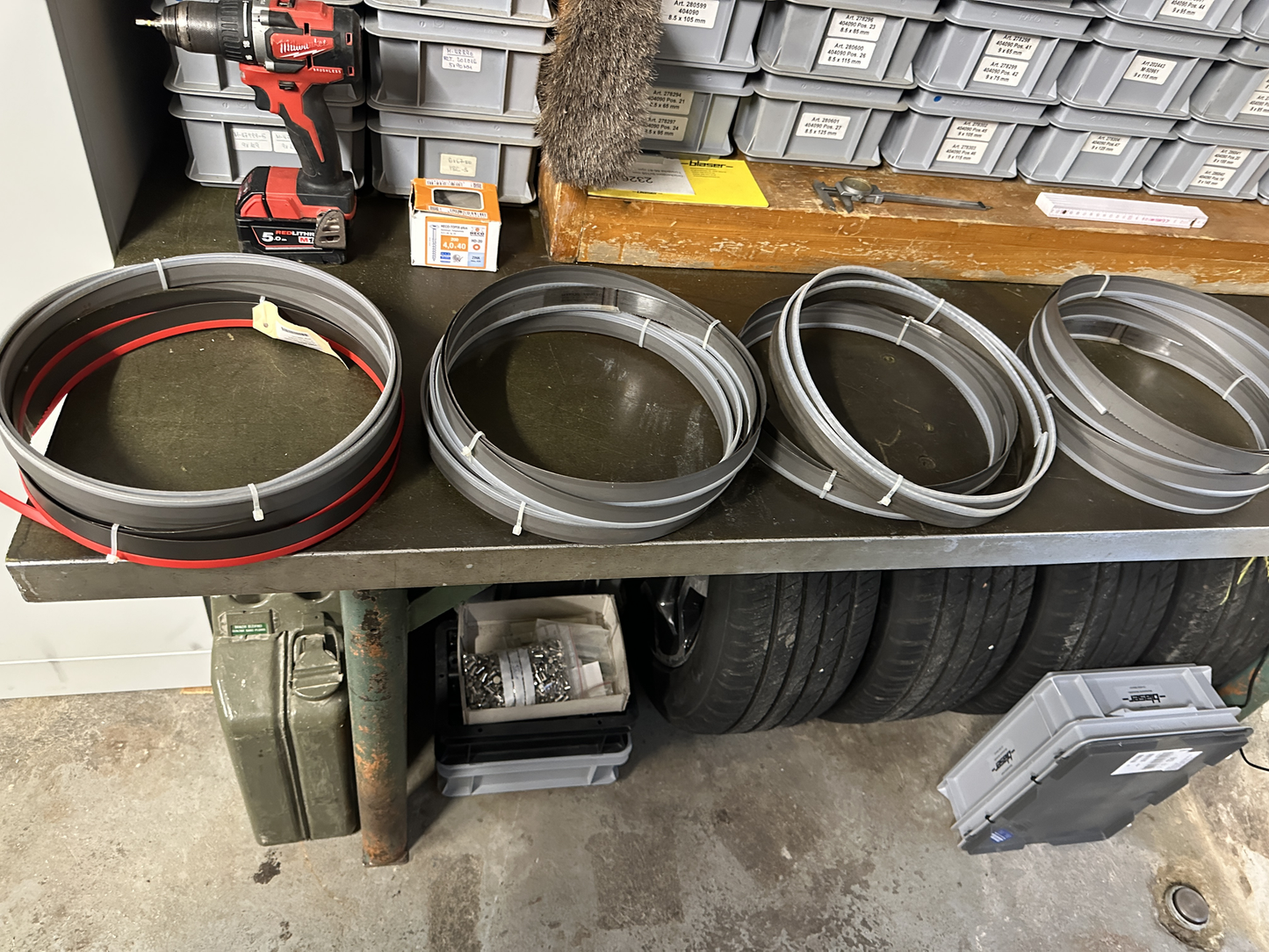

| Set of saw bands | |
| Roller conveyor | |
| Coolant system | 25 l |
