ANGELINI MAS 140
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
ANGELINI MAS 140 is a centre lathe engineered for precision, high accuracy and reliable performance. Working capacities: centre height 140 mm, distance between centres 800 mm, spindle hole 35 mm, taper in spindle MT/CM 5, taper in tailstock 3 CM. Main specifications: spindle speeds 8 steps from 45 to 2840 t/min; feeds 16 steps, longitudinal and frontal from 0.5 to 7 mm/t; voltage 50 Hz, 3x 380 Volt; machine weight about 720 kg; overall dimensions L1600 x W650 x H1200 mm. Accessories: 3-jaw chuck Ø160 mm, fixed steady, quick change tool holder, set of steel holders, set of gears, drilling tailstock, lathe chuck protection. Enables tight tolerances for applications in automotive, aerospace, watchmaking, medical and precision engineering.
| Centre height | 140 mm |
| Distance between centres | 800 mm |
| Spindle hole | 35 mm |
| taper in spindle: MT | 5 |
| Taper in spindle: | |
| Camlock | |
| Spindle speeds: | |
| number (steps) | 8 |
| from | 45 t/min |
| up to | 2840 t/min |
| Taper in tailstock: | 3 CM |
| Feeds: | |
| number (steps) | 16 |
| length: | |
| from | 0.5 mm/t |
| up to | 7 mm/t |
| Frontal: | |
| from | 0.5 mm/t |
| up to | 7 mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 720 kg |
| Overall dimensions machine: | |
| Length | 1600 mm |
| Width | 650 mm |
| Height | 1200 mm |

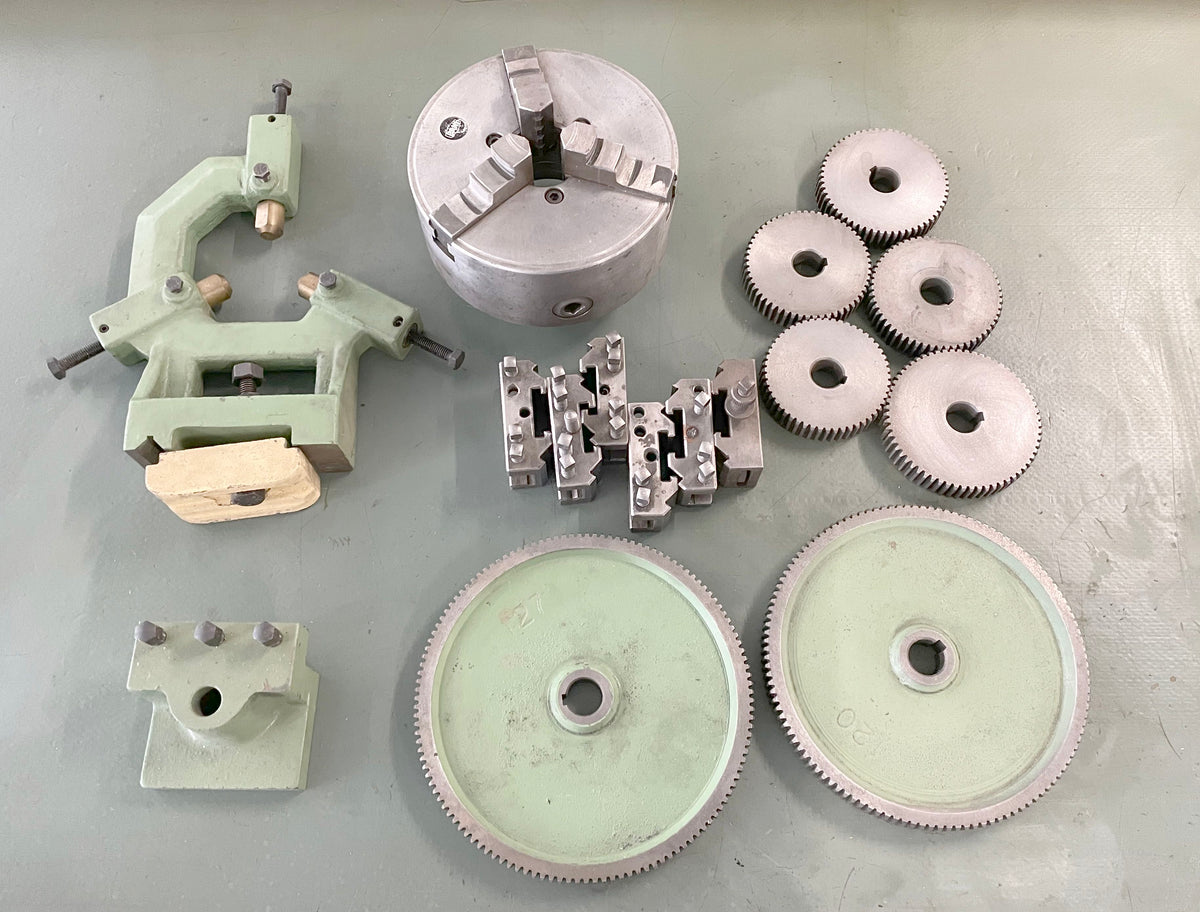

| Various accessories: | |
| 3-jaw chuck diameter | 160 mm |
| Fixed steady | |
| Quick change tool | |
| Set of steel holders | |
| Set of gears | |
| Drilling tailstock | |
| Lathe chuck protection |
