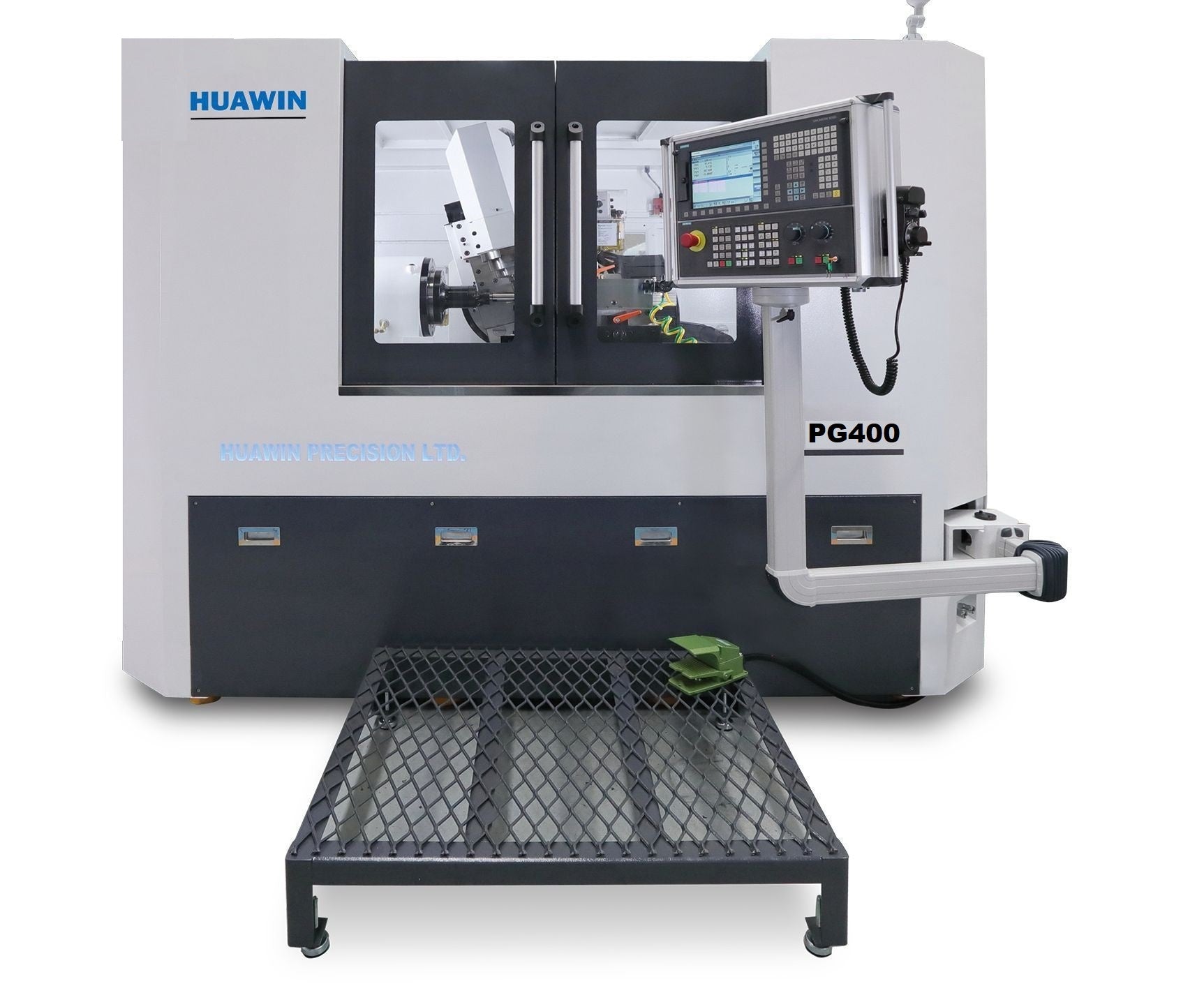

HUAWIN PG400
Type: PG400
Manufacturer: HUAWIN
Group: Gear grinding machine
Subgroup: CNC Gear grinding machine
Control: HUAWIN (FANUC / SIEMENS optional)
Stock: 022347

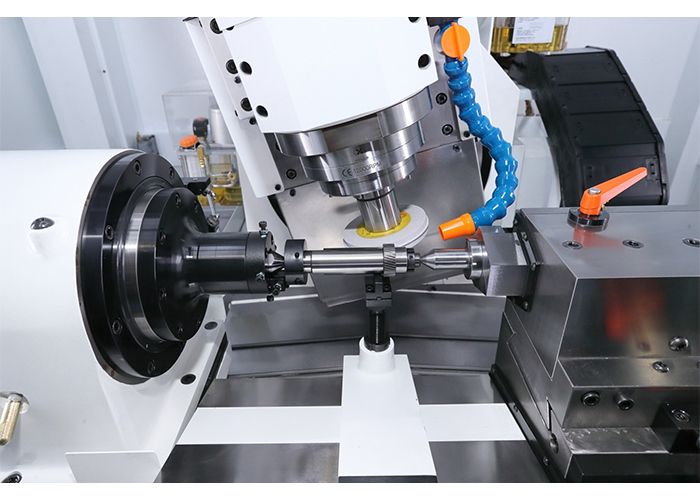

HUAWIN PG400 is a CNC gear grinding machine of high precision, engineered for superior accuracy and reliability. Working capacities: grinding diameter 30–400 mm; min. head diameter 20 mm; teeth 1–999; module 1–10; travels X 250 mm, Y 100 mm, Z 800 mm; C axis 360°; A axis ±45°. Key specs: max. speed 10,000 rpm; grinding spindle motor 17 kW; total power <20 kVA; supply 50 Hz, 3×400 V; machine weight ≈8,000 kg; overall size L 2600 × W 2370 × H 2155 mm. Achieves tight tolerances and is suited to automotive, aerospace, machine tools, medical and watchmaking industries.

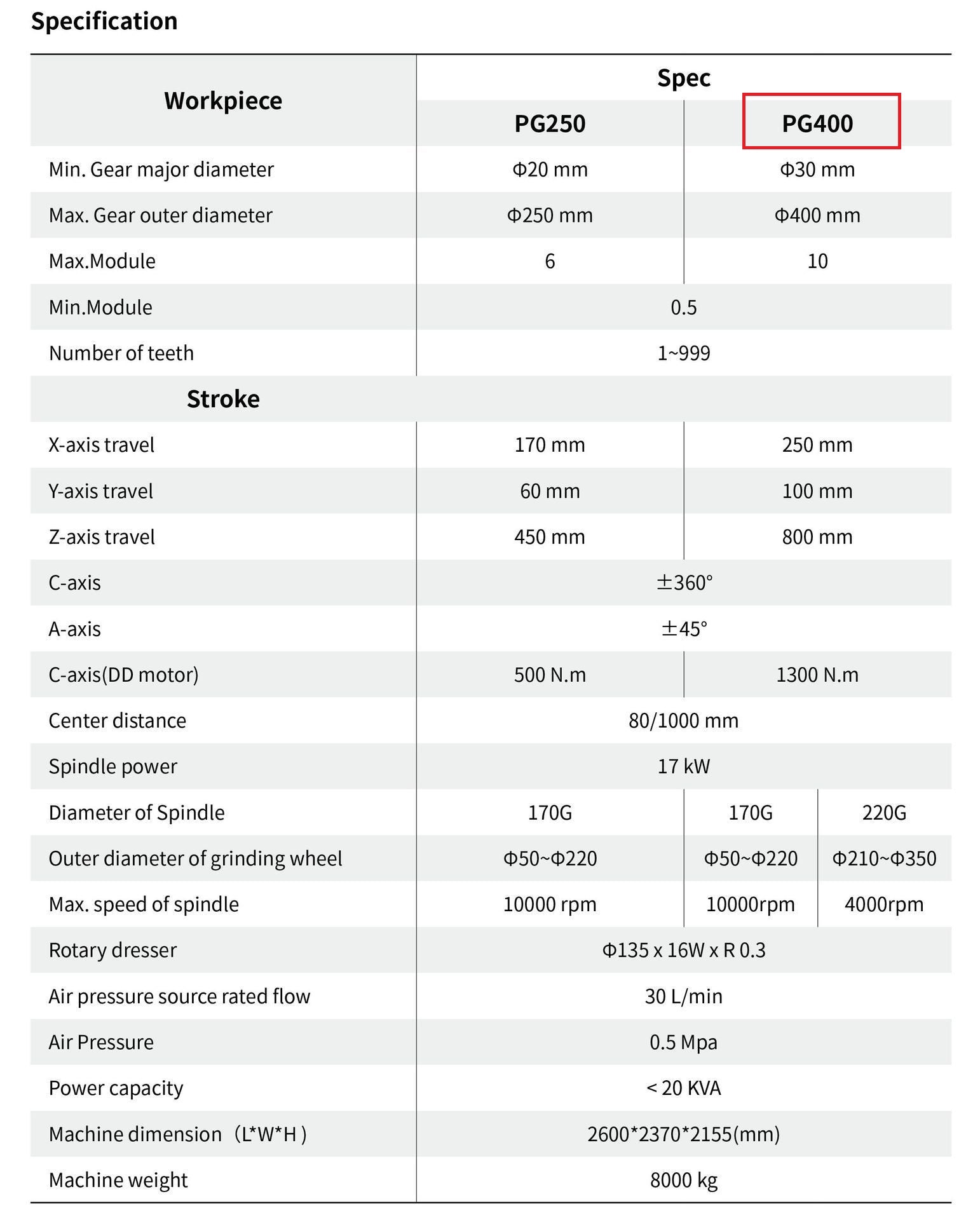

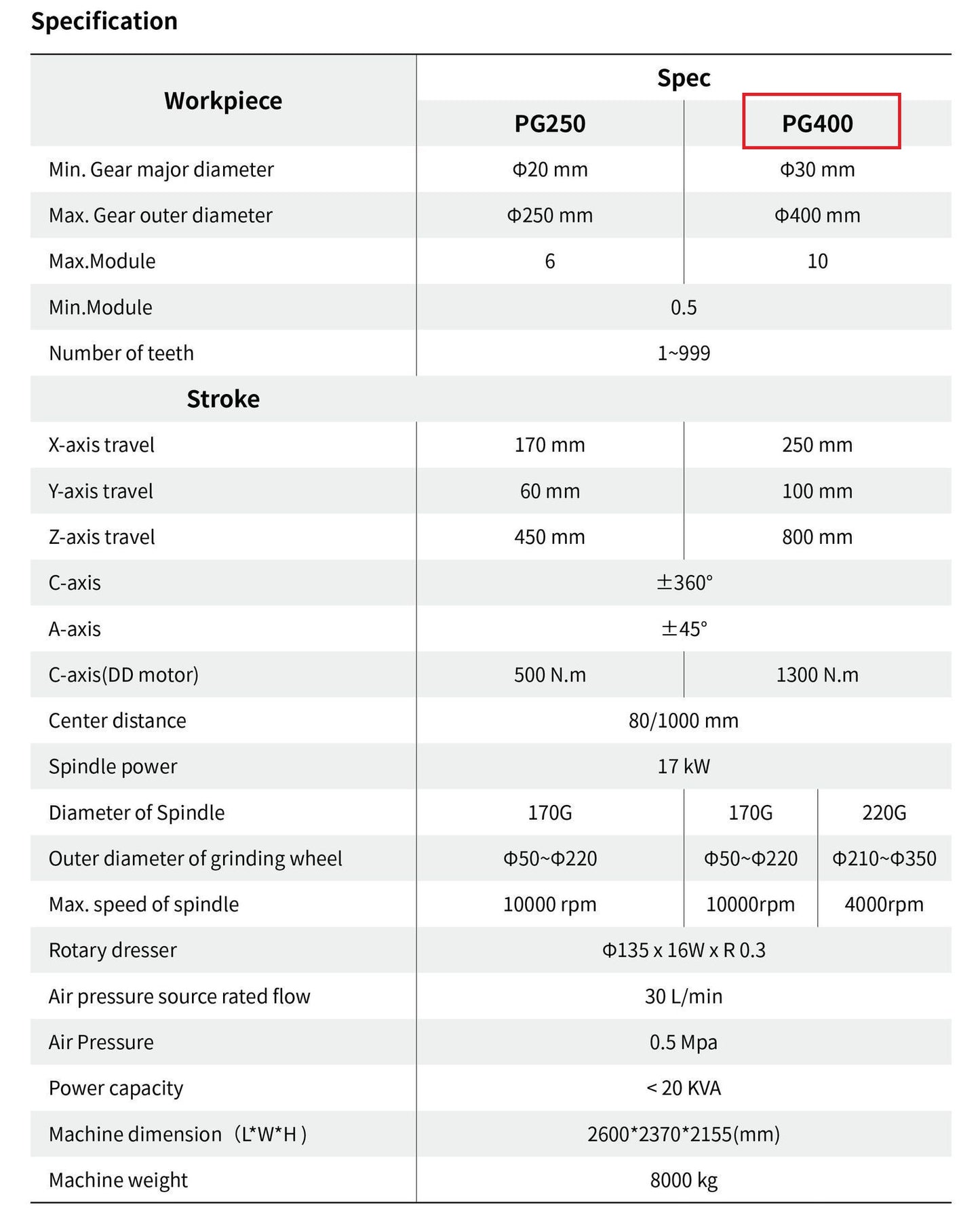

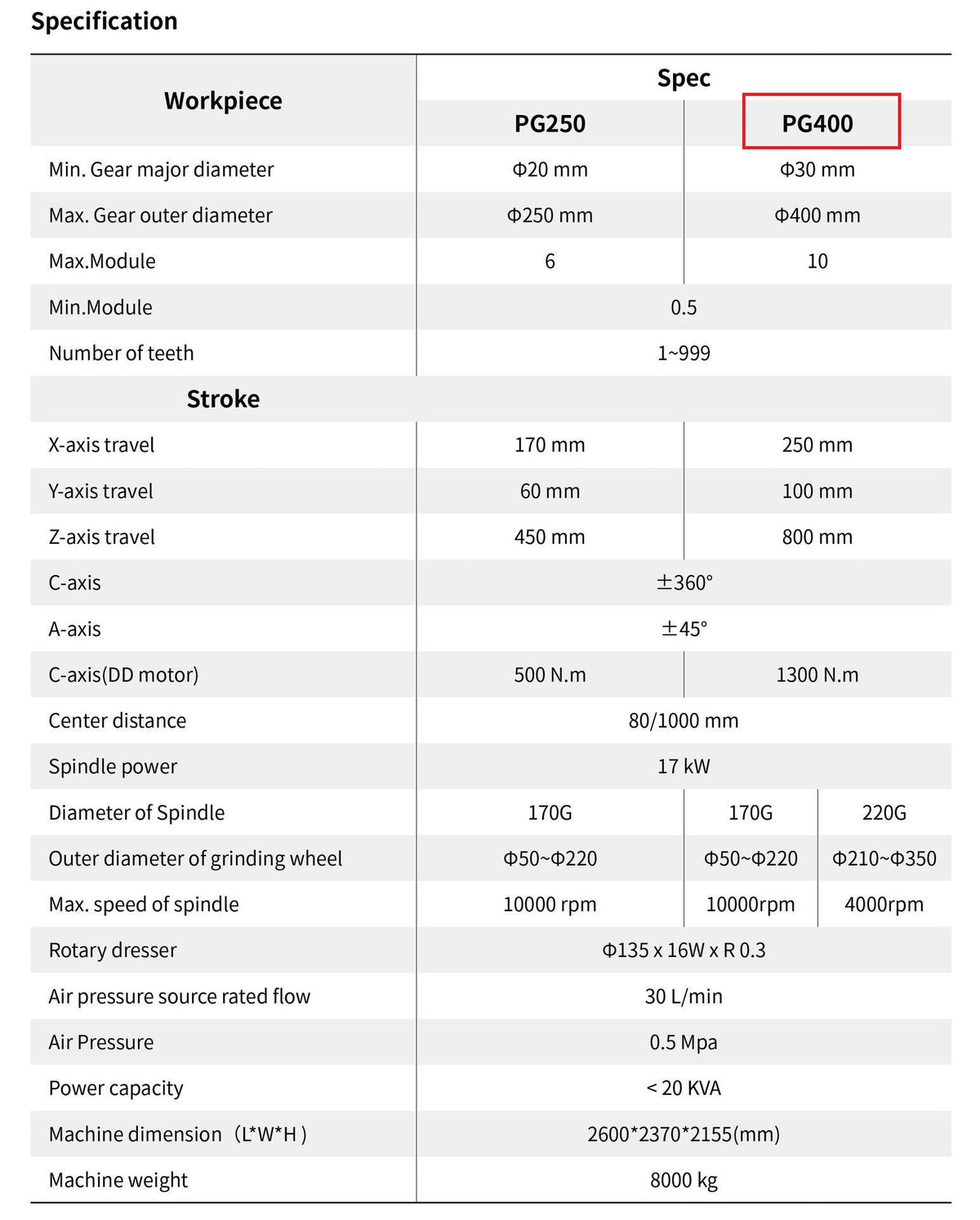

| Min. grinding diameter | 30 mm |
| Max. grinding diameter | 400 mm |
| Min. root diameter | 20 |
| Min. diametrical pitch | 1 |
| Max. diametrical pitch | 999 |
| Max. circular pitch (modul) | 10 |
| Min. circular pitch (modul) | 1 |
| Travels: | |
| X axis | 250 mm |
| Y axis | 100 mm |
| Z axis | 800 mm |
| C axis | 360 ° |
| A axis | +/-45 ° |
| max. speed | 10000 t/min |
| Grinding spindle motor | 17 kW |
| Total power required | <20 kVA |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 8000 kg |
| Overall dimensions machine: | |
| Length | 2600 mm |
| Width | 2370 mm |
| Height | 2155 mm |
