SCHAUBLIN 102 N is a Toolmakers lathe engineered for precision work, high accuracy and reliability. Capacity: centre height 102 mm, distance between centres 375 mm, swing over cross‑slide 120 mm, swing over bed 200 mm, 3‑jaw chuck Ø100 mm. Specs: spindle speeds 45–3100 rpm, step‑down gear 1:5, spindle motor 0.5/0.9 kW, voltage 3×380 V 50 Hz, weight ≈300 kg, machine L2000×W800×H1400 mm; bench L1600×W800×H800 mm, 3 drawers. Accessories: set of collets, drilling tailstock and chuck, rotary centre, quick‑change toolholders, set of steel holders. Suited for tight tolerances in watchmaking, toolmaking, automotive, aerospace and medical.
Technical specifications are subject to change without notice
| Centre height | 102 mm |
| Distance between centres | 375 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Inner taper type | 20 W |
| Spindle speeds: | |
| from | 45 t/min |
| up to | 3100 t/min |
| Step-down gear | 1:5 |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 0.5 / 0.9 kW |
| Machine's weight about | 300 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 800 mm |
| Height | 1400 mm |

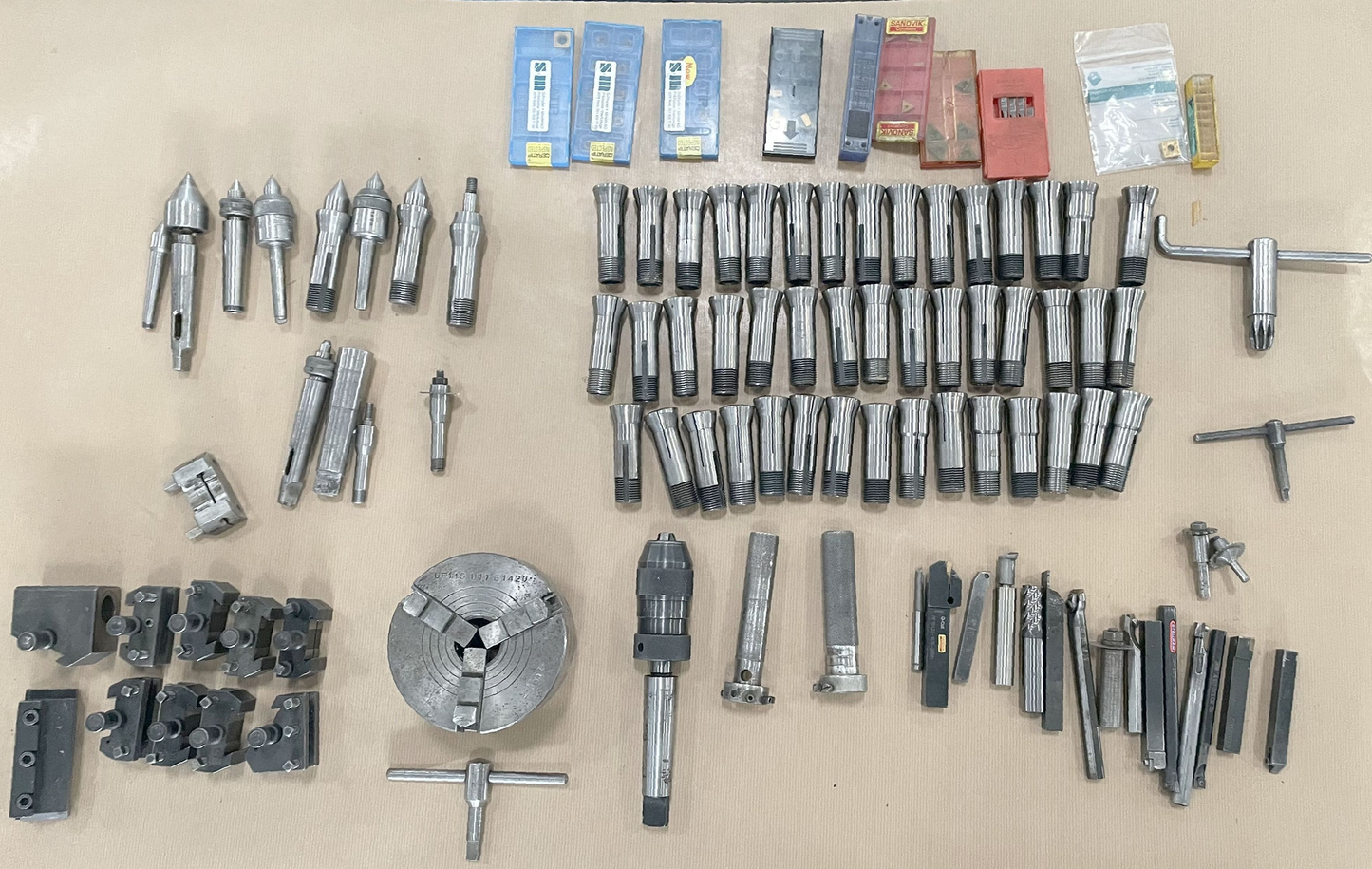

| Various accessories: | |
| Execution: | |
| Working bench: | |
| Length | 1600 mm |
| Width | 800 mm |
| Height | 800 mm |
| Drawer(s) | 3 |
| 3-jaw chuck diameter | 100 mm |
| Quick closing attachment | |
| Set of collets | |
| Drilling tailstock | |
| Rotary centre | |
| Set of centres | |
| Drill chuck | |
| Quick change tool | |
| Set of steel holders |
