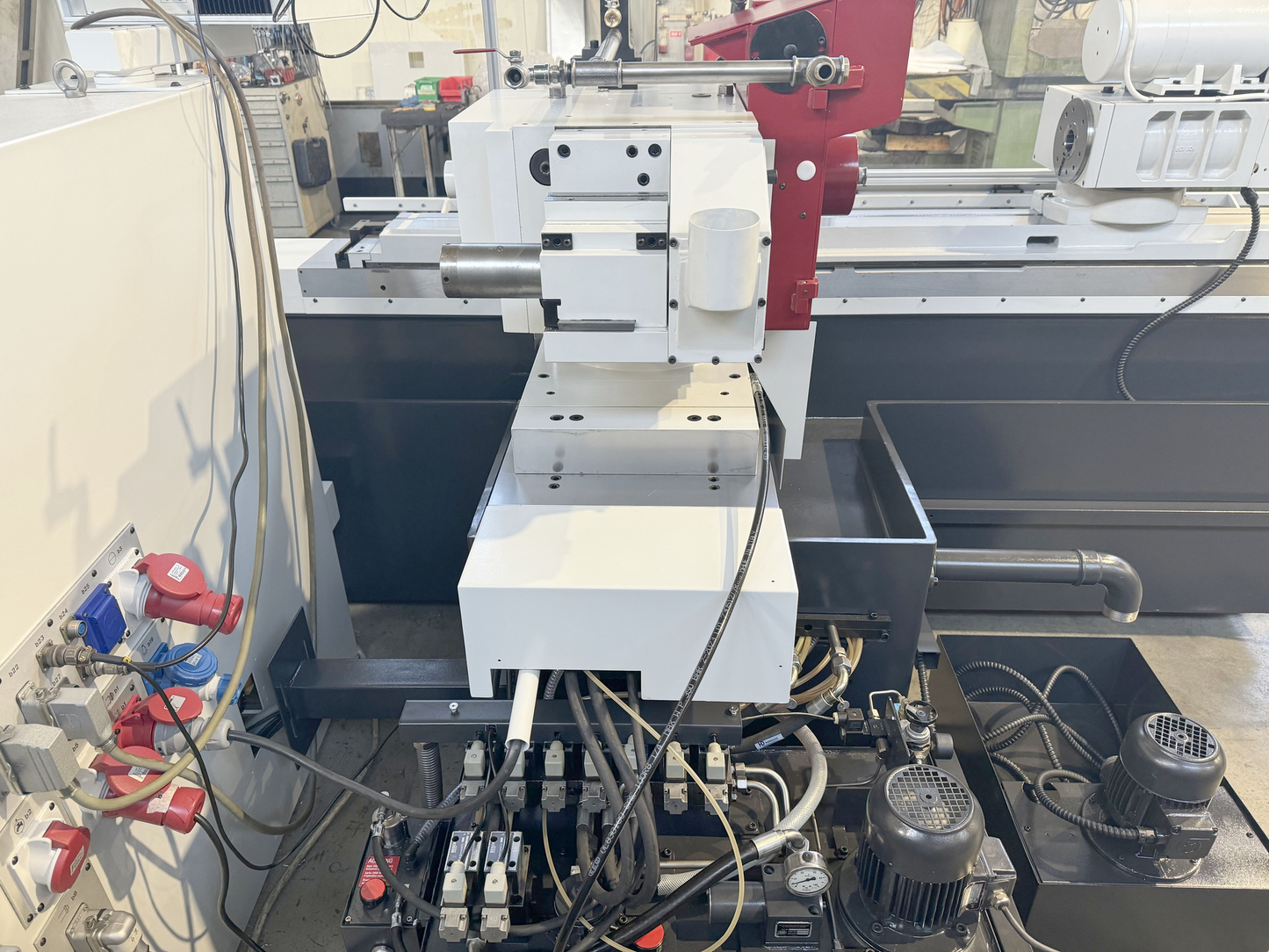

KELLENBERGER UR 175 x 1500 is a Cylindrical grinder engineered for precision, high accuracy and reliability. Working capacities: centre height 175 mm, distance between centres 1500 mm; grinding diameter 340 mm, grinding length 1500 mm; wheel Ø400×50 mm, bore 127 mm; table angular displacement 10°. Main specs: wheel speeds 4 steps 1500–3600 t/min, angular displacement 270°; workpiece spindle stepless 20–400 t/min, rotatable 360°; table speed stepless up to 6 m/min; external wheel motor 4.0 CV; 50 Hz 3x380 V; weight ≈2200 kg; overall 3000×1750×1600 mm. Accessories: tailstock with fine adjustment, internal grinding attachment, measuring control, redressing device, magnetic chuck Ø230 mm, wheel with flange, lamp, steady. Enables tight tolerances, suited to applications requiring high precision.
| Centre height | 175 mm |
| Distance between centres | 1500 mm |
| grinding diameter | 340 mm |
| Grinding length | 1500 mm |
| Grinding wheel: | |
| Diameter | 400 mm |
| Width | 50 mm |
| Bore | 127 mm |
| Grinding wheel speeds: | |
| number (steps) | 4 |
| from | 1500 t/min |
| up to | 3600 t/min |
| Angular displacement | 270 ° |
| Work piece spindle head: | |
| speeds: | |
| stepless | |
| from | 20 t/min |
| up to | 400 t/min |
| rotatable | 360 ° |
| Spindle taper | 3 CM |
| Taper in tailstock: | 3 CM |
| Table angular displacement | 10 ° |
| Table speed: | |
| stepless | |
| up to | 6 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| External Grinding wheel motor | 4.0 CV |
| Machine's weight about | 2200 kg |
| Overall dimensions machine: | |
| Length | 3000 mm |
| Width | 1750 mm |
| Height | 1600 mm |
| Various accessories: | |
| Tailstock with fine adjustement | |
| Internal grinding attachment | |
| Measuring control | |
| Redressing device | |
| Macnetic chuck diameter | 230 mm |
| Grinding wheel with flange | |
| Lamp | |
| Steady |
