STANKO 2N 150 is a Pillar drilling machine designed for precision, high accuracy and reliability. Working capacities: table 570 x 500 mm, 3 T-slots (110 mm spacing, 22 mm width), depth of throat 300 mm, drill depth (spindle stroke) 300 mm, spindle diameter 100 mm, 3-jaw chuck Ø 315 mm. Main specifications: taper MT 5, 12 spindle speeds from 22 to 1000 t/min, 12 feeds from 0.05 to 2.24 mm/t, spindle motor 3 CV, voltage 3x380 V 50 Hz, machine weight approx. 1200 kg, overall dims 1200 x 1200 x 2500 mm. Accessories: adjustable depth stop, dividing attachment with motor drive, foot pedal. Allows tight tolerances; typical applications: automotive, machine tools, aerospace, medical, watchmaking.
| Table length | 570 mm |
| Table width | 500 mm |
| Number of T-channels | 3 |
| Distance of the T-slots | 110 mm |
| T-channel width | 22 mm |
| Taper in spindle: MT | 5 |
| Depth of throat | 300 mm |
| Drill depth (spindle stroke) | 300 mm |
| Spindle diameter | 100 mm |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 22 t/min |
| up to | 1000 t/min |
| Feeds: | |
| number (steps) | 12 |
| from | 0.05 mm/t |
| up to | 2.24 mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 3 CV |
| Machine's weight about | 1200 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 1200 mm |
| Height | 2500 mm |
| Various accessories: | |

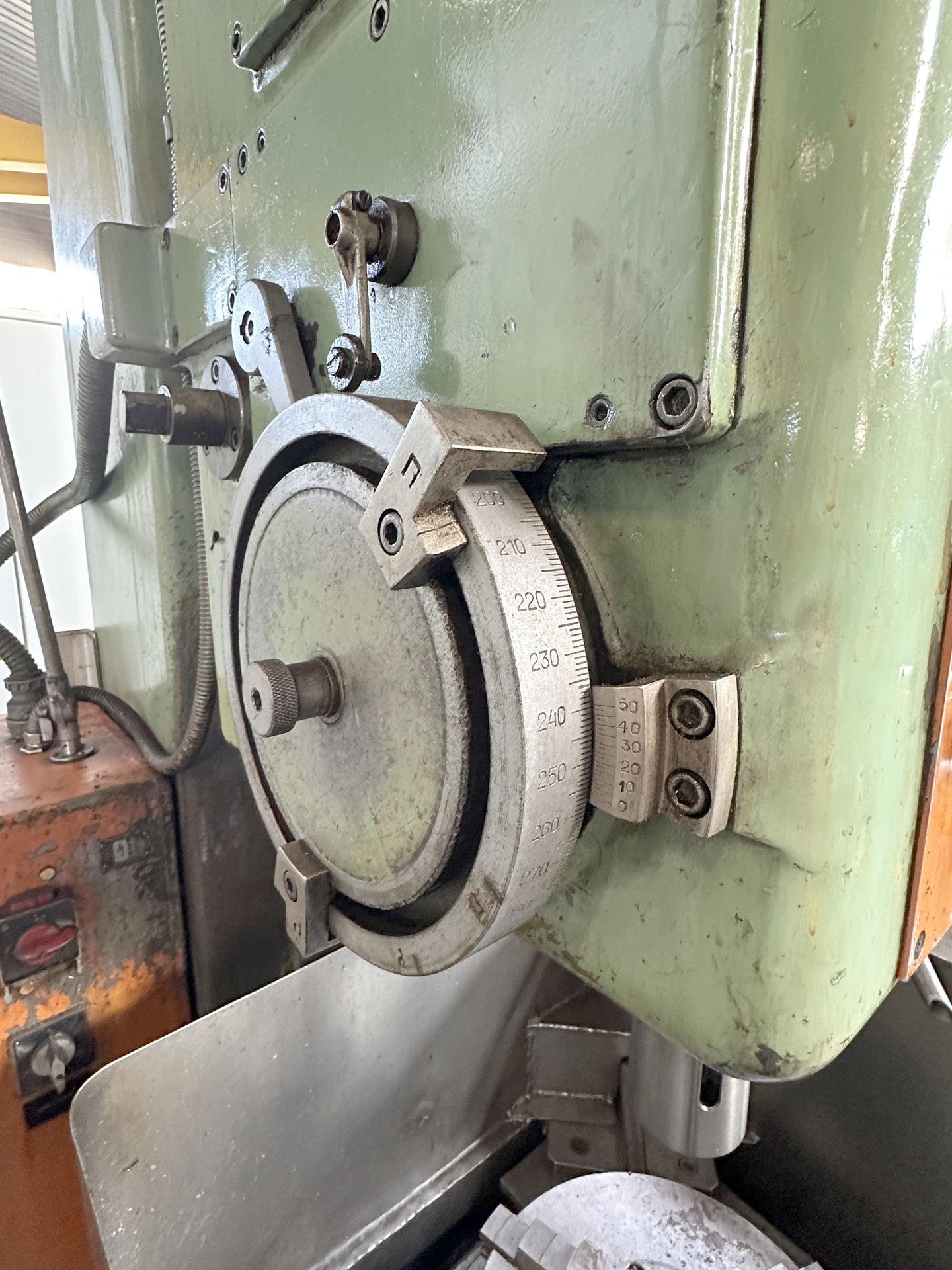

| Adjustable depth stop | |
| Dividing attachment | |
| with motor drive | |
| 3-jaw chuck diameter | 315 mm |
| Foot pedal |
