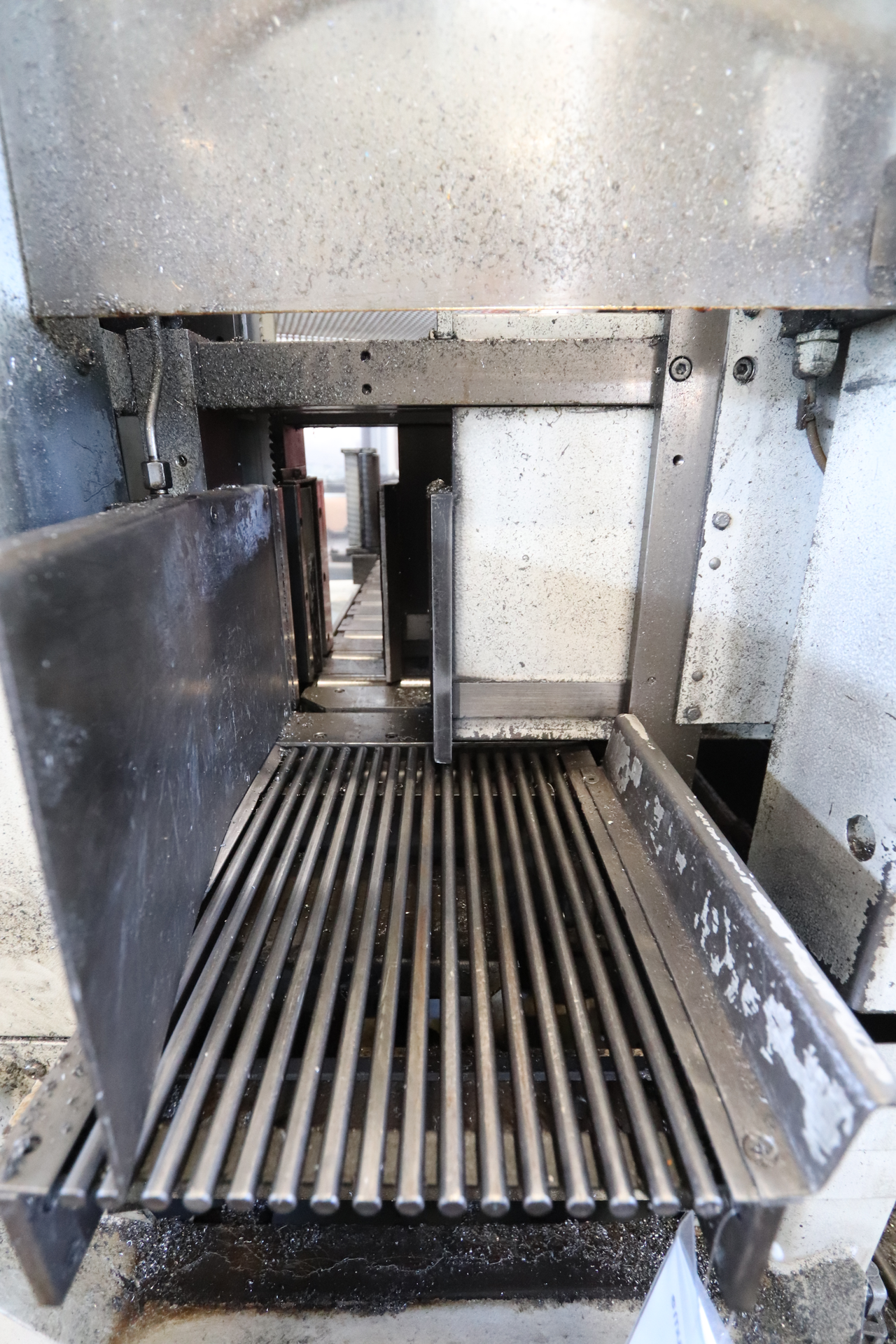

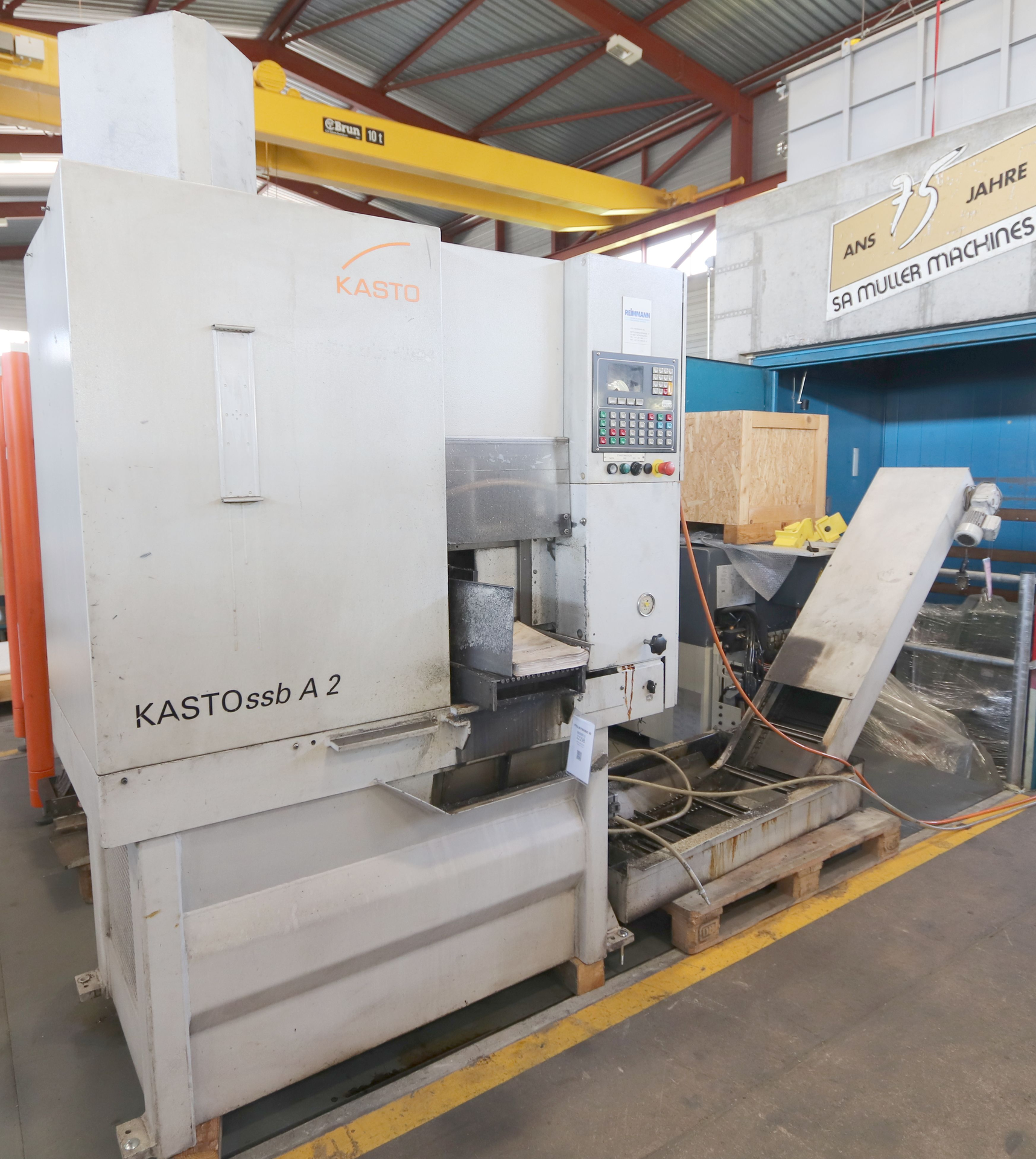

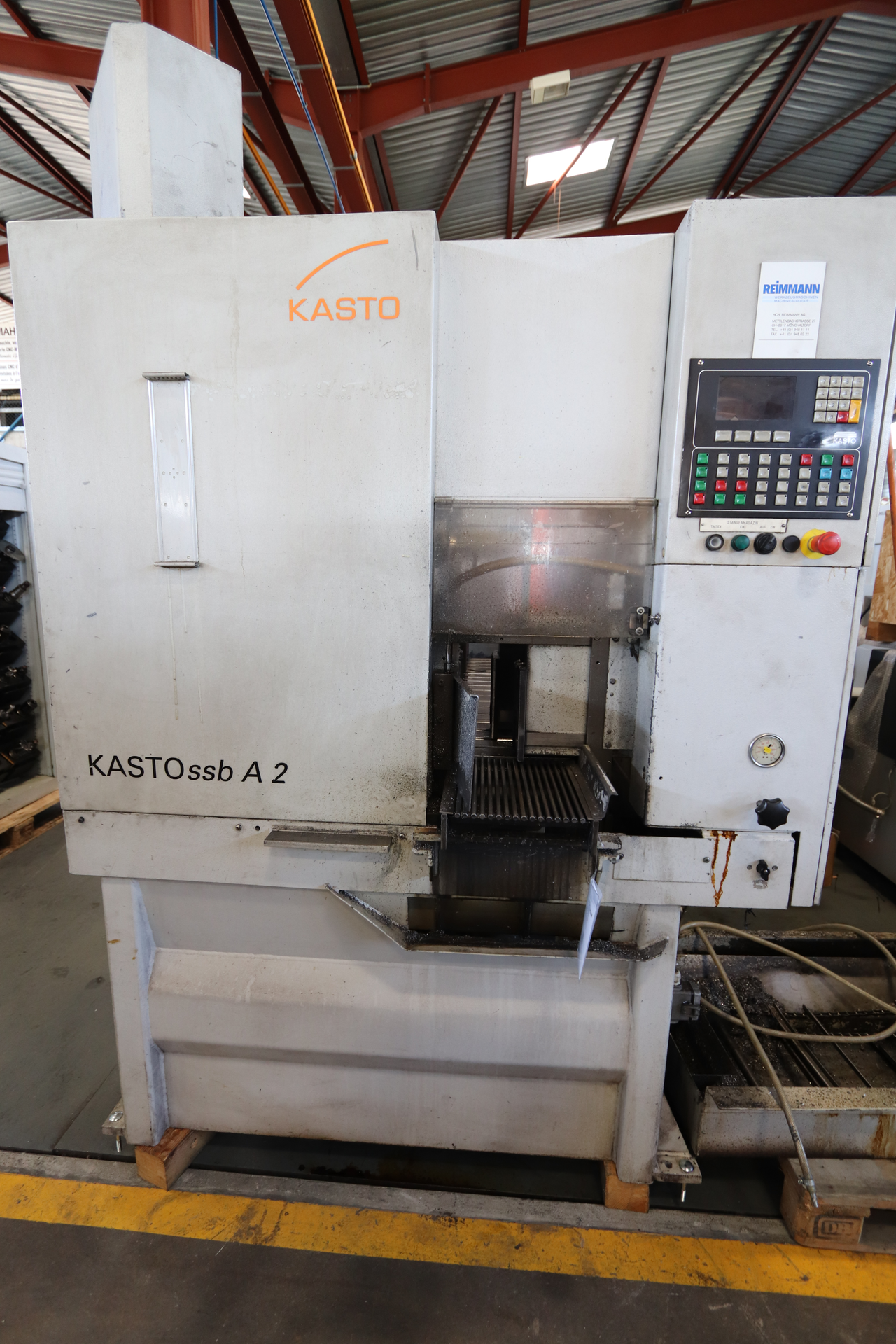

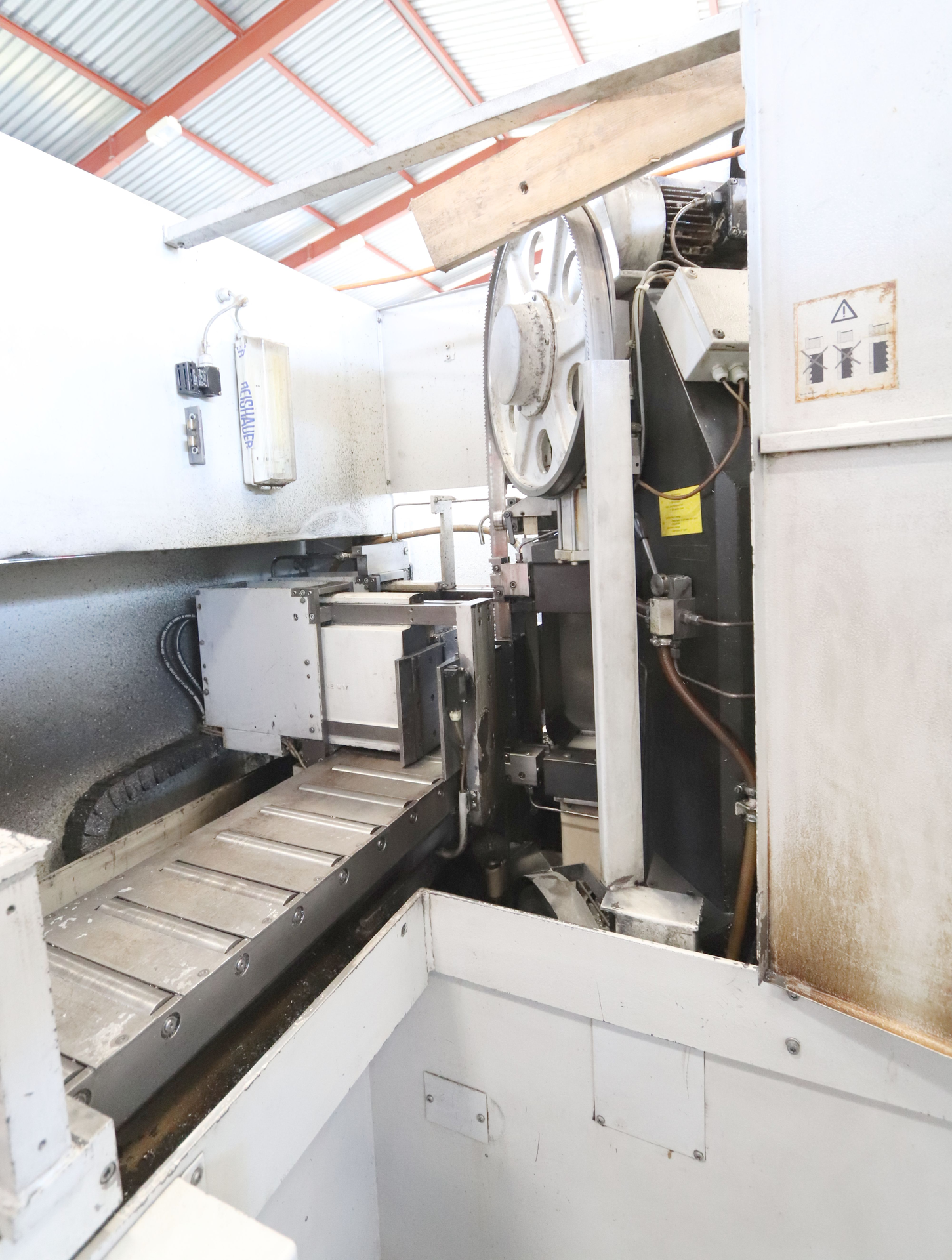

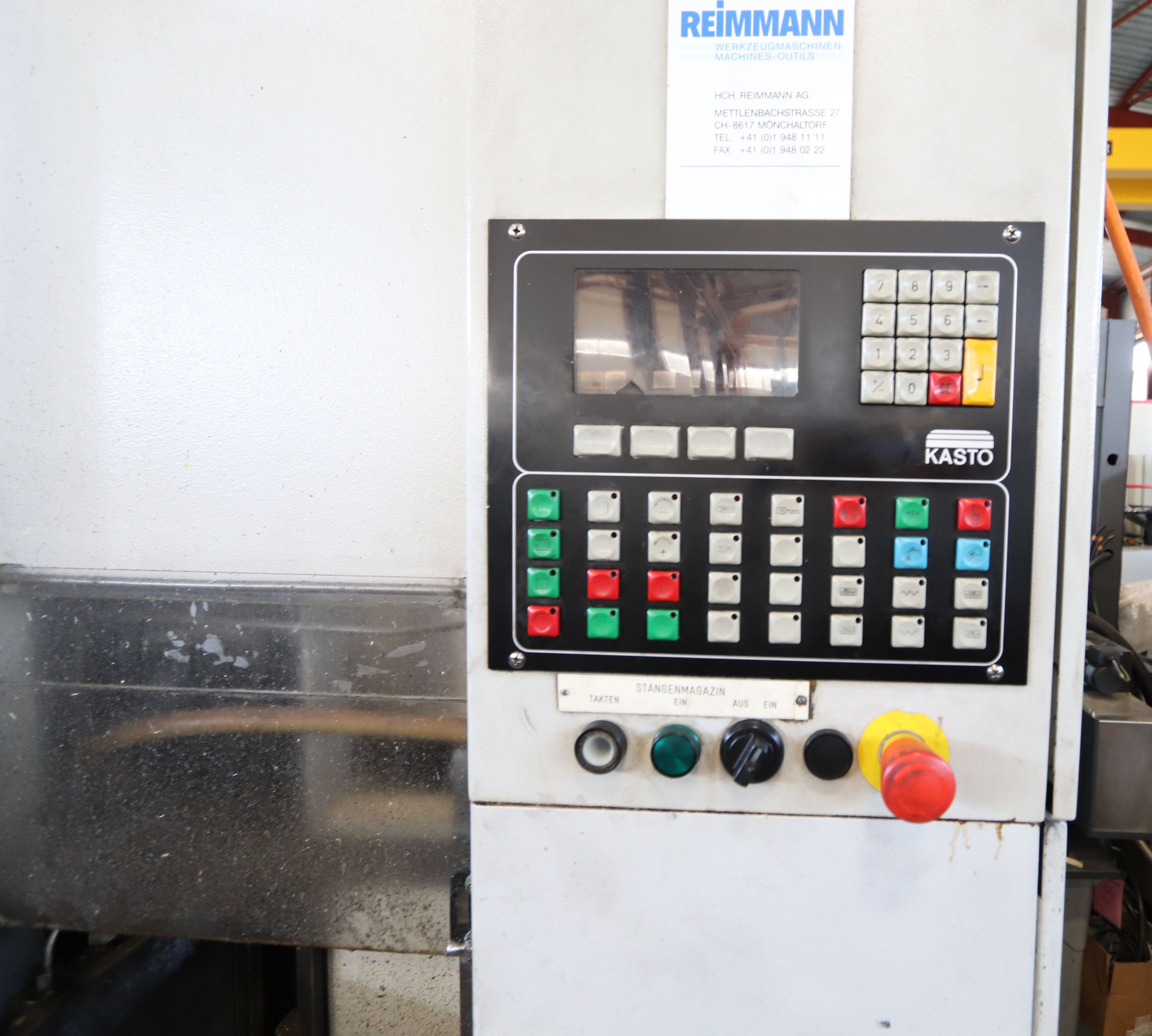

022298 - KASTO SSB 260 VA
Type: SSB 260 VA
Manufacturer: KASTO
Group: Band saw
Subgroup: Band saw
Year: 2000
Stock: 022298

Special Price

CHF 6 000

Special offer machines are sold as-is, without any warranty or inspection from us.

Download technical sheet (PDF)
KASTO SSB 260 VA is a Band saw designed for precision, high accuracy and reliable performance. Capacities: round and square up to 260 mm; min. diameter 10 mm; cutting length 5–600 mm; min. leftover 10 mm. Specs: band 4115 mm × 41 mm × 1 mm; stepless band speed 15–125 m/min; saw motor 4 kW; power 8 kW; 3x380 V 50 Hz; weight ≈2200 kg; dimensions L2400×W1600×H2500 mm. Equipment: automatic feed, 1 m material support, roller conveyor, coolant system, chip conveyor. Achieves tight tolerances; typical sectors: automotive, precision engineering, aerospace, medical.

Cut range: round up to 260 mm
   Square 260 mm
diameter min. 10 mm
Smallest cutting length 5 mm
Outstanding length min. 10 mm
   vertical
   hydraulic
   Automatic
Cut length:
   min. 5 mm
   max 600 mm
Max. automatic forward
   feed length 600 mm
   stepless
   from 15 m/min
   up to 125 m/min
Band length 4115 mm
Band width 41 mm
Sheet thickness 1 mm
Voltage 50 Hz 3x 380 Volt
Saw motor driving power 4 kW
Power 8 kW
Machine's weight about 2200 kg
Overall dimensions machine:
   Length 2400 mm
   Width 1600 mm
   Height 2500 mm
Various accessories:
Automatic forward feed
Material bearing lenght 1 m

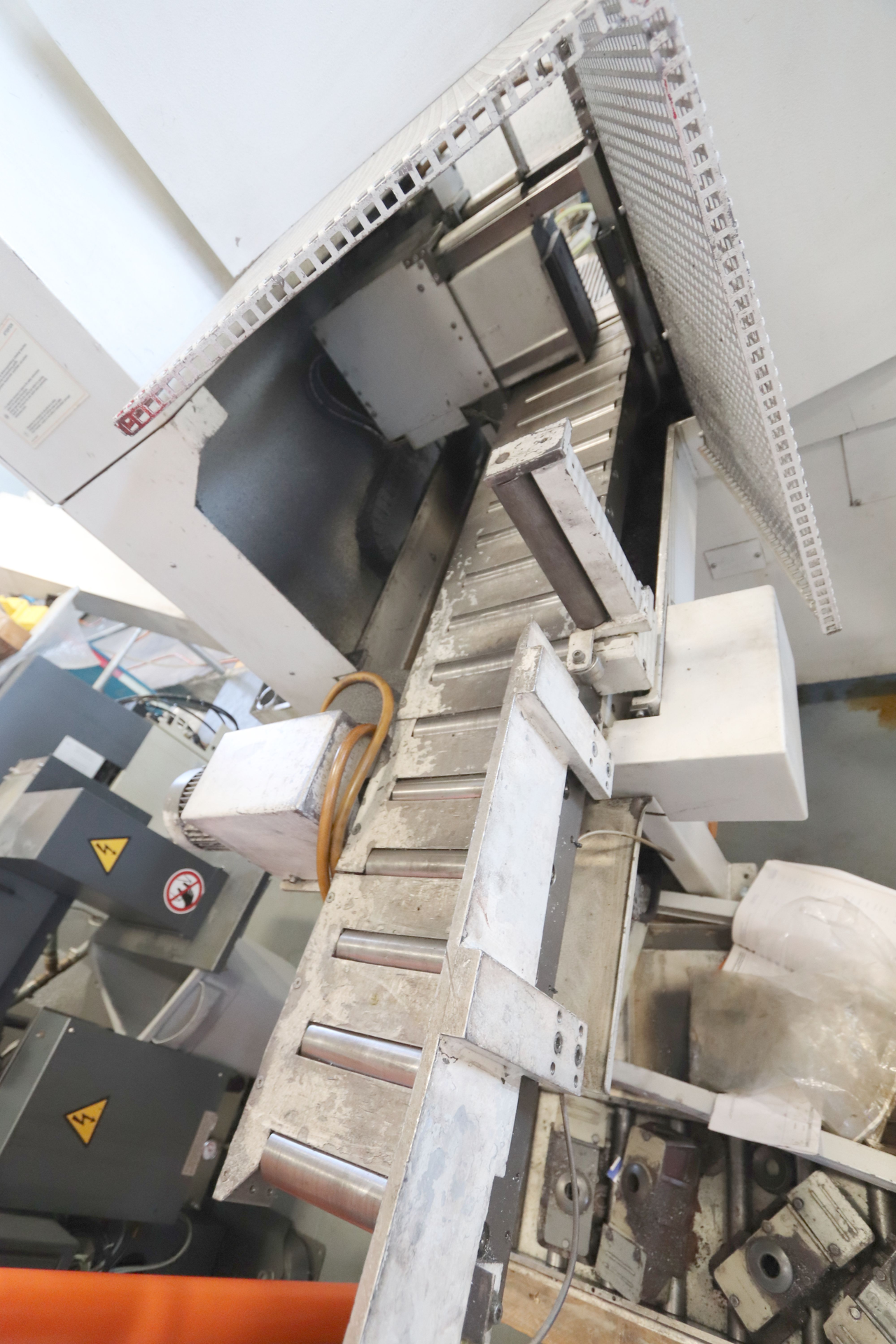

Roller conveyor
Coolant system

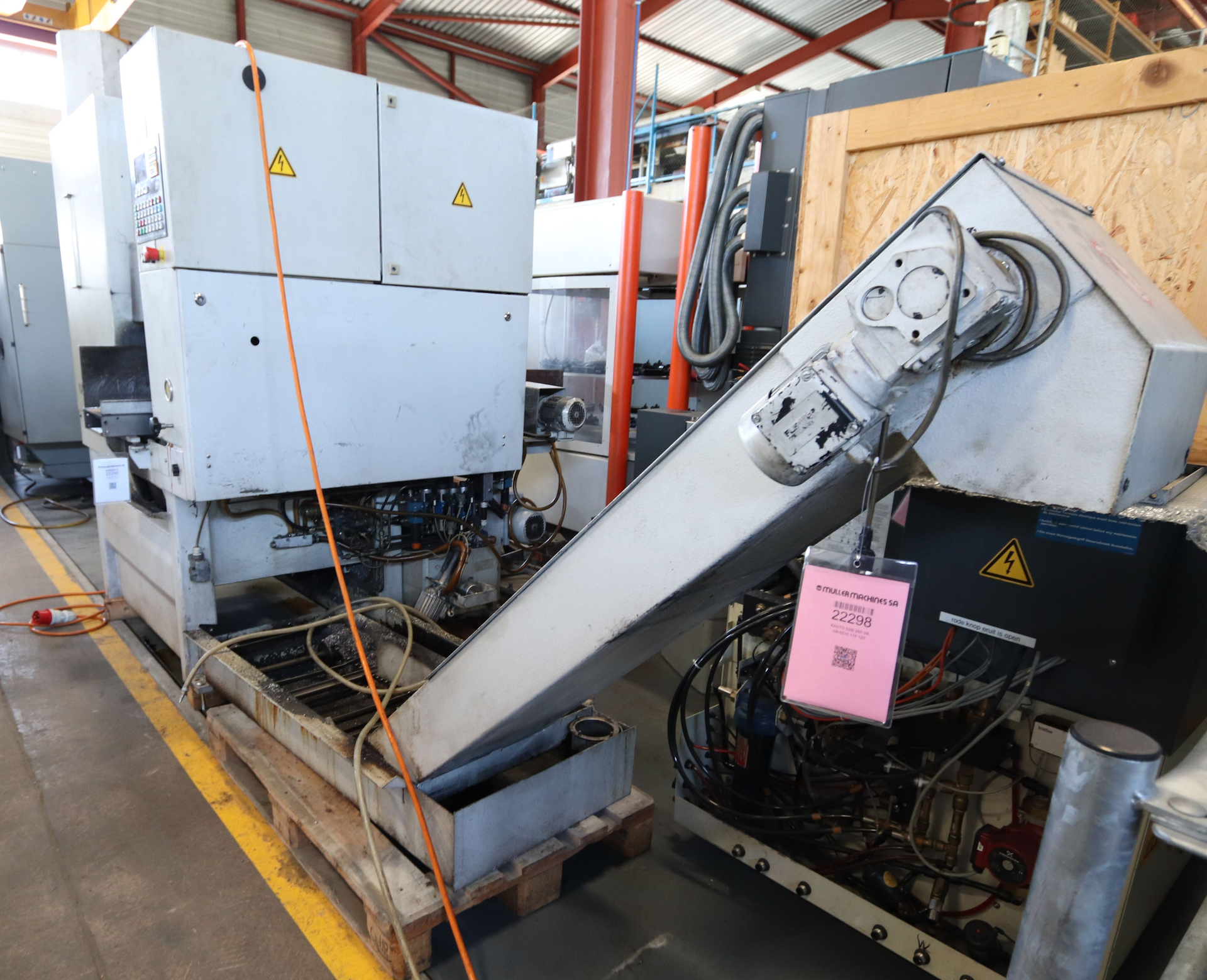

Chip conveyor
