DECKEL FP 3 is a Universal milling machine delivering precision, high accuracy and reliable performance. Table 800×420 mm with 9 T-slots (12 mm, 45 mm pitch); travels X 500 mm, Y 300 mm, Z 400 mm; spindle-to-table distance 470 mm; table load max. 400 kg. Spindle taper CN40, 21 steps 25–2500 t/min; feeds 5–500 mm/min; vertical quill travel 100 mm; rapid traverses 1.5 m/min on all axes. Supply 3×380 V 50 Hz, motor 4 kW; overall 2200×1800×2000 mm; weight ≈1250 kg. Accessories: mechanical handwheels, dividing attachment, 3-axis DRO, swivelling rotary table Ø450 mm, boring head, slotting head, set of toolholders, centering microscope, centring/testing device, grinding head with grinding motors 15k–30k and 30k–60k t/min. Built to achieve tight tolerances; suited for automotive, watchmaking, toolmaking, aerospace and medical sectors
| Table length | 800 mm |
| Table width | 420 mm |
| Number of T-channels | 9 |
| T-channel width | 12 mm |
| Distance of the T-slots | 45 mm |
| Longitudinal travel (X-axis) | 500 mm |
| Transversal travel (y axis) | 300 mm |
| Vertical travel (z axis) | 400 mm |
| Distance from vertical spindle to table | 470 mm |
| Table load max. | 400 kg |
| Spindle speeds: | |
| number (steps) | 21 |
| from | 25 t/min |
| up to | 2500 t/min |
| Taper in spindle CN | 40 |
| Swivel range Vertical milling head | +/-90 ° |
| Feeds | 5 - 500 mm/min |
| Vertical quill travel | 100 mm |
| Rapid traverse: | |
| longitudinal | 1.5 m/min |
| transversal | 1.5 m/min |
| vertical | 1.5 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor power | 4 kW |
| Machine's weight about | 1250 kg |
| Overall dimensions machine: | |
| Length | 2200 mm |
| Width | 1800 mm |
| Height | 2000 mm |
| Various accessories: | |

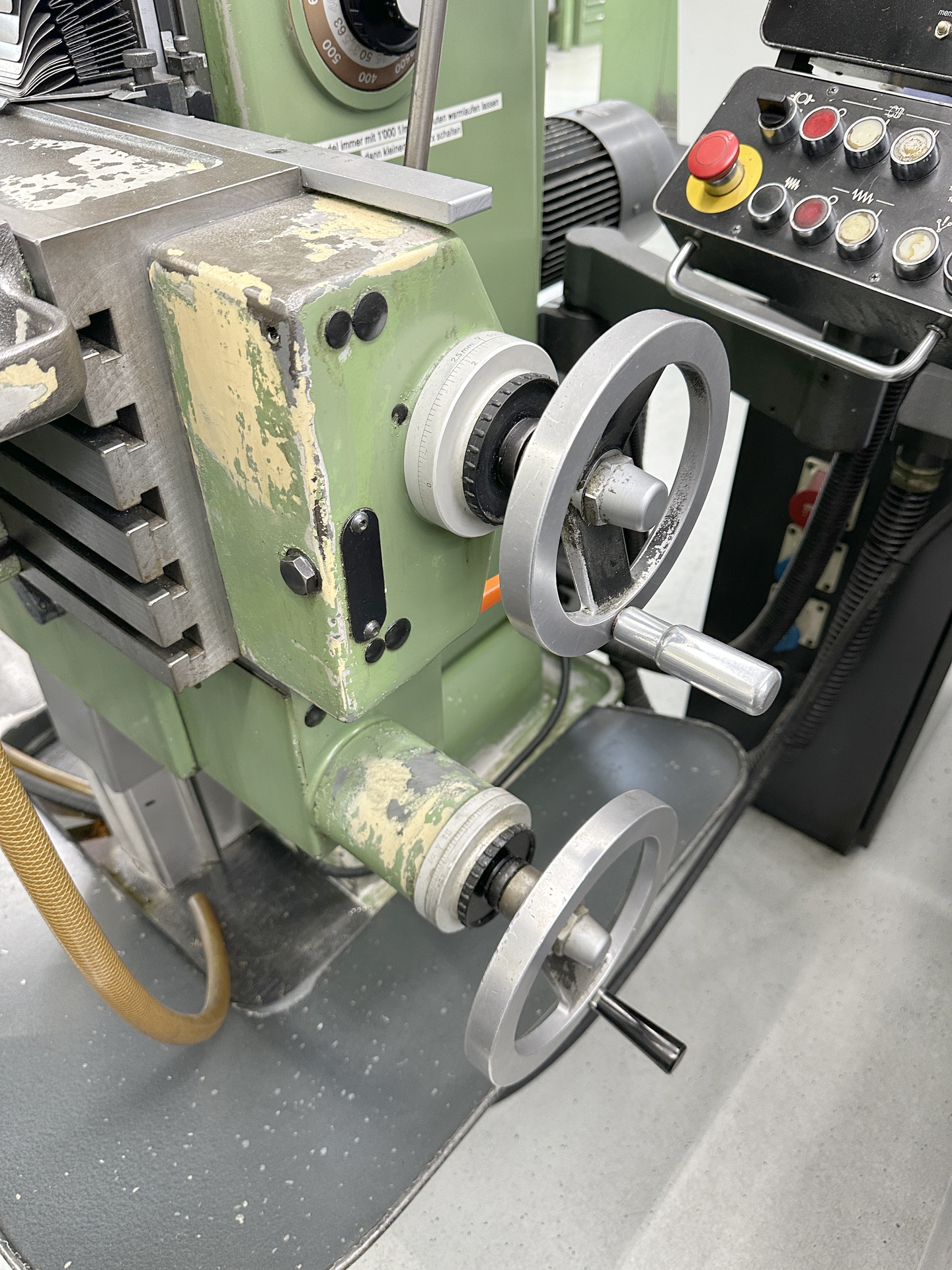

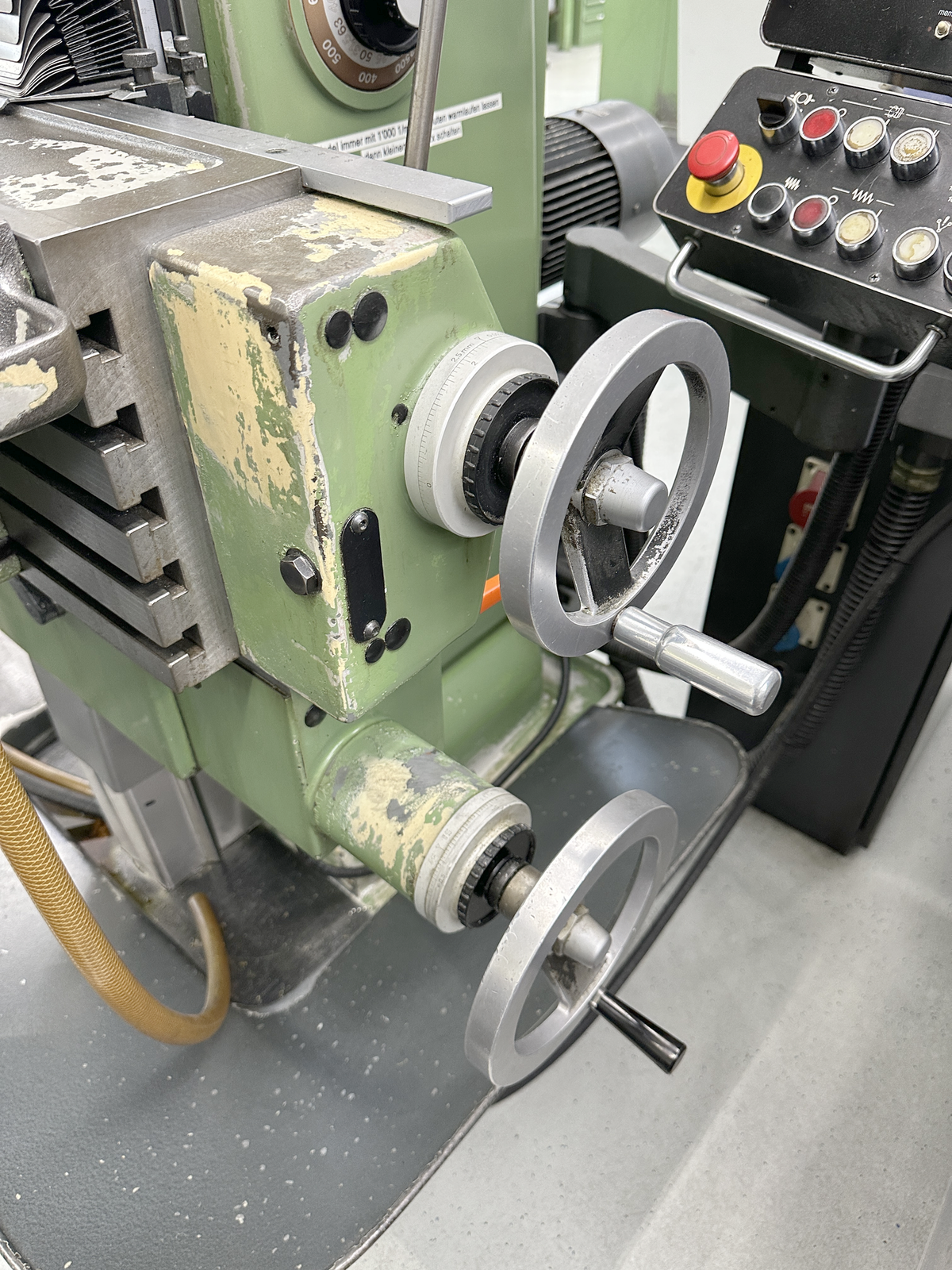

| Mechanical handwheels | |
| Dividing attachment | |
| Centre height | 100 mm |
| Digital readout number of axis: | 3 |
| Rigide table | |
| Swivelling rotary table | |
| Diameter | 450 mm |
| Boring head | |
| Slotting head | |
| Set of toolholders | |
| Centering microscop | |
| Centring and testing device | |
| Grinding head | |
| Grinding motor | 30000 - 60000 t/min |
| Grinding motor | 15000 - 30000 t/min |
