TSUGAMI-MORI B012 AE
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

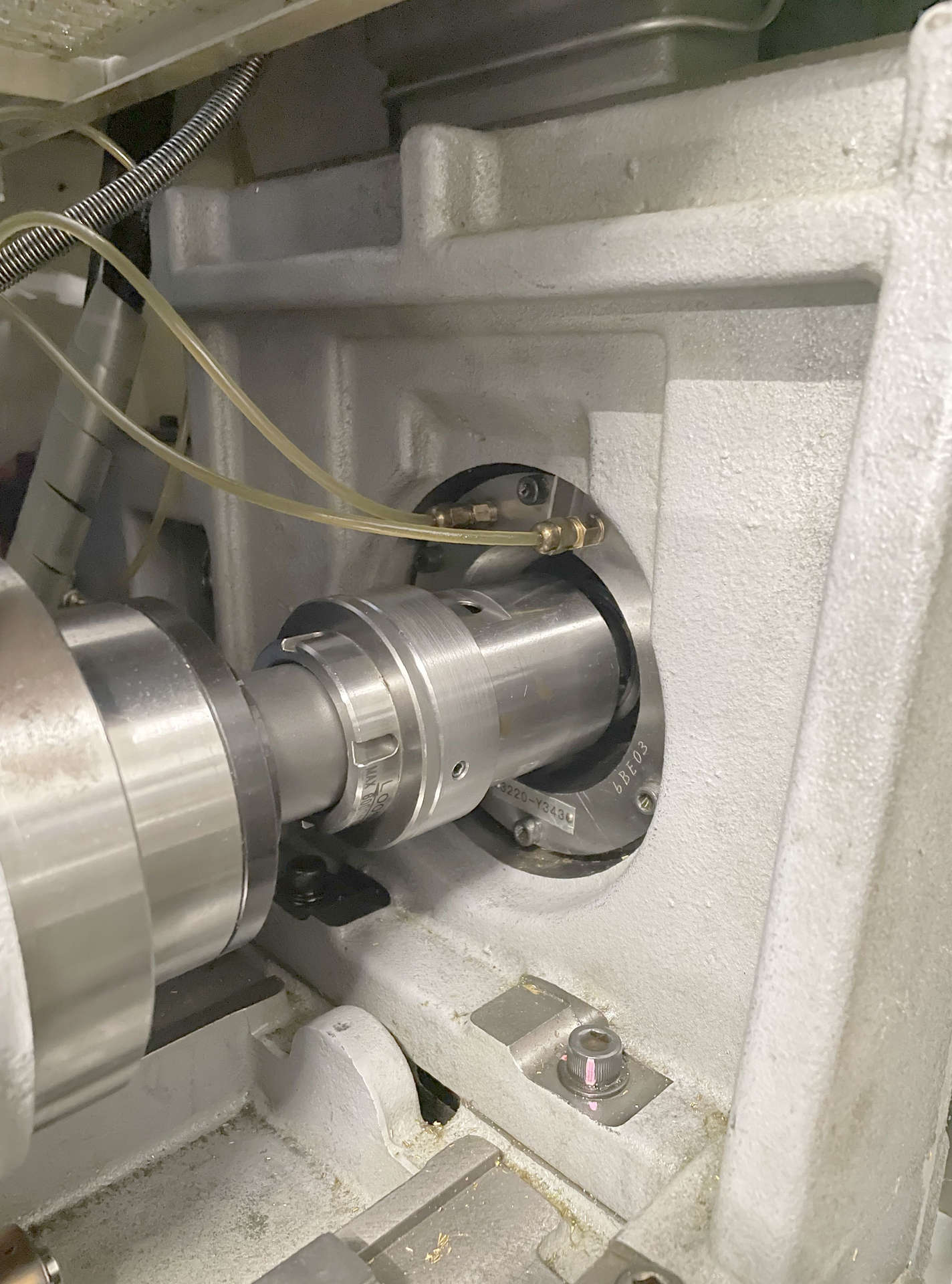

TSUGAMI-MORI B012 AE is a CNC automatic lathe / CNC Swiss type lathe of high precision, providing excellent accuracy and reliability. Capacities: max machining Ø 12 mm, max turning length 140 mm, bar Ø 3–12 mm, max drilling Ø 7 mm, threading up to 6 M. Specs: 3 axes, 1 spindle, speeds 200–12,000 t/min (stepless), 10 stations, turning tools 5, drilling 3, transverse 2, rapid traverse 18 m/min, spindle motor 1.5/2.2 kW, 3x200 V 50 Hz, air 5 bar, total 7 kVA, weight ~1400 kg, size 1700×900×1660 mm. Accessories: parts catcher, lamp, coolant system. Delivers tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace, medical sectors
| Number of axis total | 3 |
| Number of spindles | 1 |
| Machining diameter max. | 12 mm |
| Maximum turning length | 140 mm |
| Max. drilling diameter | 7 mm |
| Max. threading diameter | 6 M |
| Max. bar diameter | 3 - 12 mm |
| Spindle speeds: | |
| stepless | |
| from | 200 t/min |
| up to | 12000 t/min |
| Tool-holder: | |
| Number of stations | 10 |
| Turning tools | 5 pce |
| Drilling tools | 3 pce |
| Transverse processing tools | 2 pce |
| Rapid traverse: | 18 m/min |
| Voltage 50 Hz 3x | 200 Volt |
| Spindle motor | 1.5 / 2.2 kW |
| Air connect | 5 bar |
| Total power required | 7 kVA |
| Machine's weight about | 1400 kg |
| Overall dimensions machine: | |
| Length | 1700 mm |
| Width | 900 mm |
| Height | 1660 mm |
| Various accessories: | |
| Parts catcher | |
| Lamp | |
| Coolant system |
