| Slide pressure | 80 to |
| Hydraulic hold down | 25 to |
| Fixed table: length | 470 mm |
| Width | 420 mm |
| Executon number of columns | 4 |
| Tool clamping surface: | |
| superior: length | 400 mm |
| Width | 400 mm |
| inferior: length | 470 mm |
| Width | 420 mm |
| Number of strokes: | |
| from | 28 c/min |
| up to | 72 c/min |
| Steel thickness | 5 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Main motor | 12 kW |
| Machine's weight about | 6000 kg |
| Overall dimensions machine: | |
| Length | 1600 mm |
| Width | 1400 mm |
| Height | 2500 mm |

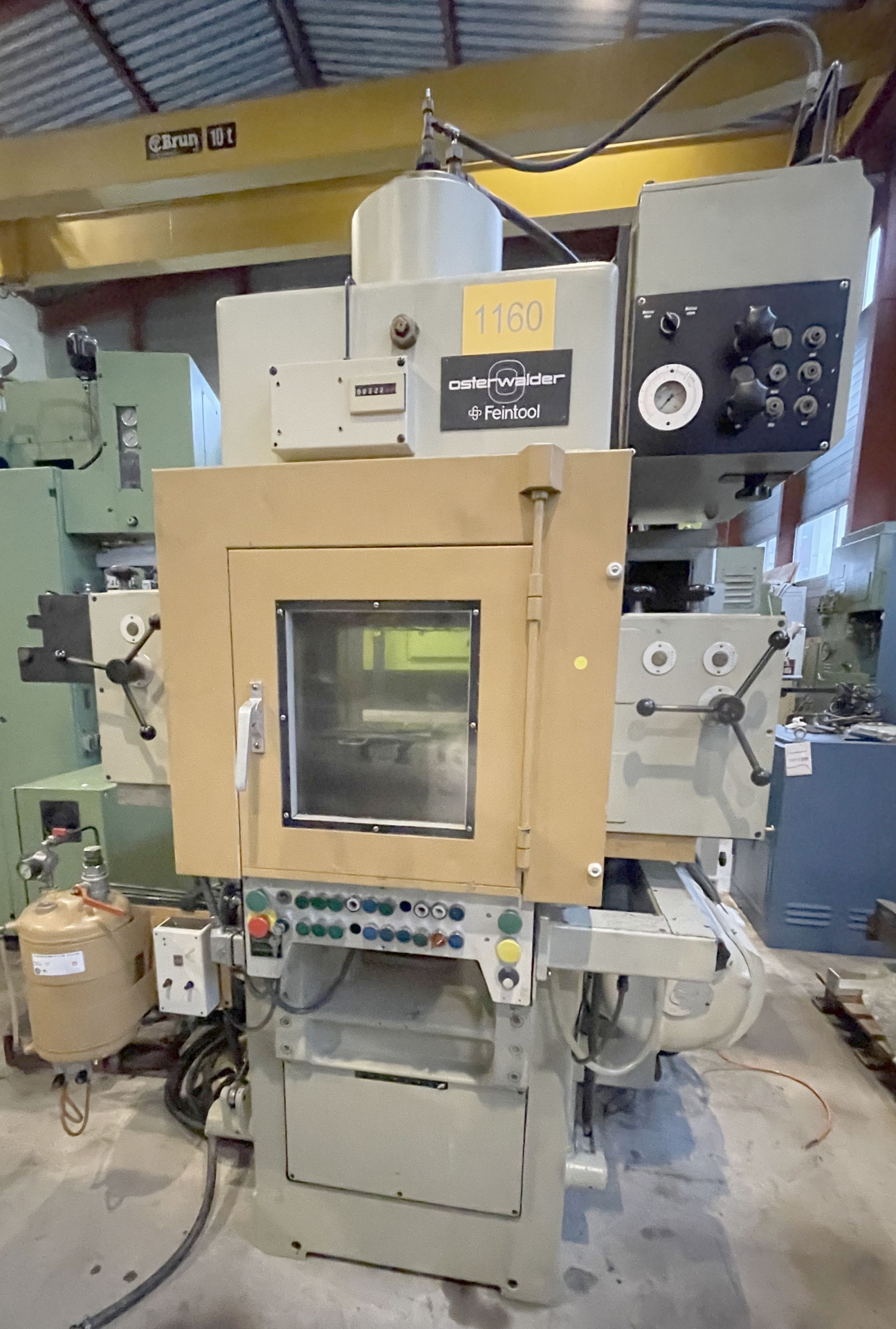

FEINTOOL 50/80 is a Fine blanking Machine offering precision, high accuracy and reliability. Working capacities: slide pressure 80 t, hydraulic hold down 25 t; fixed table 470×420 mm; tool clamping surfaces superior 400×400 mm and inferior 470×420 mm; strokes 28–72 c/min; steel thickness up to 5 mm. Main technical specifications: 50 Hz, 3×380 V supply; main motor 12 kW; machine weight approx. 6000 kg; overall dimensions L1600×W1400×H2500 mm. Designed to achieve tight tolerances and suited to automotive, watchmaking, machine tools, aerospace and medical applications.
Technical specifications are subject to change without notice
