| Centre height | 102 mm |
| Distance between centres | 375 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Inner taper type | 25 W |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 45 t/min |
| up to | 2800 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 0.5 CV |
| Machine's weight about | 300 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 900 mm |
| Height | 1500 mm |
| Various accessories: | |
| Rear drive | |
| 3-jaw chuck diameter | 125 mm |
| Quick closing attachment | |

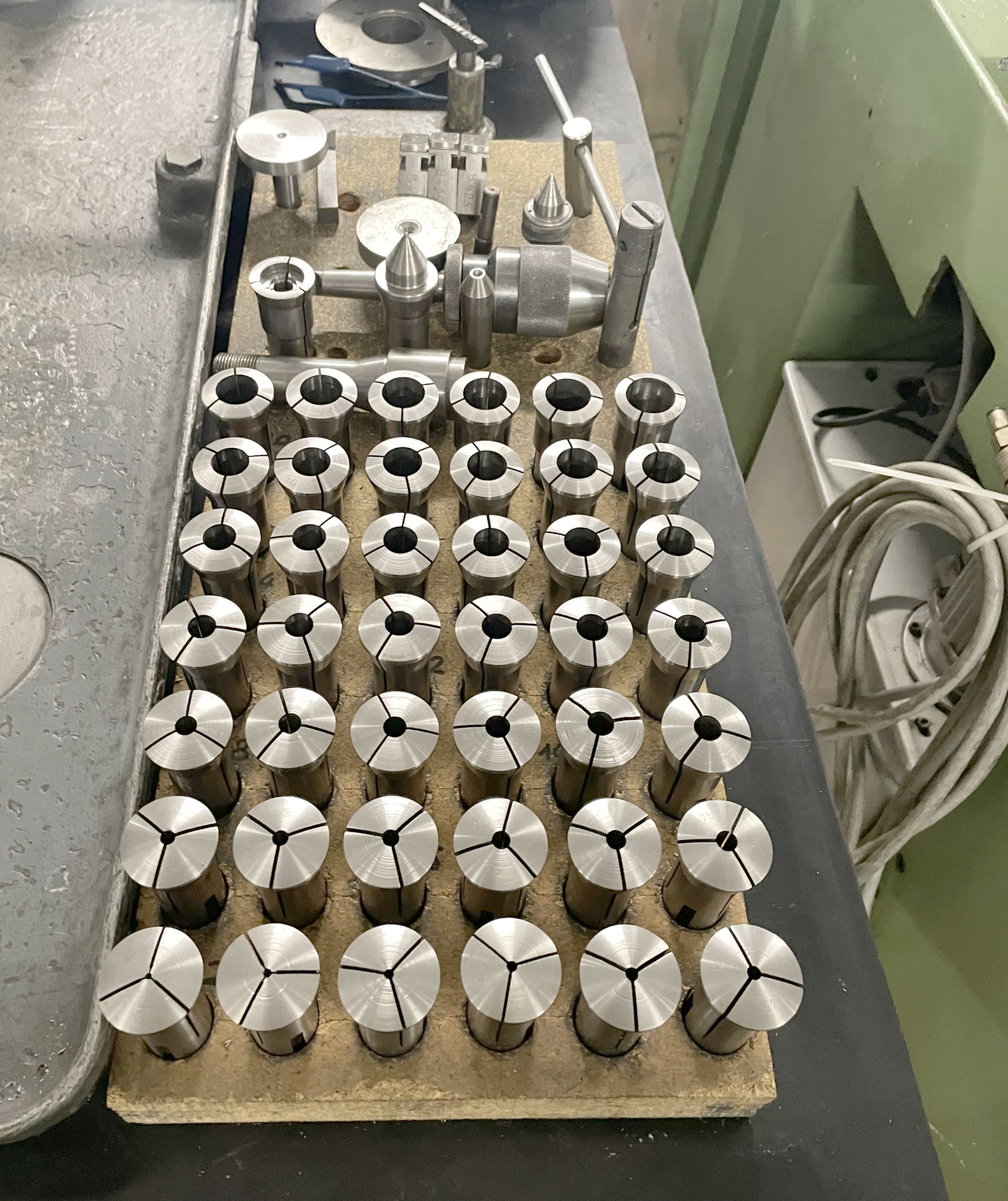

| Set of collets | |
| Drilling tailstock | |
| Drill chuck |
