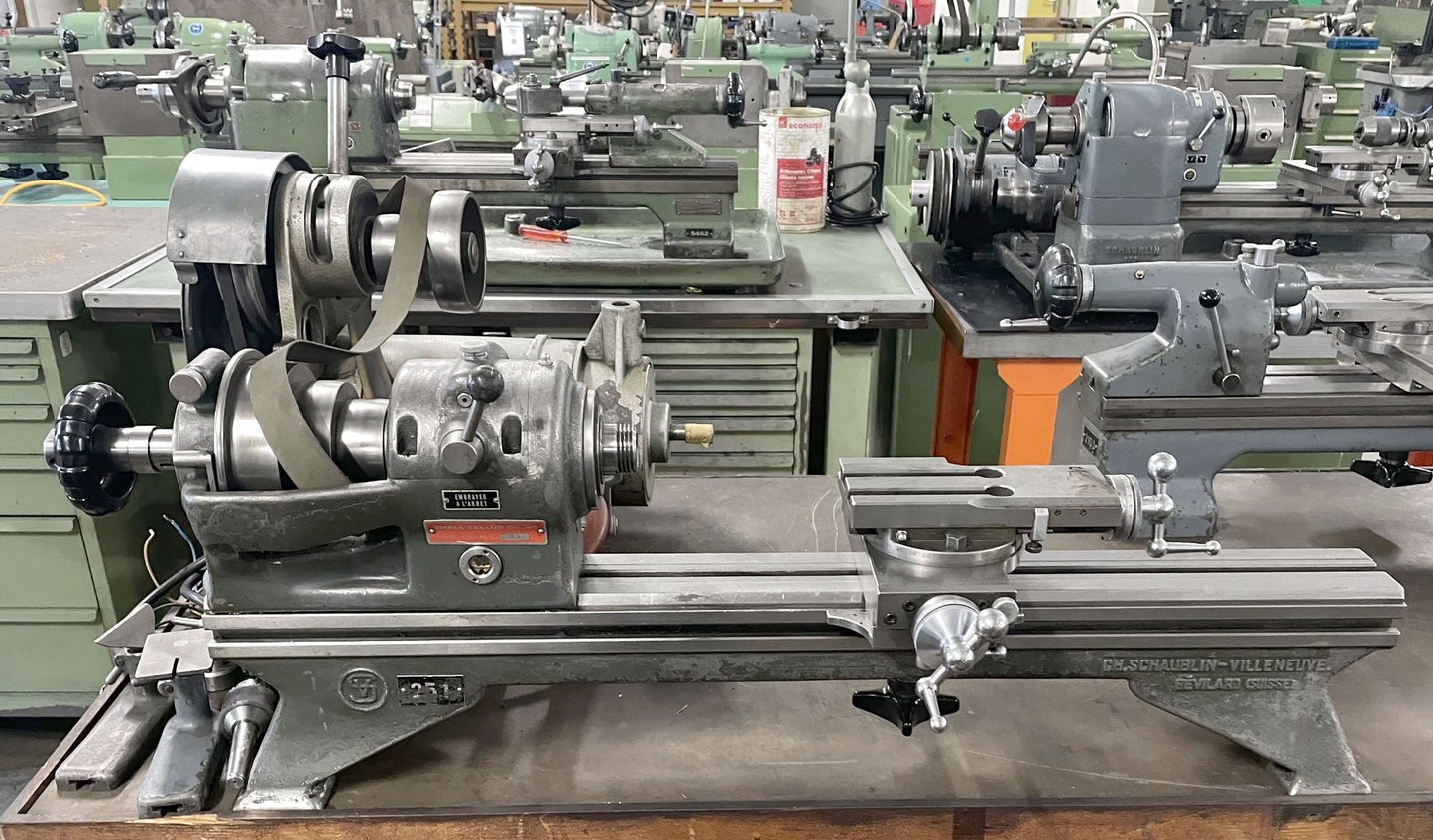

SCHAUBLIN 102 TO
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
SCHAUBLIN 102 TO is a Toolmakers lathe built for precision, high accuracy and reliability. Capacities: centre height 102 mm, distance between centres 375 mm; swing over cross‑slide 120 mm, over bed 200 mm. Specs: 12 steps, 45–2800 t/min; 50 Hz 3x 380 V; spindle motor 0.5 CV; weight ≈300 kg; overall L2000×W900×H1500 mm. Accessory: collet type 20 W. Delivers tight tolerances; suited to watchmaking, toolmaking, machine building, aerospace, medical and automotive.
| Centre height | 102 mm |
| Distance between centres | 375 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Inner taper type | 20 W |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 45 t/min |
| up to | 2800 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 0.5 CV |
| Machine's weight about | 300 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 900 mm |
| Height | 1500 mm |
| Various accessories: | |
| Rear drive |
