TRIPET MHPE 500 is a Surface grinder engineered for precision, high accuracy and reliable performance. Working capacities: table 600x200 mm, grinding length 500 mm, grinding width 200 mm, grinding height 300 mm; longitudinal travel (X) 530 mm, transversal travel (Y) 220 mm. Main specs: automatic cross-feed stepless up to 9 m/min, table speeds stepless up to 21 m/min, creep feed 0.5–8000 mm/min; grinding wheel Ø225x25 mm, speeds 1000–2700 t/min; grinding spindle motor 1.8 kW; supply 3x 380 V 50 Hz; weight ≈800 kg; machine dims 1000x700x1500 mm; electric cabinet 800x600x1500 mm. Accessories: coolant system, magnetic plate 500x200 mm, redressing device, grinding wheel with flange, splash guard. Delivers tight tolerances; suited to automotive, aerospace, machine-tool, medical and watchmaking sectors.
| Table length | 600 mm |
| Table width | 200 mm |
| Grinding length | 500 mm |
| Grinding width | 200 mm |
| Grinding height | 300 mm |
| Execution: | |
| hydraulic | |
| Longitudinal travel (X-axis) | 530 mm |
| Transversal travel (y axis) | 220 mm |
| Automatic cross-feed: | |
| stepless | |
| up to | 9 m/min |
| Table speeds: | |
| stepless | |
| up to | 21 m/min |
| Creep feed: | |
| from | 0.5 mm/min |
| up to | 8000 mm/min |
| Automatic vertical feed: | |
| Diameter of grinding wheel | 225 mm |
| Width of the grinding wheel | 25 mm |
| Grinding wheel speeds: | |
| from | 1000 t/min |
| up to | 2700 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 1.8 kW |
| Machine's weight about | 800 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 700 mm |
| Height | 1500 mm |
| Dimensions electric cabinet: | |
| Length | 800 mm |
| Width | 600 mm |
| Height | 1500 mm |
| Various accessories: | |

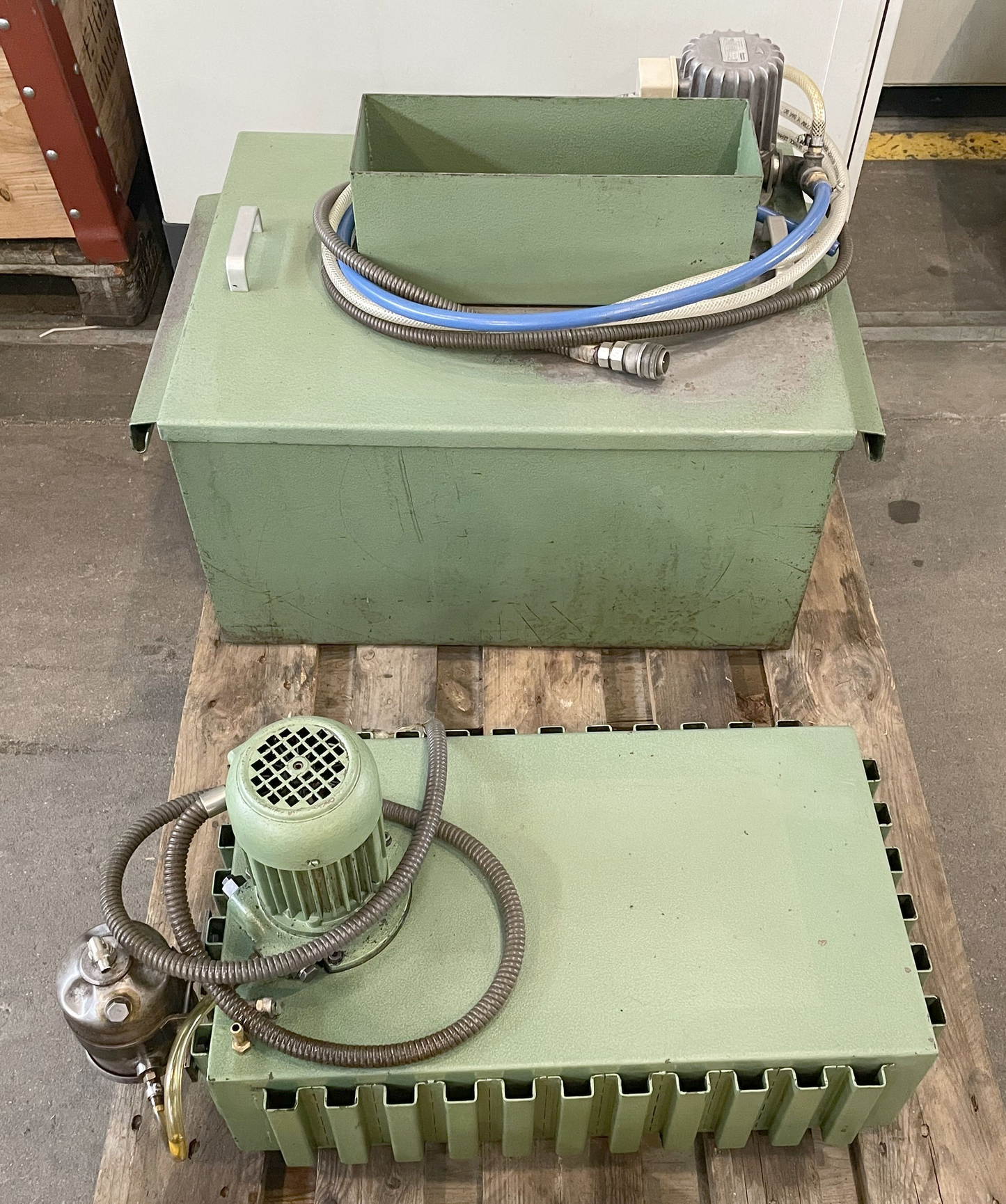

| Coolant system | |
| Magnetic plate: | |
| Length | 500 mm |
| Width | 200 mm |
| Redressing device | |
| Grinding wheel with flange | |
| Splash guard |
