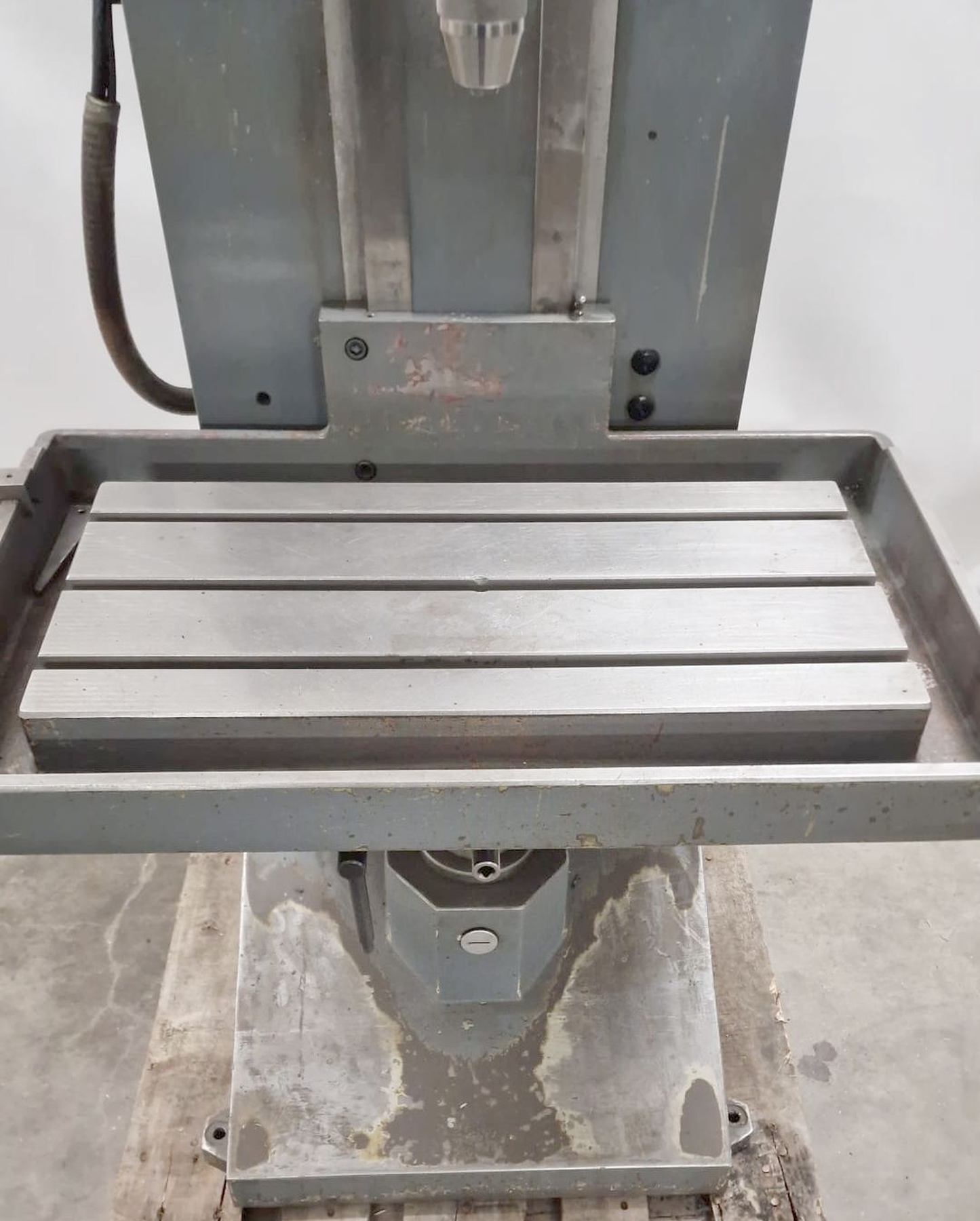

ACIERA 22 VG is a Pillar drilling machine designed for precision, high accuracy and reliability. Working capacities: table 650x320 mm; drill capacity in steel 22 mm, in cast iron 24 mm; throat 300 mm; drill depth (spindle stroke) 120 mm; spindle head adjustment 300 mm; travels X330 Y210 Z350 mm. Main specs: stepless spindle speeds 50–4000 t/min; feeds 0.12–0.6 mm/t; 50 Hz 3x380 V; spindle motor 2 CV; weight ≈990 kg; overall L1100xW600xH2100 mm. Accessories: threading device, drill chuck 1–13 mm, quick change device. Enables tight tolerances; typical sectors include automotive, watchmaking, machine tools, aerospace and medical.
Technical specifications are subject to change without notice
| Table length | 650 mm |
| Table width | 320 mm |
| Drill capacity in steel | 22 mm |
| Drill capacity in cast-iron | 24 mm |
| Depth of throat | 300 mm |
| Drill depth (spindle stroke) | 120 mm |
| Spindle head adjustment | 300 mm |
| Table travels: | |
| Longitudinal travel (X-axis) | 330 mm |
| Transversal travel (y-axis) | 210 mm |
| Vertical travel (z axis) | 350 mm |
| Spindle speeds: | |
| stepless | |
| from | 50 t/min |
| up to | 4000 t/min |
| Feeds: | |
| from | 0.12 mm/t |
| up to | 0.6 mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 2 CV |
| Machine's weight about | 990 kg |
| Overall dimensions machine: | |
| Length | 1100 mm |
| Width | 600 mm |
| Height | 2100 mm |
| Various accessories: | |
| Threading device | |
| Drill chuck | 1 - 13 mm |
| Quick change device |
