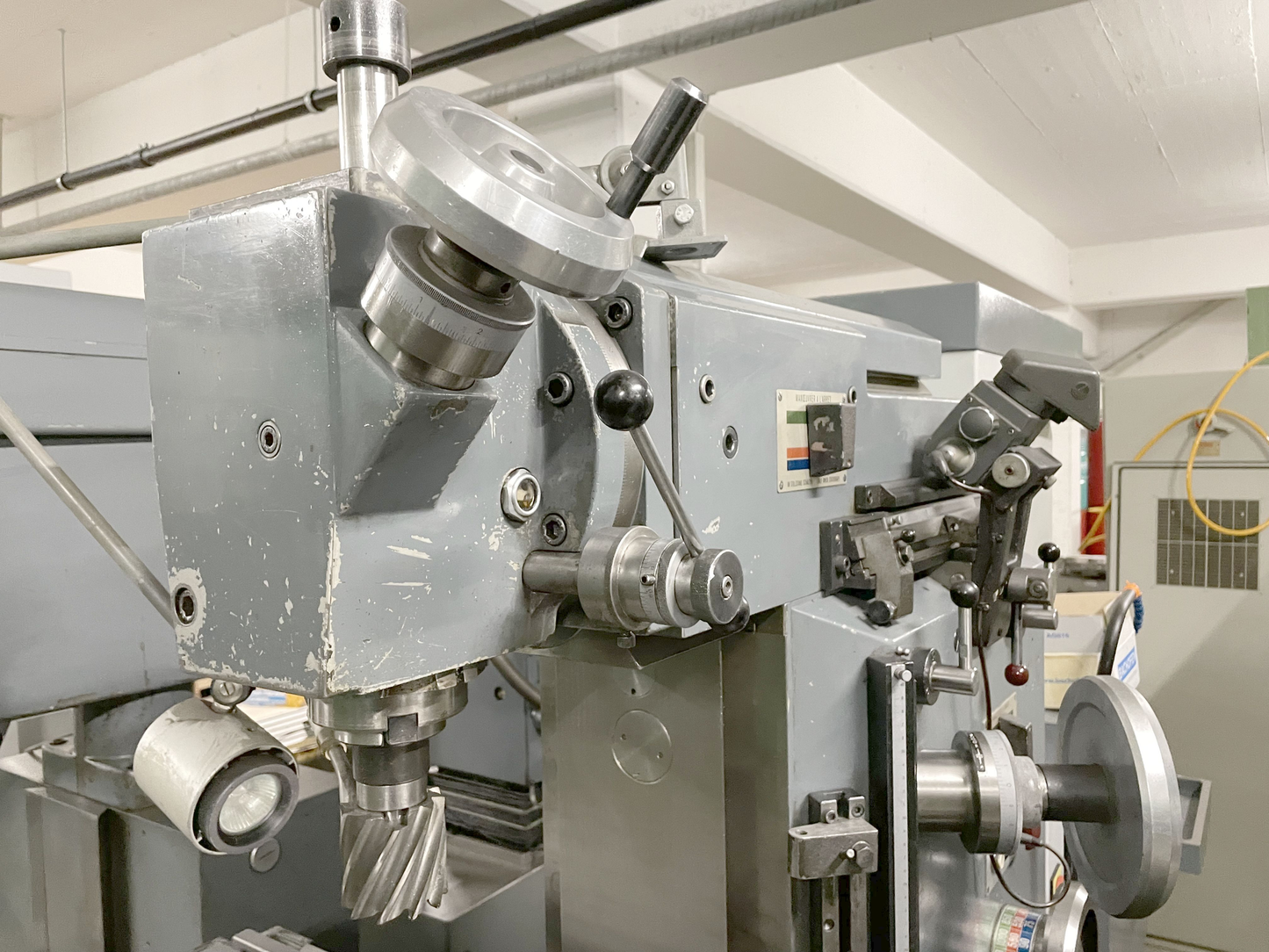

ACIERA F 5 is a universal milling machine offering high precision, excellent accuracy and reliability. Table 800x300 mm, 6 T-slots 12 mm spaced 55 mm; travels X500, Y325, Z420 mm; spindle-to-table 365 mm; quill 60 mm; head ±90°. Spindle ISO40, stepless 50–3400 t/min; feeds 10–600 mm/min; rapid traverse 1.5 m/min; power 3x380 V 50 Hz; motor 3 kW; total power 5 CV; weight ~1600 kg; footprint 1200x1600x1800 mm. Accessory: rigid table. Enables tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.
| Number of axis total | 3 |
| Table length | 800 mm |
| Table width | 300 mm |
| Number of T-channels | 6 |
| T-channel width | 12 mm |
| Distance of the T-slots | 55 mm |
| Longitudinal travel (X-axis) | 500 mm |
| Transversal travel (y axis) | 325 mm |
| Vertical travel (z axis) | 420 mm |
| Distance from vertical spindle to table | 365 mm |
| Spindle speeds: | |
| stepless | |
| from | 50 t/min |
| up to | 3400 t/min |
| Taper in spindle | 40 ISO |
| Head inclining + - | 90 ° |
| Feeds stepless: | |
| longitudinal from | 10 mm/min |
| up to | 600 mm/min |
| transversal from | 10 mm/min |
| up to | 600 mm/min |
| vertical from | 10 mm/min |
| up to | 600 mm/min |
| Vertical quill travel | 60 mm |
| Rapid traverse: | |
| longitudinal | 1.5 m/min |
| transversal | 1.5 m/min |
| vertical | 1.5 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor power | 3 kW |
| Total power required | 5 CV |
| Machine's weight about | 1600 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 1600 mm |
| Height | 1800 mm |
| Various accessories: | |
| Rigide table |
