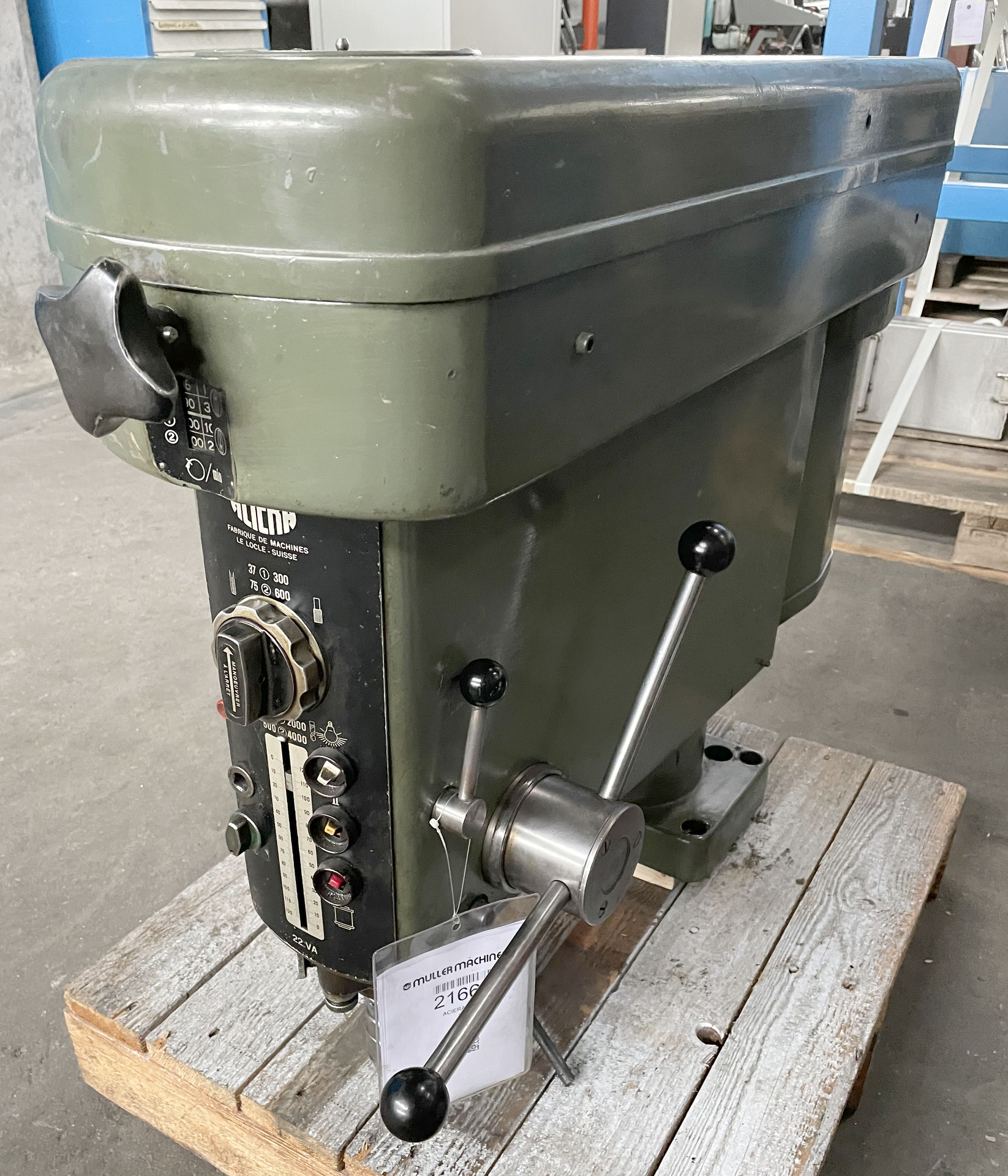

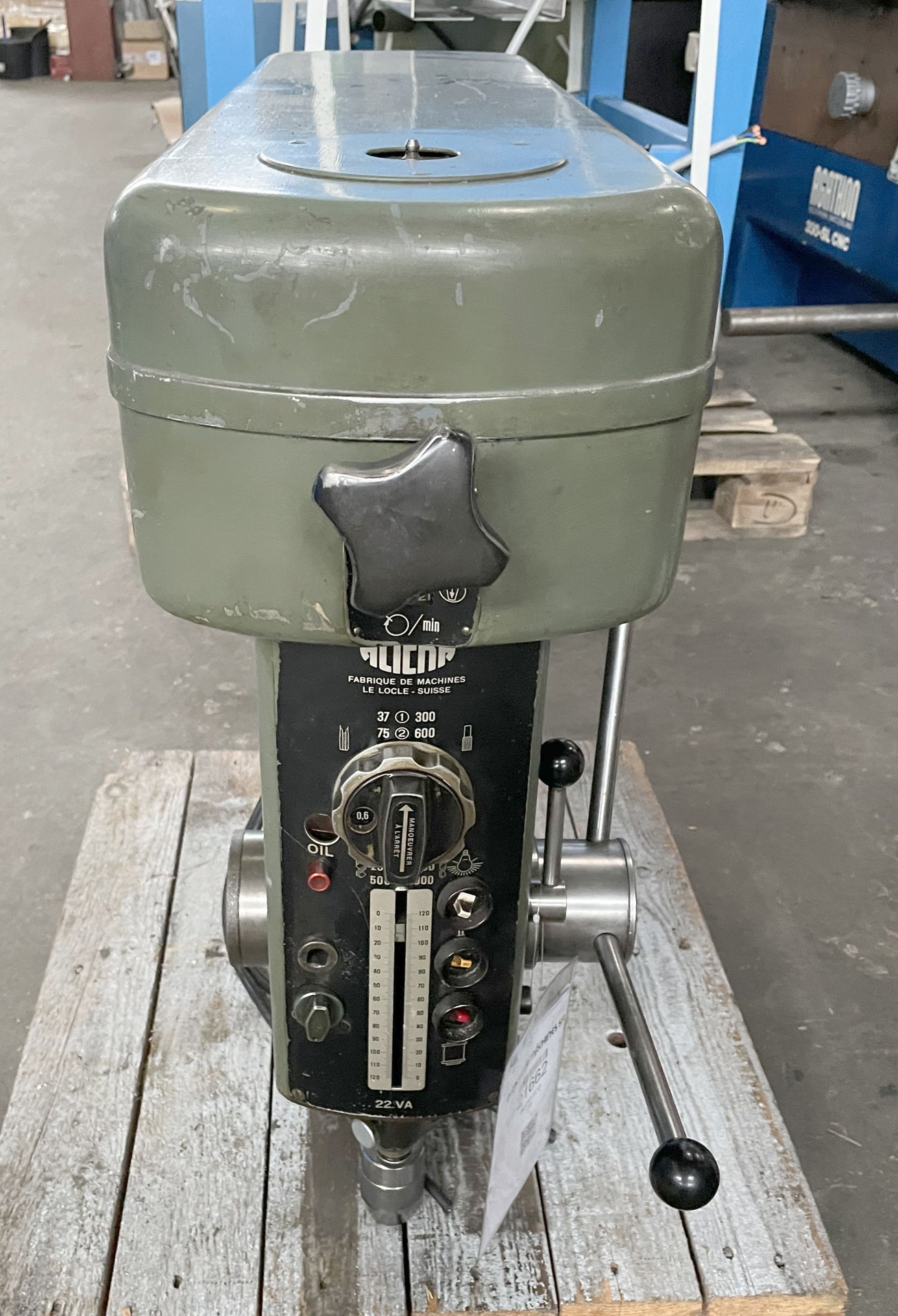

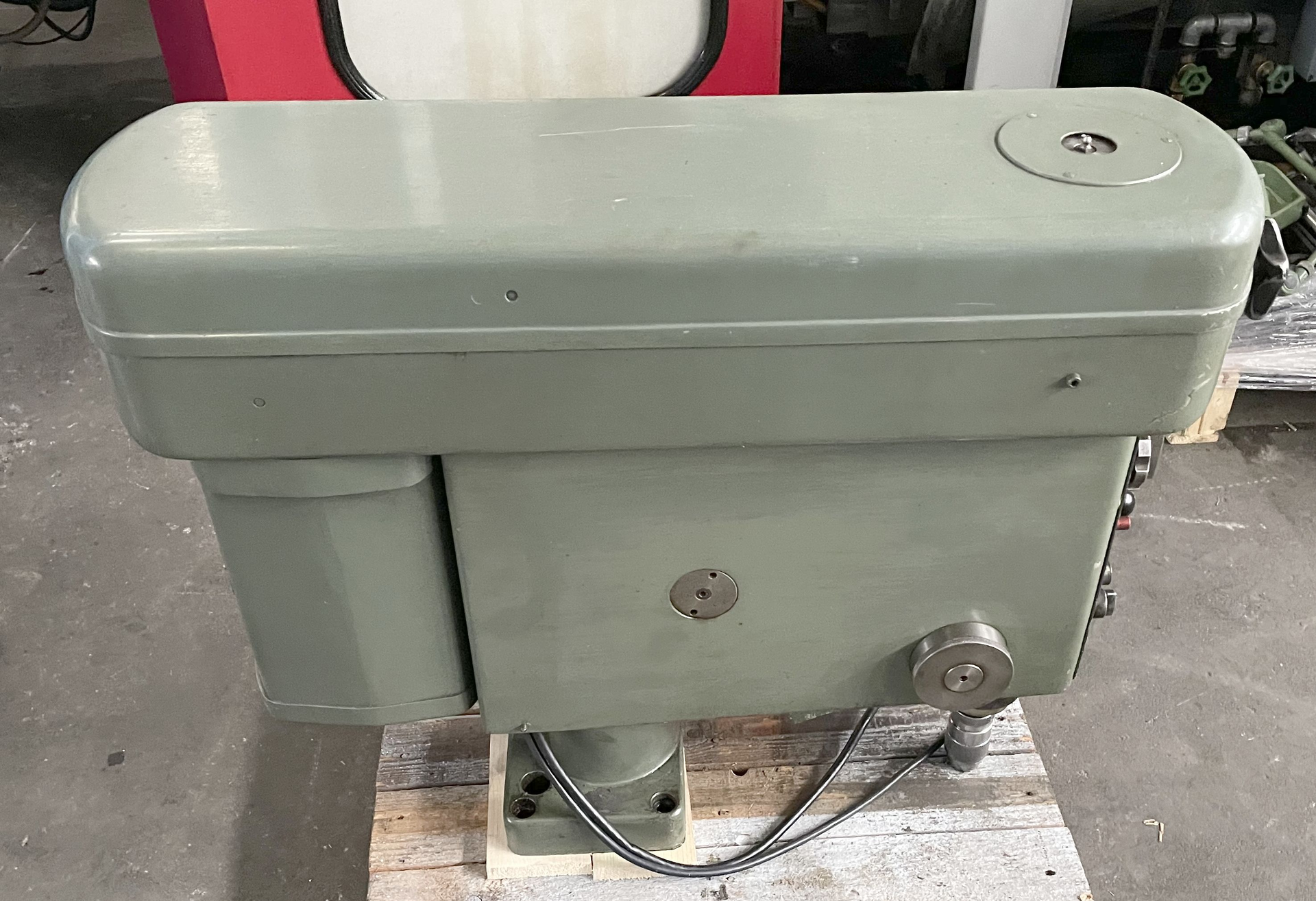

ACIERA 22 VA is a pillar drilling machine of high precision, accuracy and reliability. Capacity: steel 22 mm, cast-iron 24 mm; spindle taper MT3. Speeds 250–400 t/min (stepless); feeds 0.02–0.25 mm/t; 3×380 V 50 Hz; spindle motor 1/1.5 CV; weight ≈300 kg; L1000×W300×H800 mm. Accessories: drill chuck, lamp, quick-change, adjustable depth stop. Delivers tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace, medical.
Technical specifications are subject to change without notice
| Drill capacity in steel | 22 mm |
| Drill capacity in cast-iron | 24 mm |
| Taper in spindle: MT | 3 |
| Spindle speeds: | |
| stepless | |
| from | 250 t/min |
| up to | 400 t/min |
| Feeds: | |
| stepless | |
| from | 0.02 mm/t |
| up to | 0.25 mm/t |
| Voltage 50 Hz 3x | 380 Volt |

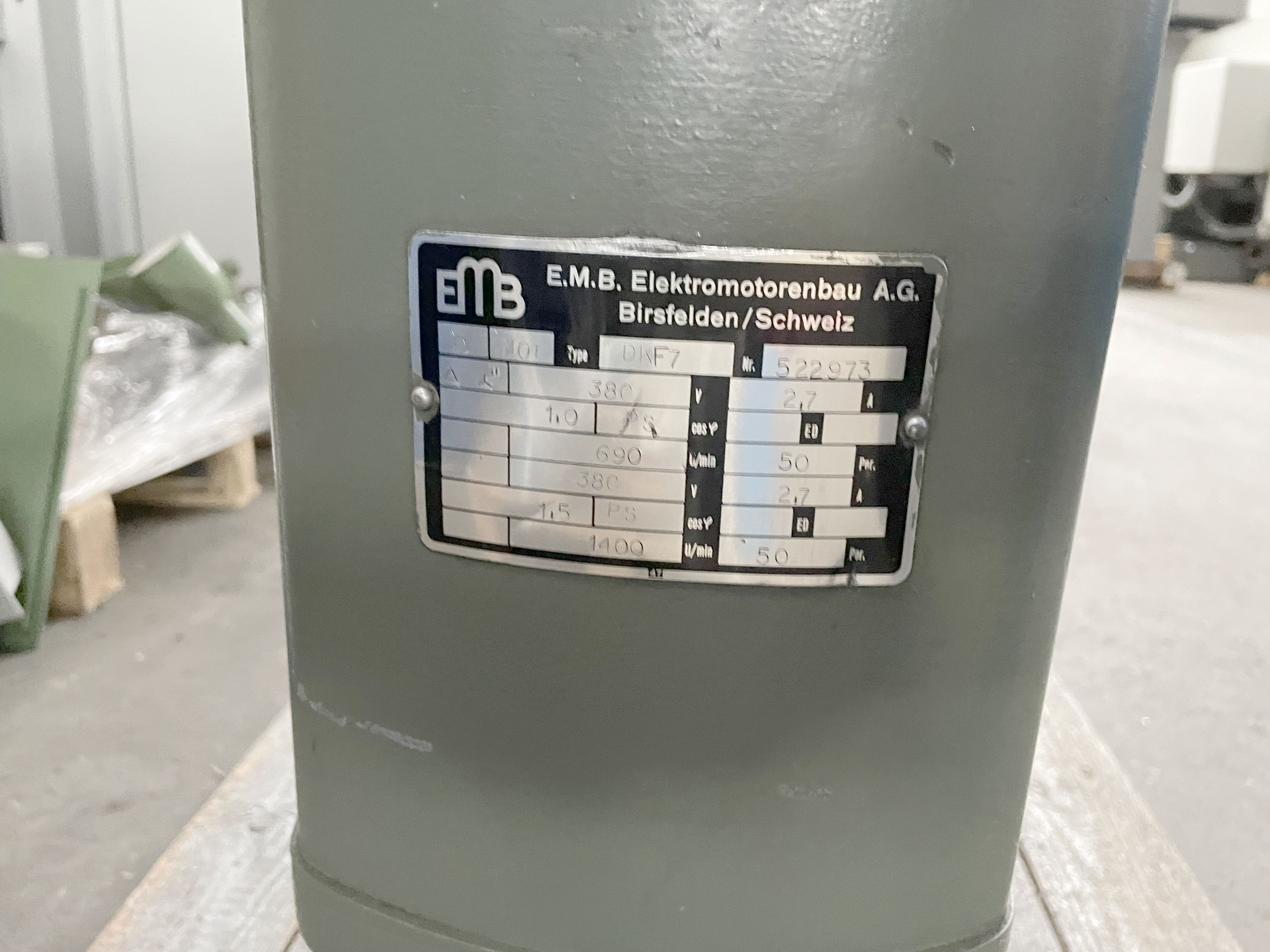

| Spindle motor | 1.0 / 1.5 CV |
| Machine's weight about | 300 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 300 mm |
| Height | 800 mm |
| Various accessories: | |
| Drill chuck | |
| Lamp | |
| Quick change device | |
| Adjustable depth stop |
