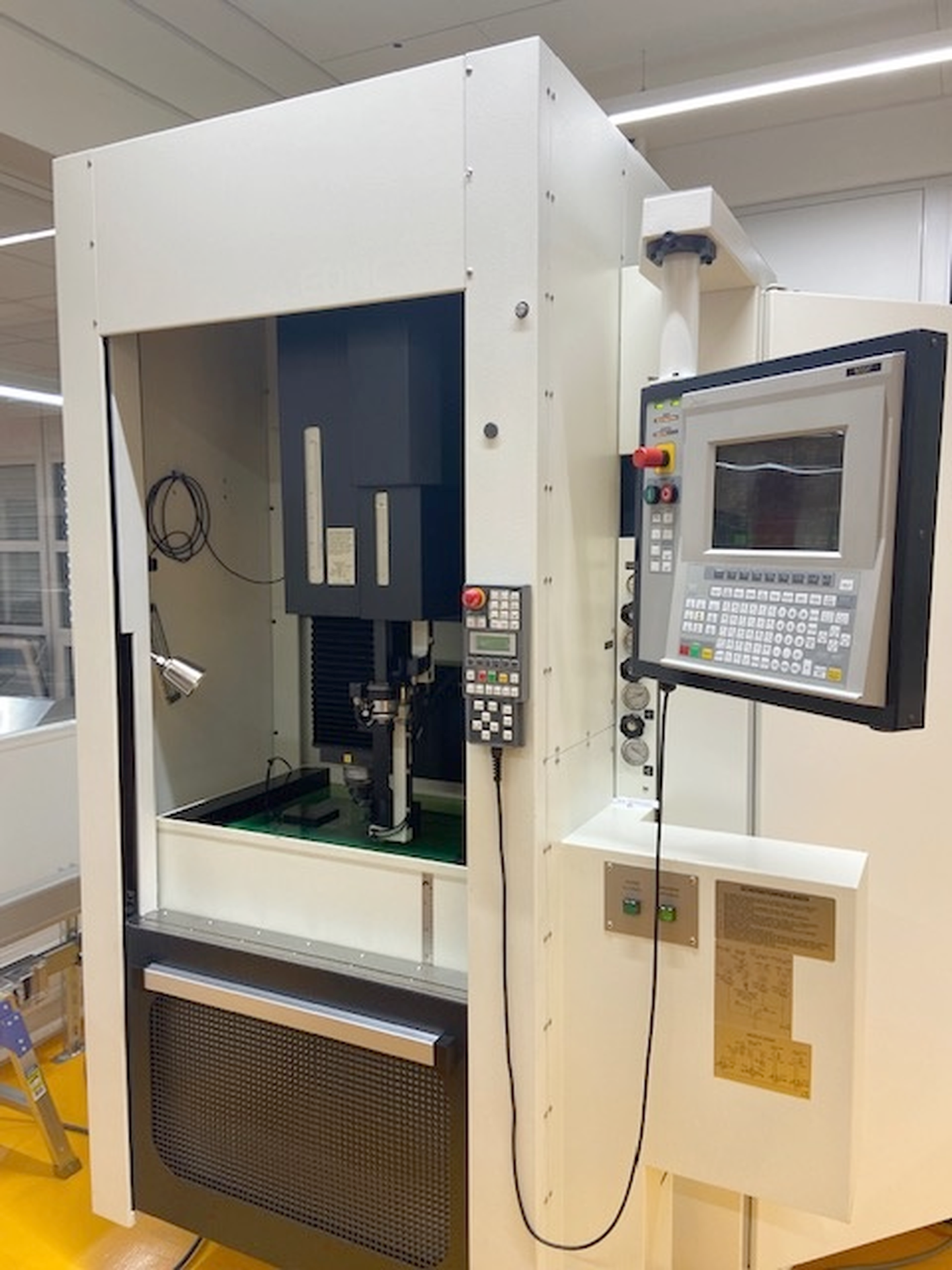

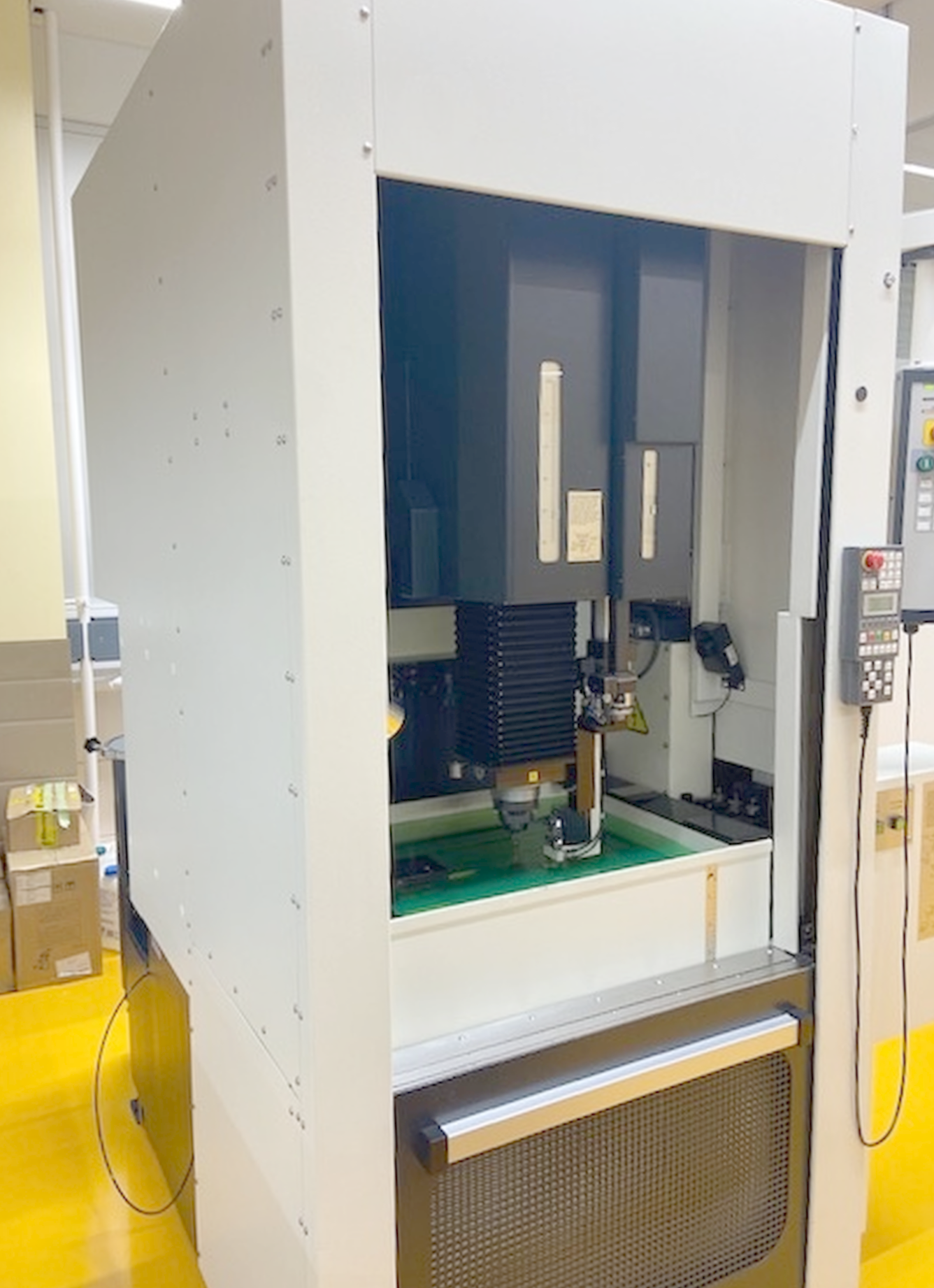

MAKINO EDNC 30F is a Spark eroder engineered for precision, high accuracy and reliable performance. Working capacities: table 500 x 350 mm with 4 T-slots (10 mm, 80 mm spacing), table load max. 500 kg; travels X 300 mm, Y 250 mm, Z 250 mm; max. electrode weight 50 kg; dielectric unit 60 l (650 x 450 x 300 mm). Key specs: rapid traverse 20 m/min; supply 50 Hz 3x 400 V; machine weight about 4100 kg; overall dimensions 2800 x 2200 x 2300 mm. Designed to achieve tight tolerances; typical applications: automotive, aerospace, medical, watchmaking, toolmaking.
| Table length | 500 mm |
| Table width | 350 mm |
| Number of spline | 4 |
| T-channel width | 10 mm |
| Distance of the T-slots | 80 mm |
| Table load max. | 500 kg |
| Longitudinal traverse (X-axis) | 300 mm |
| Cross traverse (Y-axis) | 250 mm |
| Height adjustment (Z-axis) | 250 mm |
| max. electrode weight | 50 kg |
| Dielectric aggregate: | |
| Contents | 60 l |
| Length | 650 mm |
| Width | 450 mm |
| depth | 300 mm |
| Rapid traverse: | 20 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 4100 kg |
| Overall dimensions machine: | |
| Length | 2800 mm |
| Width | 2200 mm |
| Height | 2300 mm |
| Various accessories: | |
| C axis | ° |

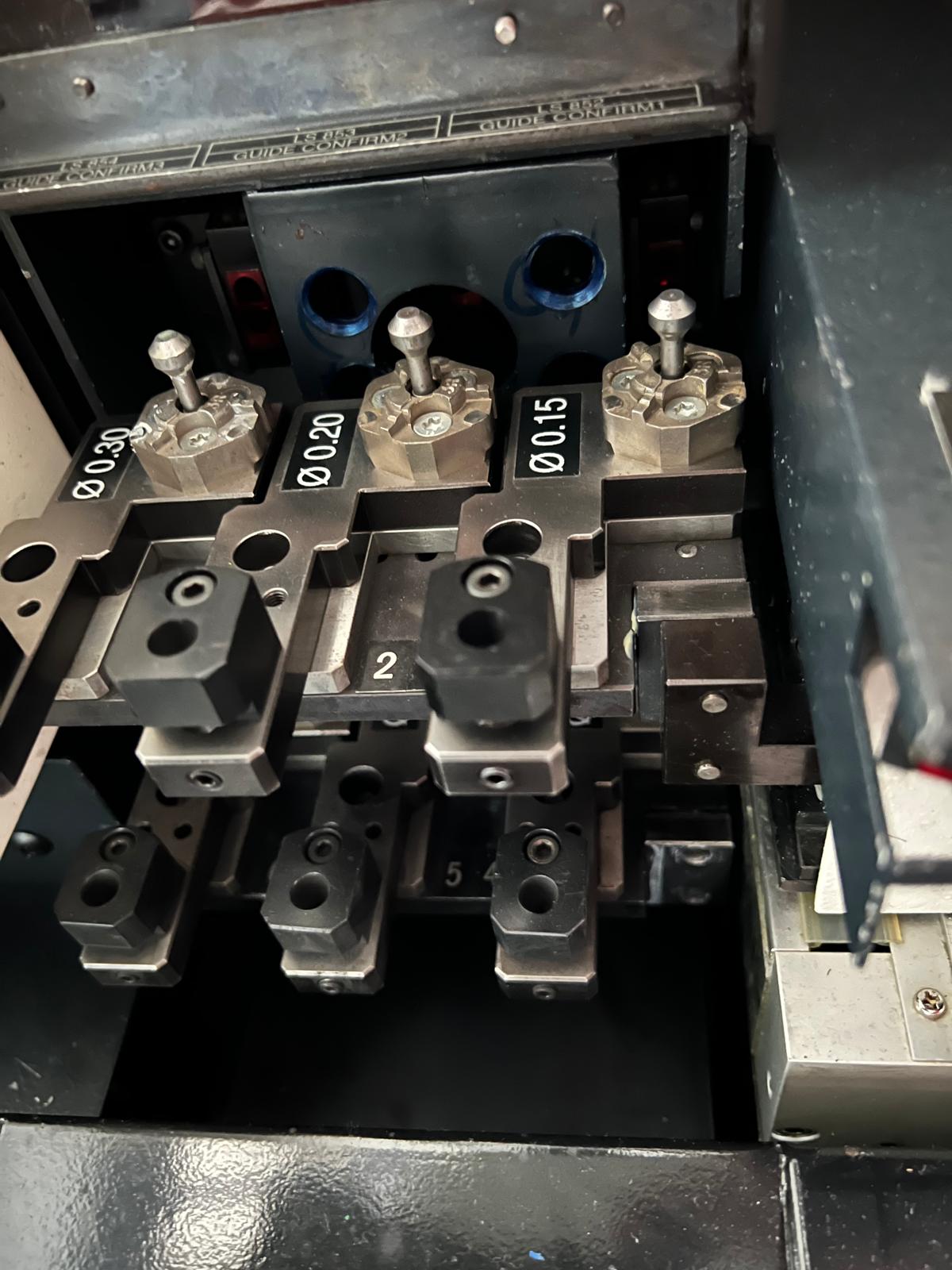

| Electrode magazine (number of positions) | 6 |
