TORNOS BS 20 B is a multi-spindle turning lathe for precision machining, high accuracy and reliability. Capacity round 22 mm; square 15 mm; hexagon 19 mm; bar advance/turning length 60 mm. 8 spindles; 20 steps 625–6035 rpm; 50 Hz 3×380 V; 55 kW; weight ~5100 kg; footprint 2465×1200×1700 mm. Bar loader IEMCA SIR 25. Delivers tight tolerances; typical applications: automotive, watchmaking, tooling, aerospace, medical.
| Number of spindles | 8 |
| Capacity round bar | 22.0 mm |
| Capacity square bar | 15 mm |
| Capacity hexagon bar | 19 mm |
| Max. advance of bar | 60 mm |
| Max. turning length | 60 mm |
| Spindle speeds: | |
| number (steps) | 20 |
| from | 625 t/min |
| up to | 6035 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 55.0 kW |
| Machine's weight about | 5100 kg |
| Overall dimensions machine: | |
| Length | 2465 mm |
| Width | 1200 mm |
| Height | 1700 mm |
| Various accessories: | |

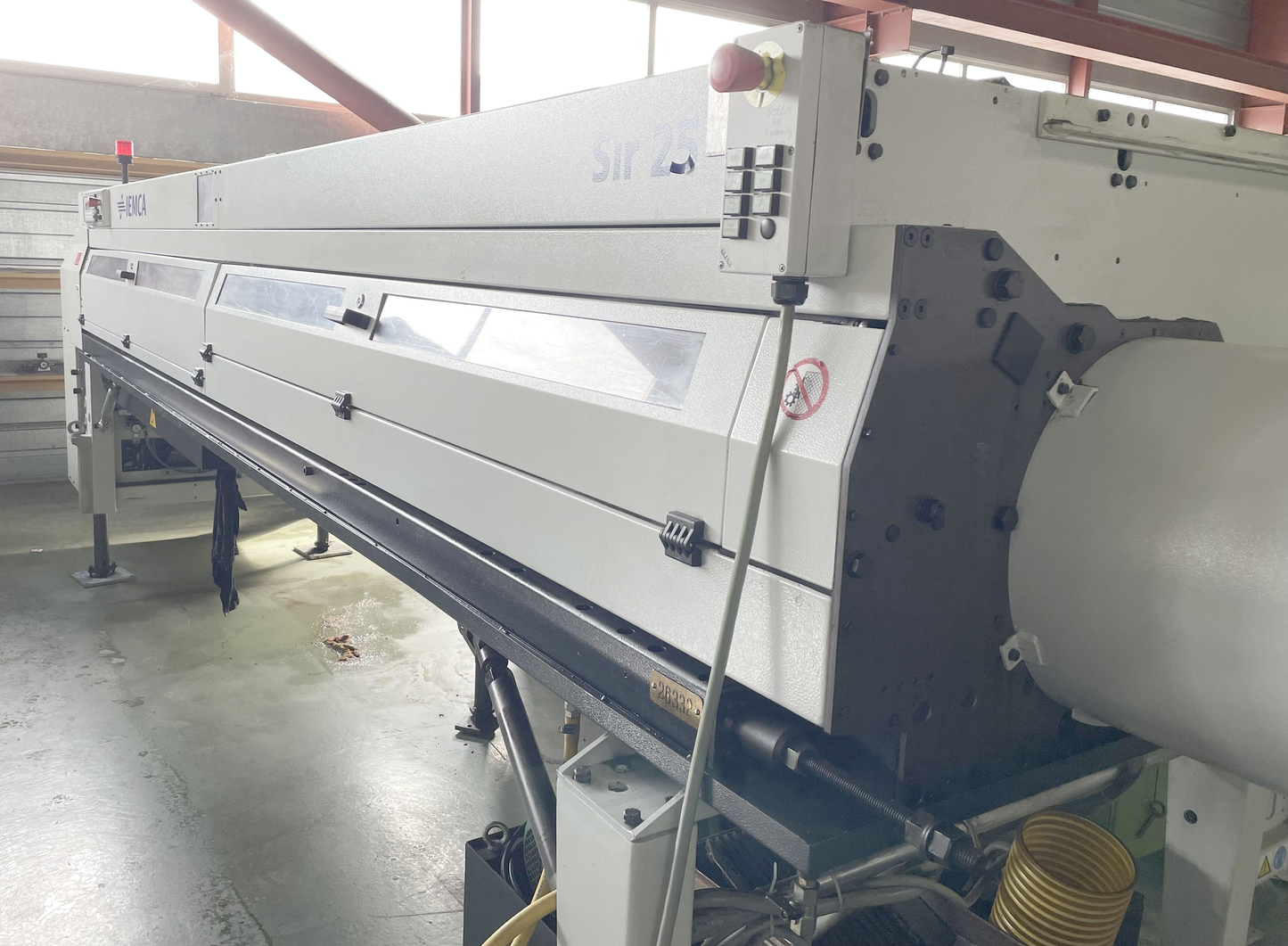

| Bar loader number of bars | IEMCA |
| Type | SIR 25 |
