ACIERA 22 VA is a pillar drilling machine engineered for precision, high accuracy and reliability. Capacities: steel 22 mm, cast‑iron 24 mm; throat 300 mm; spindle stroke 120 mm; table 500×490 mm; clamping surface 355×315 mm; T‑slot 23 mm. Specs: MT3 taper, stepless speeds 250–400 t/min, feeds 0.02–0.25 mm/rev, spindle motor 1/1.5 CV, 3×380 V 50 Hz, weight ~990 kg, dims 1330×900×1800 mm. Accessory: tool tray. Suited for tight tolerances in automotive, tooling, aerospace, medical and watchmaking.
| Table length | 500 mm |
| Table width | 490 mm |
| Clamping surface: | |
| Length | 355 mm |
| Width | 315 mm |
| T-channel width | 23 mm |
| Drill capacity in steel | 22 mm |
| Drill capacity in cast-iron | 24 mm |
| Taper in spindle: MT | 3 |
| Depth of throat | 300 mm |
| Drill depth (spindle stroke) | 120 mm |
| Spindle speeds: | |
| stepless | |
| from | 250 t/min |
| up to | 400 t/min |
| Feeds: | |
| stepless | |
| from | 0.02 mm/t |
| up to | 0.25 mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 1.0 / 1.5 CV |
| Machine's weight about | 990 kg |
| Overall dimensions machine: | |
| Length | 1330 mm |
| Width | 900 mm |
| Height | 1800 mm |
| Various accessories: | |

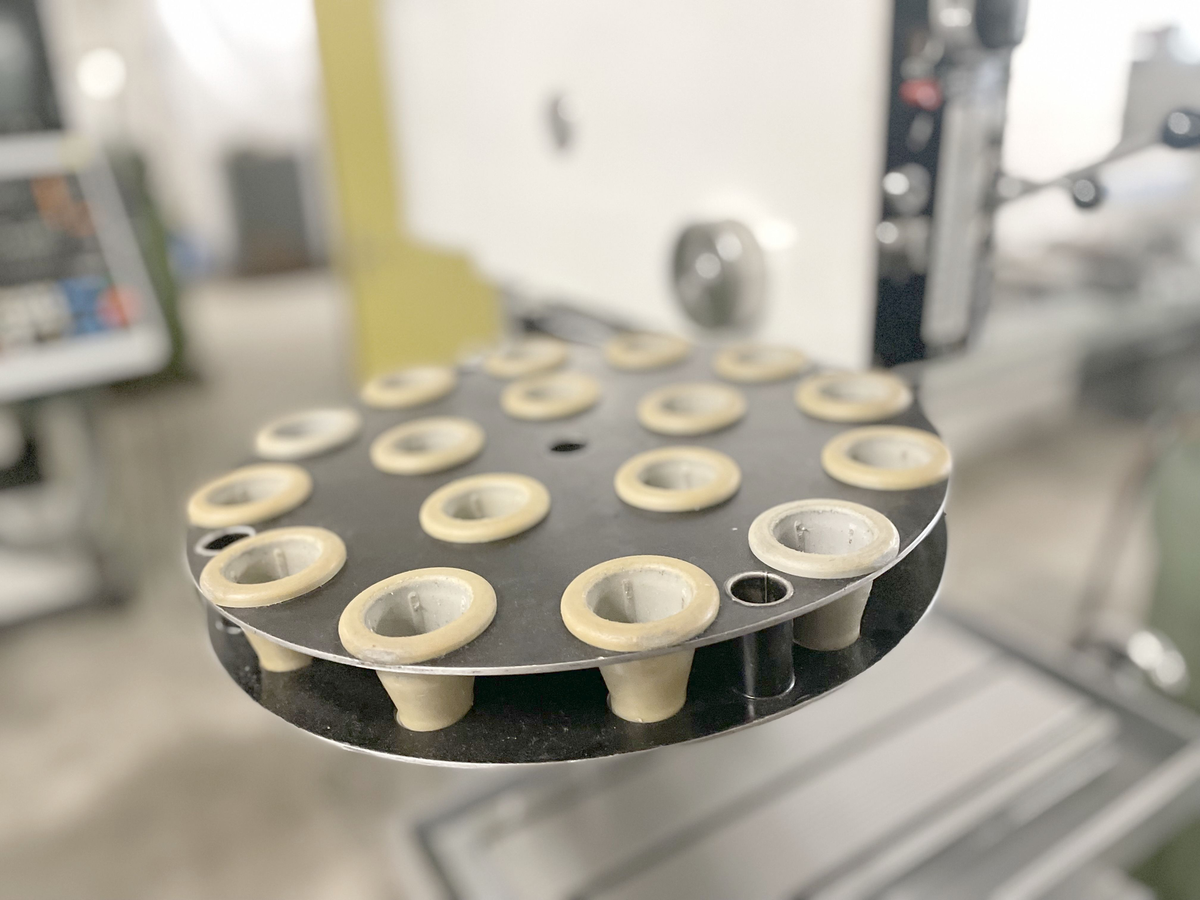

| Tool storage |
