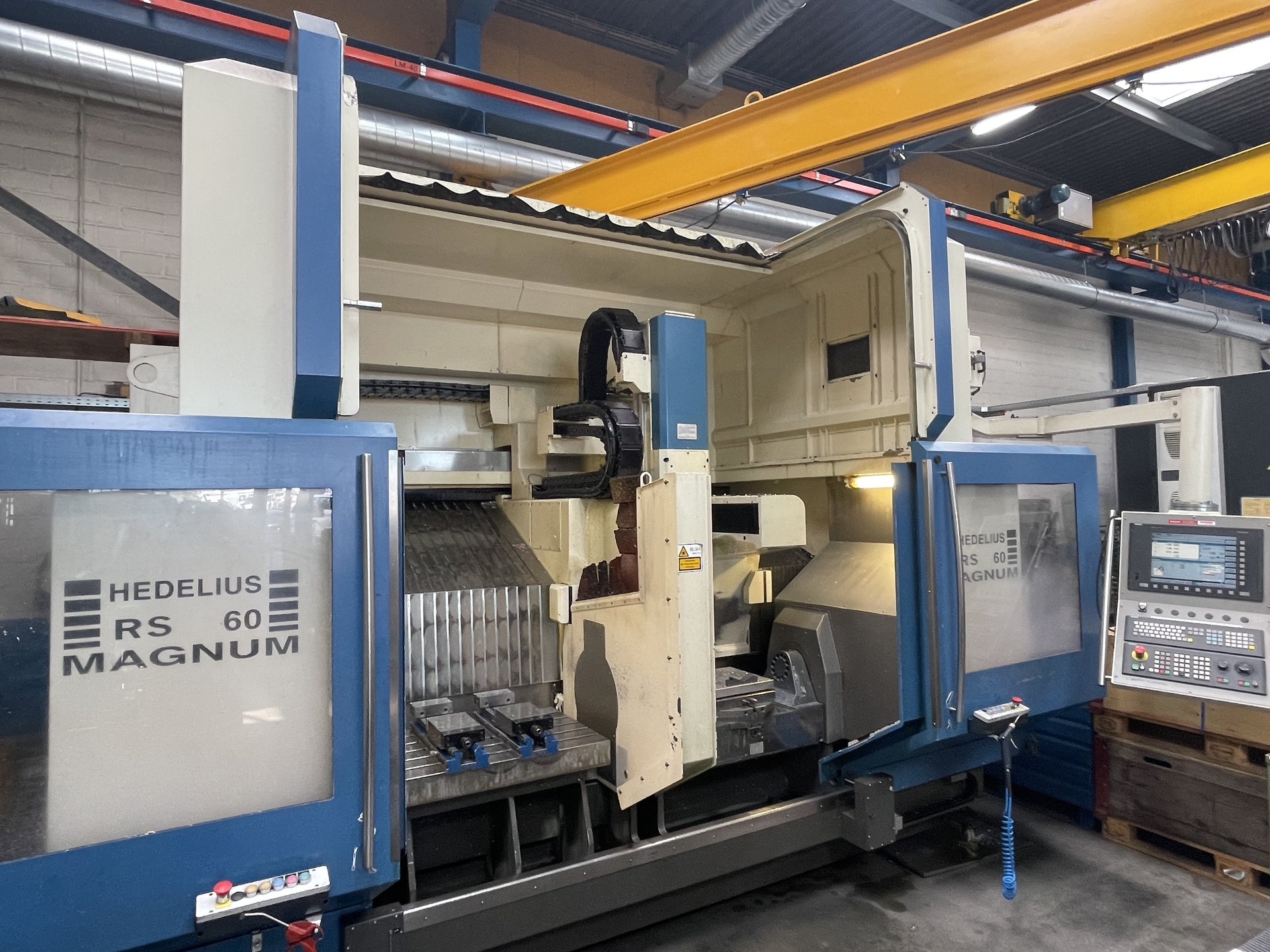

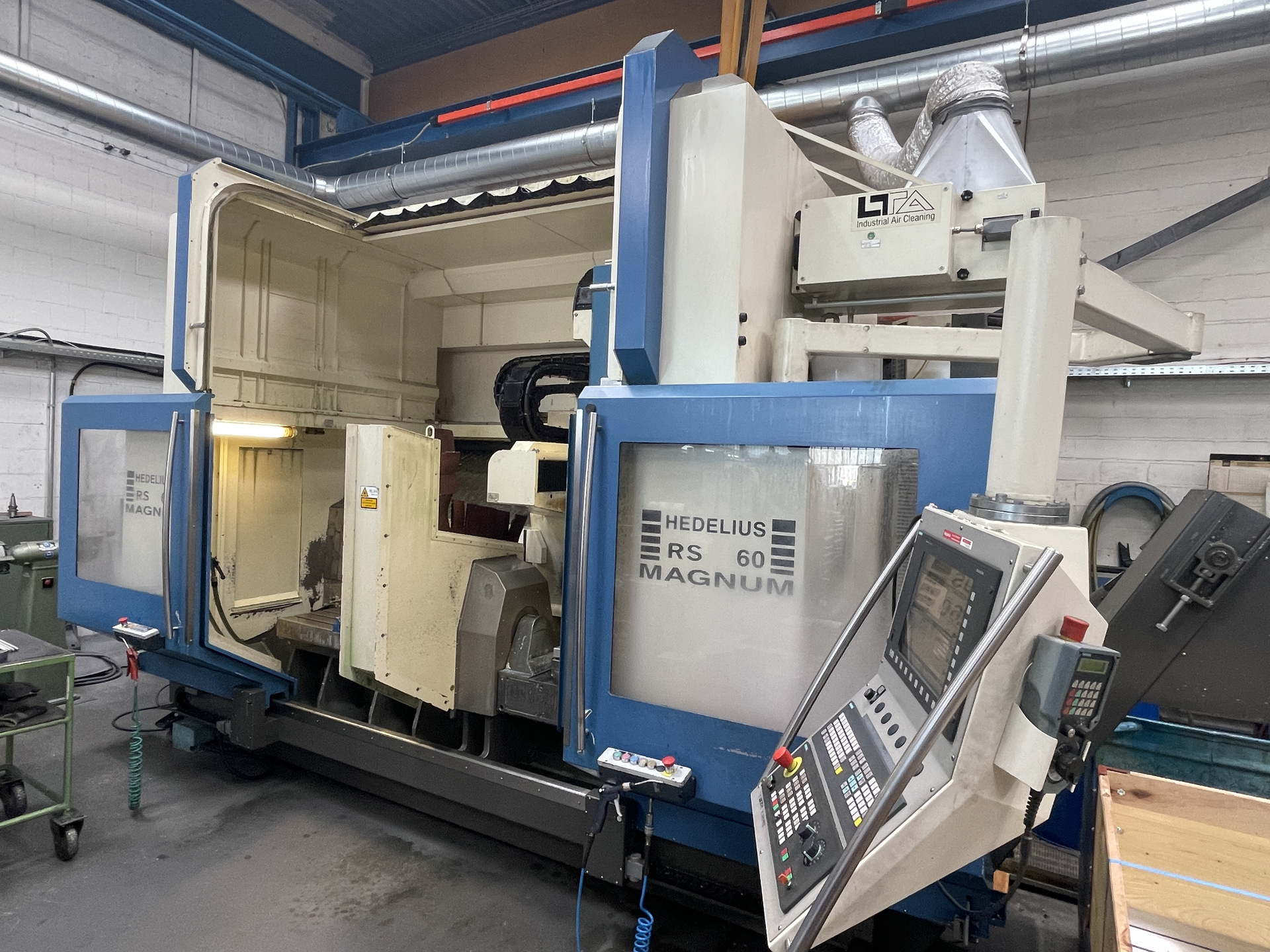

022077 - HEDELIUS RS 60 MAGNUM-2000
Special Price
CHF 57 000
Special offer machines are sold as-is, without any warranty or inspection from us.
Message us on WhatsApp
| Time under power | 37627 Heures |
| Operating time | 15344 Heures |
| Number of axis total | 3 / 5 |

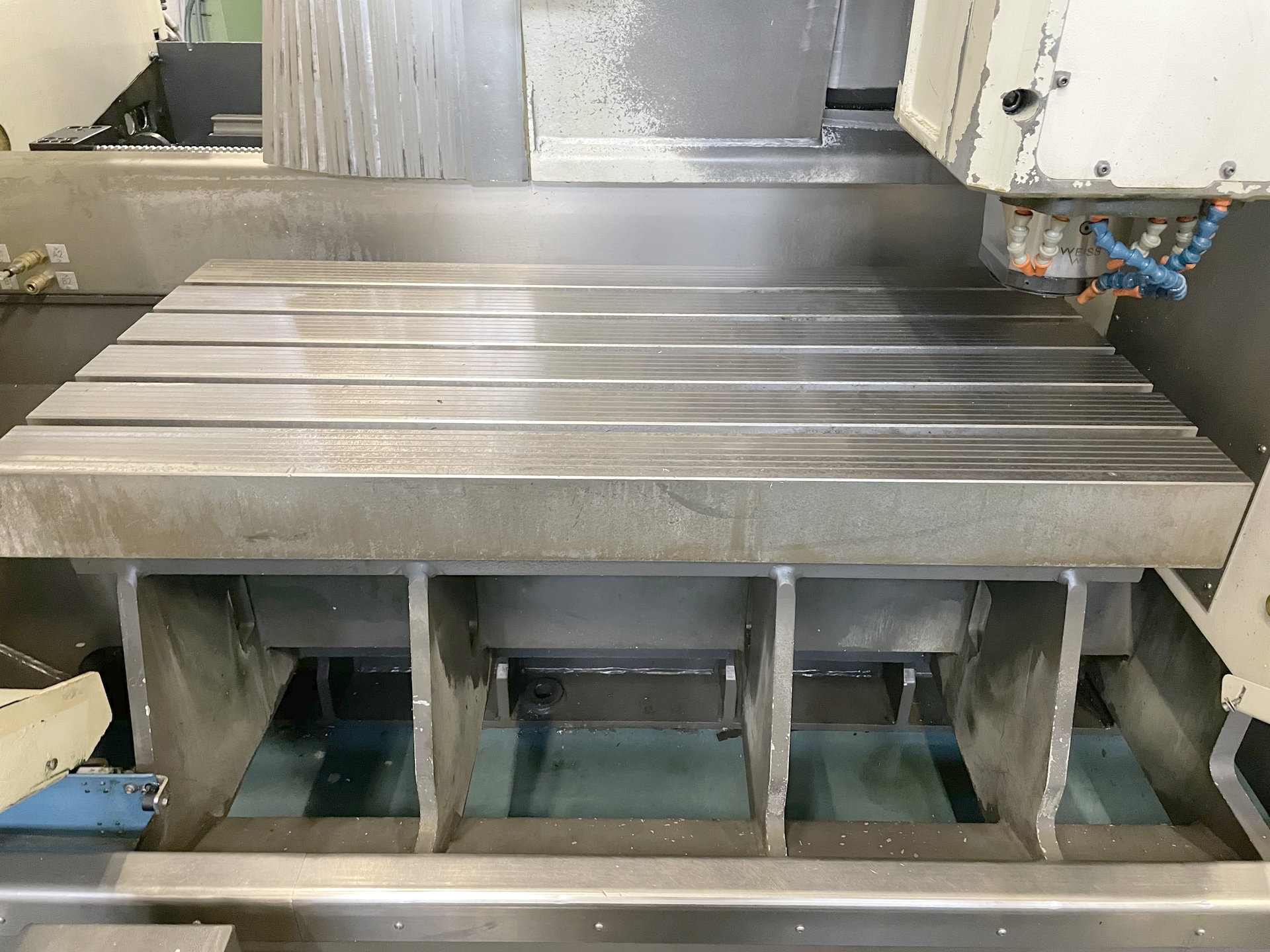

| Table length | 1200 mm |
| Table width | 600 mm |

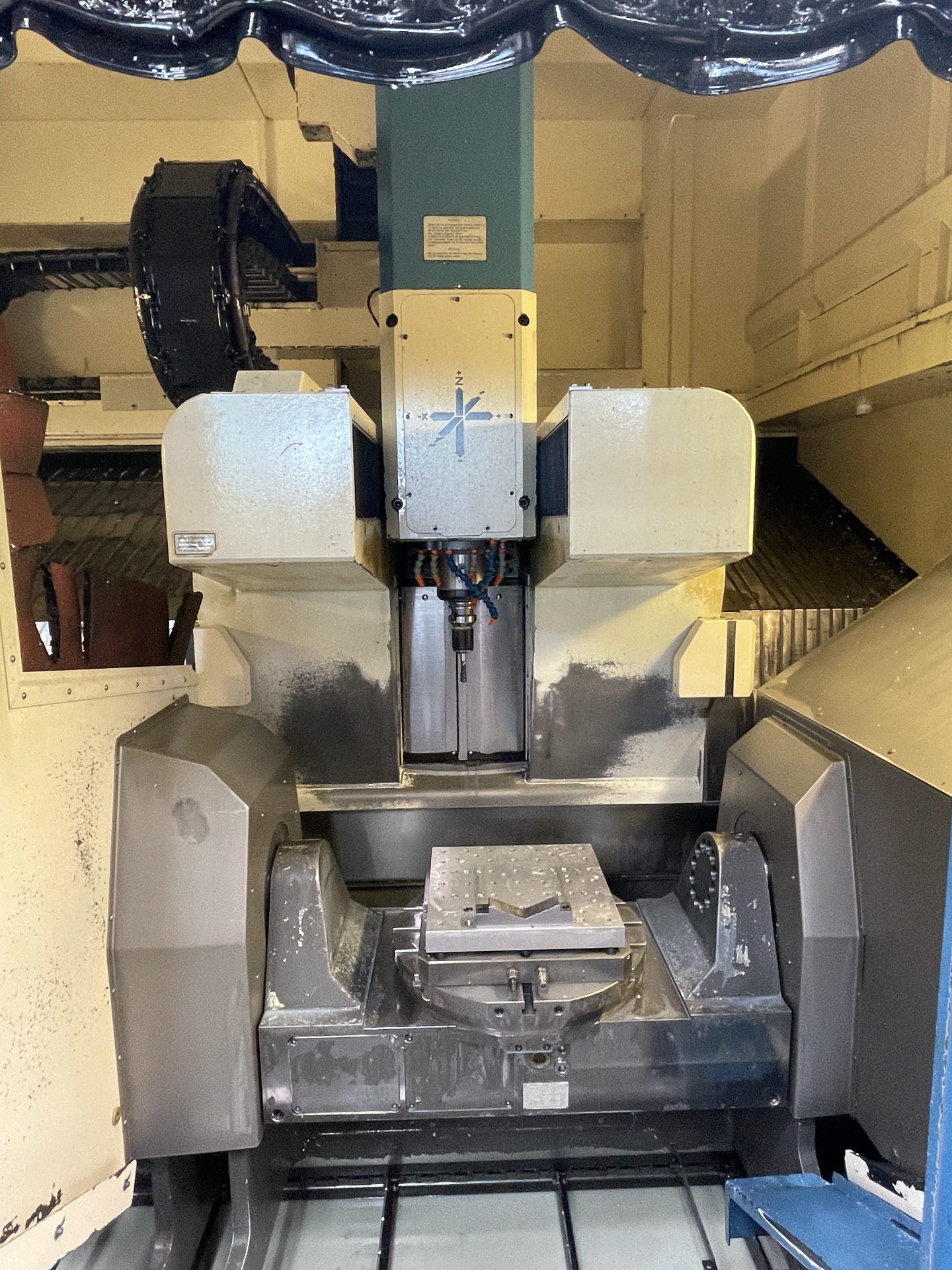

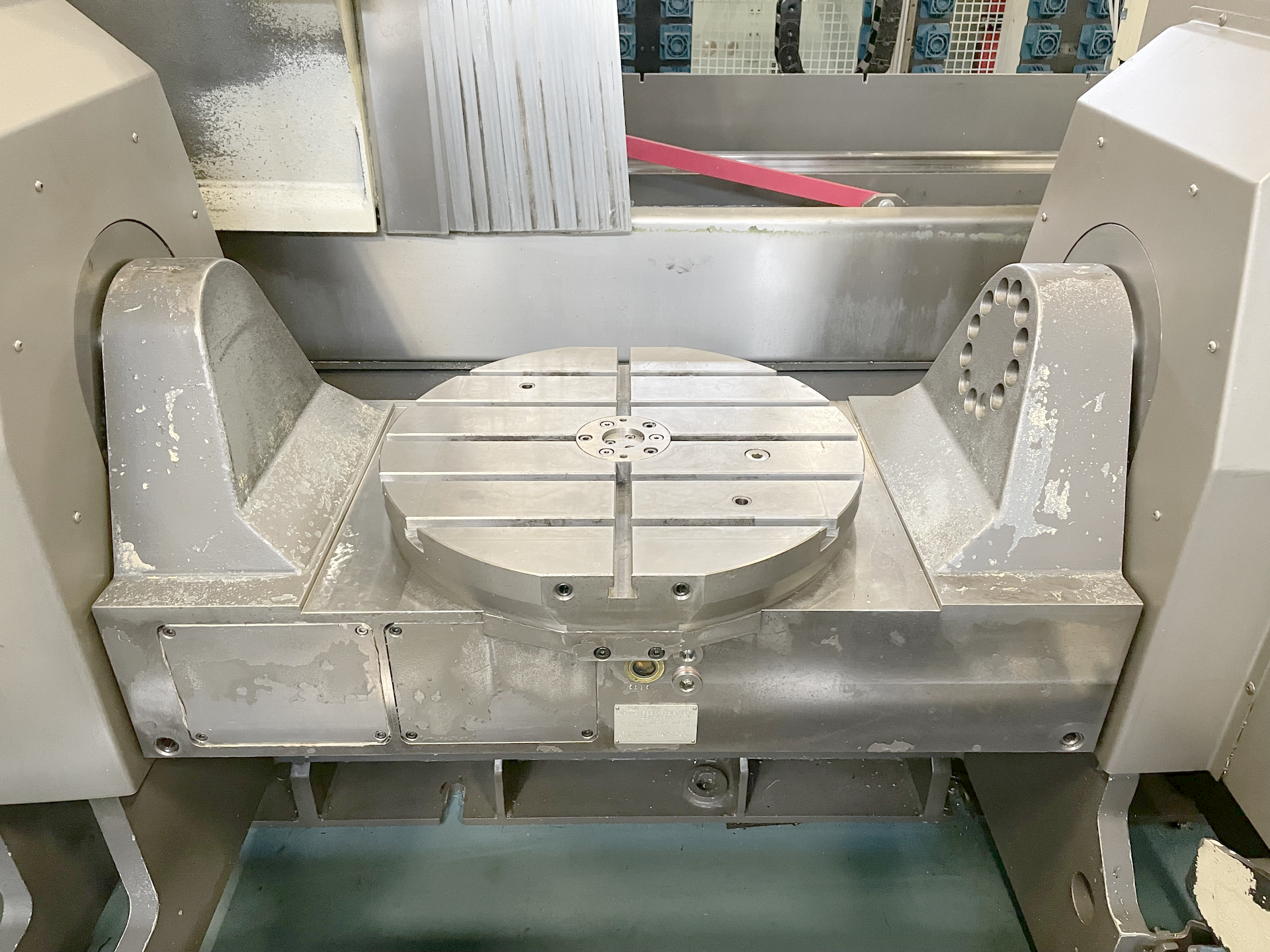

| Circulary table diameter | 680 mm |
| Table load max. | 300 kg |
| Longitudinal travel (X-axis) | 2000 (600) mm |
| Transversal travel (y-axis) | 620 mm |
| Vertical travel (z axis) | 520 mm |
| Swivel angle (a-axis) | +15 / -95 ° |

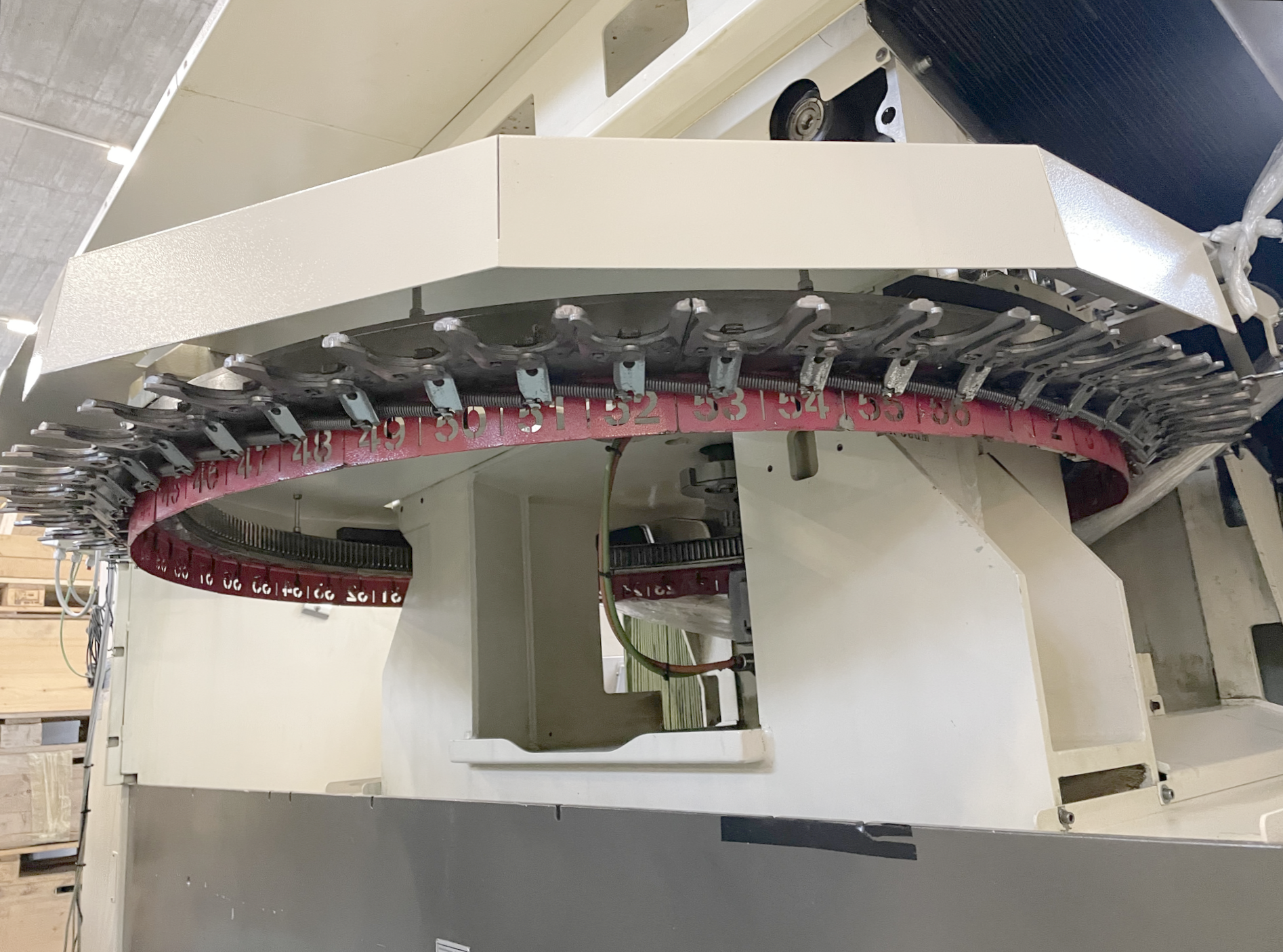

| Tool magazine number of tool places | 56 |
| Tool diameter max. | 80 mm |
| Tool lenght | 330 mm |
| Max. tool-weight | 8 kg |
| Time of tool changing | 3 s |
| Spindle nose SK | 40 DIN 69871 |
| Distance spindle nose to table | 100 - 620 mm |
| Milling spindle speeds: | |
| Milling spindle: | |
| stepless | |
| from | 50 t/min |
| up to | 12000 t/min |
| Torque max. | 121 Nm |
| Feed range | 0 - 45000 mm/min |
| Rapid traverse: | 45 m/min |
| Max. Feed force | 7000 N |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 25 kVA |
| Noise level | 77 dB (A) |
| Machine's weight about | 11000 kg |
| Overall dimensions machine: | |
| Length | 5400 mm |
| Width | 4300 mm |
| Height | 3000 mm |
| Various accessories: | |

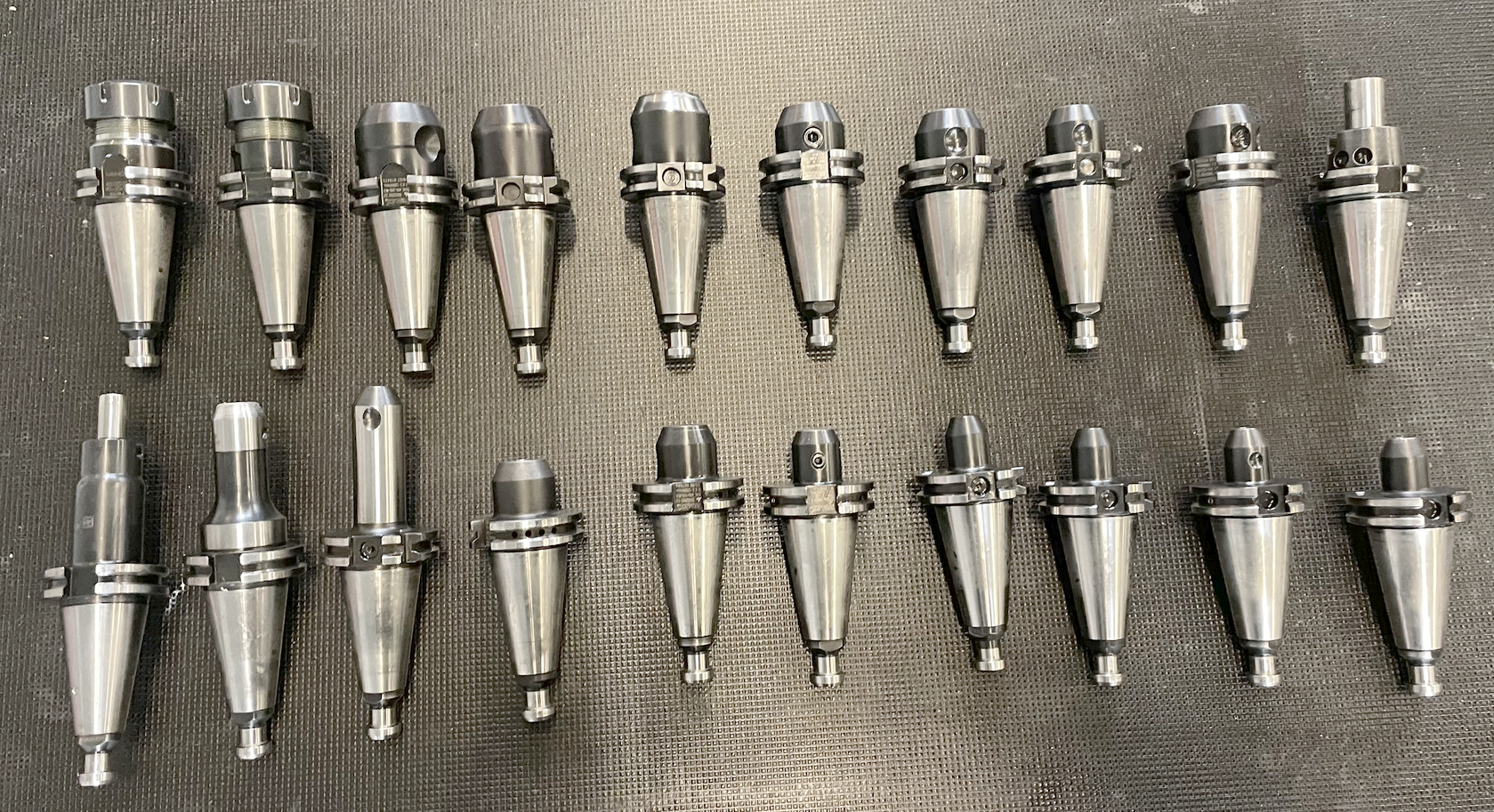

| Set of toolholders | |
| Full splash cabin | |
| Coolant system | 1250 l |

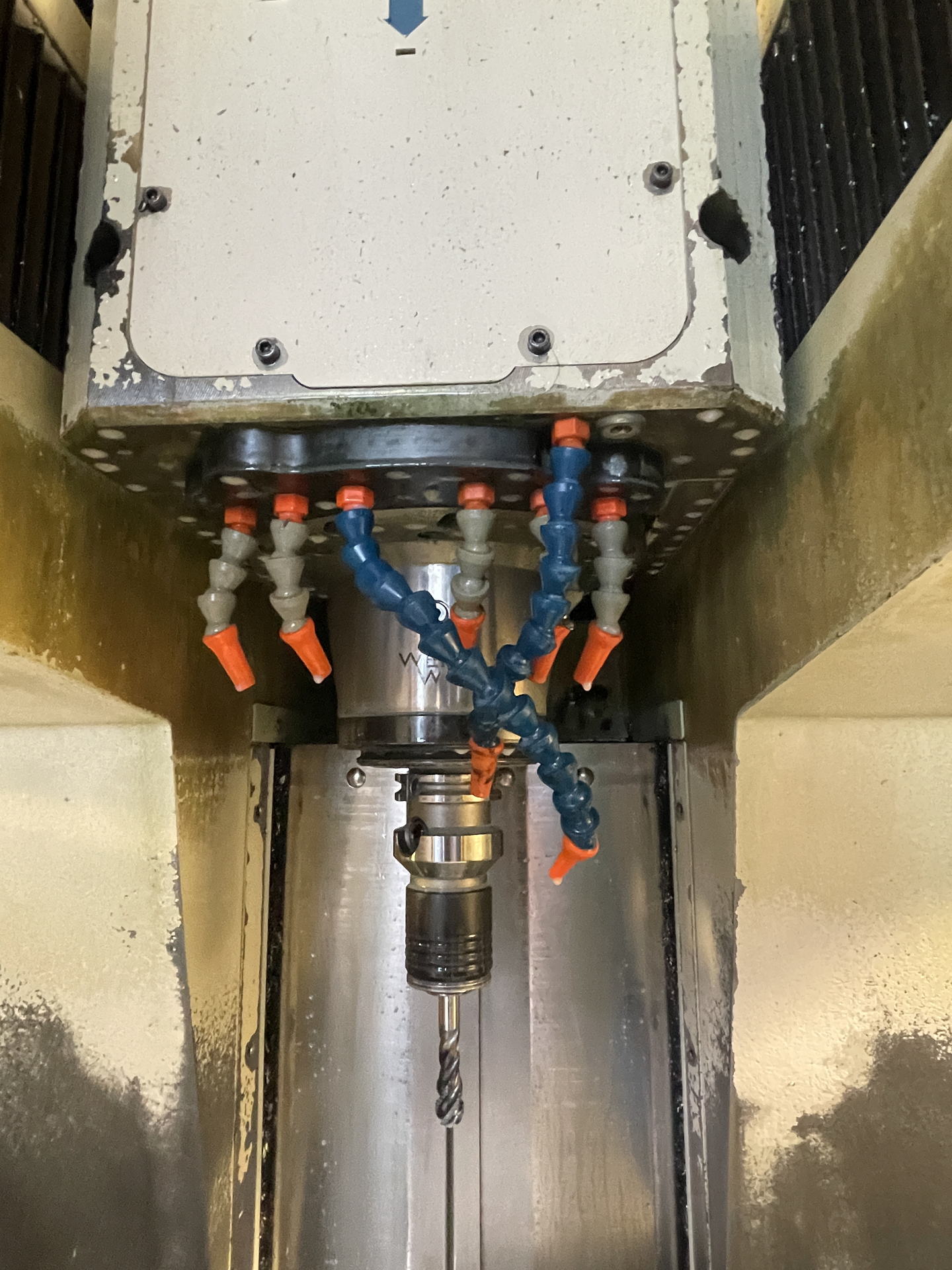

| High pression colant device | 80 bar |
| Air blast through milling spindle | |

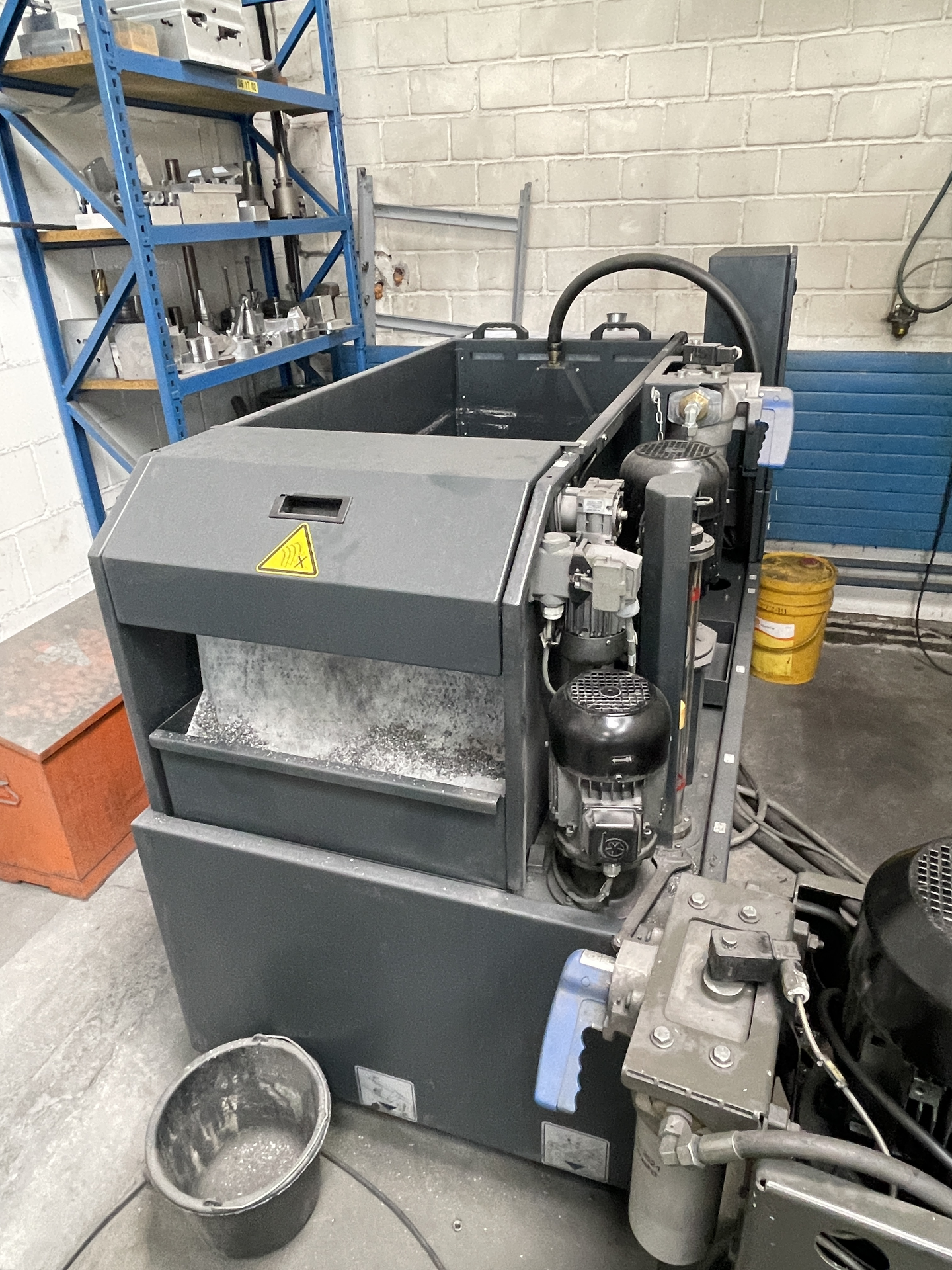

| Paper filtration system | |

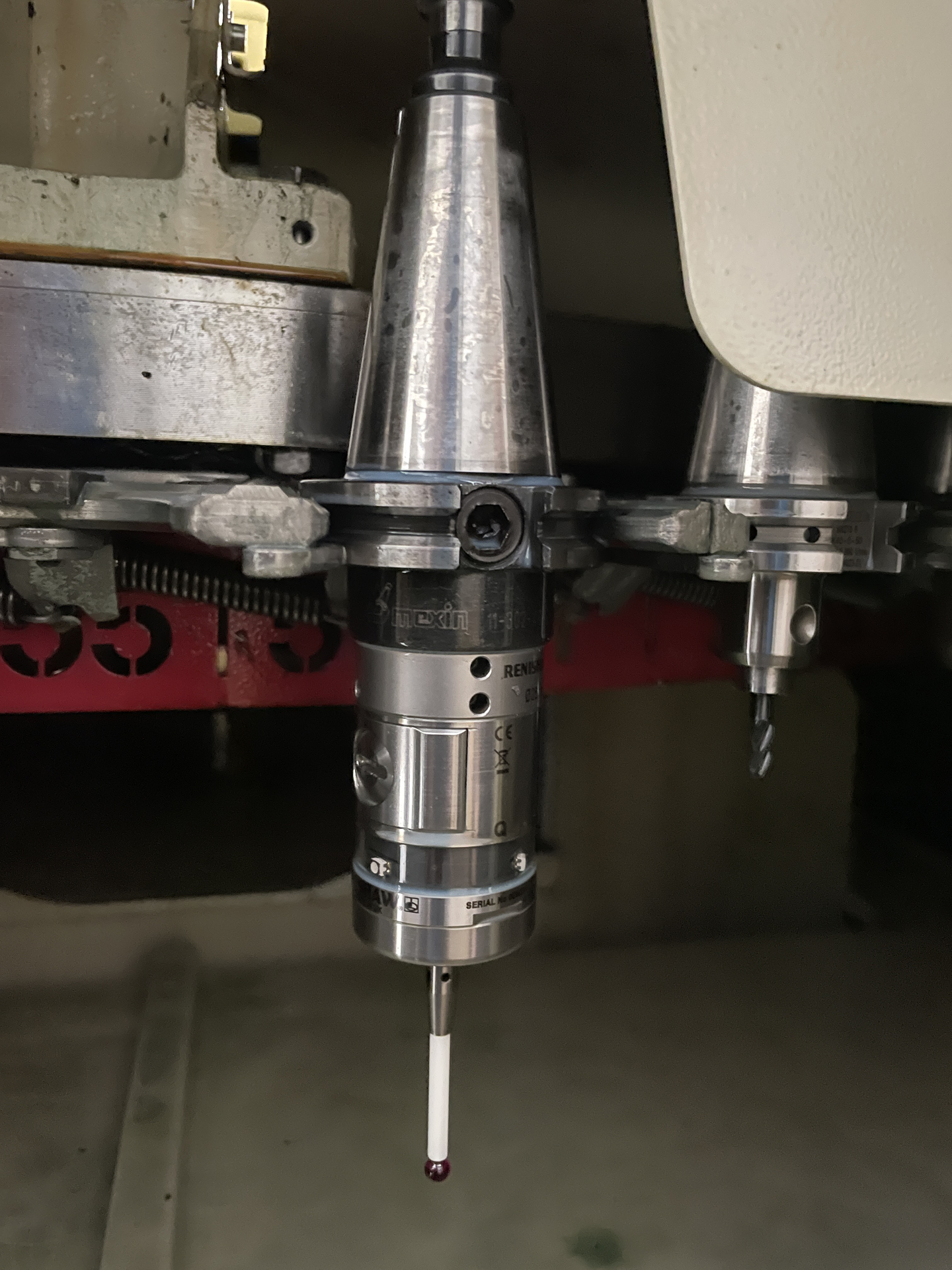

| Touch Probe Renishaw | |
| Chip conveyor | |
| Handwheel electroinic | |

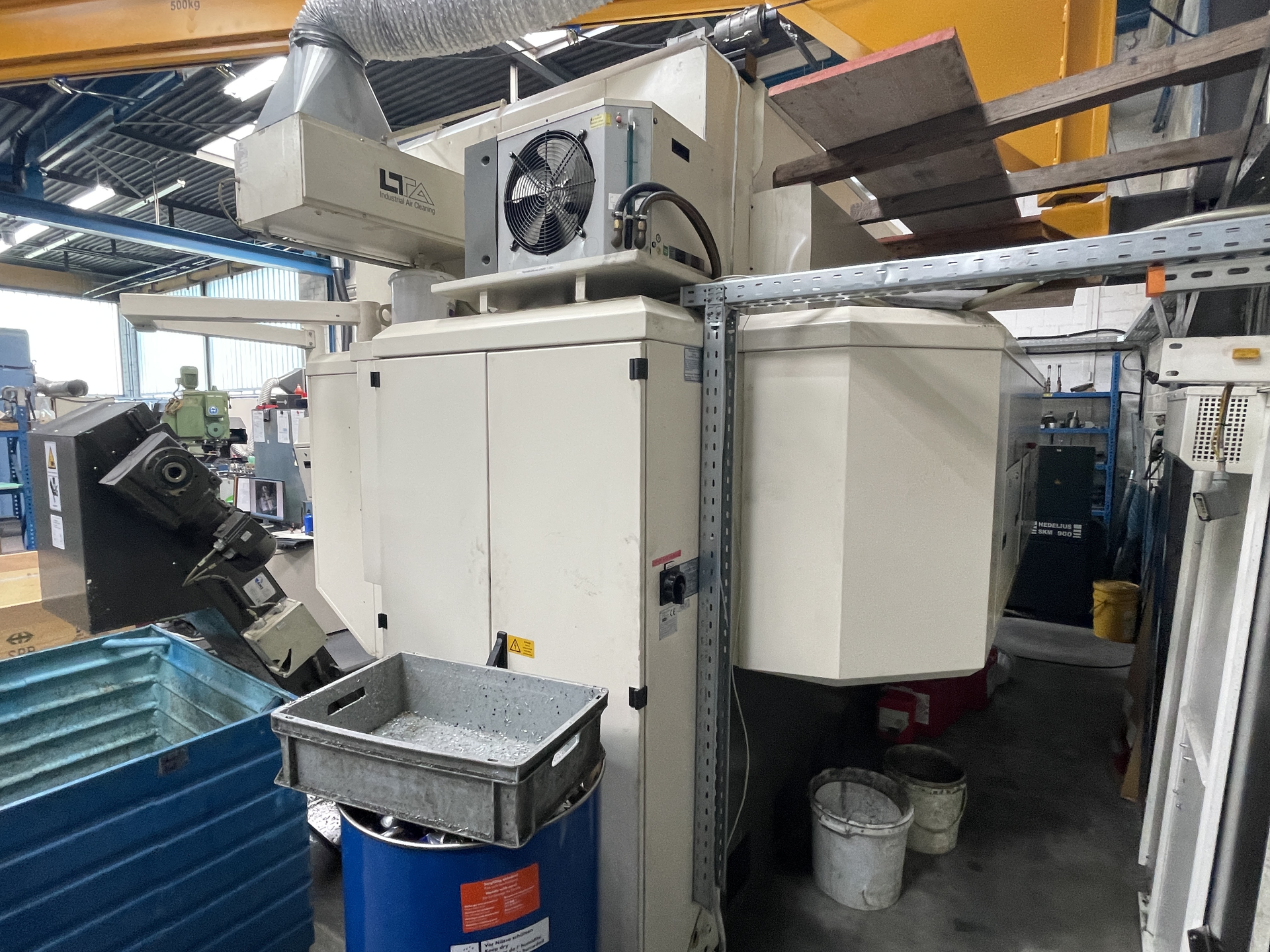

| Oil mist extractor | |

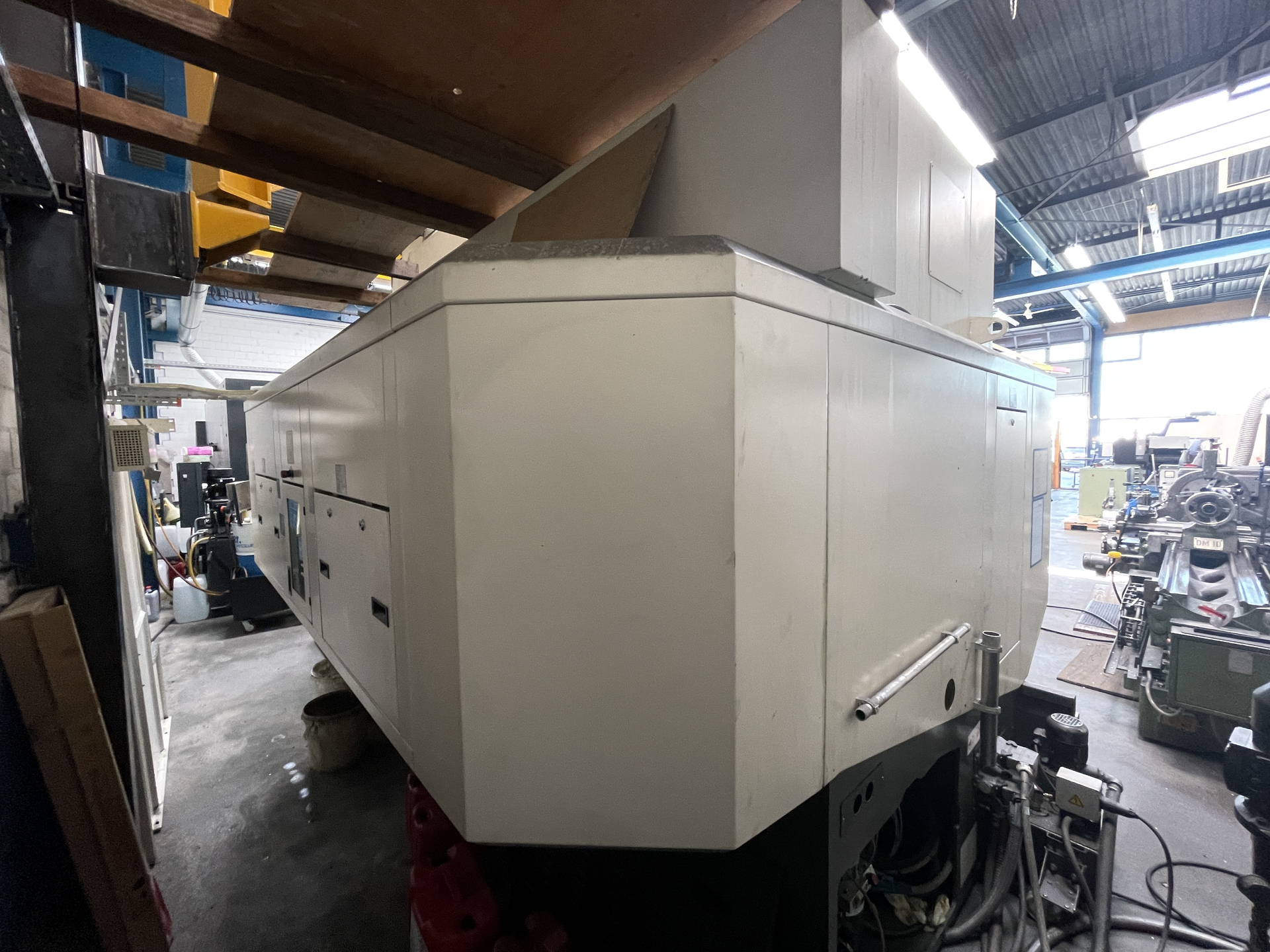

| Full enclosure workspace cowl | |
| Switch cabinet Air conditioner |
