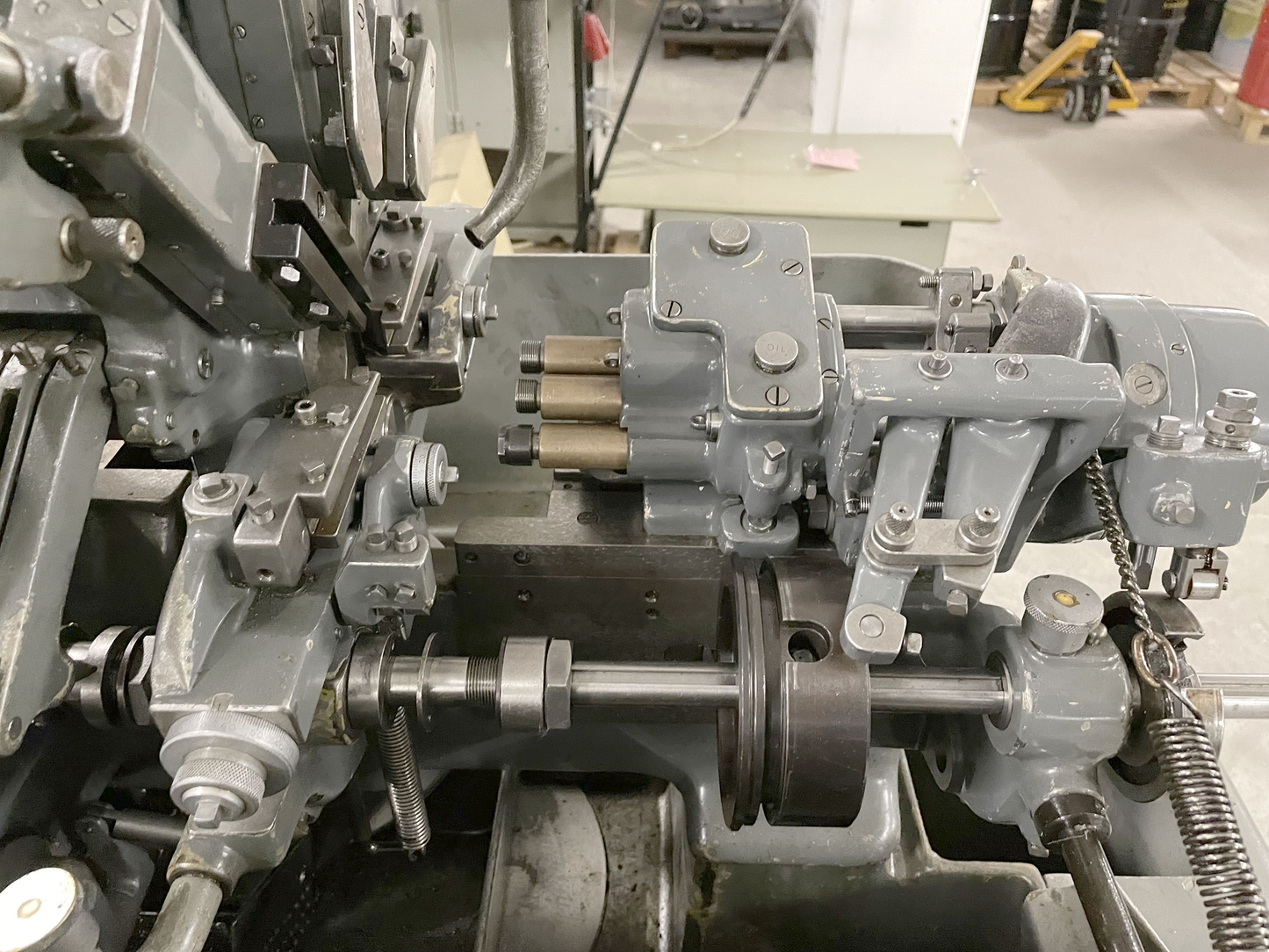

TORNOS R 10 is an automatic lathe, engineered for high-precision machining with strong accuracy and reliability. Accepts bar Ø max 10 mm; spindle hole 13 mm; max threading Ø 8 M; turning length with flat cames 70 mm, with bell cames 100 mm; 5 tool cutters. 20 spindle speeds from 1,050 to 8,000 t/min. Voltage 50 Hz 3x 380 V; total power 3 CV; weight approx. 860 kg; overall dims L1500 × W750 × H1450 mm. Enables tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace and medical.
| Diameter of work admitted | 10 mm |
| Max. turning length: | |
| with flat cames | 70 mm |
| with bell cames | 100 mm |
| Spindle hole | 13 mm |
| Max. treading diameter | 8 M |
| Number of tool cutters | 5 |
| Spindle speeds: | |
| Number of spindle speeds | 20 |
| from | 1050 t/min |
| up to | 8000 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Total power required | 3 CV |
| Machine's weight about | 860 kg |
| Overall dimensions machine: | |
| Length | 1500 mm |
| Width | 750 mm |
| Height | 1450 mm |
