HAUSER 2 BA is a jig boring machine of high precision, delivering strong accuracy and reliable performance. Capacities: table 450×310 mm; travels X 350, Y 200, Z 390 mm; drilling spindle stroke 100 mm; table‑to‑spindle 530 mm; drill capacity steel 15 mm, cast‑iron 18 mm; bore Ø 1–65 mm. Specs: stepless spindle speeds 80–3000 rpm; drill spindle slide 2 steps; voltage 3×380 V 50 Hz; weight ≈1035 kg; dims 1200×1000×1500 mm. Accessories: rotary table Ø300 mm, tool cabinet, boring head, centering device, centering microscope, lamp. Enables tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Table length | 450 mm |
| Table width | 310 mm |
| Longitudinal travel (X-axis) | 350 mm |
| Transversal travel (y-axis) | 200 mm |
| Vertical travel (z axis) | 390 mm |
| Drill capacity in steel | 15 mm |
| Drill capacity in cast-iron | 18 mm |
| Taper in spindle: MT | |
| Stroke of drilling spindle (Z-axis) | 100 mm |
| Bore diameter min. | 1 mm |
| Bore diameter max. | 65 mm |
| Distance table to spindle | 530 mm |
| Spindle speeds: | |
| stepless | |
| from | 80 t/min |
| up to | 3000 t/min |
| Feeds: | |
| Drill spindle slide: | |
| number (steps) | 2 |
| from | mm/t |
| up to | mm/t |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 1035 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 1000 mm |
| Height | 1500 mm |

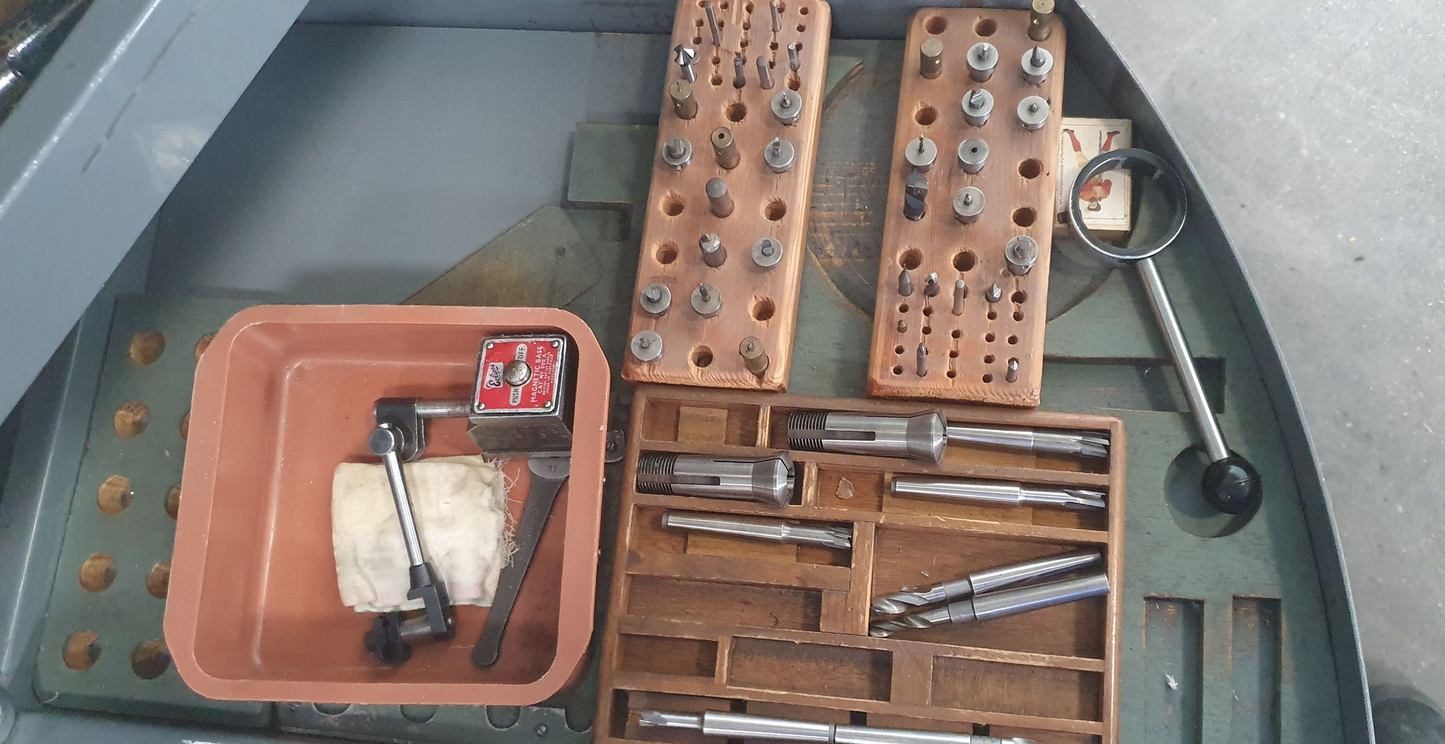

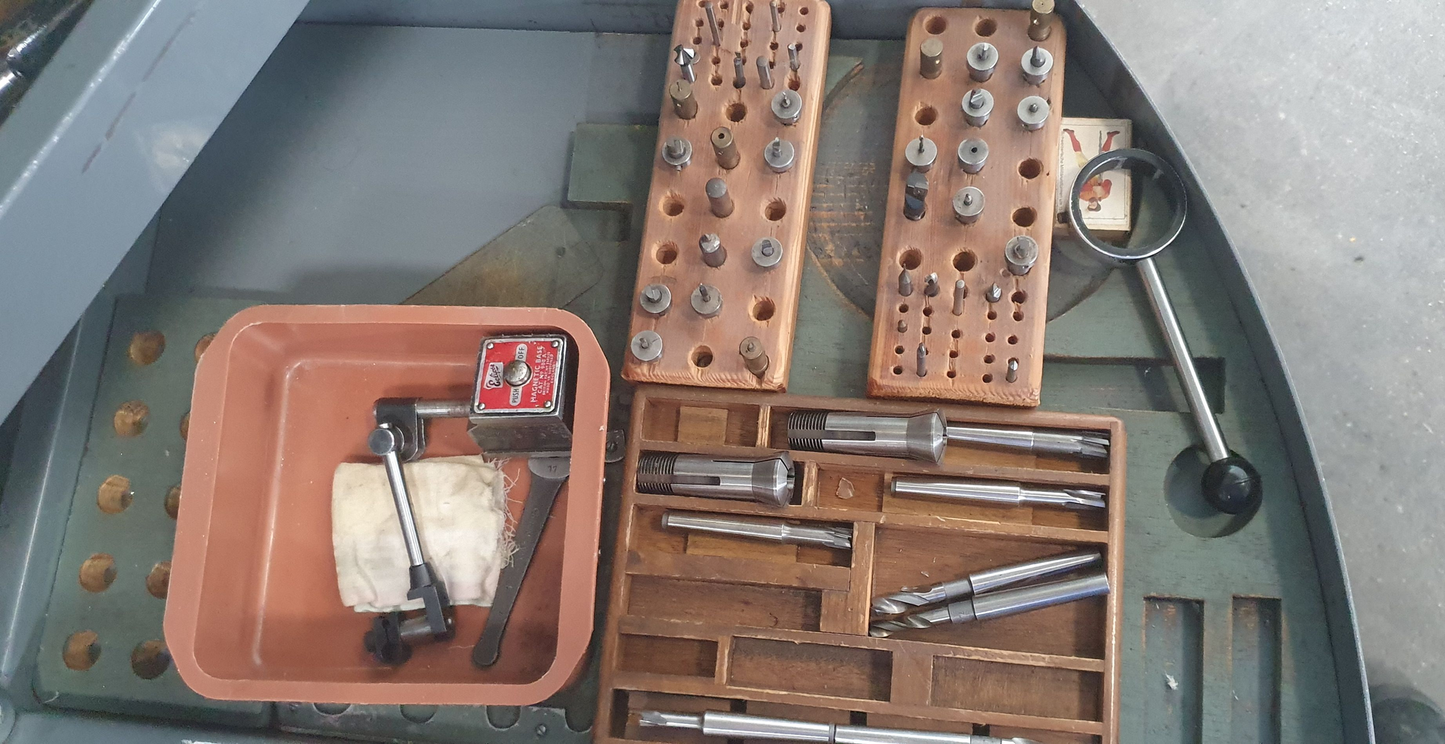

| Various accessories: | |
| Rotary table diameter | 300 mm |
| Tool cabinet | |
| Boring head | |
| Centering device | |
| Centering microscop | |
| Lamp |
