POLYSERVICE P 30
Type: P 30
Manufacturer: POLYSERVICE
Stock: 022032
Download technical sheet (PDF)

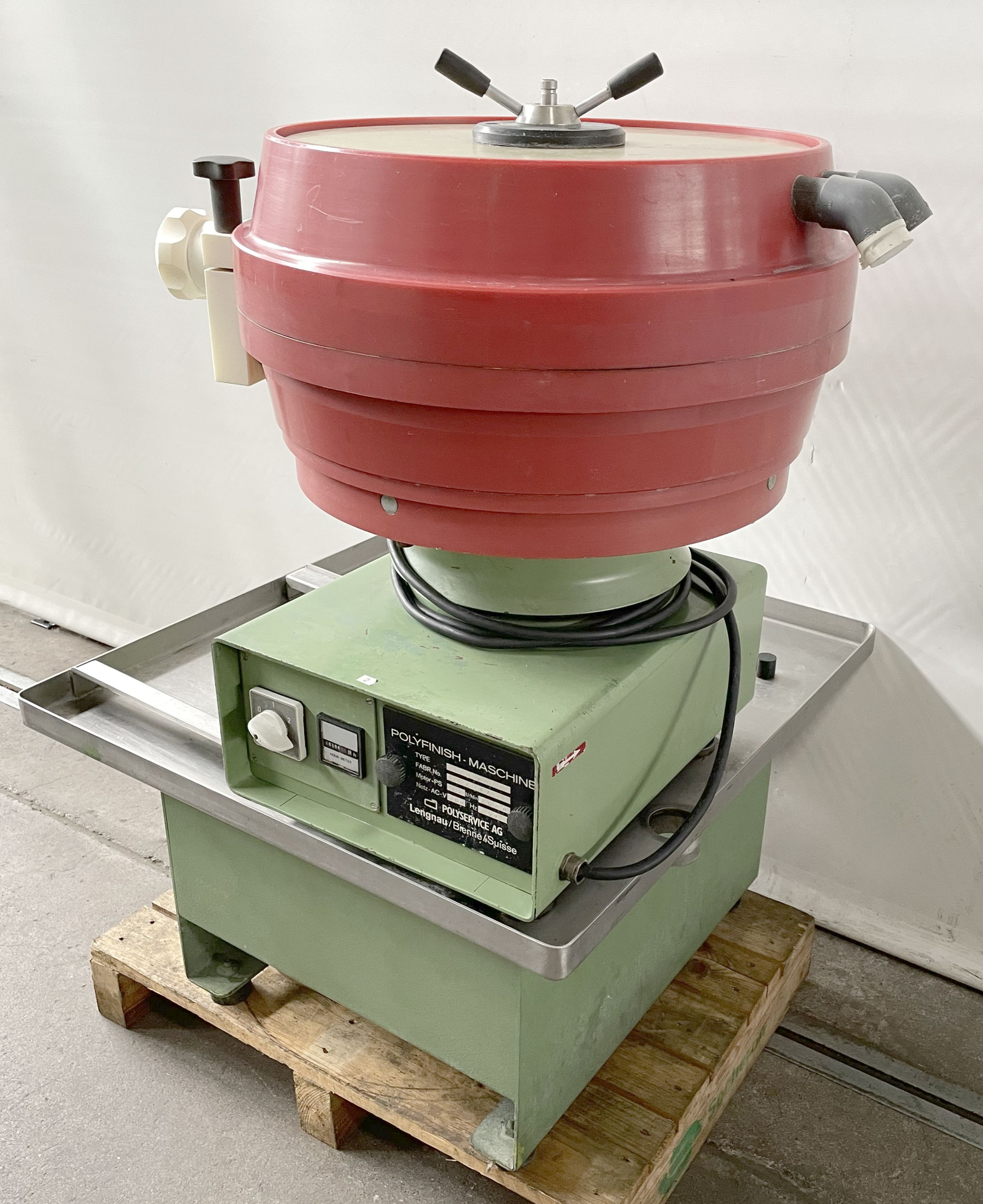

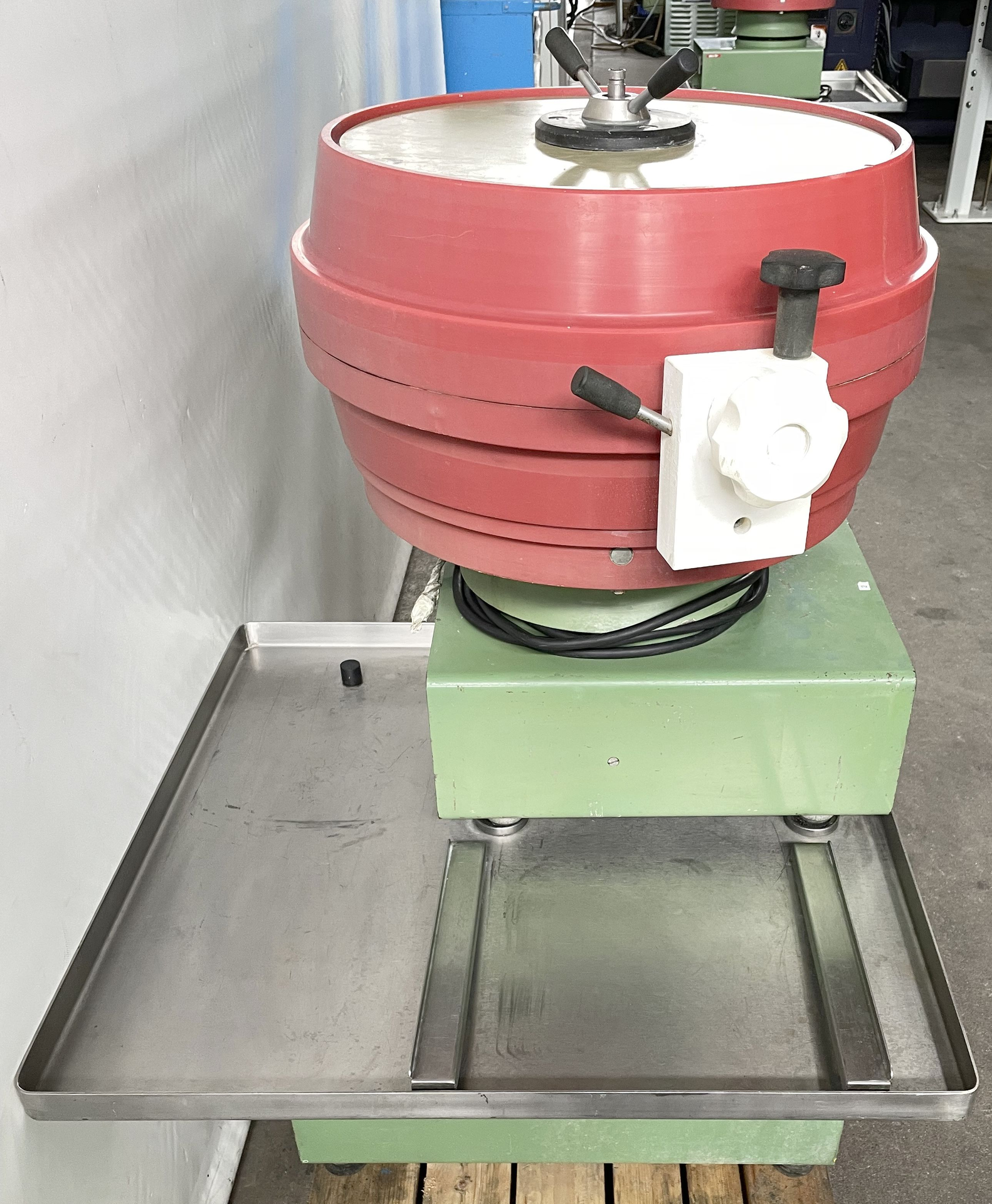

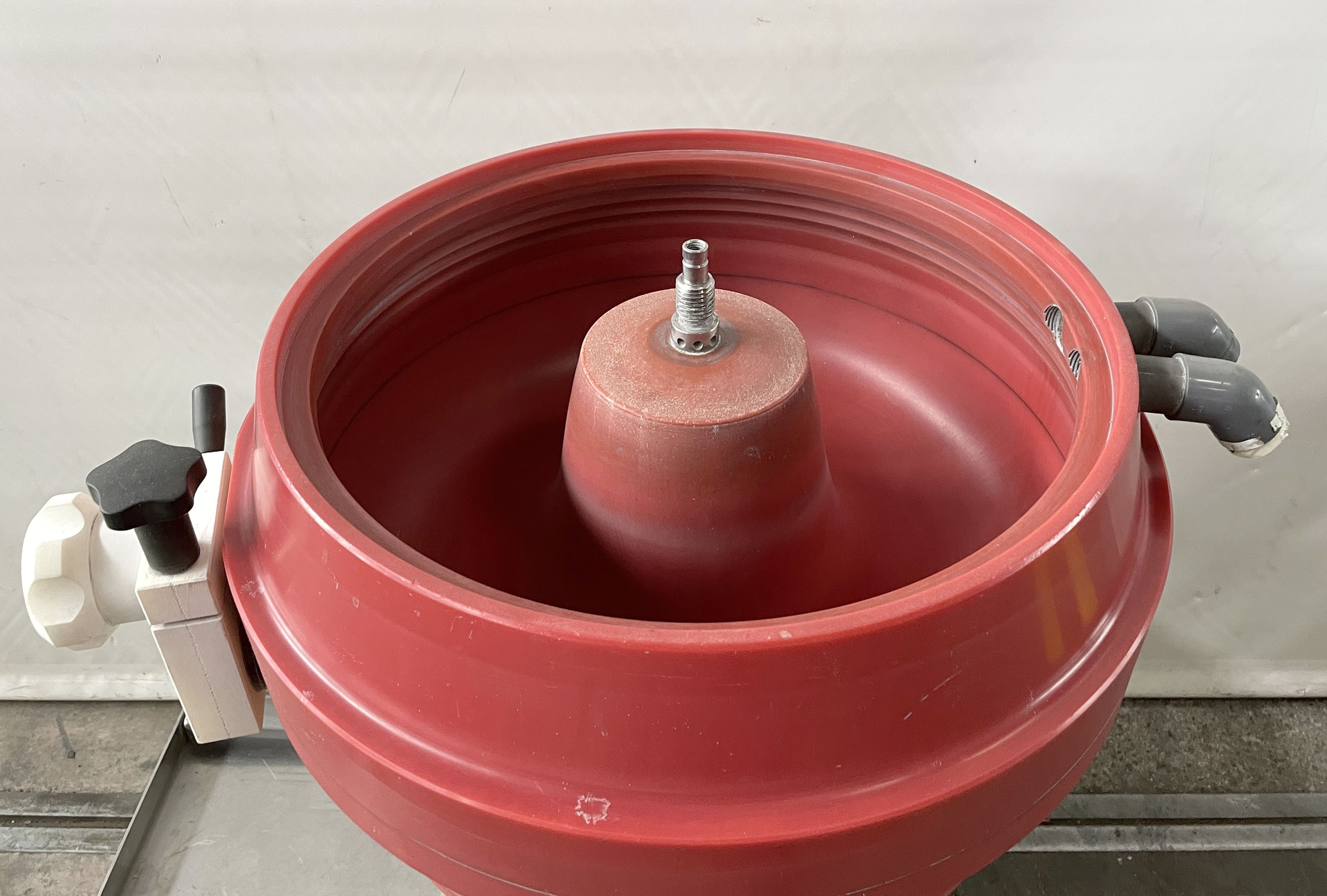

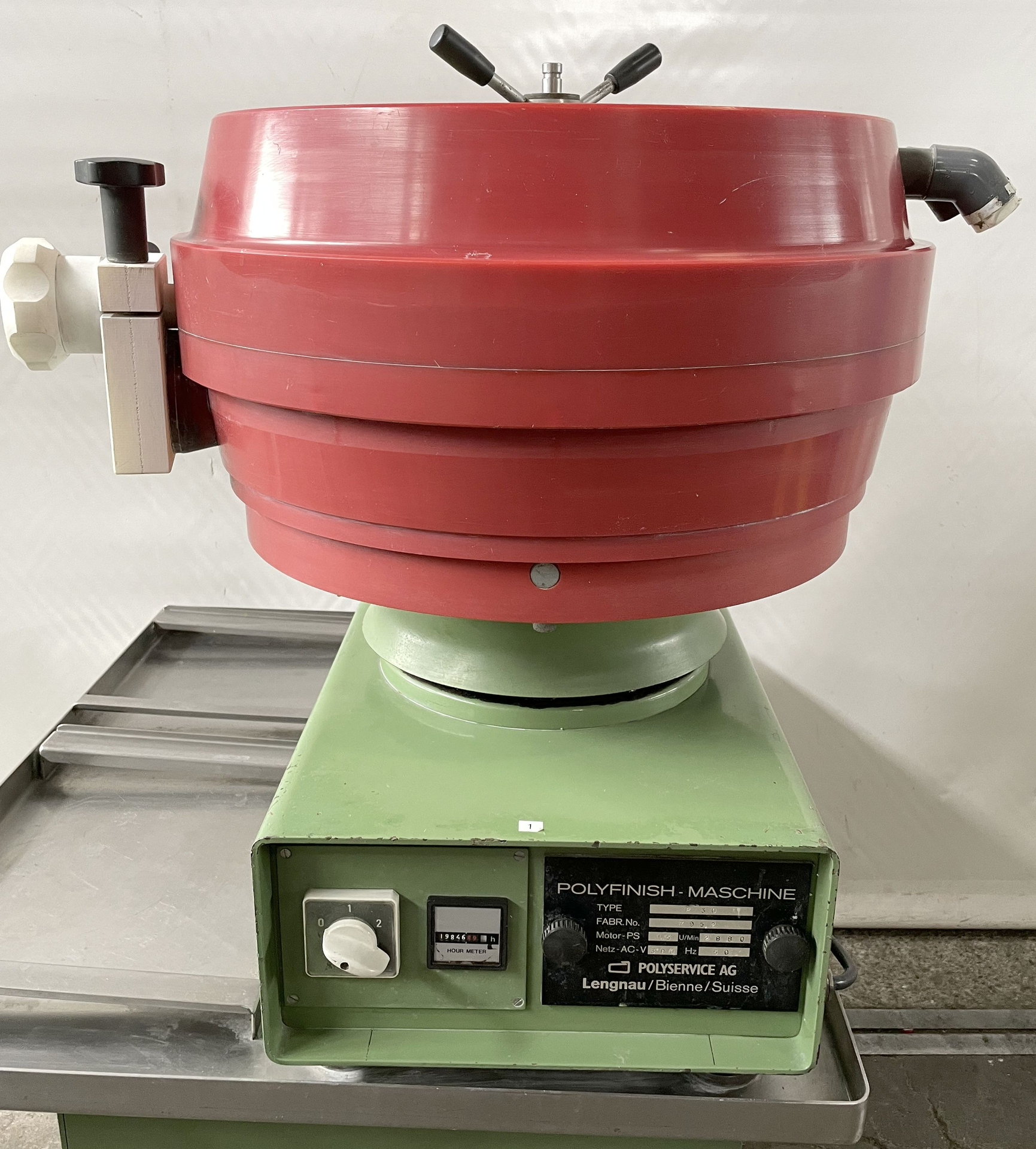

POLYSERVICE P 30 is a barrel-polishing machine offering high precision, accuracy and reliability. Capacity: internal Ø 440 mm, volume 30 L (useful ~50%), parts Ø 2–80 mm, lengths 2–150 mm. Specs: 2880 rpm, 50 Hz 3×380 V, 1.2 kW; weight ≈150 kg; dimensions L900×W800×H1300 mm. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.

Execution: barrel-burnishing
Number of tanks 1
Circlon-Verfahren (Ringform)
Behältergrösse:
   Internal diameter 440 mm
   Volume 30 l
   Useful volume approximate 50 %
Work-pieces:
   diameter min. 2 mm
   max. diameter 80 mm
   Length from 2 - 150 mm
Rotation speed 2880 t/min
Voltage 50 Hz 3x 380 Volt
Installed power 1.2 kW
Machine's weight about 150 kg
Overall dimensions machine:
   Length 900 mm
   Width 800 mm
   Height 1300 mm
