POLYSERVICE P 30
Type: P 30
Manufacturer: POLYSERVICE
Stock: 022027
Download technical sheet (PDF)

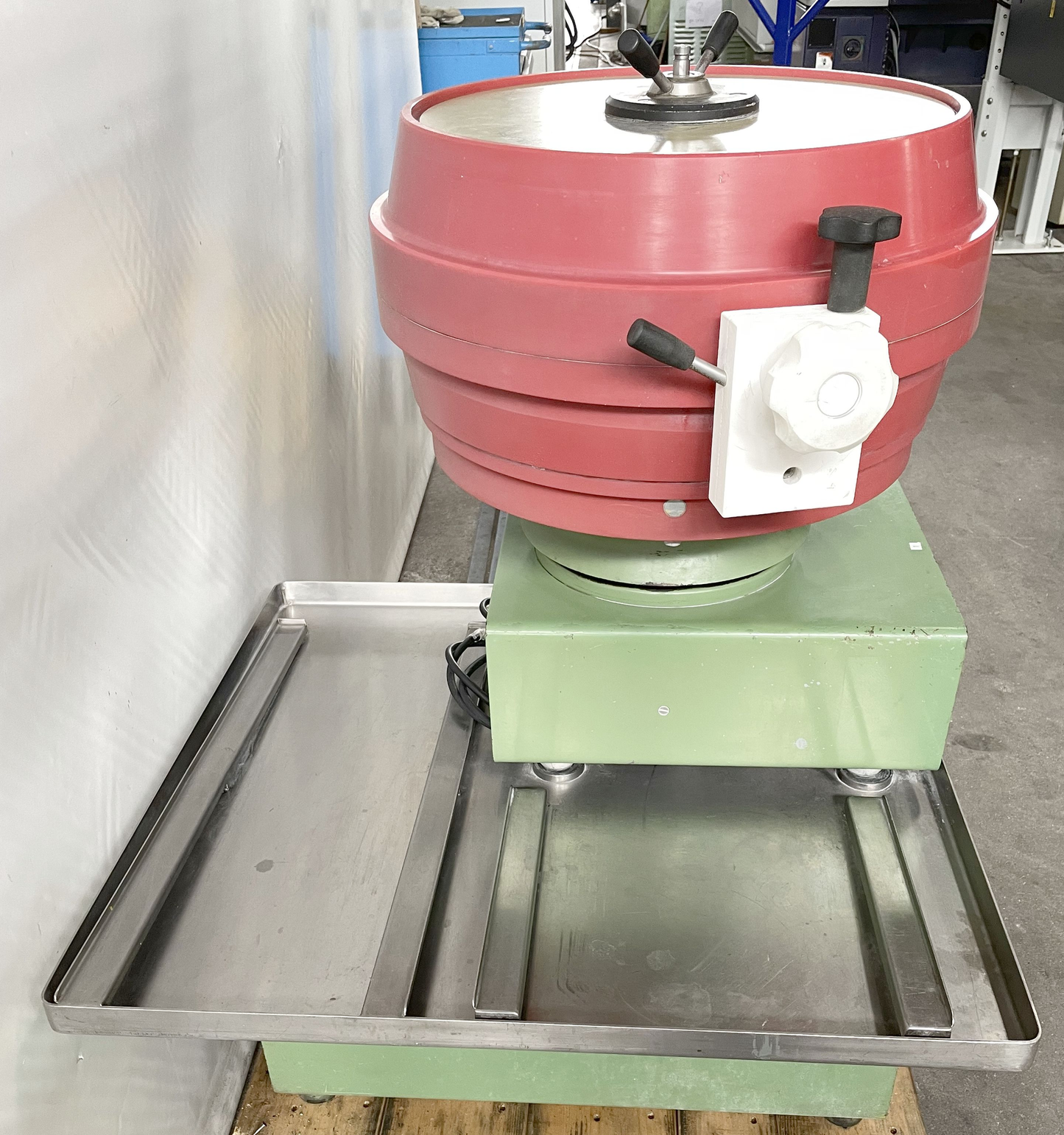

POLYSERVICE P 30 is a Barrel-polishing machine designed for high precision, accuracy and reliability. Capacity: internal tank Ø 440 mm, volume 30 l (useful fill ~50%); workpieces Ø 2–80 mm, lengths 2–150 mm. Technical specs: rotation speed 2880 t/min, voltage 50 Hz 3x 380 V, installed power 1.2 kW; machine weight ~150 kg; dimensions L900 × W800 × H1300 mm. Delivers tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.

Execution: barrel-burnishing
Number of tanks 1
Circlon-Verfahren (Ringform)
Behältergrösse:
   Internal diameter 440 mm
   Volume 30 l
   Useful volume approximate 50 %
Work-pieces:
   diameter min. 2 mm
   max. diameter 80 mm
   Length from 2 - 150 mm
Rotation speed 2880 t/min
Voltage 50 Hz 3x 380 Volt
Installed power 1.2 kW
Machine's weight about 150 kg
Overall dimensions machine:
   Length 900 mm
   Width 800 mm
   Height 1300 mm
