SUPERTEC G20P-45CII
Special Price
CHF 12 500
Special offer machines are sold as-is, without any warranty or inspection from us.
Need Assistance? Just WhatsApp Us!

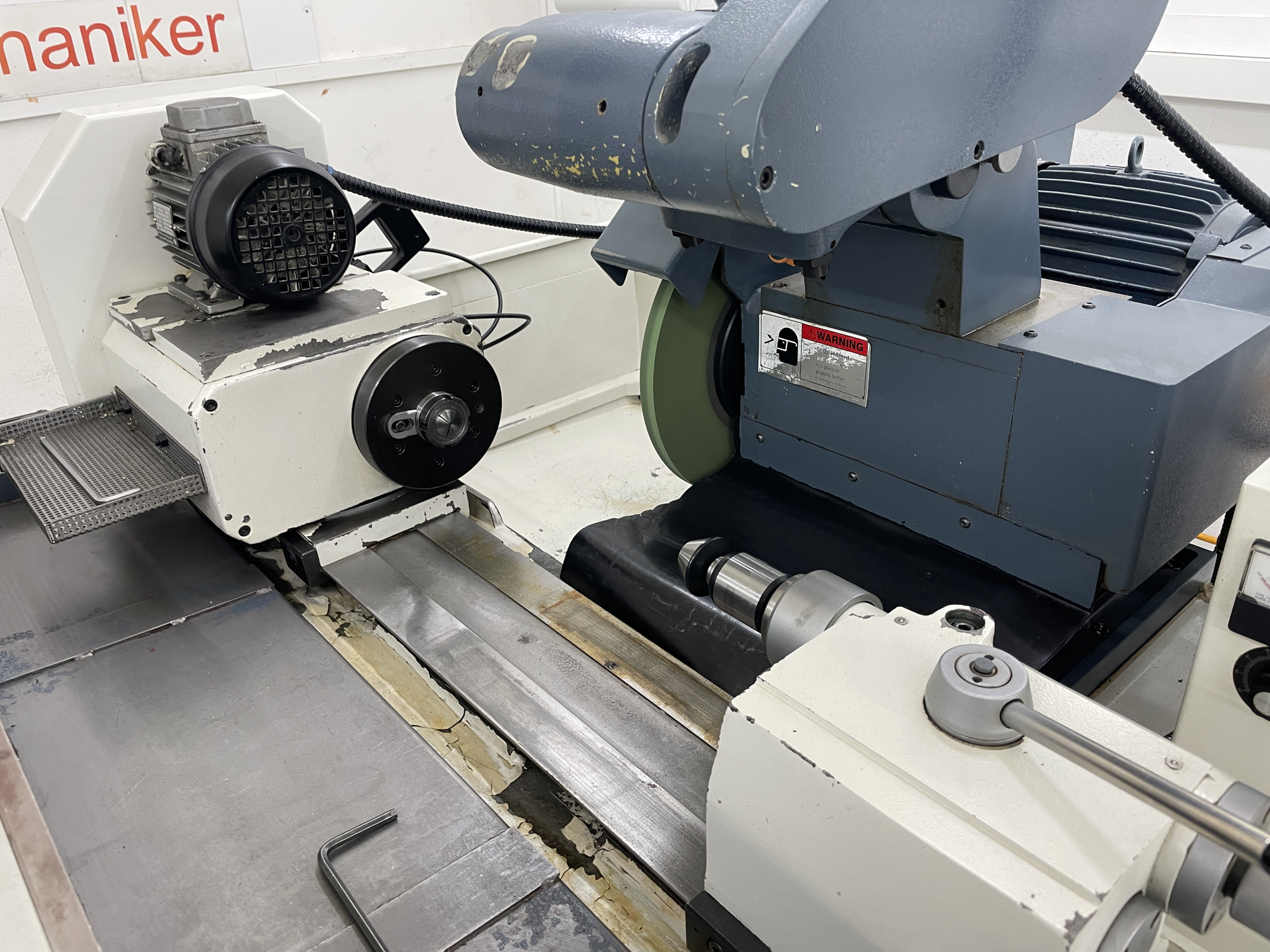

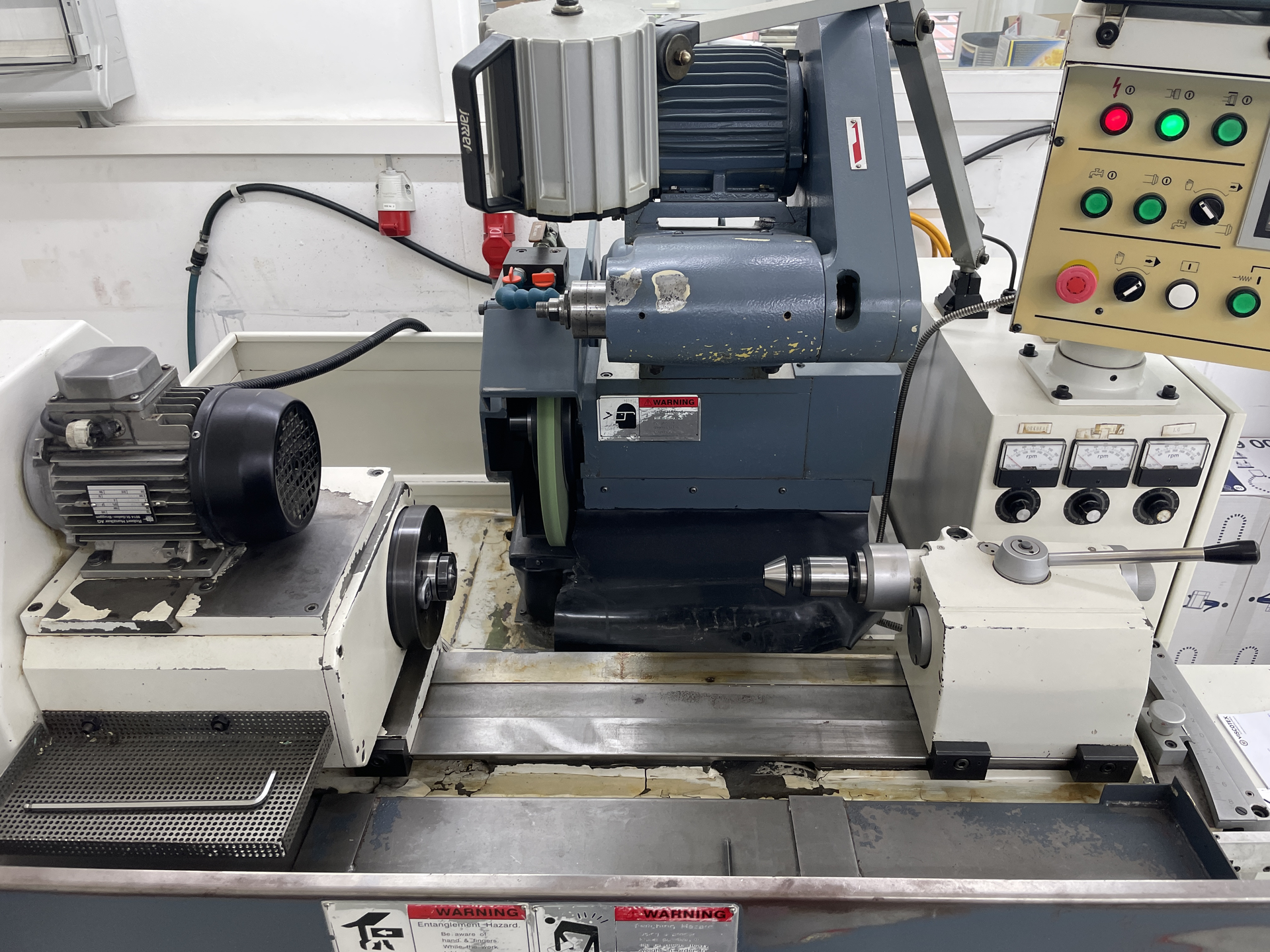

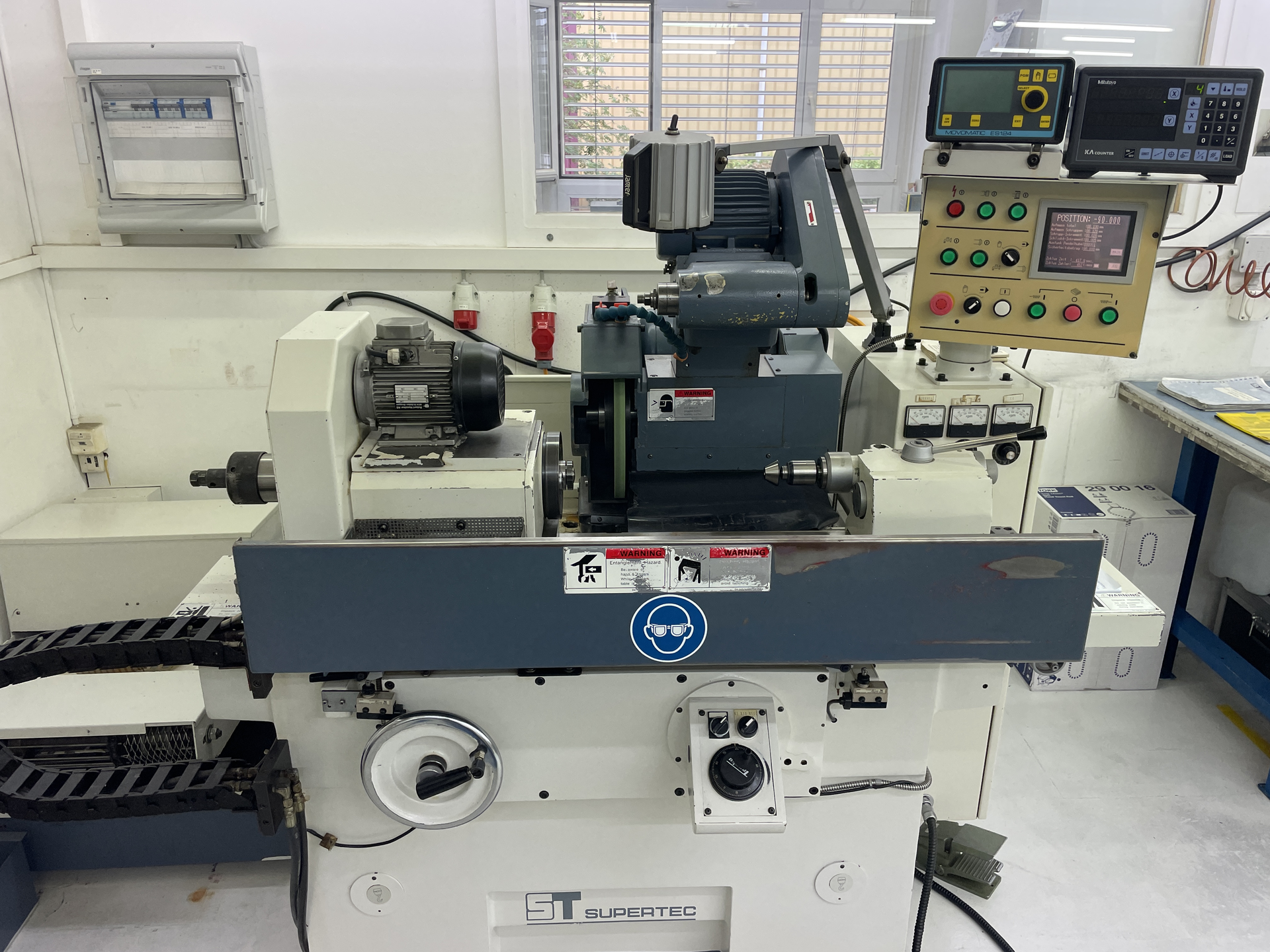

SUPERTEC G20P-45CII is a cylindrical grinder engineered for precision, high accuracy and reliability. Capacities: centre height 110 mm; distance between centres 500 mm; swing/grind Ø 200 mm; wheel Ø305×25 mm; bore 76 mm; workpiece max 80 kg; table ±7°. Specs: wheel 2200 t/min; spindle 14000 t/min; spindle taper 3 CM; collet W20; voltage 50 Hz 3×380 V; weight ≈2000 kg; dimensions 1600×1500×1600 mm; DRO 1 axis. Accessories: tailstock fine adjust, internal grinding attachment, paper filtration, lamp. Achieves tight tolerances; suitable for automotive, toolmaking, aerospace and medical.
Technical specifications are subject to change without notice
| Centre height | 110 mm |
| Distance between centres | 500 mm |
| Swing diameter | 200 mm |
| grinding diameter | 200 mm |

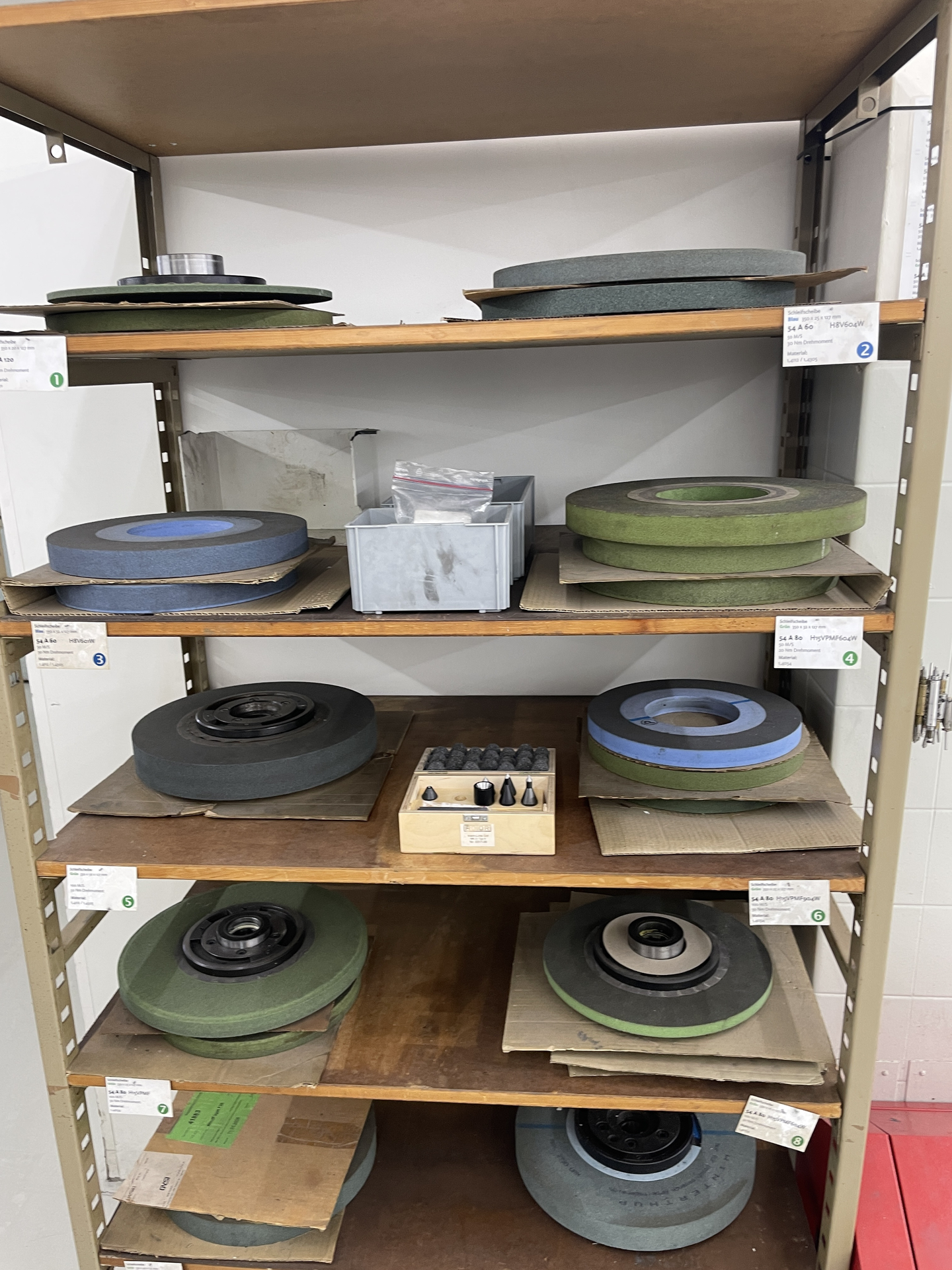

| Grinding wheel: | |
| Diameter | 305 mm |
| Width | 25 mm |
| Bore | 76 mm |
| Workpiece weight on centres max. | 80 kg |
| Grinding wheel speeds fix | 2200 t/min |
| Grinding wheel speeds: | |
| Work piece spindle head: | |
| Inner taper type | W20 |
| Spindle taper | 3 CM |
| Taper in tailstock: | 3 CM |
| Table angular displacement | +/-7 ° |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 2000 kg |
| Overall dimensions machine: | |
| Length | 1600 mm |
| Width | 1500 mm |
| Height | 1600 mm |

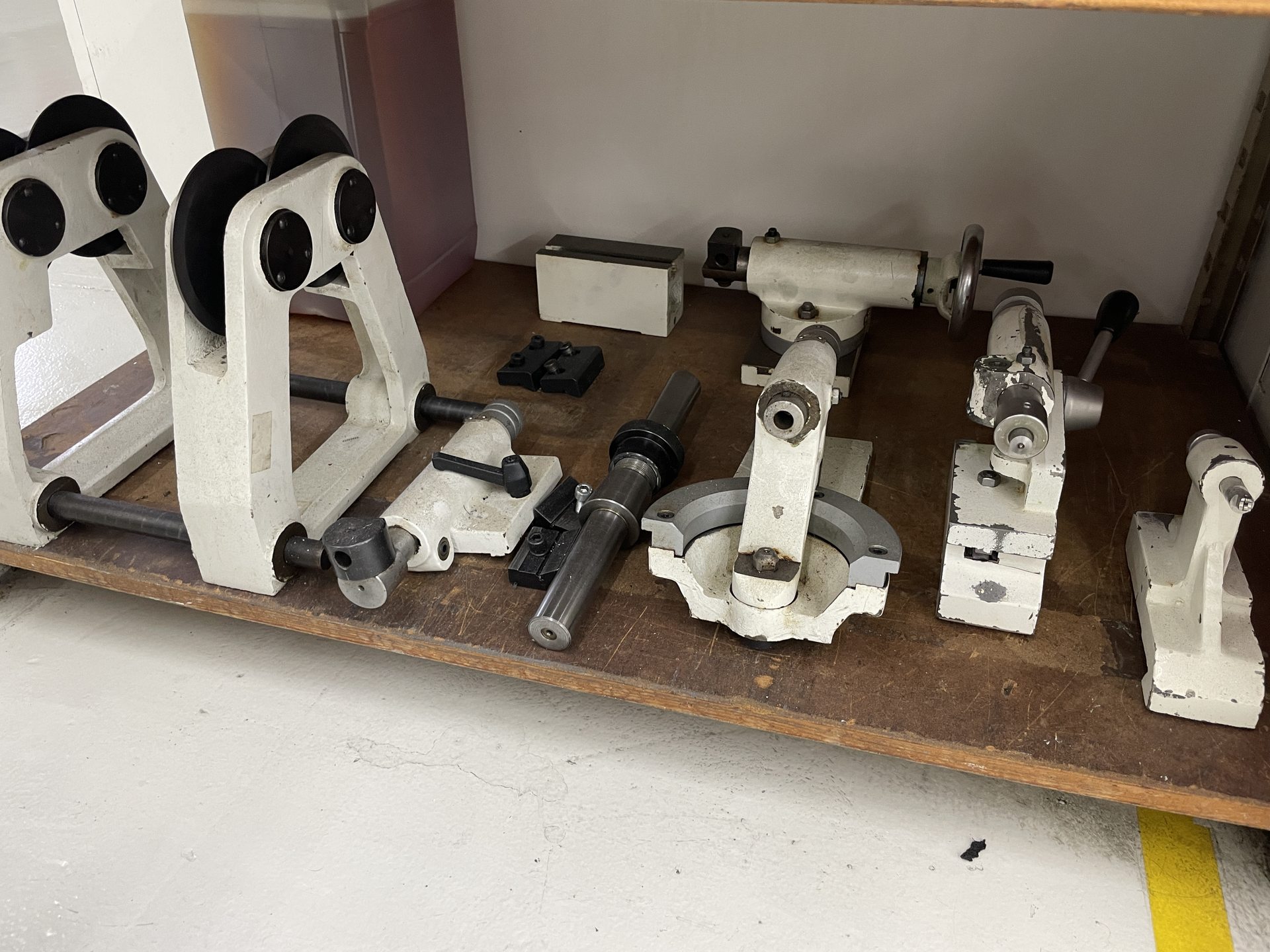

| Various accessories: | |
| Digital readout number of axis: | 1 |
| Tailstock with fine adjustement | |
| Internal grinding attachment | |
| Spindle speeds | 14000 t/min |

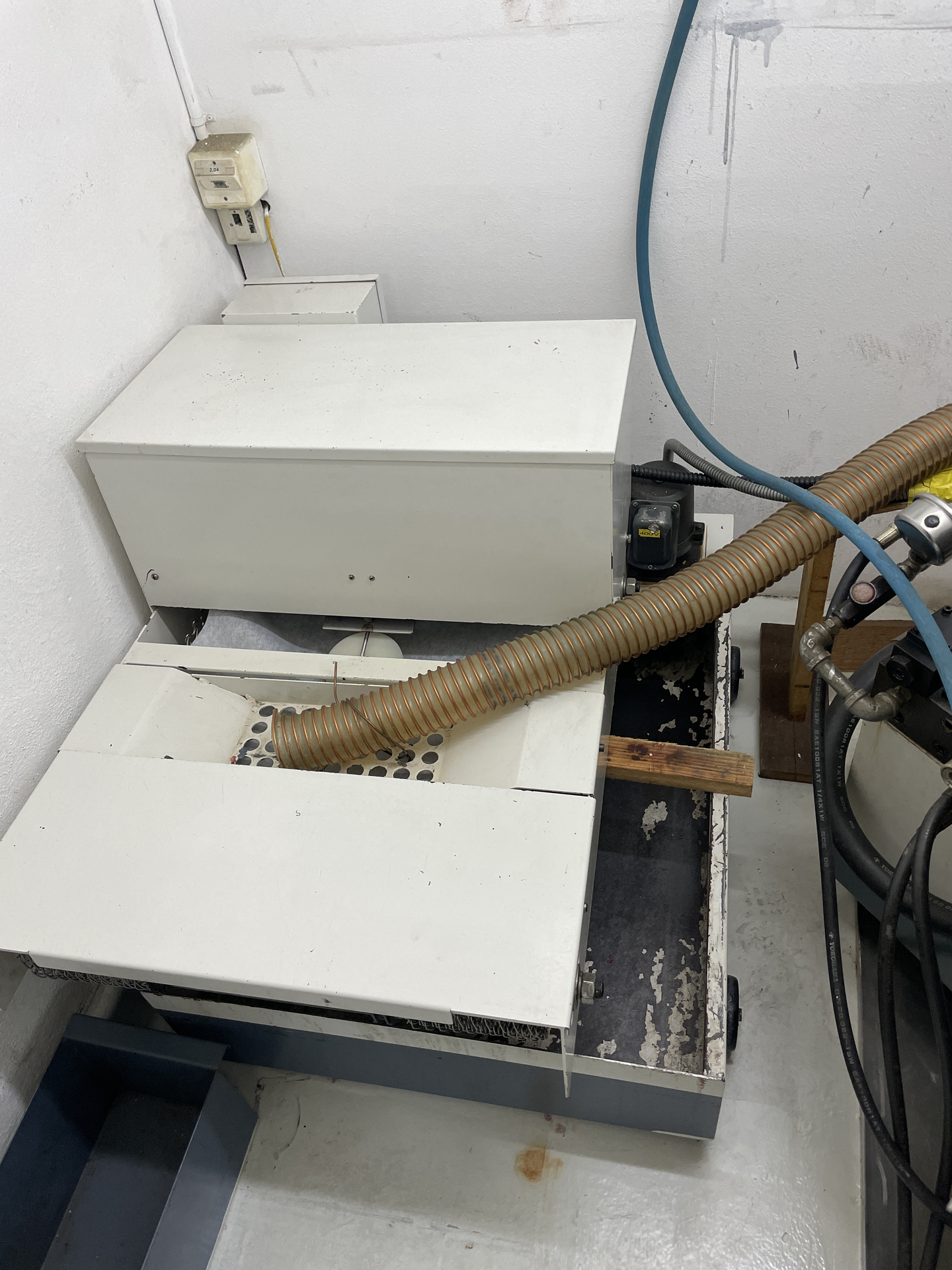

| Paper filtration system | |
| Lamp |
