MAZAK SUPER QUICK TURN 100MSY
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
MAZAK SUPER QUICK TURN 100MSY is a CNC turning lathe with two work spindles, engineered for precision, high accuracy and reliable performance. Capacities: swing diameter 550 mm, spindle hole 61 mm, max turning length 305 mm, max turning diameter 280 mm, tailstock travel 275 mm; turret 12 positions/6 driven tools. Specs: spindle speeds 25–4500 t/min, stepless range 35–6000 t/min, back spindle up to 6000 t/min (11/7.5 kW), spindle motor 15/11 kW, driven tools 3.7 kW, rapid X/Z 33 m/min, Y 21 m/min, total power 31.3 kVA, weight ~3600 kg, size 2400×1800×2000 mm. Accessories: IEMCA BOSS 545/32 bar feeder, set of collets, tool cabinet, parts catcher, foot pedal, toolholder set, Renishaw measuring arm. Delivers tight tolerances; suited for automotive, aerospace, medical and precision engineering.
| Number of spindles | 2 |
| Number of revolvers | 1 |
| Swing diameter | 550 mm |
| Spindle hole | 61 mm |
| Maximum turning length | 305 mm |
| Max. turning diameter | 280 mm |
| Turret slide: | |
| Number of positions | 12 |
| Driven tools turret | 6 |
| Spindle speeds | 25 - 4500 t/min |
| Power of driven tools | 3.7 kW |
| Main spindle: | |
| C axis (spindle,resolution) | 0.001 ° |
| Spindle speeds: | |
| stepless | |
| from | 35 t/min |
| up to | 6000 t/min |
| Tail stock travel | 275 mm |
| Back spindle: | |
| max. speed | 6000 t/min |
| Power of back spindle | 11 / 7.5 kW |
| Rapid traverse X | 33 m/min |
| Rapid traverse Z | 33 m/min |
| Rapid traverse Y | 21 m/min |
| Spindle motor | 15 / 11 kW |
| Total power required | 31.3 kVA |
| Machine's weight about | 3600 kg |
| Length | 2400 mm |
| Width | 1800 mm |
| Height | 2000 mm |
| Various accessories: | |
| Set of collets | |
| Bar feeder | IEMCA |
| Type | BOSS 545/32 |
| Tool cabinet | |
| Parts catcher | |
| Foot pedal | |

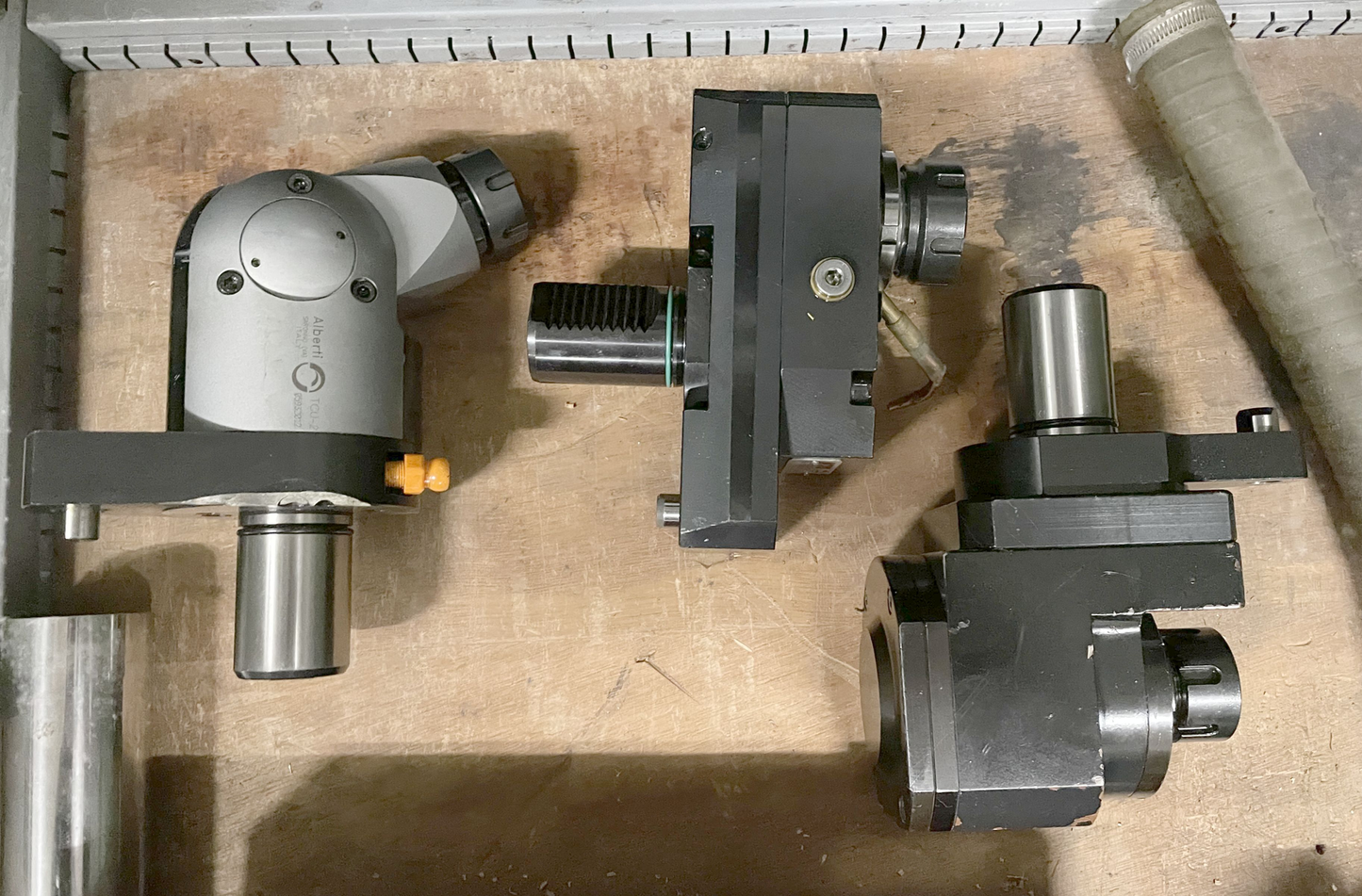

| Set of toolholders | |
| Measuring arm Renishaw |
