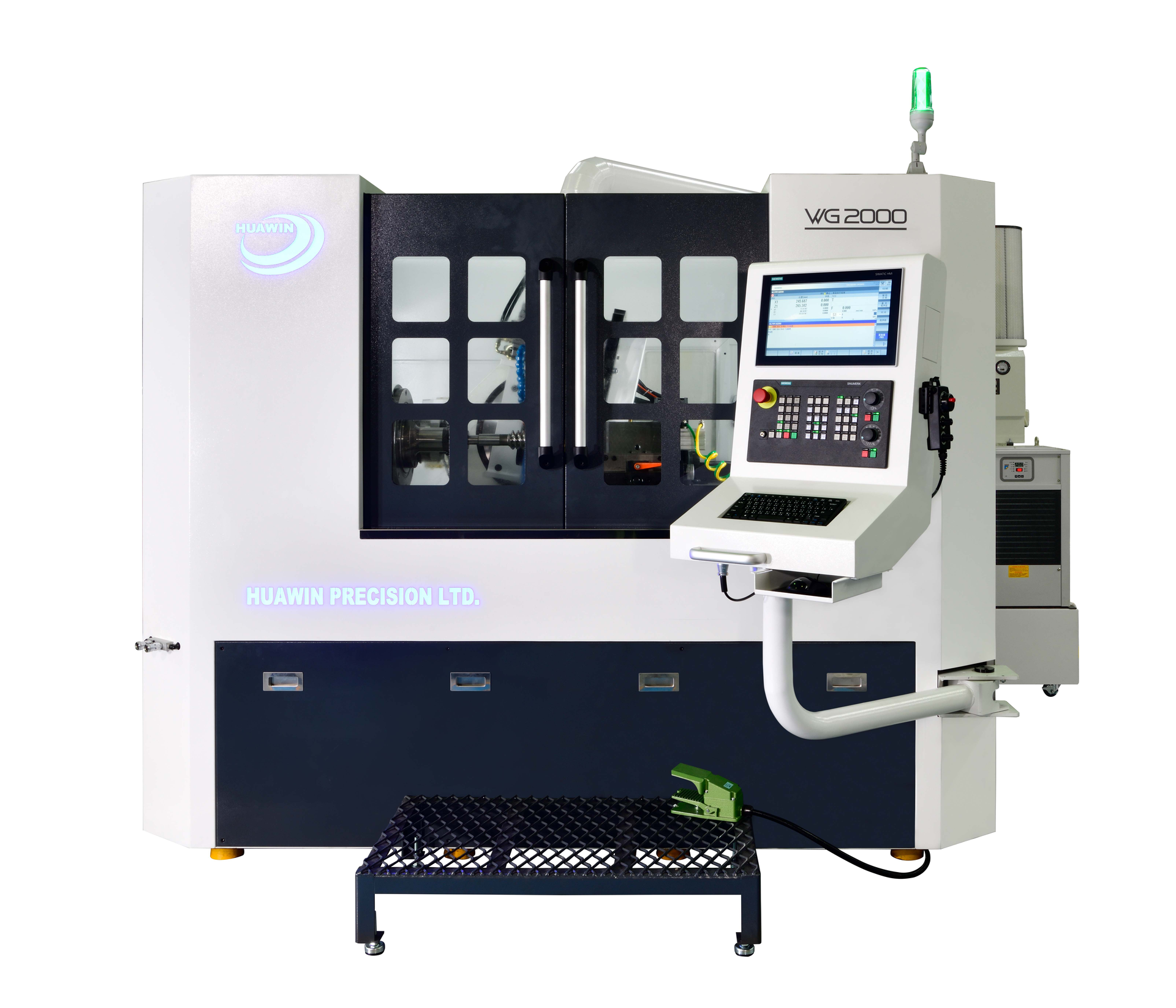

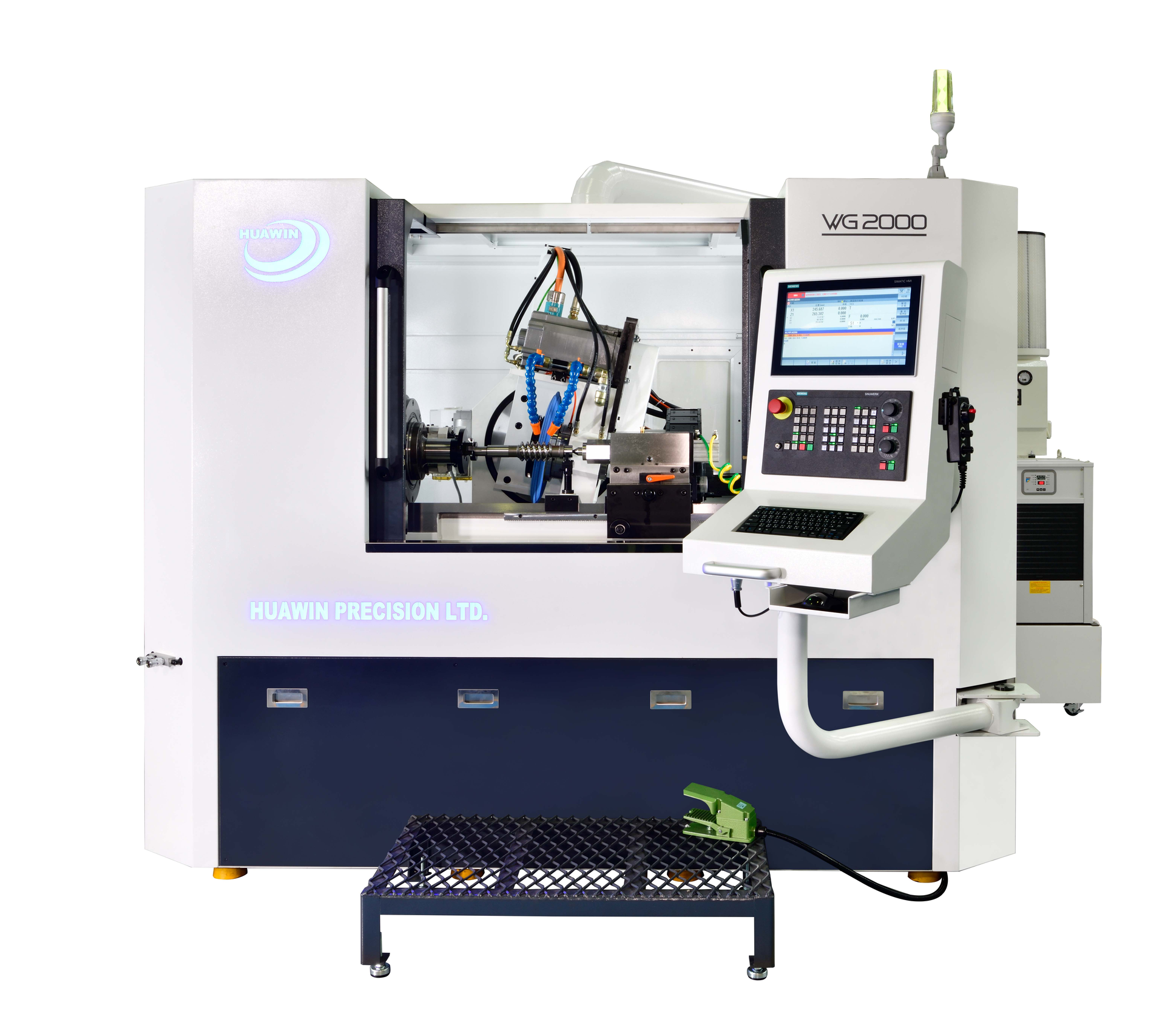

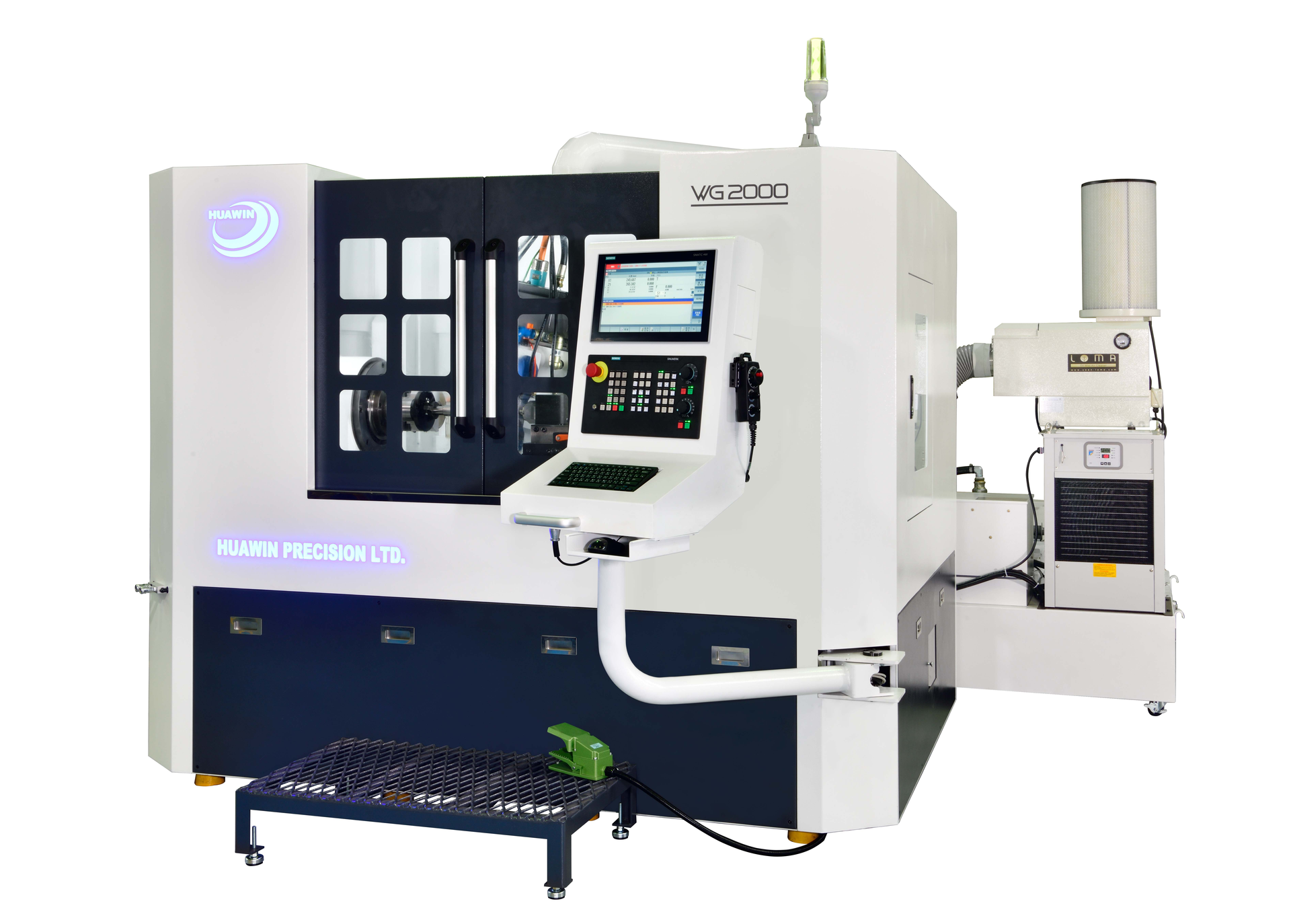

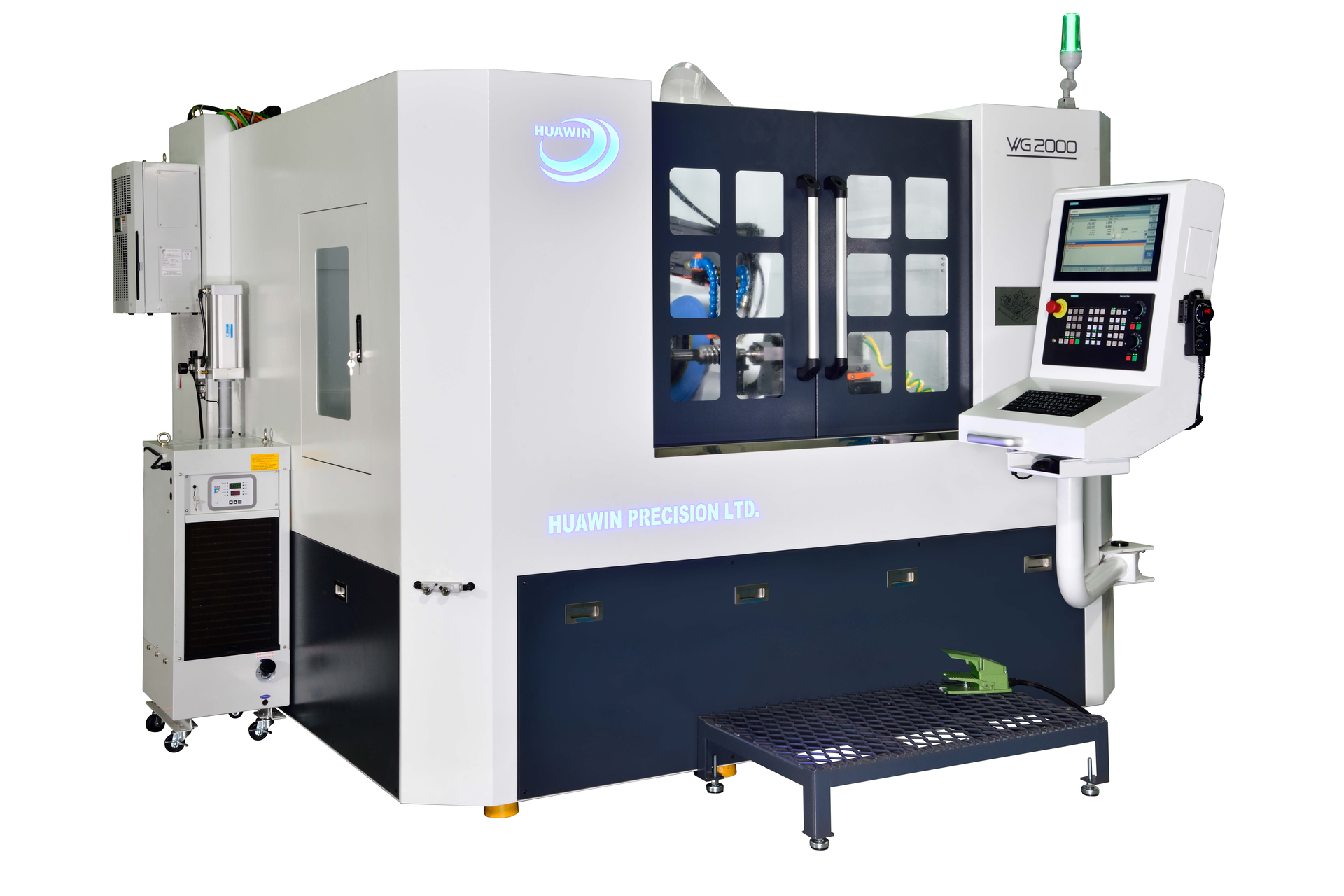

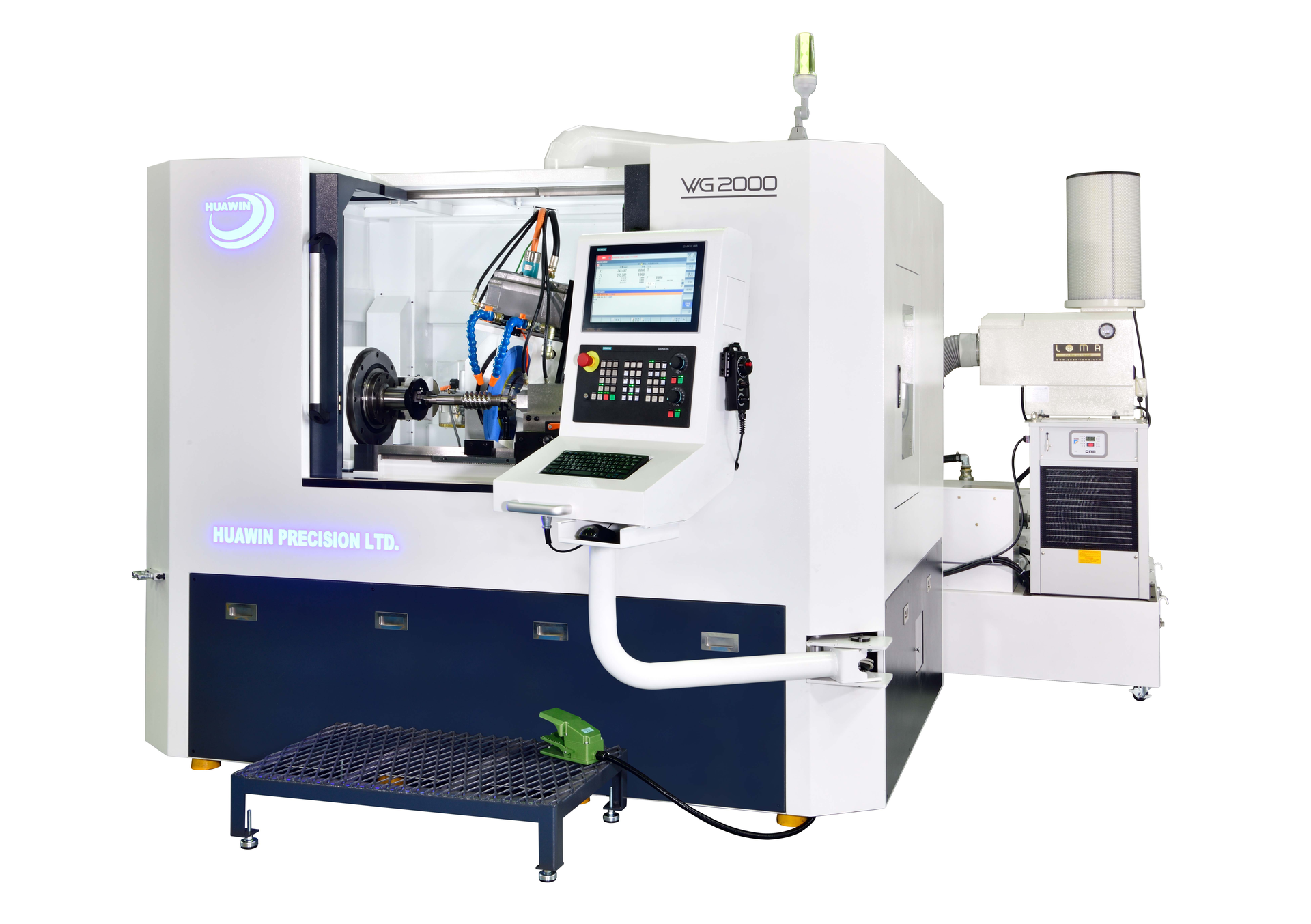

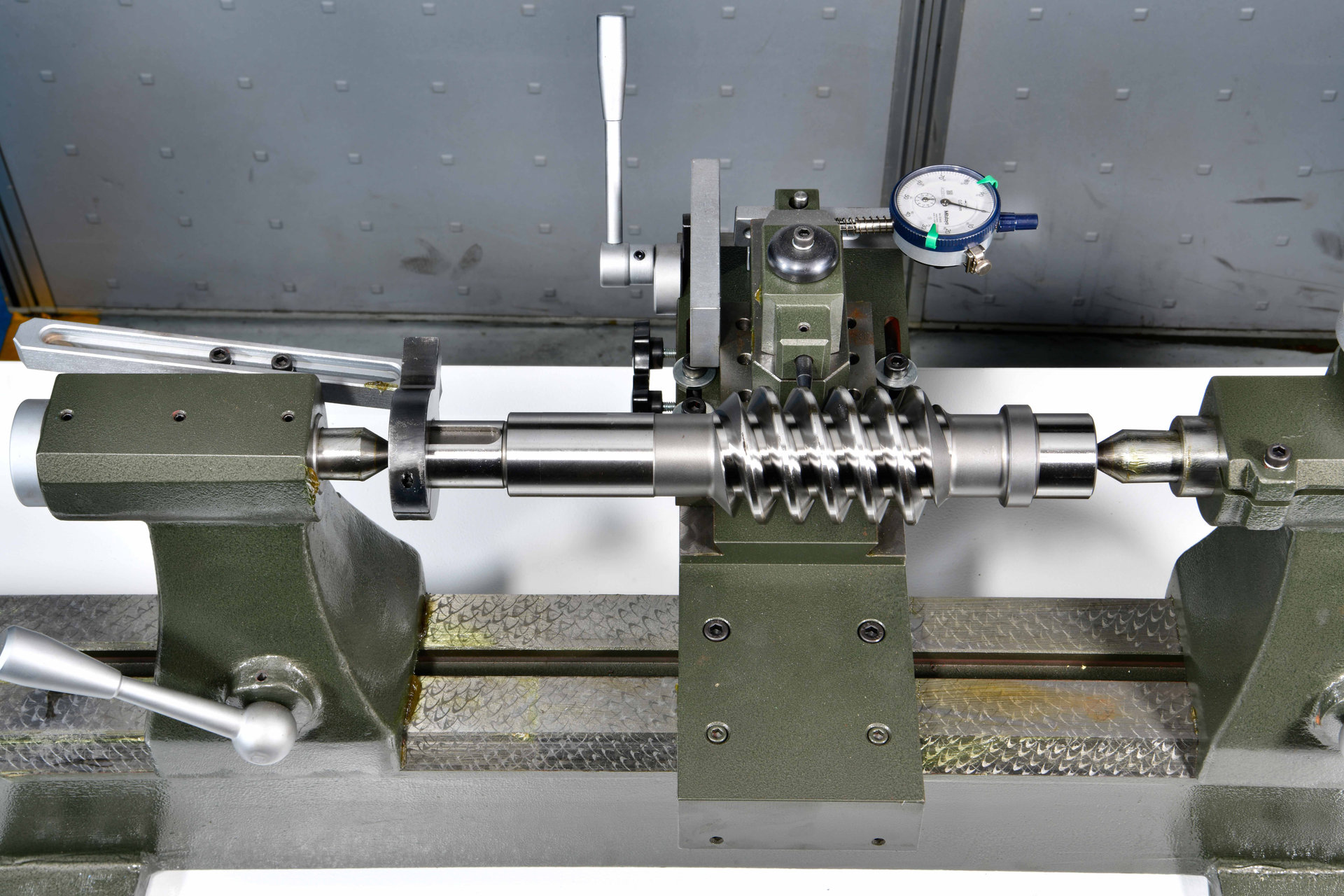

HUAWIN WG 2000
Type: WG 2000
Manufacturer: HUAWIN
Group: Thread grinding machine
Subgroup: CNC Thread grinding machine
Stock: 022000
HUAWIN WG 2000 is a CNC Thread grinding machine of high precision, exceptional accuracy and proven reliability. Capacities: distance between centres 1000 mm; thread diameter 10–200 mm; workpiece weight on centres max 80 kg; thread pitch 1–99 mm; pressure angle 5–45°; max module 13; travels X 260 mm, Z 800 mm, A ±45°, C 360°. Specifications: grinding spindle motor 16 kW, torque max 1300 Nm, total power 20 kVA, air connect 5 bar; machine weight ≈8000 kg; footprint L2600×W2200×H2000 mm. Equipment: air connection. Achieves tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical sectors.

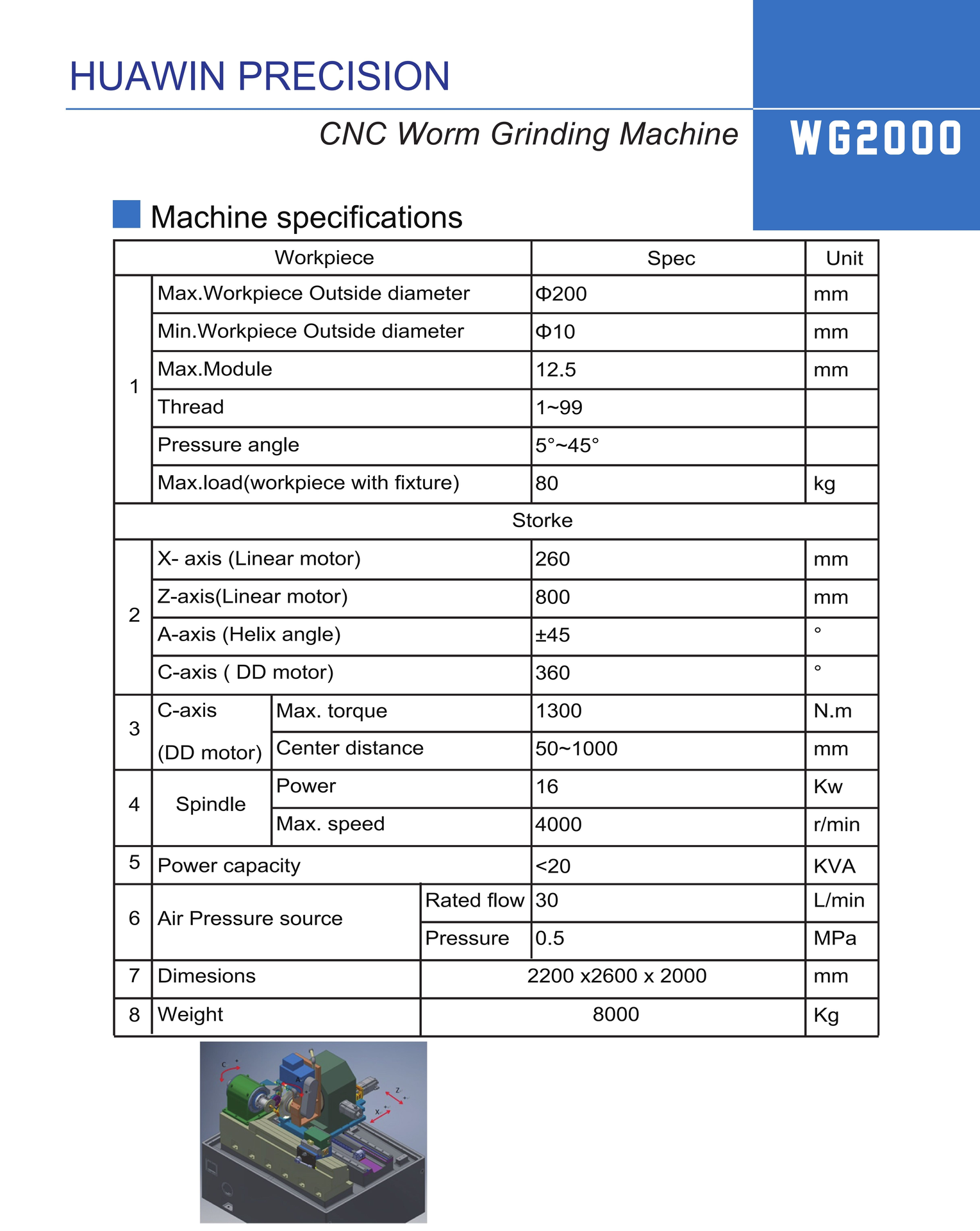

| Distance between centres | 1000 mm |
| Thread diameter: | |
| min. | 10 mm |
| max | 200 mm |
| Workpiece weight on centres max. | 80 kg |
| Thread pitch: | |
| min. | 1 mm |
| max | 99 mm |
| Pression angle | 5 - 45 ° |
| Max. module | 13 |
| Travels: | |
| X axis | 260 mm |
| Z axis | 800 mm |
| A axis | +/-45 ° |
| C axis | 360 ° |
| Air connect | 5 bar |
| Grinding spindle motor | 16 kW |
| Torque max. | 1300 Nm |
| Total power required | 20 kVA |
| Machine's weight about | 8000 kg |
| Overall dimensions machine: | |
| Length | 2600 mm |
| Width | 2200 mm |
| Height | 2000 mm |
