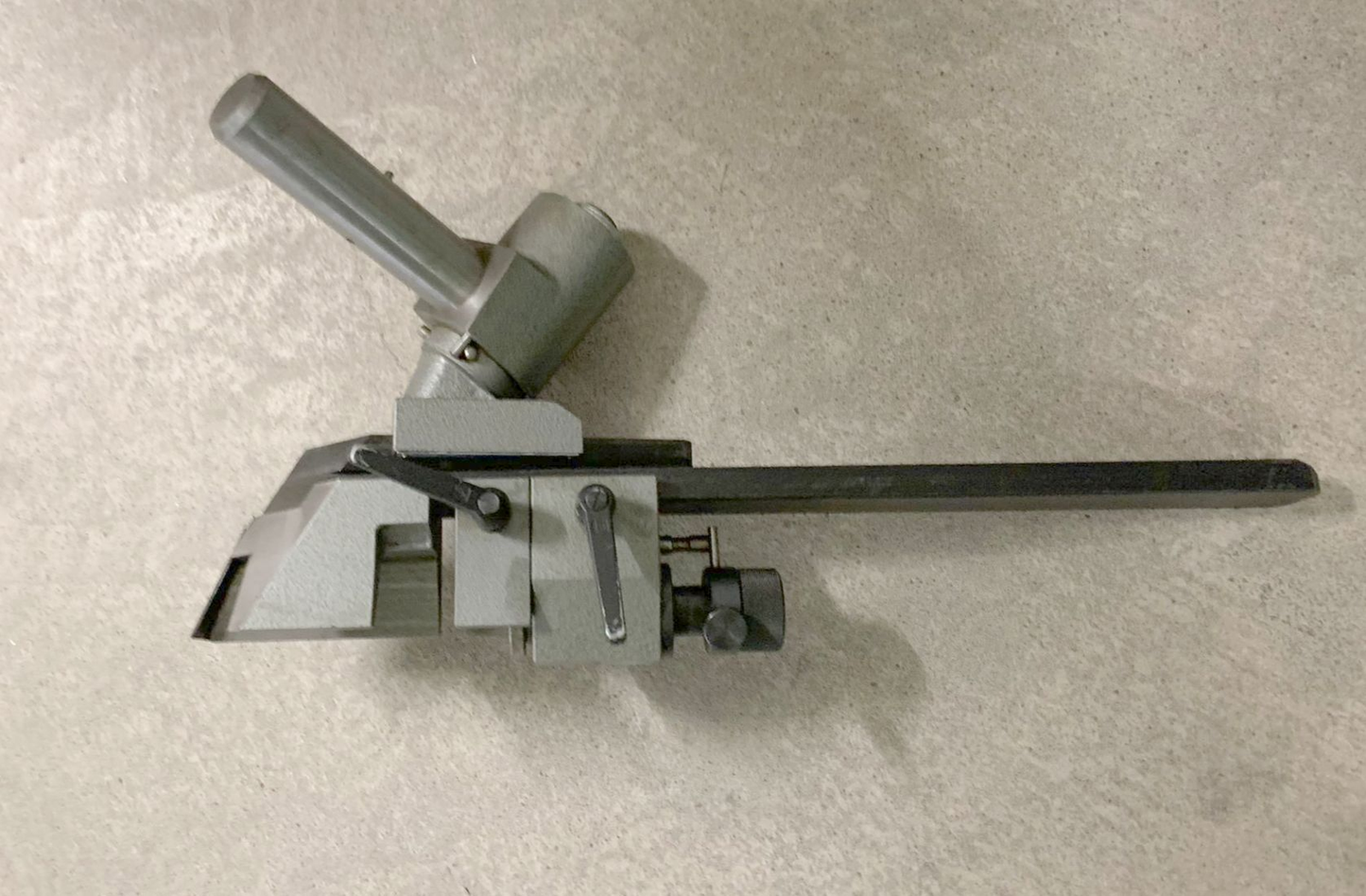

CHRISTEN 1-32/100A
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
| semi-automatic | |
| Min. drill capacity | 1 mm |
| Max. drill capacity | 32 mm |
| Spitzwinkel min. | 60 ° |
| max. | 180 ° |
| Diameter of grinding wheel | 150 mm |
| Width of the grinding wheel | 40 mm |
| Drilling cap. of grind.wheel | 50 mm |
| Grinding wheel speeds: | |
| from | 2800 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 1 CV |
| Machine's weight about | 450 kg |
| Overall dimensions machine: | |
| Length | 800 mm |
| Width | 750 mm |
| Height | 1300 mm |
| Various accessories: | |
| Wet-grinding attachment | |
| Tool cabinet | |
| Disc wheel trueing attachment | |
| Set of grinding wheels | |
| Set of flanges | |
| Adjustment and control microscope | |
| Length and angle measuring device | |
| Coolant system |
CHRISTEN 1-32/100A is a semi-automatic Drill grinder engineered for precision, high accuracy and reliability. Capacity: min 1 mm – max 32 mm drills; acute angles 60°–180°; grinding wheel Ø150 mm, width 40 mm, bore 50 mm; wheel speed from 2800 t/min. Specs: 50 Hz 3x 380 V supply, 1 CV power; machine weight approx. 450 kg; overall dimensions L800×W750×H1300 mm. Accessories: wet‑grinding attachment, tool cabinet, disc wheel trueing attachment, set of grinding wheels and flanges, adjustment/control microscope, length and angle measuring device, coolant system. Achieves tight tolerances; suitable for precision grinding shops, machine tool production, automotive, aerospace and medical applications
Technical specifications are subject to change without notice
