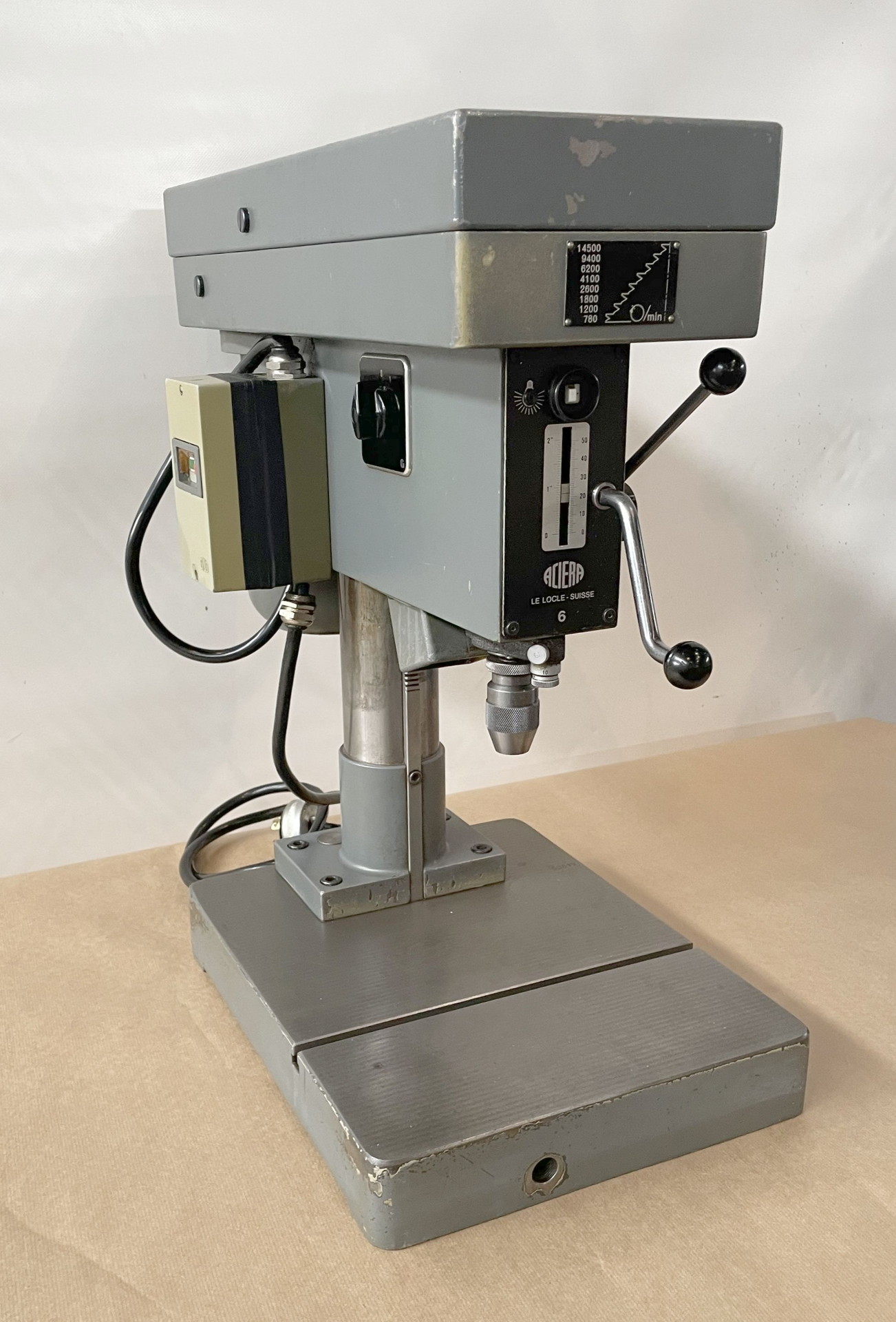

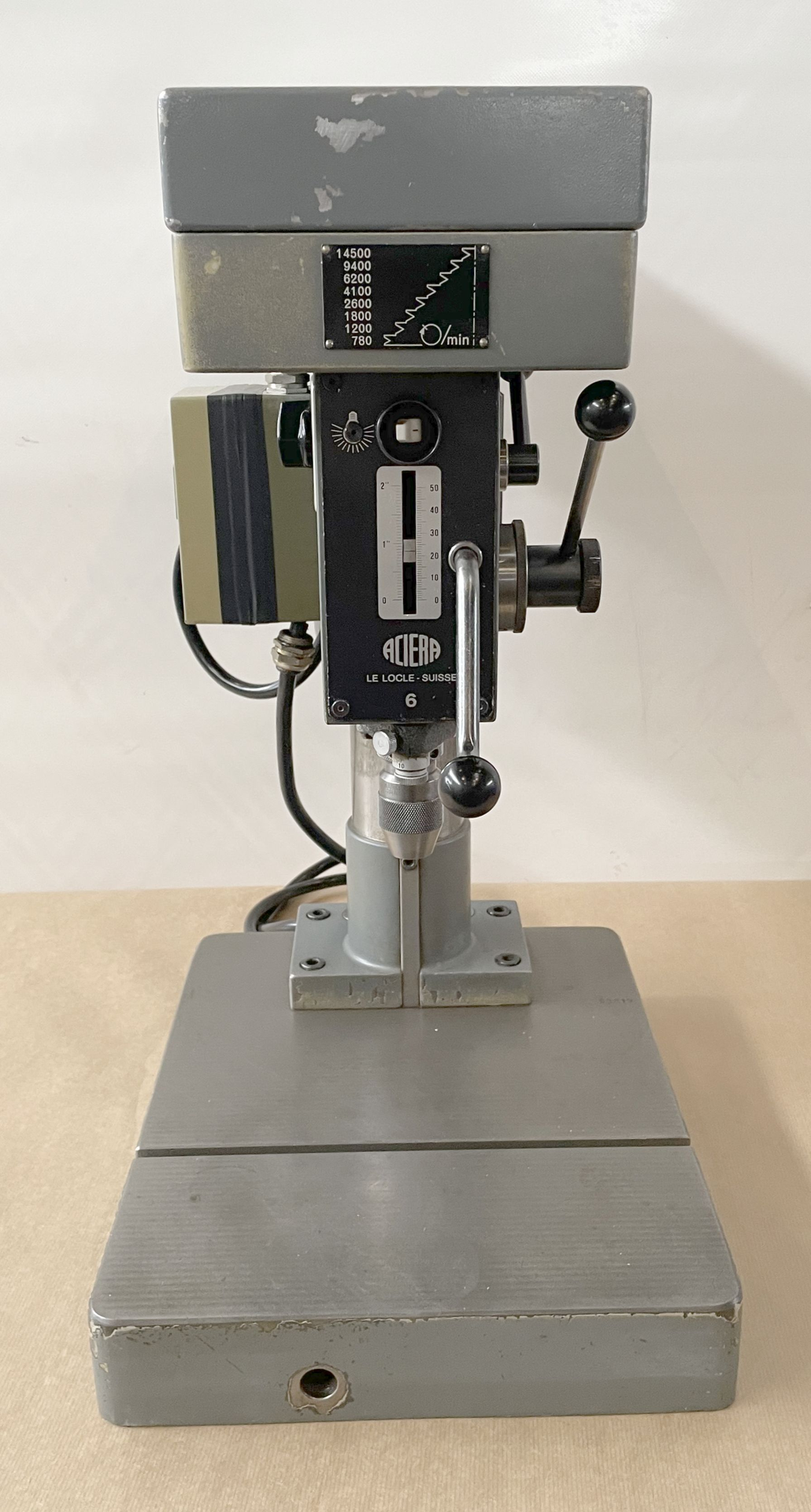

            ACIERA 6 is a bench drill of high precision, engineered to deliver fine accuracy and reliable performance in drilling tasks. Capacities: drill capacity in steel 6 mm; table 310×280 mm; T-channel width 8 mm; depth of throat 150 mm; spindle stroke 50 mm. Main specs: 8-step spindle 780–14500 t/min; voltage 50 Hz 3x120 V; power 0.3 CV; machine weight approx. 50 kg; dimensions 600×350×650 mm. Equipment: drill chuck 0–6.5 mm. Achieves tight tolerances; suitable for workshops, prototyping, electronics, watchmaking and small-scale production.


| Drill capacity in steel | 6 mm |
| Table length | 310 mm |
| Table width | 280 mm |
| T-channel width | 8 mm |
| Depth of throat | 150 mm |
| Spindle stroke | 50 mm |

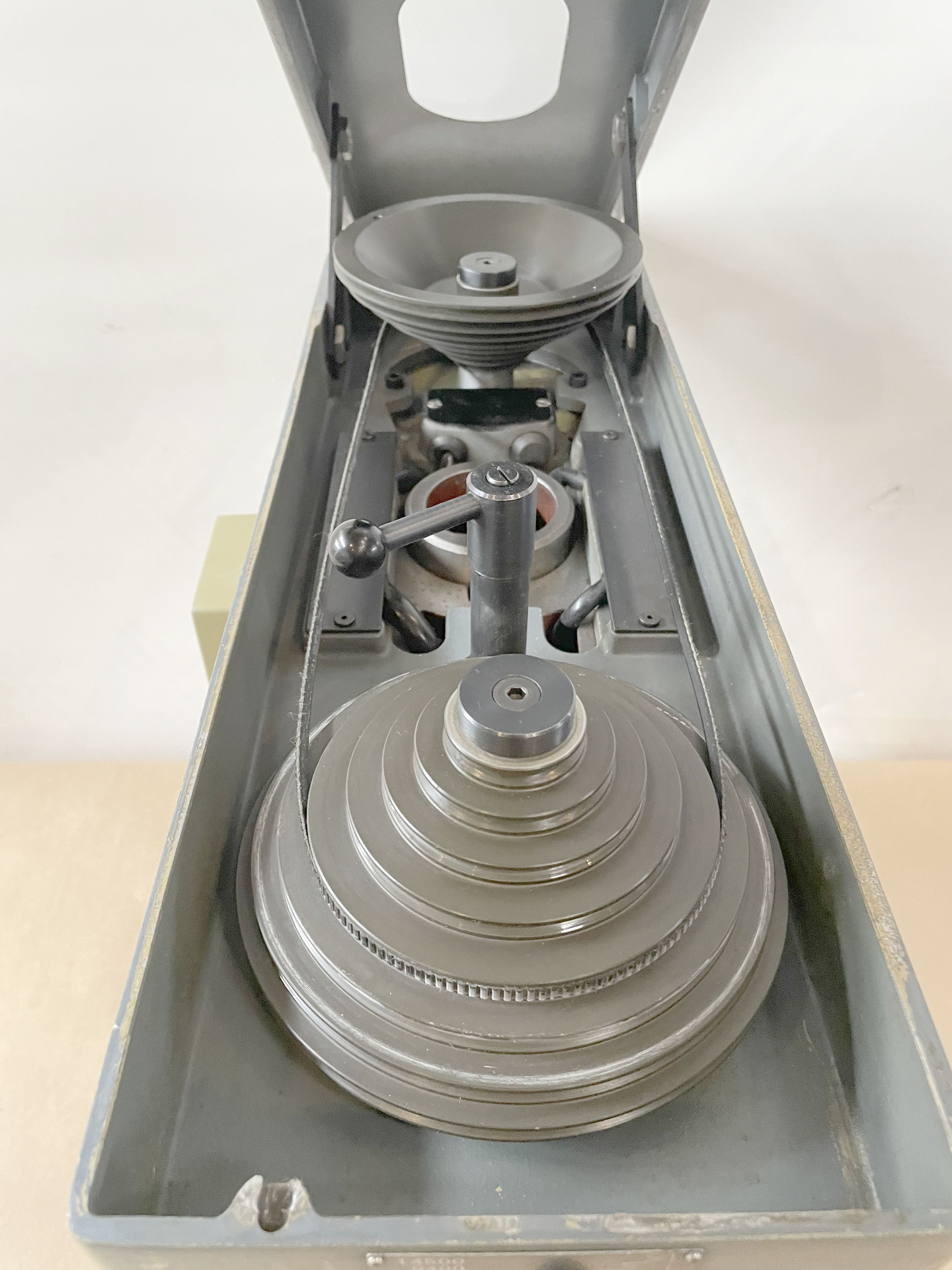

| Spindle speeds: | |
| number (steps) | 8 |
| from | 780 t/min |
| up to | 14500 t/min |
| Voltage 50 Hz 3x | 120 Volt |
| Power | 0.3 CV |
| Machine's weight about | 50 kg |
| Overall dimensions machine: | |
| Length | 600 mm |
| Width | 350 mm |
| Height | 650 mm |
| Various accessories: | |

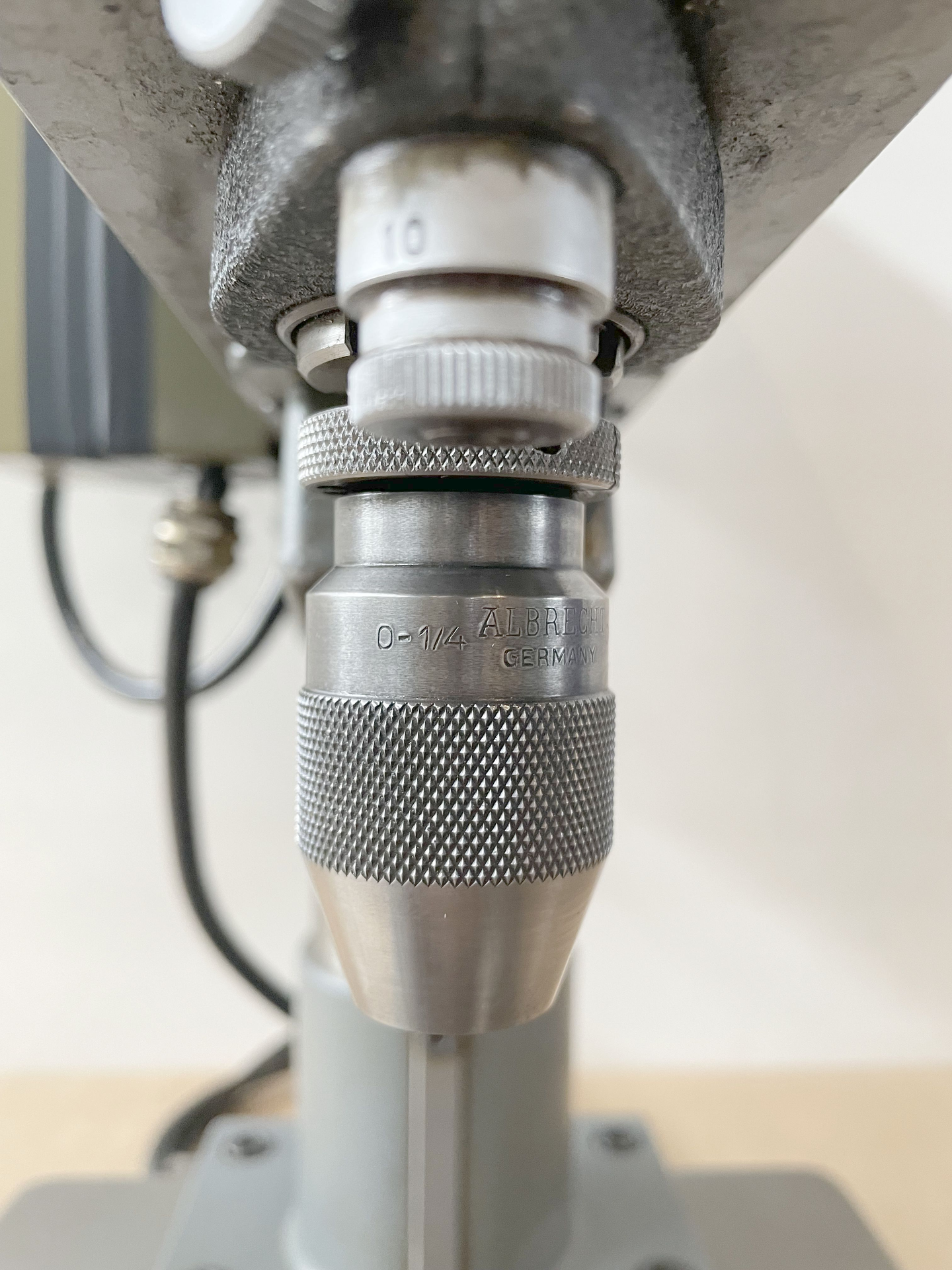

| Drill chuck | 0 - 6.5 mm |
