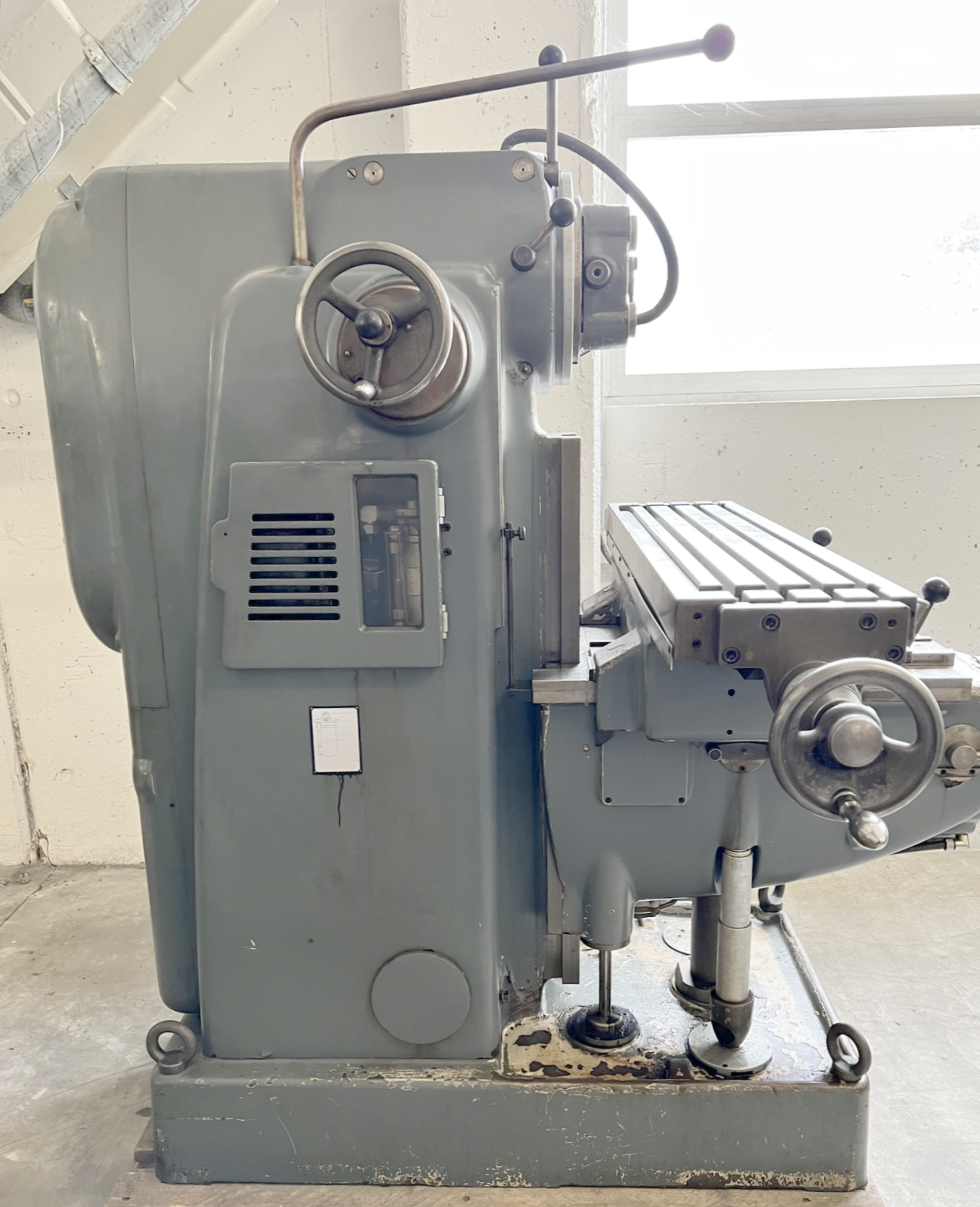

SCHAUBLIN 53 is a universal milling machine for precision work, high accuracy and reliability. Table 1100×255 mm, 5 T‑slots 14h7 mm at 50 mm. Travels X 700 mm, Y 250 mm, Z 490 mm. Spindle ISO 40, 18 steps 12–1050 t/min. Feeds X/Y 12–1050 mm/min, Z 6–525 mm/min; rapid traverse X/Y 3.5 m/min, Z 1.7 m/min. Voltage 3x380 V 50 Hz; motor 5.5 CV; total power 8 CV. Weight ~2100 kg; dims 1600×1600×1600 mm. Accessory: chip tray. Enables tight tolerances; applications: automotive, watchmaking, machine tools, aerospace, medical.
| Table length | 1100 mm |
| Table width | 255 mm |
| Number of T-channels | 5 |
| T-channel width | 14h7 mm |
| Distance of the T-slots | 50 mm |
| Longitudinal travel (X-axis) | 700 mm |
| Transversal travel (y axis) | 250 mm |
| Vertical travel (z axis) | 490 mm |
| Spindle speeds: | |
| number (steps) | 18 |
| from | 12 t/min |
| up to | 1050 t/min |
| Taper in spindle | 40 ISO |
| Feeds steps: | 18 |
| longitudinal from | 12 mm/min |
| up to | 1050 mm/min |
| transversal from | 12 mm/min |
| up to | 1050 mm/min |
| vertical from | 6 mm/min |
| up to | 525 mm/min |
| Rapid traverse: | |
| longitudinal | 3.5 m/min |
| transversal | 3.5 m/min |
| vertical | 1.7 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 5.5 CV |
| Total power required | 8 CV |
| Machine's weight about | 2100 kg |
| Overall dimensions machine: | |
| Length | 1600 mm |
| Width | 1600 mm |
| Height | 1600 mm |
| Various accessories: | |
| Chip tray |
