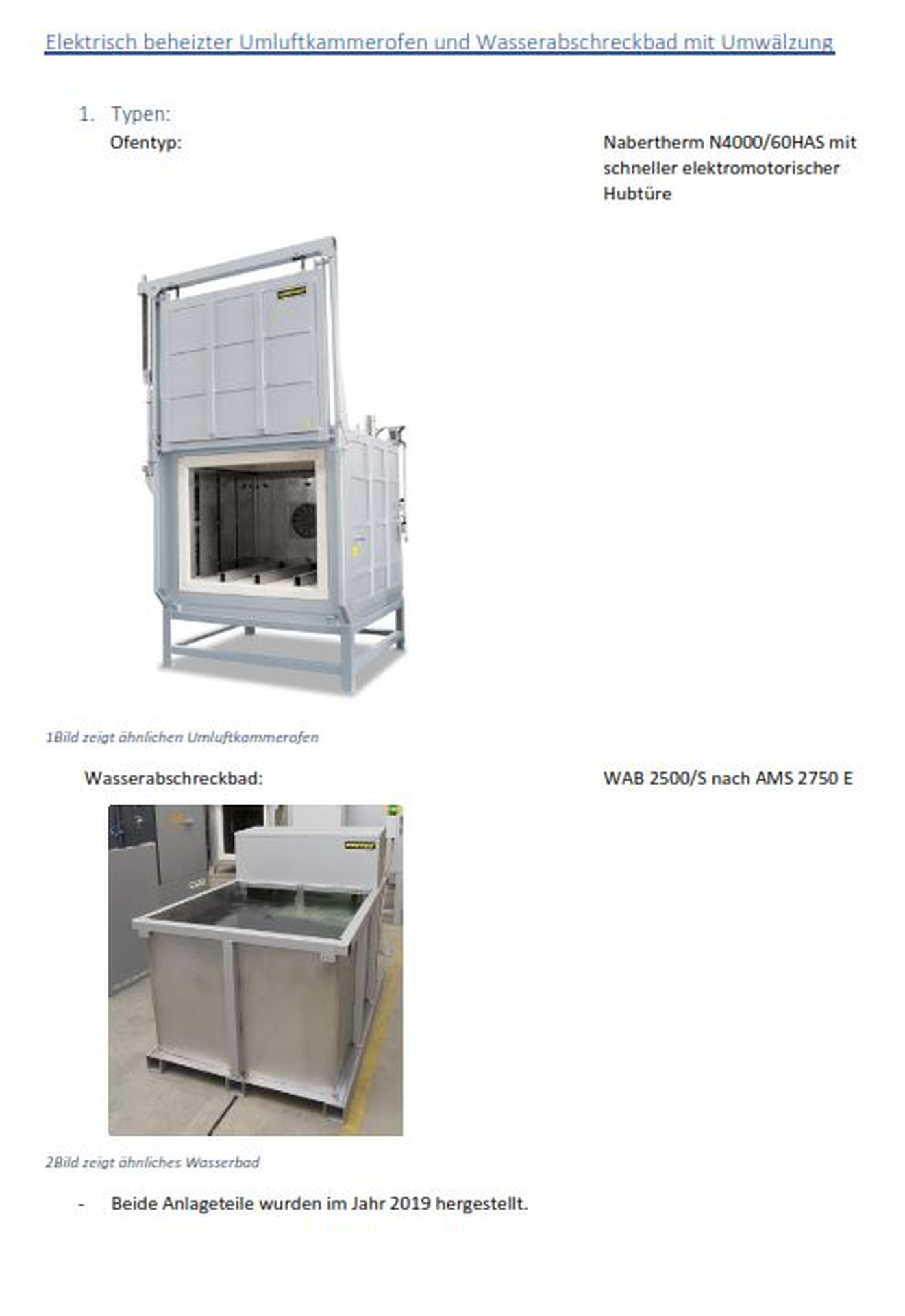

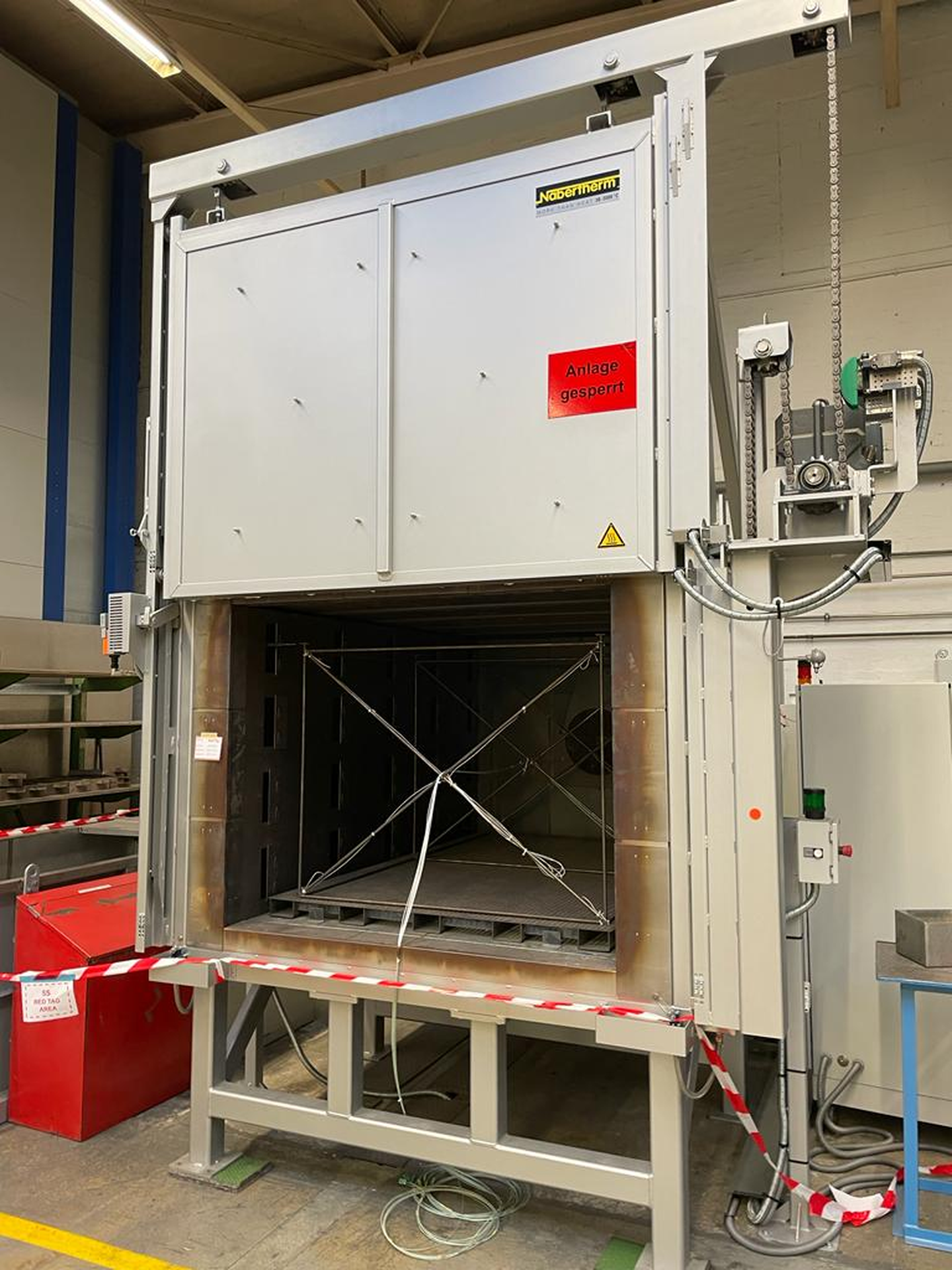

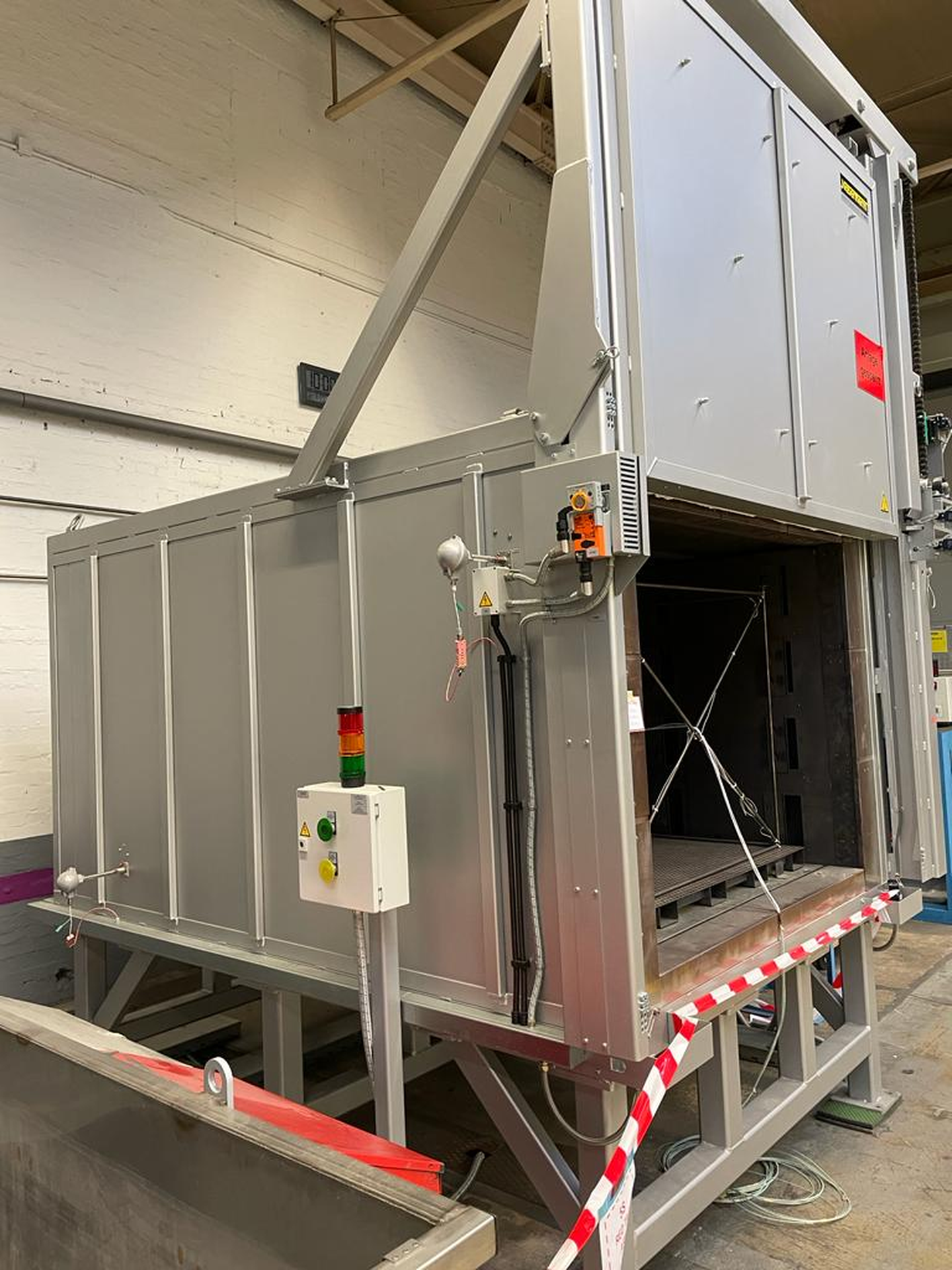

NABERTHERM N 4000/60HAS
Type: N 4000/60HAS
Manufacturer: NABERTHERM
Group: Hardening / drying furnace
Subgroup: Air circulation oven

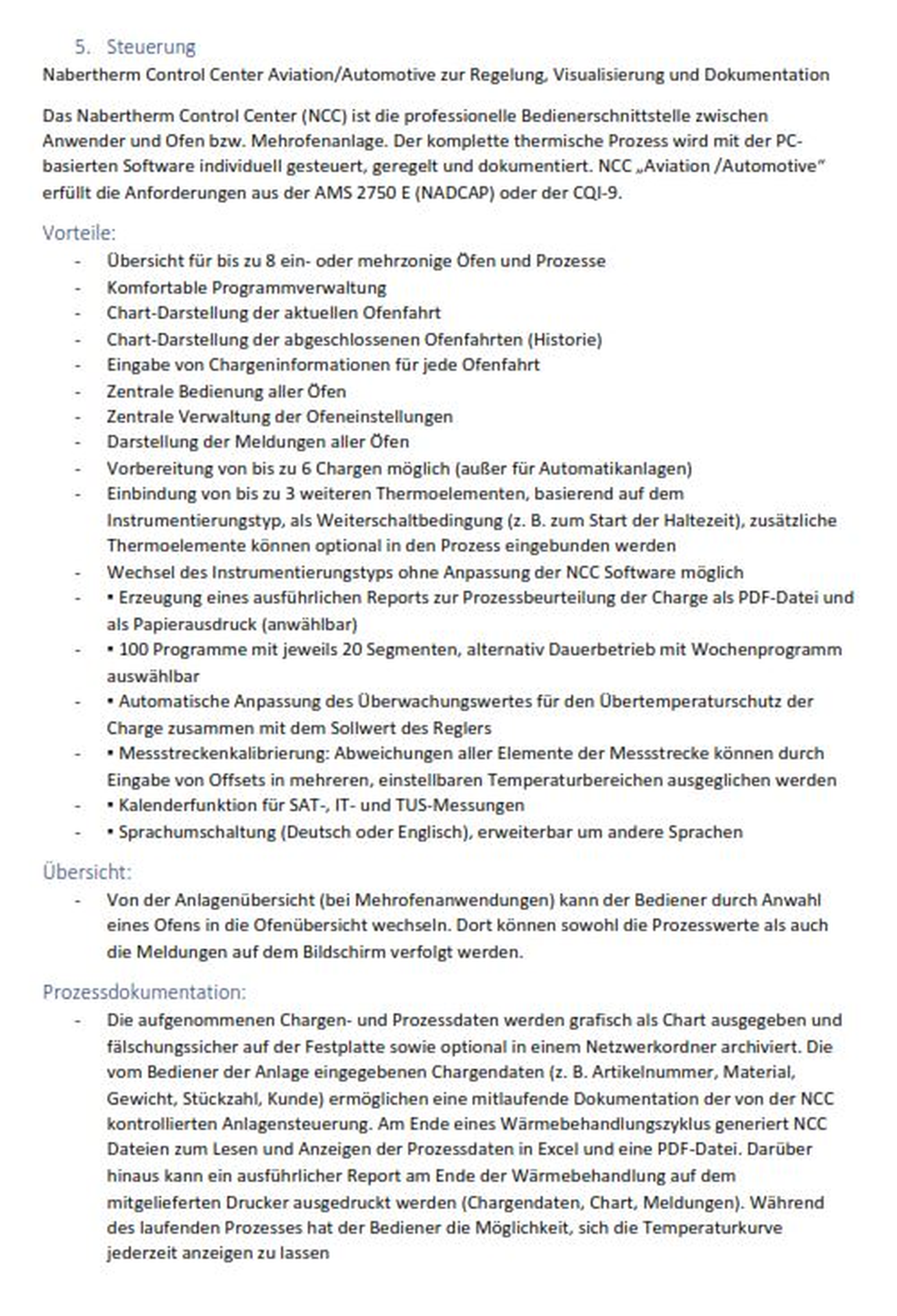

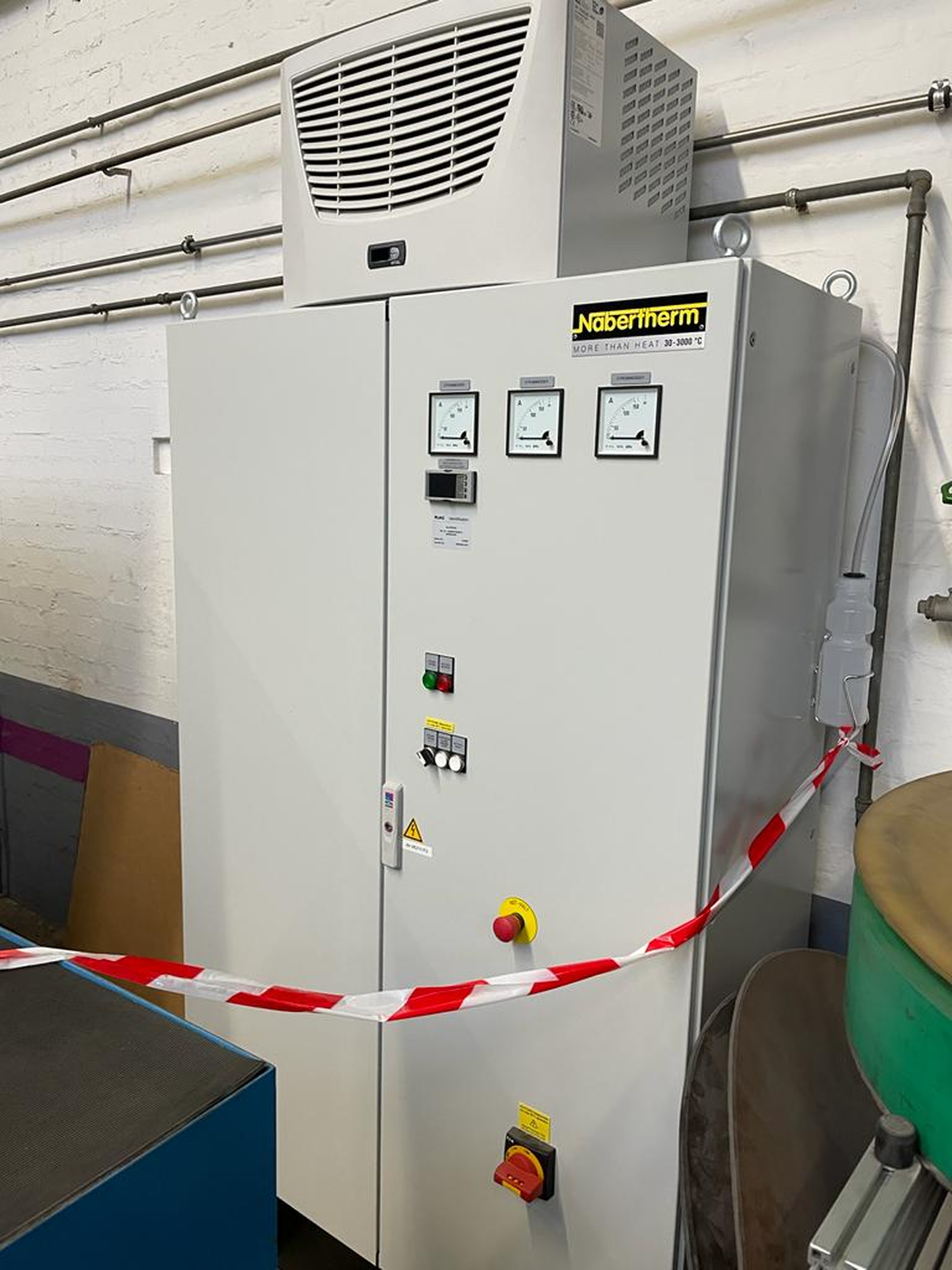

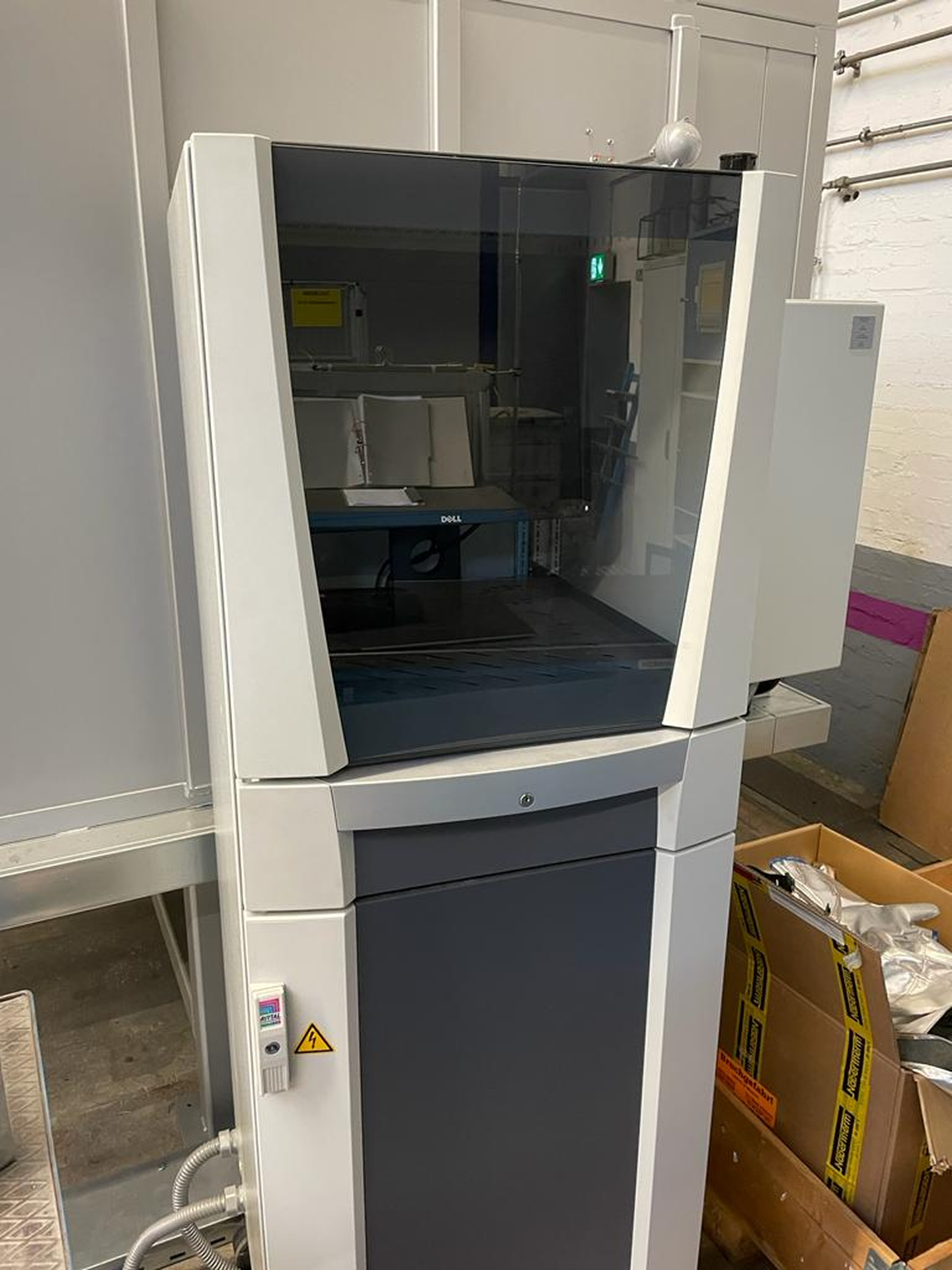

Control: Nabertherm Control Center Aviation
Year: 2020
Stock: 021893
Special Price
CHF 22 000
Special offer machines are sold as-is, without any warranty or inspection from us.

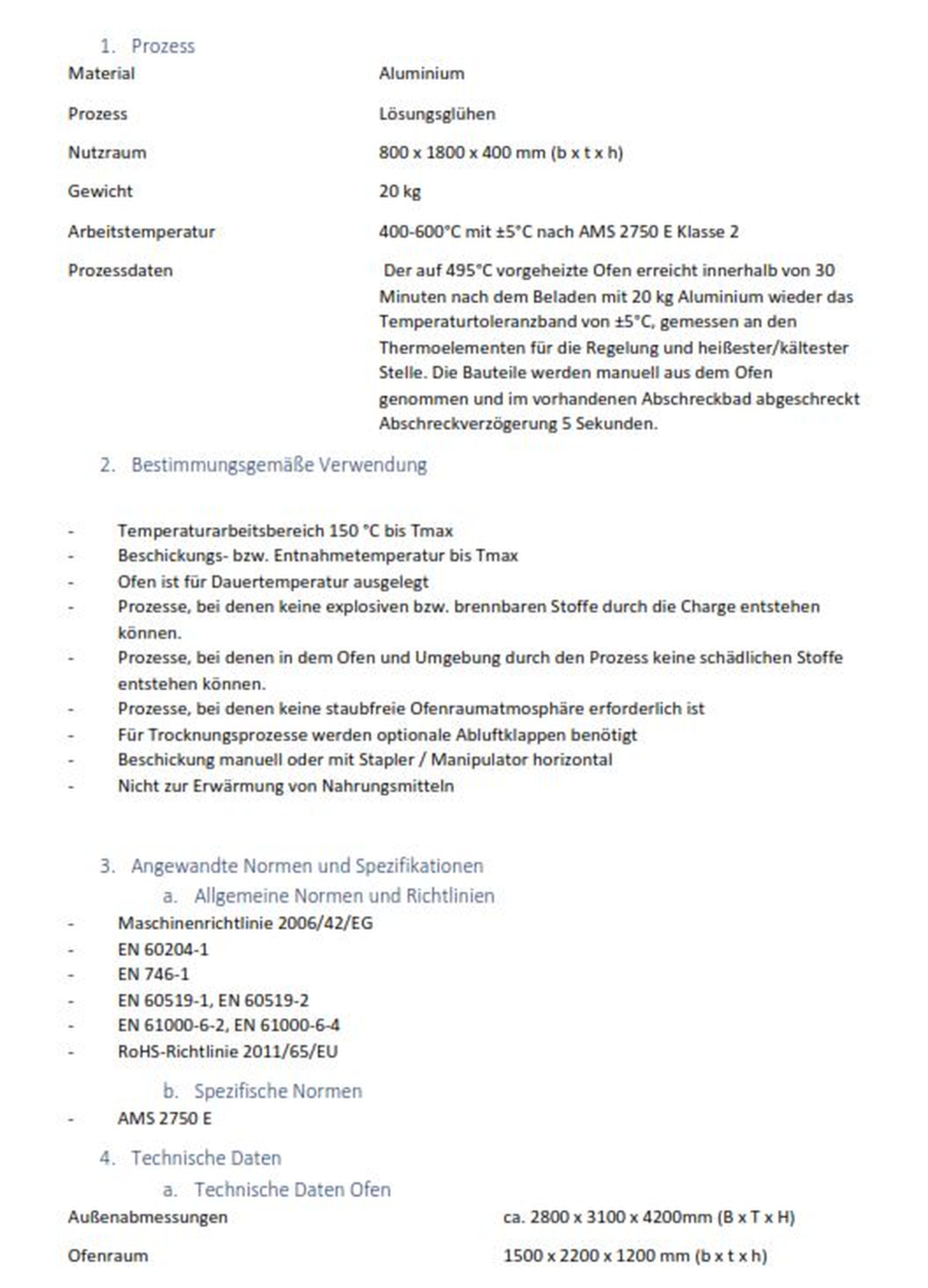

EN NABERTHERM N 4000/60HAS is an Air circulation oven for thermal processing, built for precision, high accuracy and reliability. Working space 1300×1000×2000 mm (4000 l); max load 3000 kg. Temperature range 400–600 °C (max 600 °C); fan 9000 m3/h; heating 60 kW; total installed power 70 kW; supply 3×400 V 50 Hz; external dims 3700×2700×3100 mm. Accessories: water quenching bath 2500 l, status light. Enables tight tolerances; typical sectors: automotive, aerospace, medical, tooling, watchmaking.

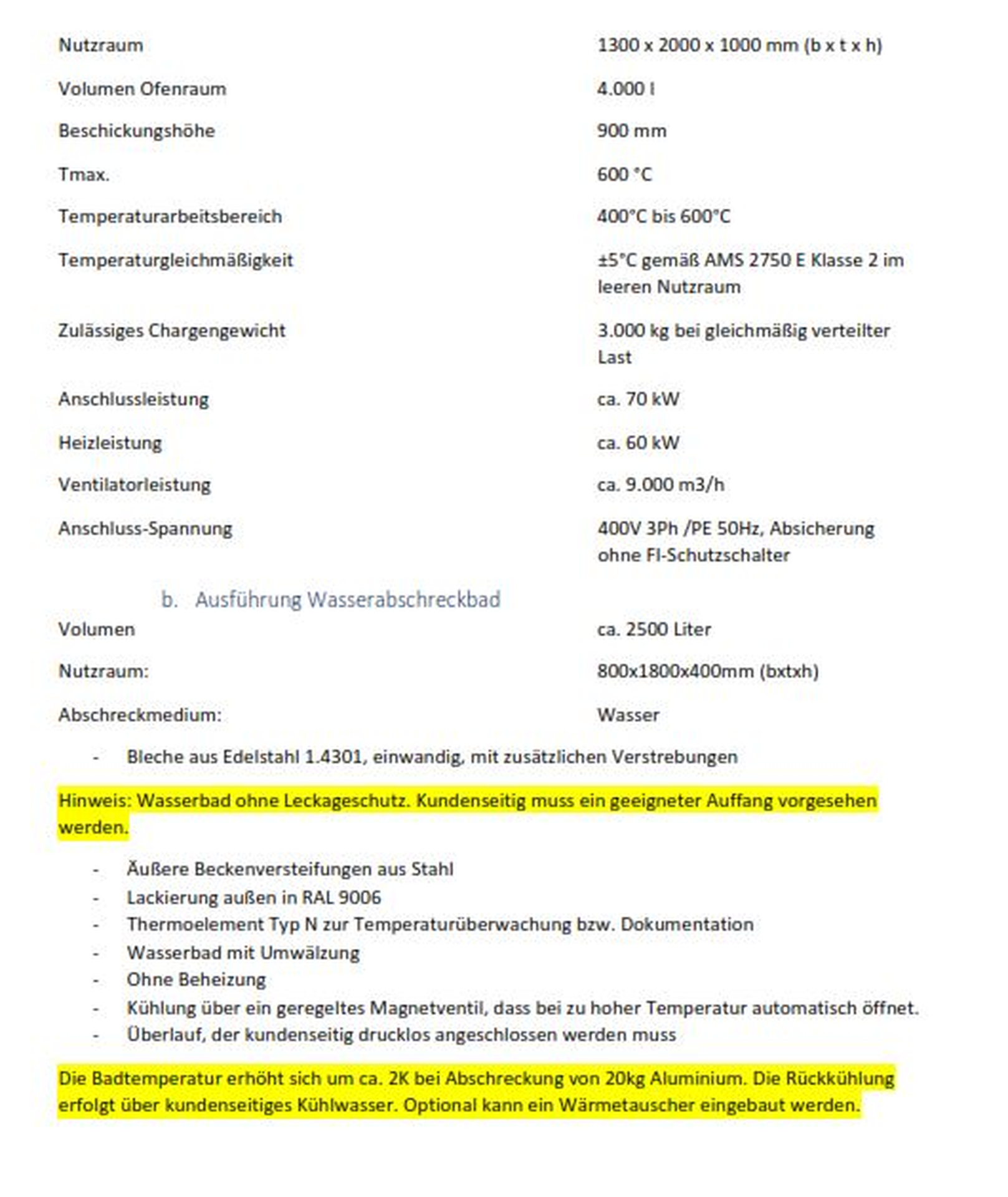

| Temperature range: | |
| from | 400 ° |
| up to | 600 ° |
| Max. temperature | 600 °C |

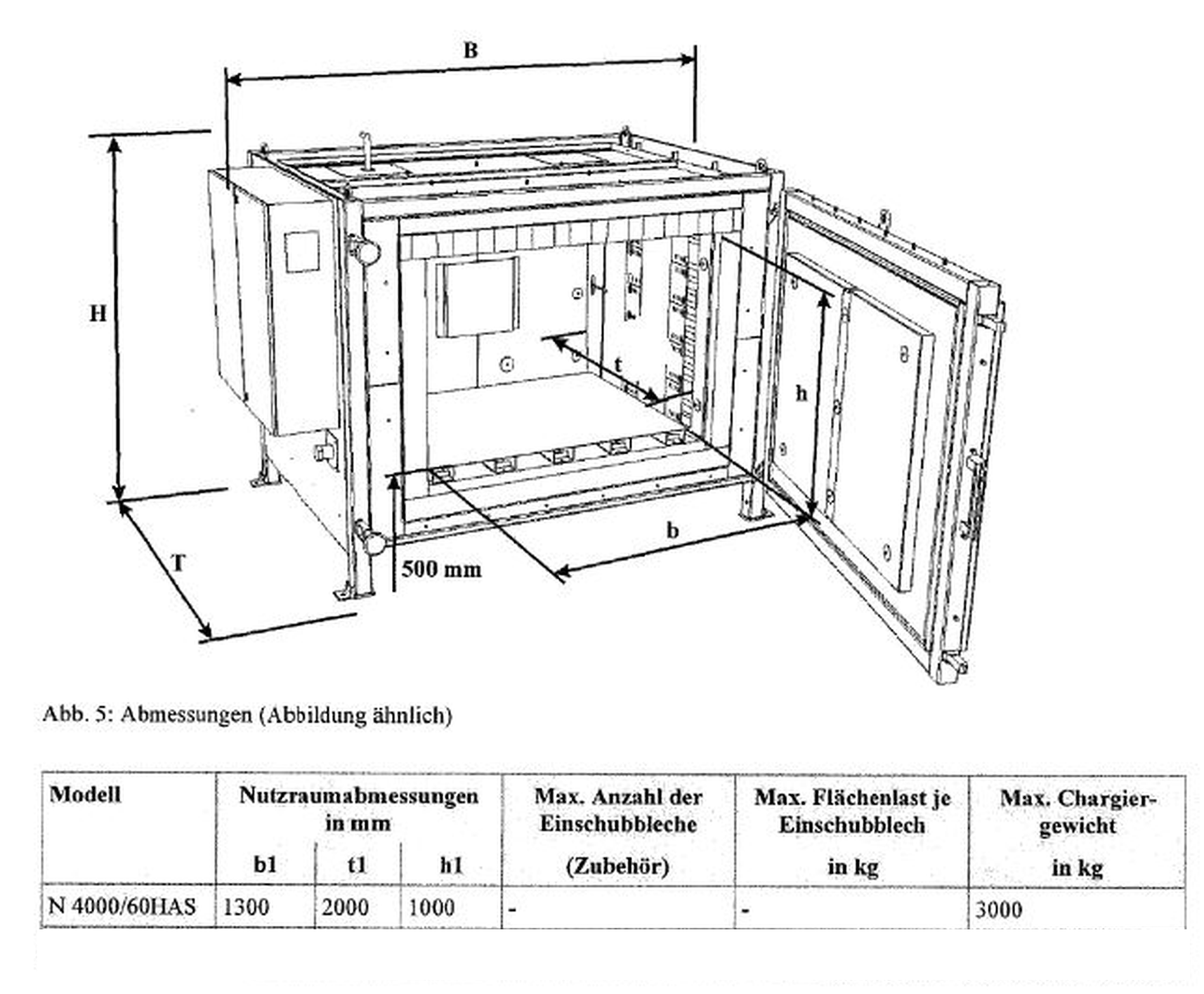

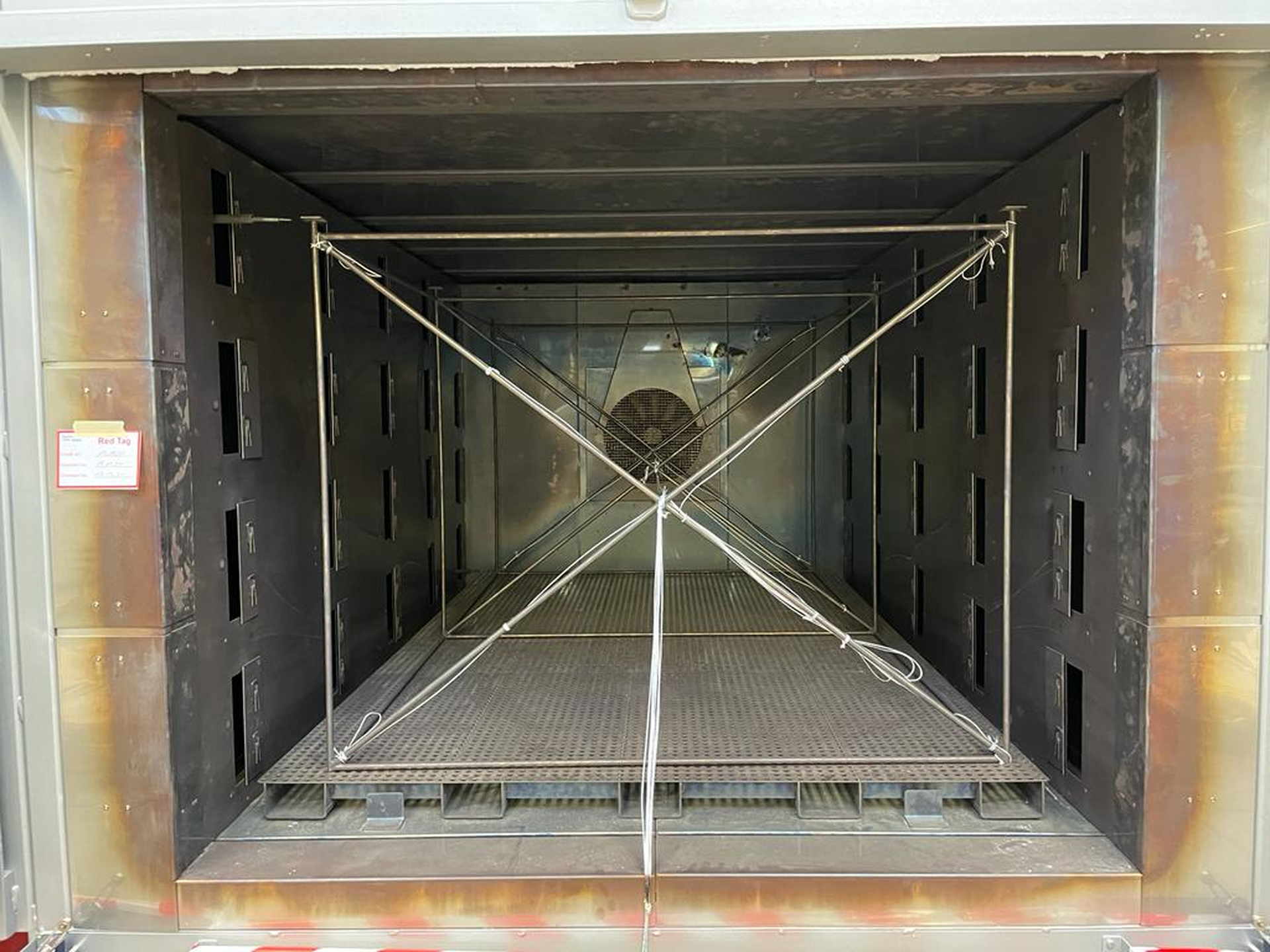

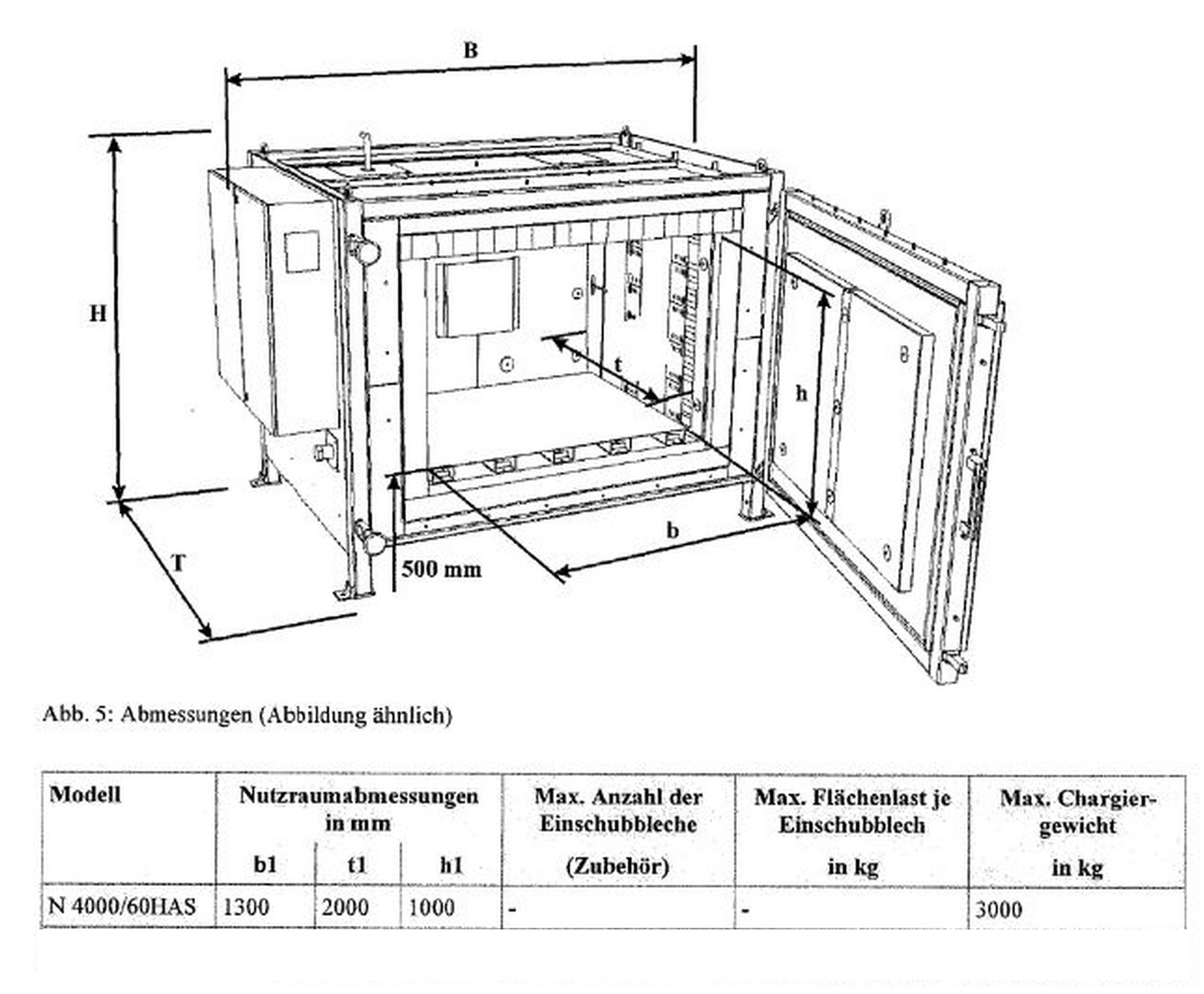

| Working space: | |
| Width | 1300 mm |
| Height | 1000 mm |
| depth | 2000 mm |
| Volume | 4000 l |
| Max. loading capacity | 3000 kg |
| Fan power | 9000 m3/h |
| Power of the heating | 60 kW |
| Total installed power | 70 kW |
| Voltage 50 Hz 3x | 400 Volt |
| External dimensions: | |
| Length | 3700 mm |
| Width | 2700 mm |
| Height | 3100 mm |
| Various accessories: | |

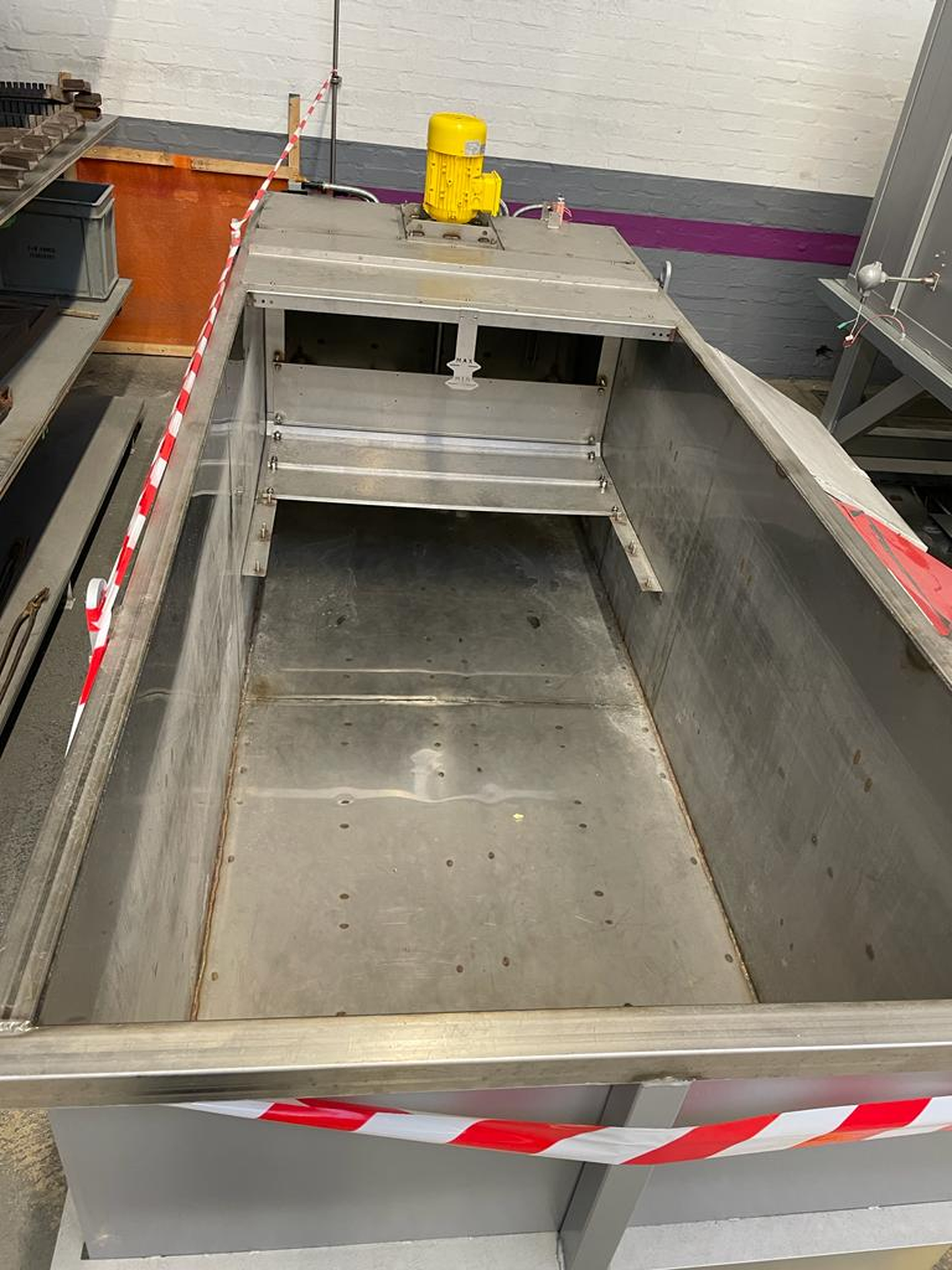

| Water quenching bath: | |
| Volume | 2500 l |
| Status light |
