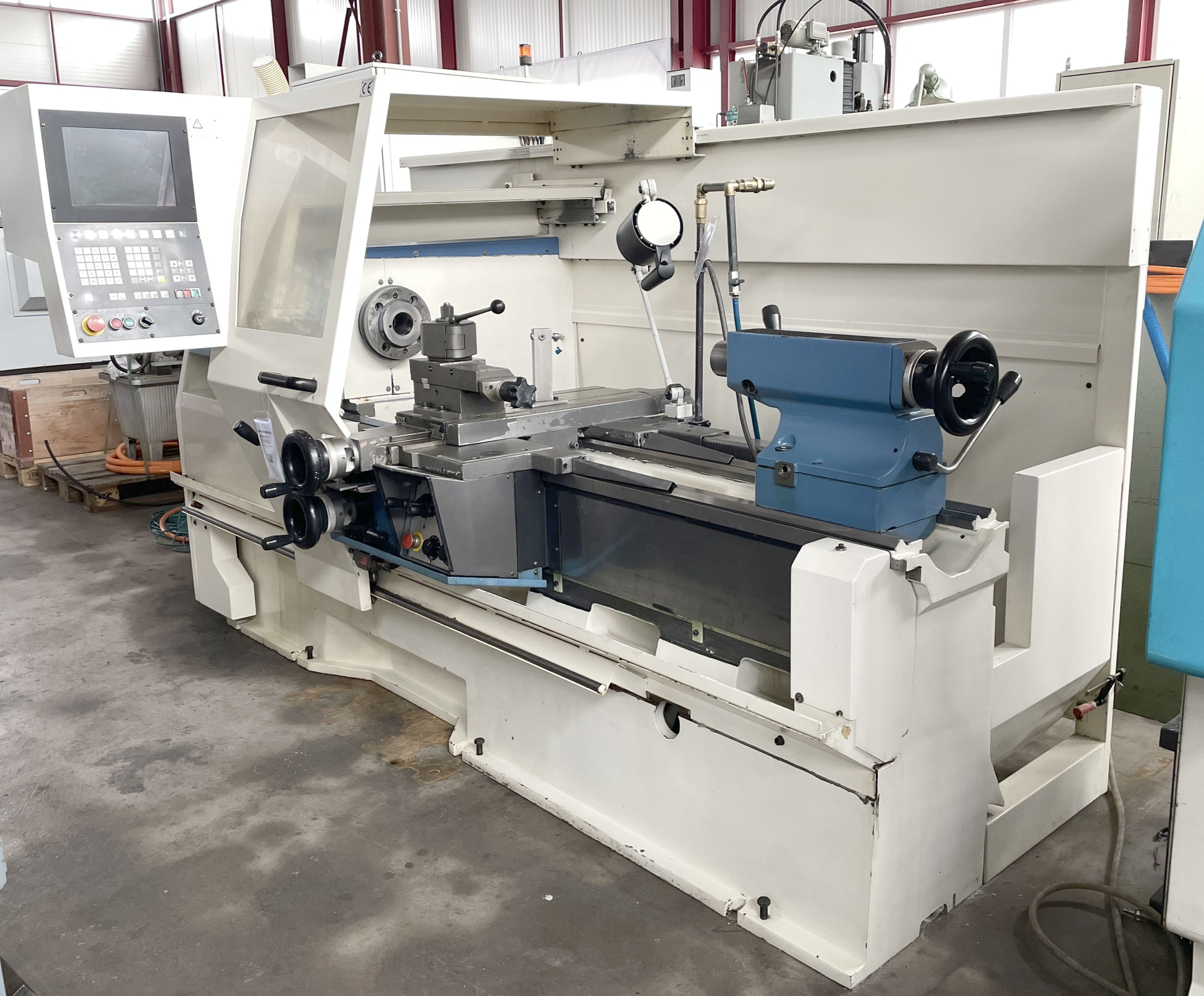

BOEHRINGER / VDF DUS 560
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

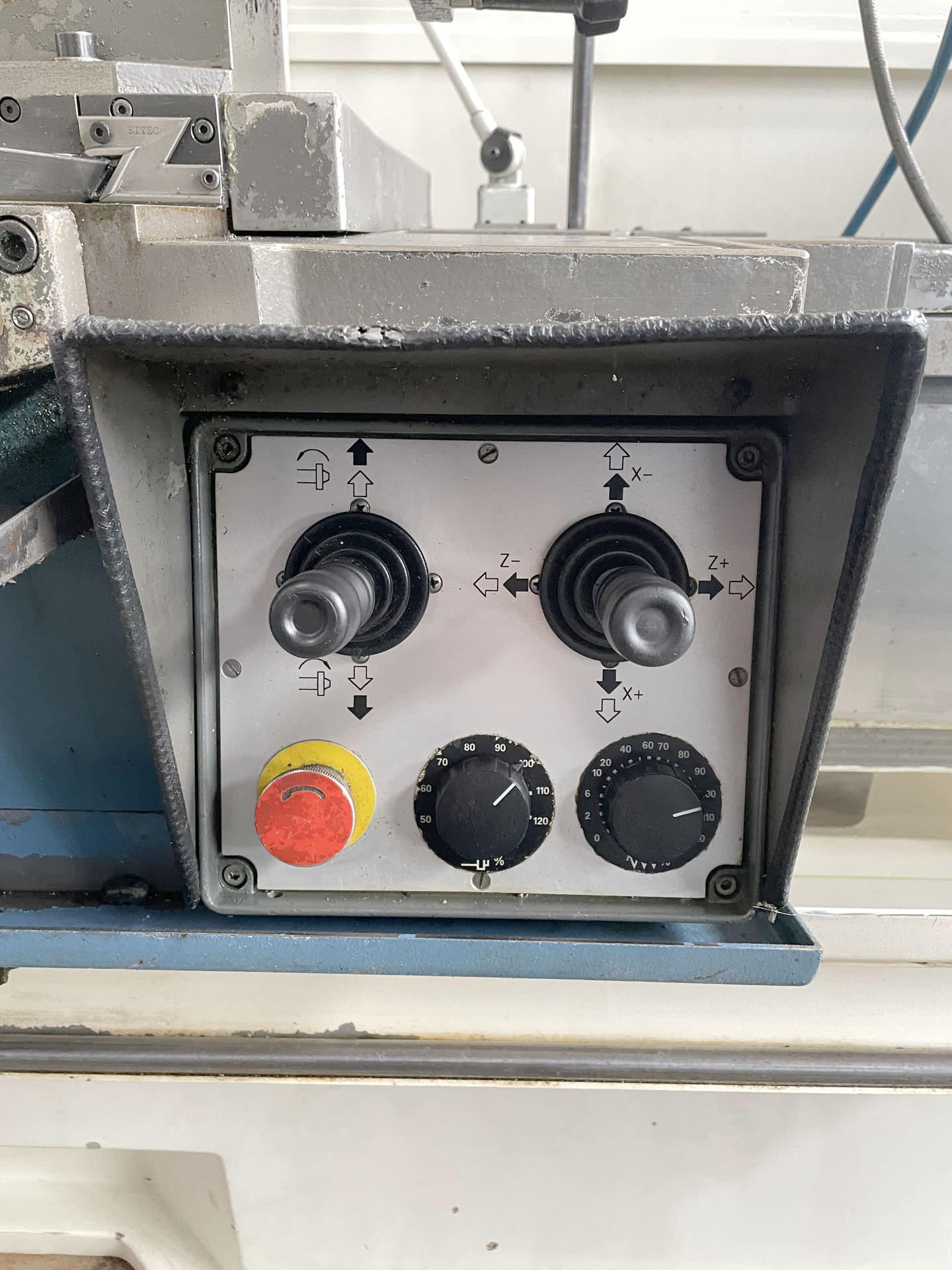

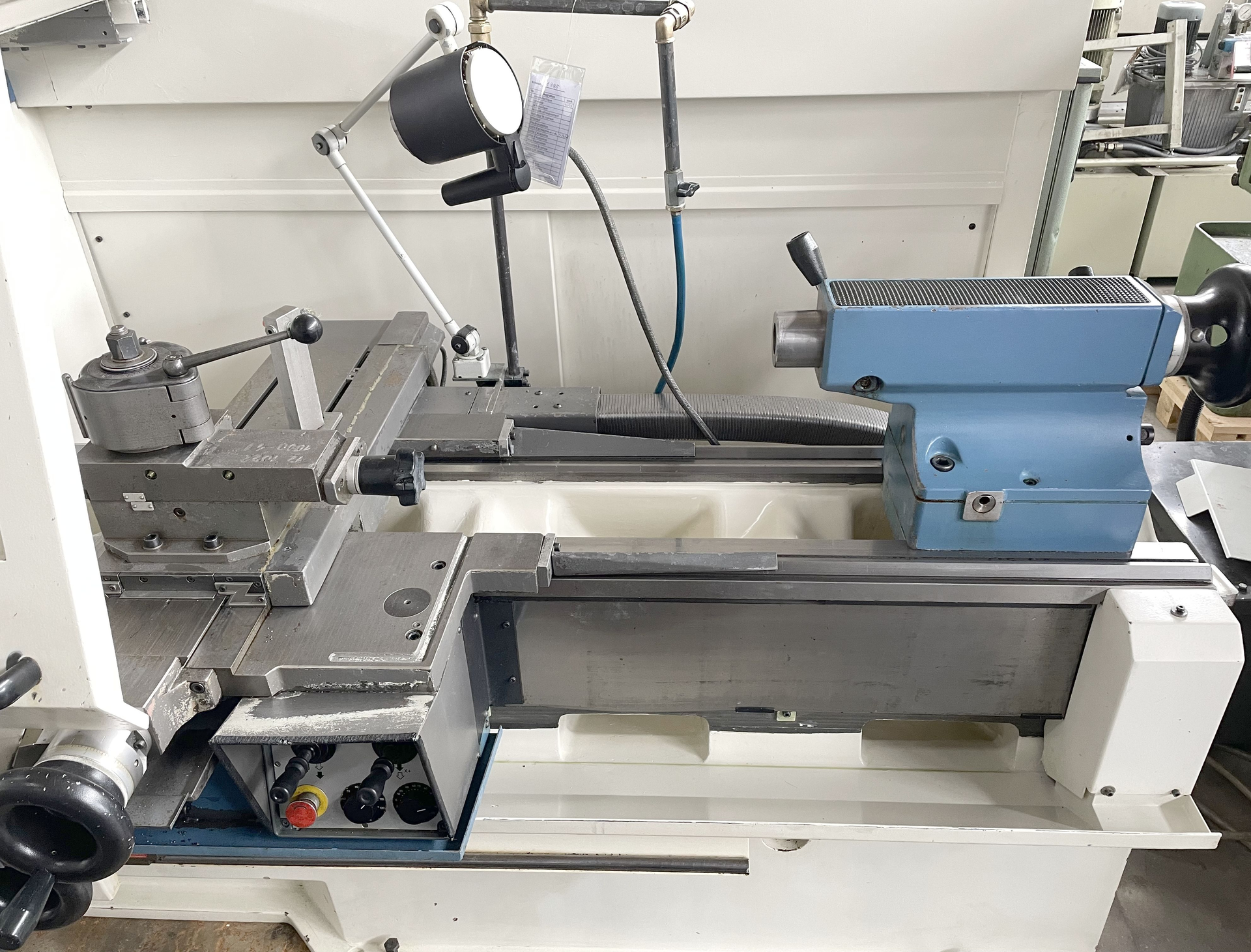

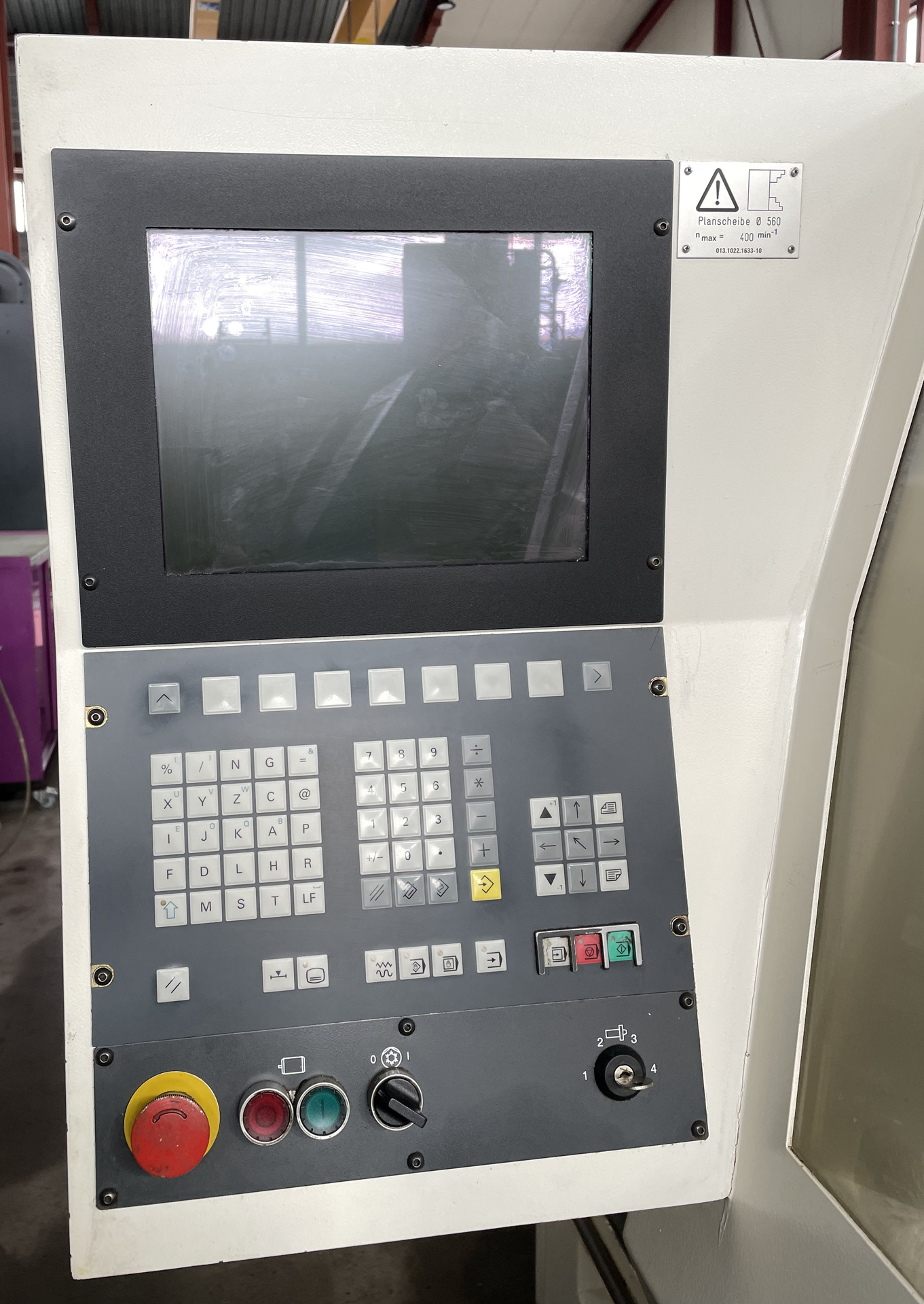

BOEHRINGER / VDF DUS 560 is a CNC turning lathe, cycle controlled, engineered for precision, high accuracy and reliability. Capacities: centre height 280 mm, centres 1500 mm, swing over bed 570 mm, max turning length 1500 mm, spindle hole 62 mm. Main specs: 2‑step 3–2500 t/min, spindle power 19/15 kW, torque 1800/1400 Nm, spindle stroke 190 mm, feeds 0.01–50 mm/t, rapid X/Z 5/10 m/min, 3x400V 50Hz, 35 kVA, weight 5200 kg. Accessories: chucks Ø300/500/560 mm, MULTIFIX quick‑change, chip conveyor, tailstock, jaws and toolholder sets. Delivers tight tolerances; suitable for automotive, aerospace, medical, machine tools and watchmaking.
| Centre height | 280 mm |
| Distance between centres | 1500 mm |
| Swing over cross-slide | 365 mm |
| Swing over bed | 570 mm |
| Spindle head | DIN 55 027 |
| Spindle hole | 62 mm |
| Spindle diameter | 100 mm |
| Maximum turning length | 1500 mm |
| Thread pitch: | |
| from | mm |
| up to | 400 mm |
| Main spindle: | |
| Spindle speeds: | |
| number (steps) | 2 |
| from | 3 t/min |
| up to | 2500 t/min |
| Spindle power | 19 / 15 kW |
| Torque max. | 1800 / 1400 Nm |
| Taper in tailstock: | |
| Morse taper | 5 CM |
| Spindle stroke | 190 mm |
| Spindle diameter | 80 mm |
| Feeds: | |
| longitudinal from | 0.01 mm/t |
| up to | 50 mm/t |
| transversal from | mm/t |
| up to | 50 mm/t |
| Rapid traverse X | 5 m/min |
| Rapid traverse Z | 10 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Noise level | 80 dB (A) |
| Total power required | 35 kVA |
| Machine's weight about | 5200 kg |
| Overall dimensions machine: | |
| Length | 3500 mm |
| Width | 1800 mm |
| Height | 1800 mm |
| Dimensions electric cabinet: | |
| Length | 1200 mm |
| Width | 400 mm |
| Height | 1400 mm |

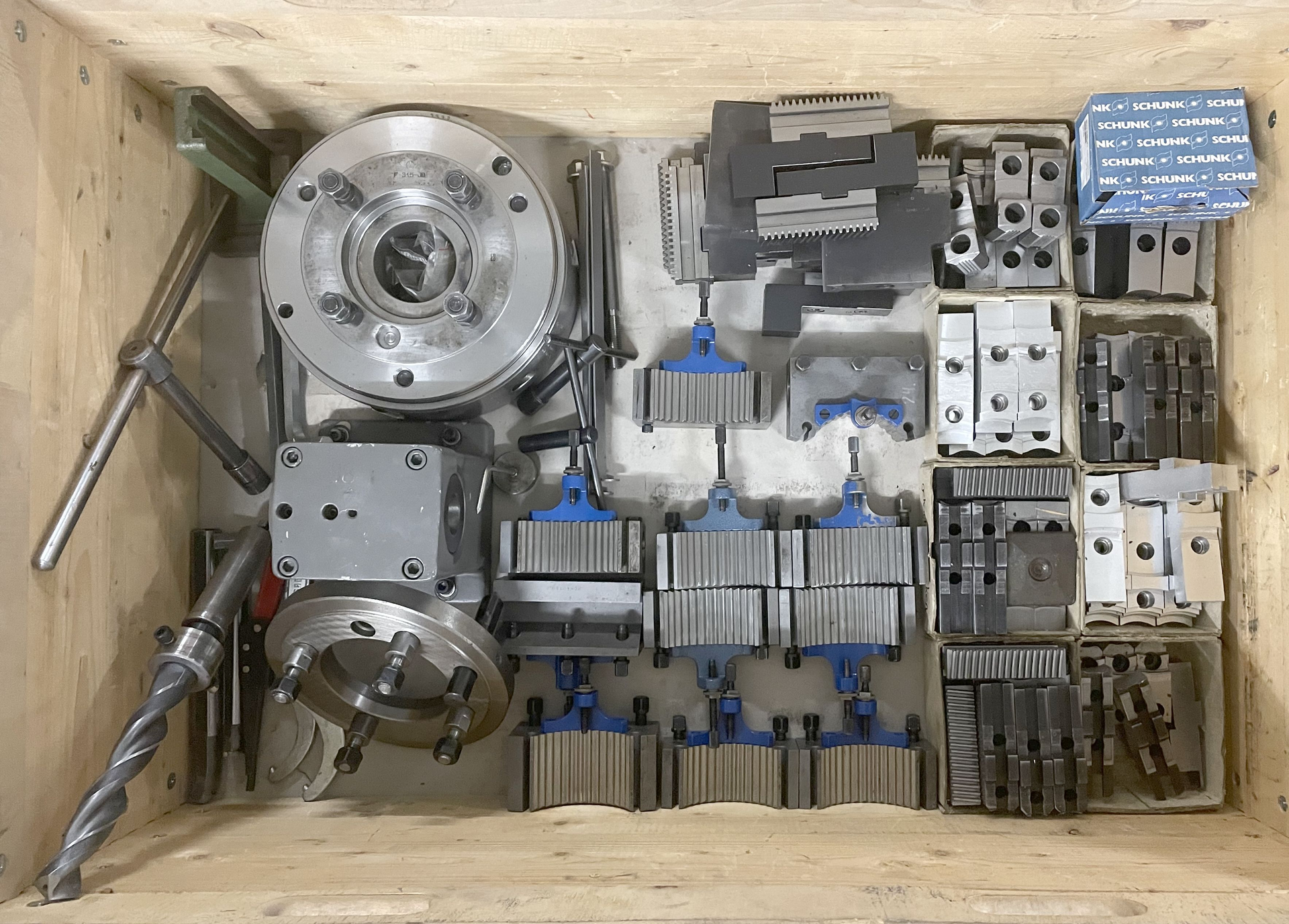

| Various accessories: | |

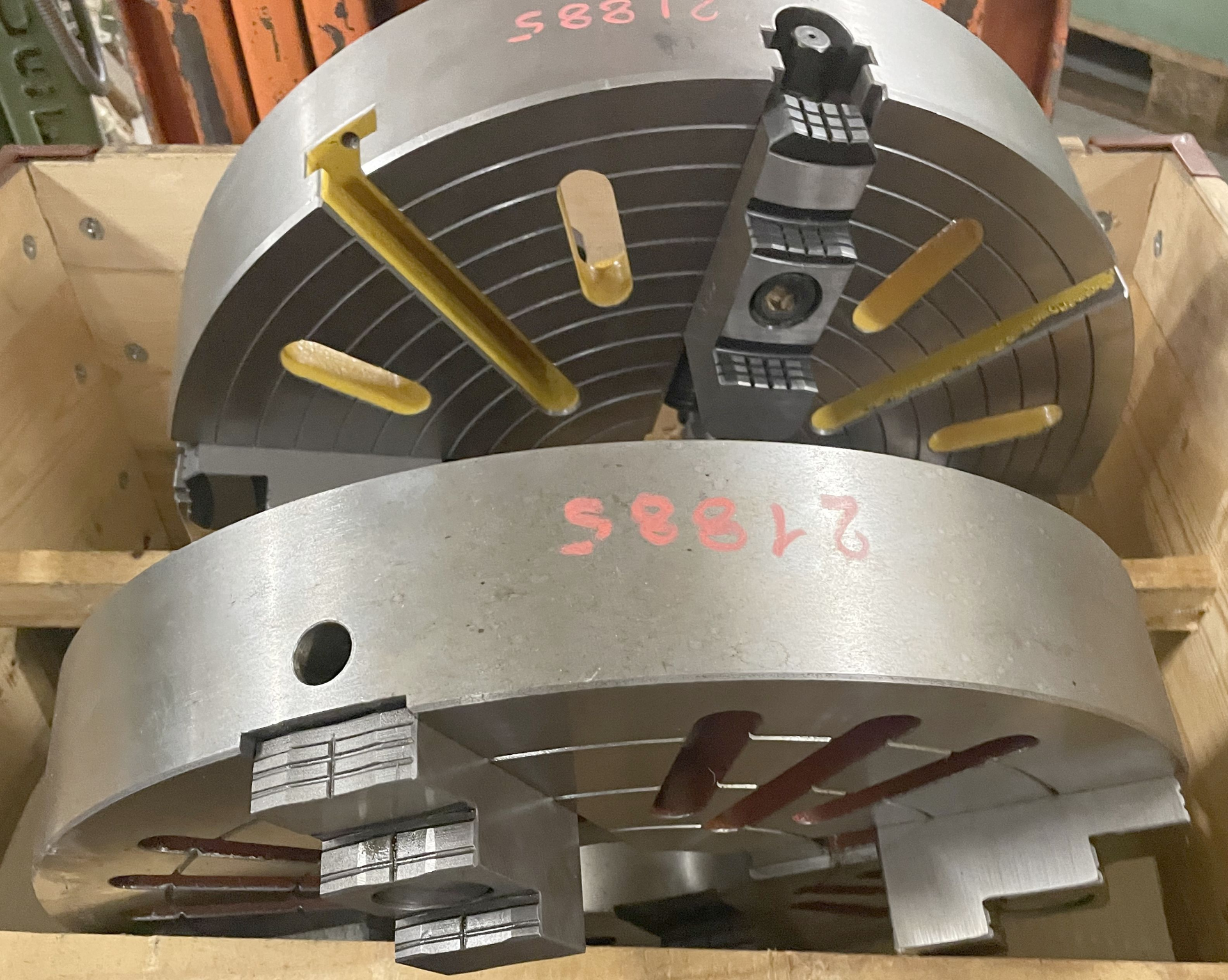

| 3-jaw chuck diameter | 300 mm |
| 4-jaw chuck diameter | 560 mm |
| 4-jaw chuck diameter | 500 mm |
| Set of soft jaws | |
| Set of hard jaws | |
| Lamp | |
| Tailstock | |
| Set of centers | |
| Rotary centre | |
| Chip conveyor | |
| Quick change tool | MULTIFIX |
| Set of tools | |
| Set of steel holders | |
| Set of reducing bushes |
