ELB PERFEKT BD 8 SPS
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

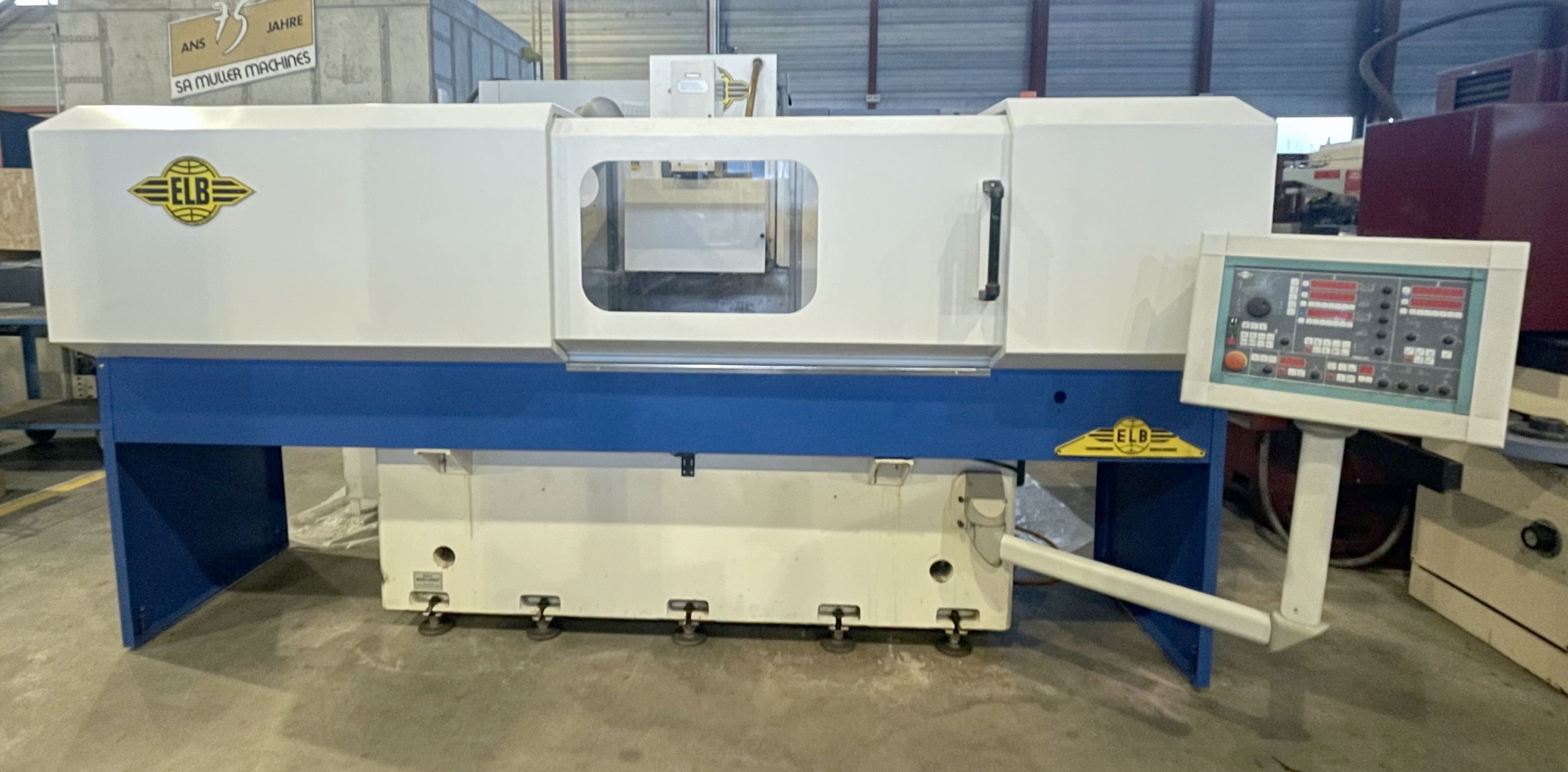

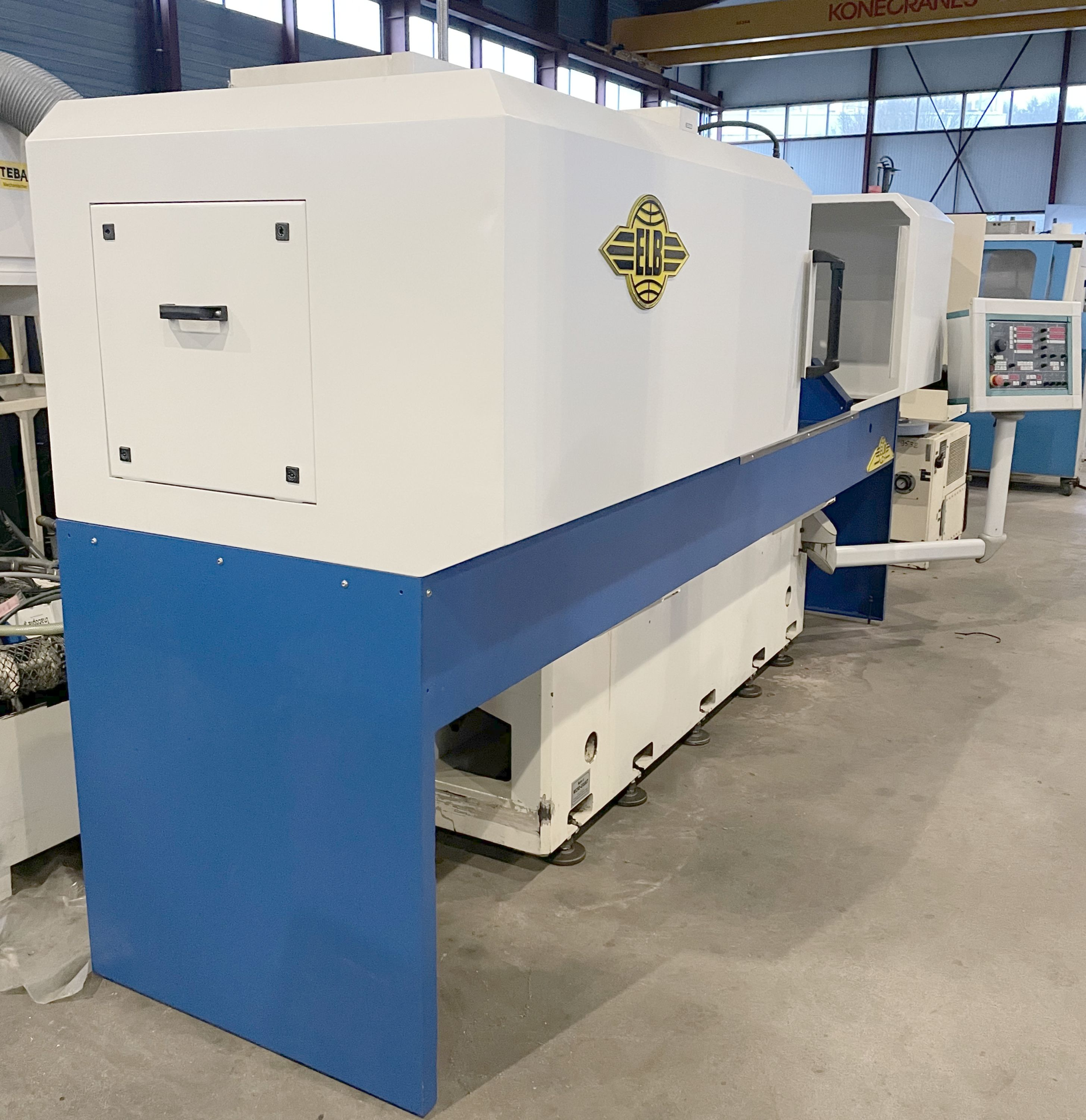

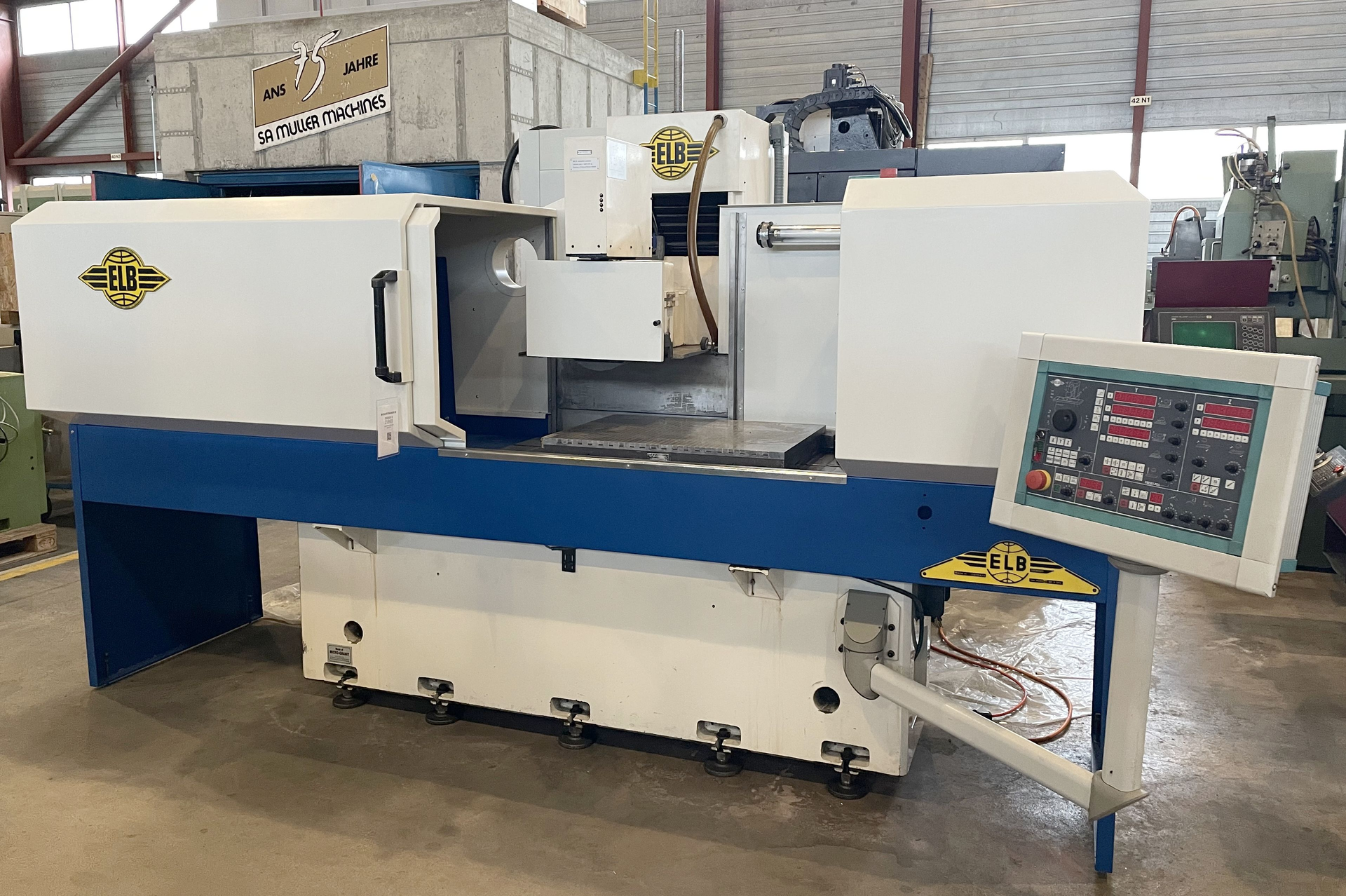

ELB PERFEKT BD 8 SPS is a surface grinder designed for precision, high accuracy and reliable performance. Working capacities: table 1360×590 mm, 1 T-slot 16 mm, grinding length 800 mm, grinding width 600 mm, grinding height 400 mm, table load max. 900 kg; travels X 900 mm, Z 540 mm, Y 400 mm. Key specs: grinding wheel Ø400×100 mm (bore 127) fixed at 1440 rpm, spindle cone 60 mm, grinding spindle motor 10 kW, total installed power 18.5 kW, supply 3×400 V 50 Hz; machine weight ≈5400 kg; footprint 3800×2900×2500 mm; electrical cabinet 1200×500×1900 mm. Accessories: paper filtration, electrical magnetic chuck 800×600 mm, redressing device, lamp, set of flanges, central lubrication, oil mist extractor TEBARON. Delivers tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.
| Table length | 1360 mm |
| Table width | 590 mm |
| Number of T-channels | 1 |
| T-channel width | 16 mm |
| Grinding length | 800 mm |
| Grinding width | 600 mm |
| Grinding height | 400 mm |
| Table load max. | 900 kg |
| Longitudinal travel (X-axis) | 900 mm |
| Cross travel (z-axis) | 540 mm |
| Vertical travel (Y-axis) | 400 mm |
| Automatic longitudinal feeds: | |
| stepless | |
| from | m/min |
| up to | 26 m/min |
| Automatic cross-feed: | |
| stepless | |
| from | mm/min |
| up to | 2000 mm/min |
| Automatic Vertical feed: | |
| stepless | |
| from | mm/min |
| up to | 300 mm/min |
| Grinding wheel speeds fix | 1440 t/min |

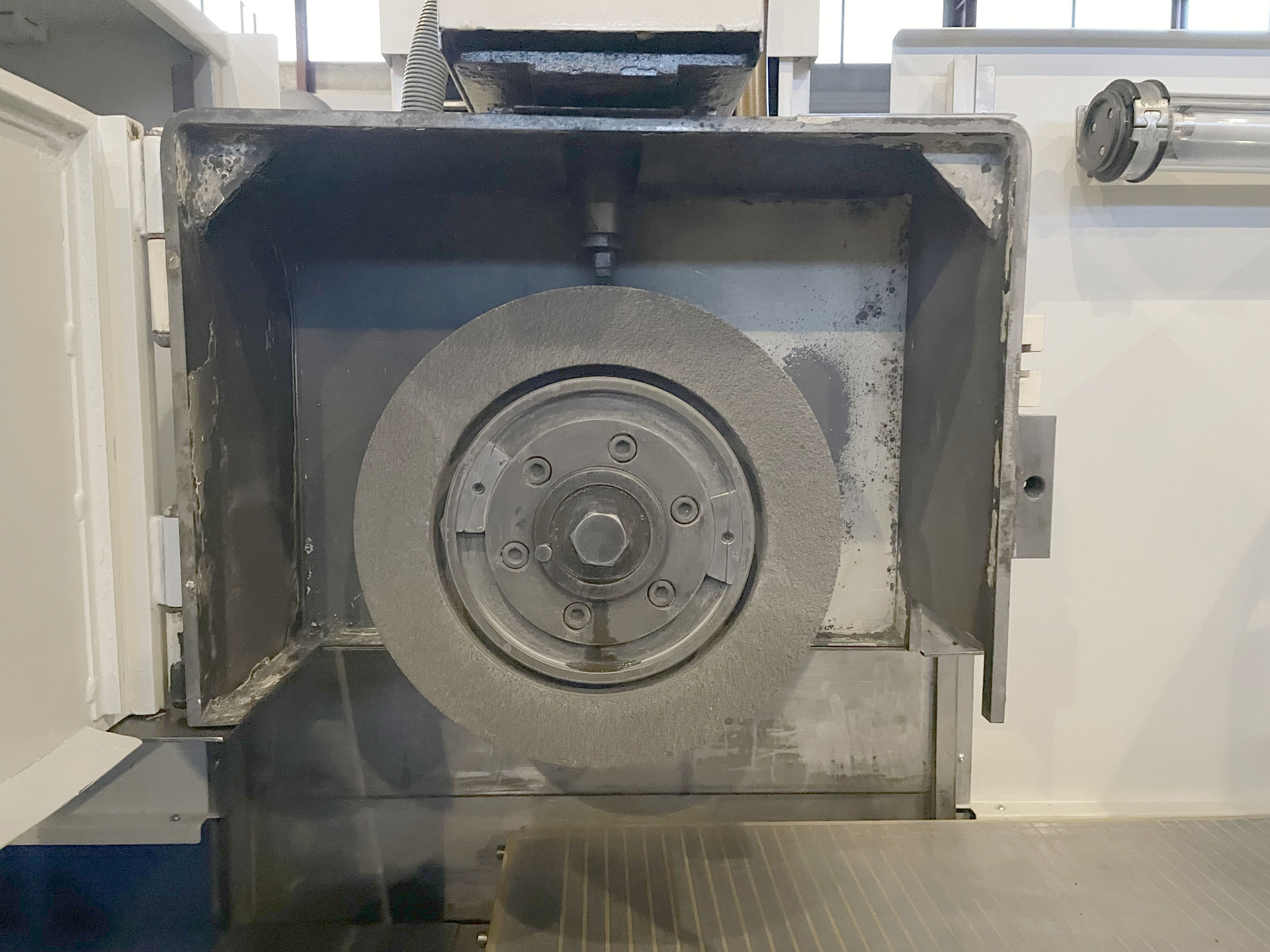

| Diameter of grinding wheel | 400 mm |
| Width of the grinding wheel | 100 mm |
| Drilling cap. of grind.wheel | 127 mm |
| Spindle cone | 60 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Grinding spindle motor | 10 kW |
| Total power required | 18.5 kW |
| Machine's weight about | 5400 kg |
| Overall dimensions machine: | |
| Length | 3800 mm |
| Width | 2900 mm |
| Height | 2500 mm |
| Dimensions electric cabinet: | |
| Length | 1200 mm |
| Width | 500 mm |
| Height | 1900 mm |
| Various accessories: | |
| Paper filtration system | |

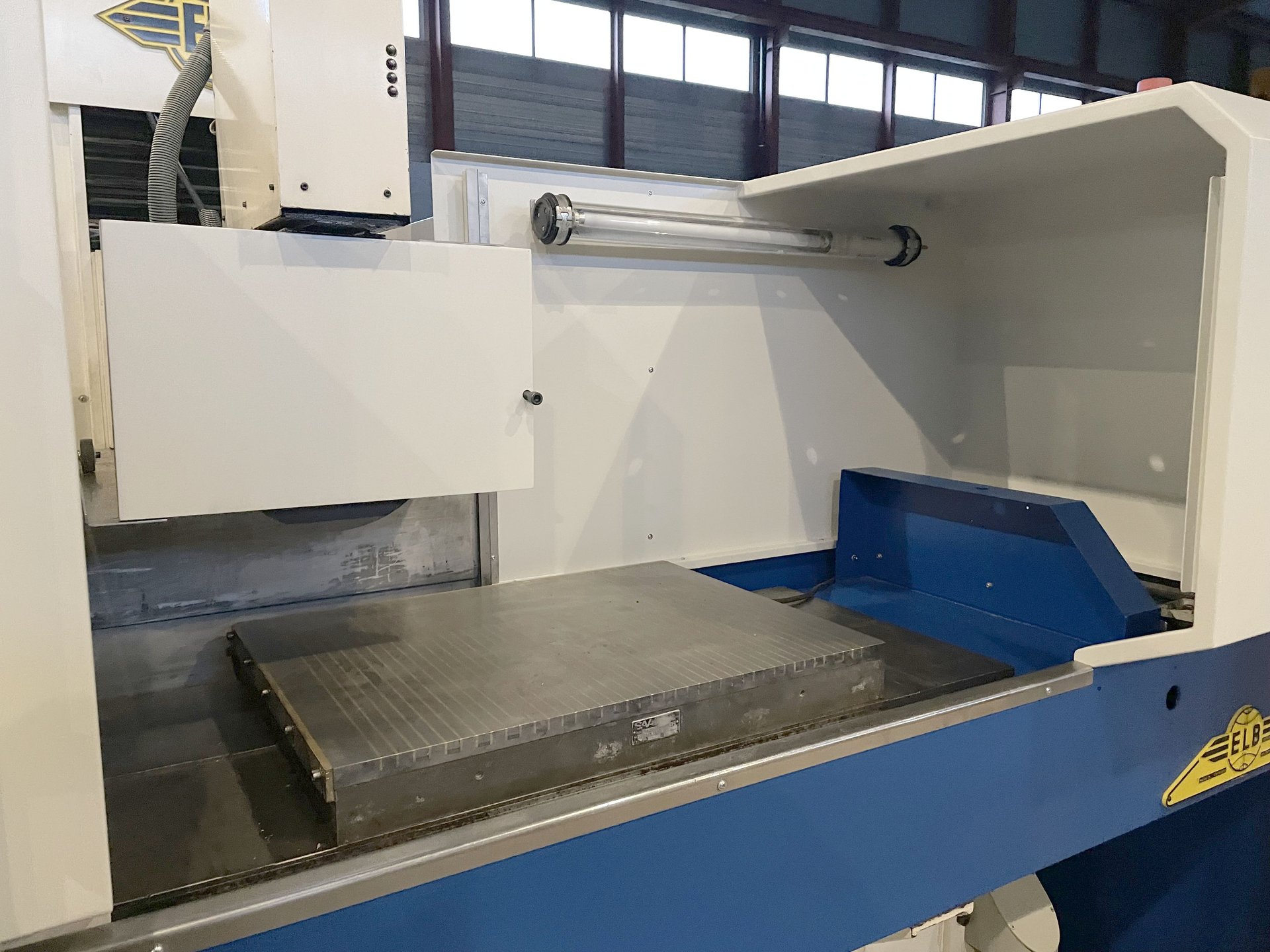

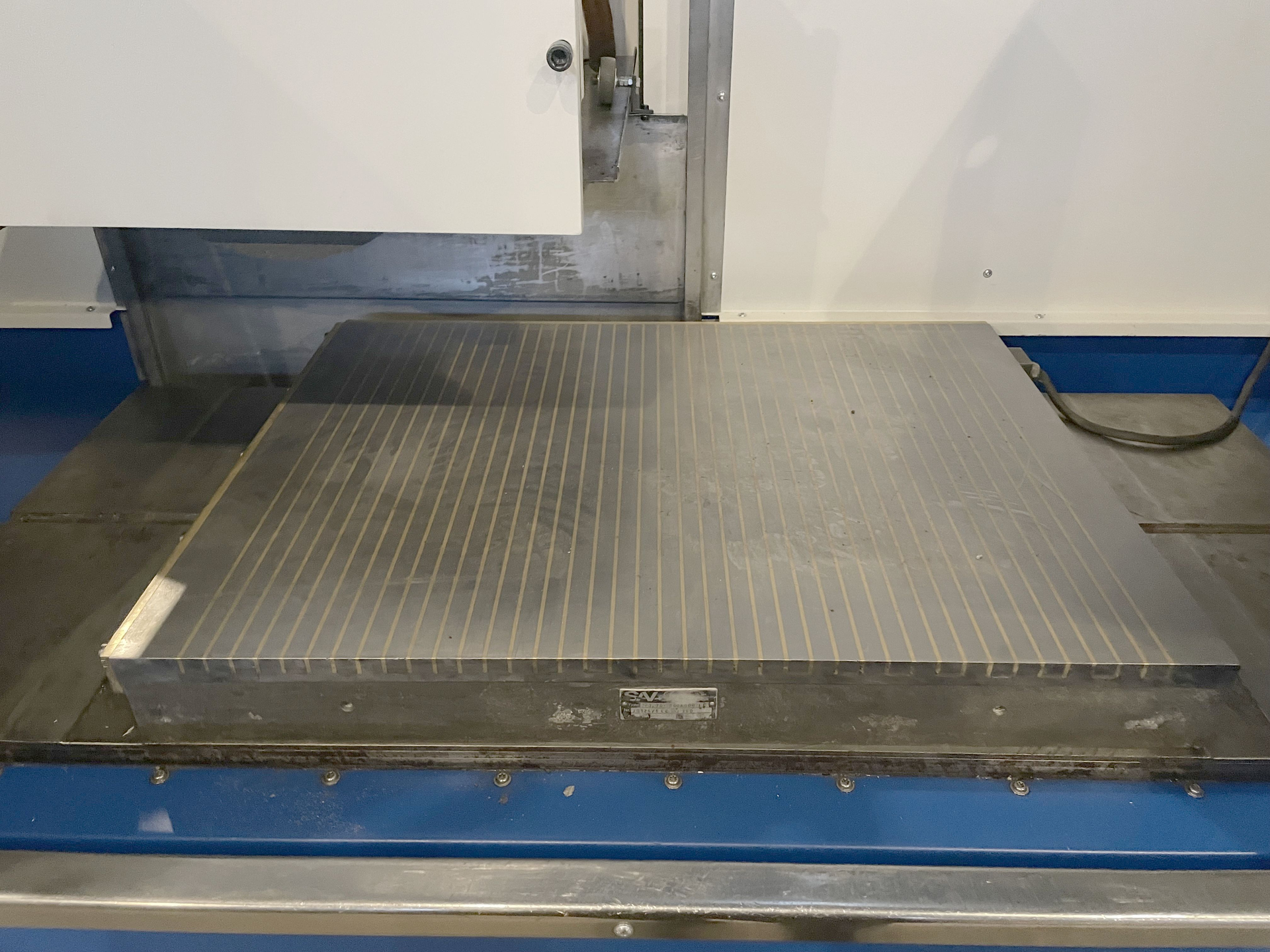

| Electrical magnetic chuck | |
| Length | 800 mm |
| Width | 600 mm |
| Redressing device | |
| Lamp | |
| Set of flanges | |
| Central lubrification | |

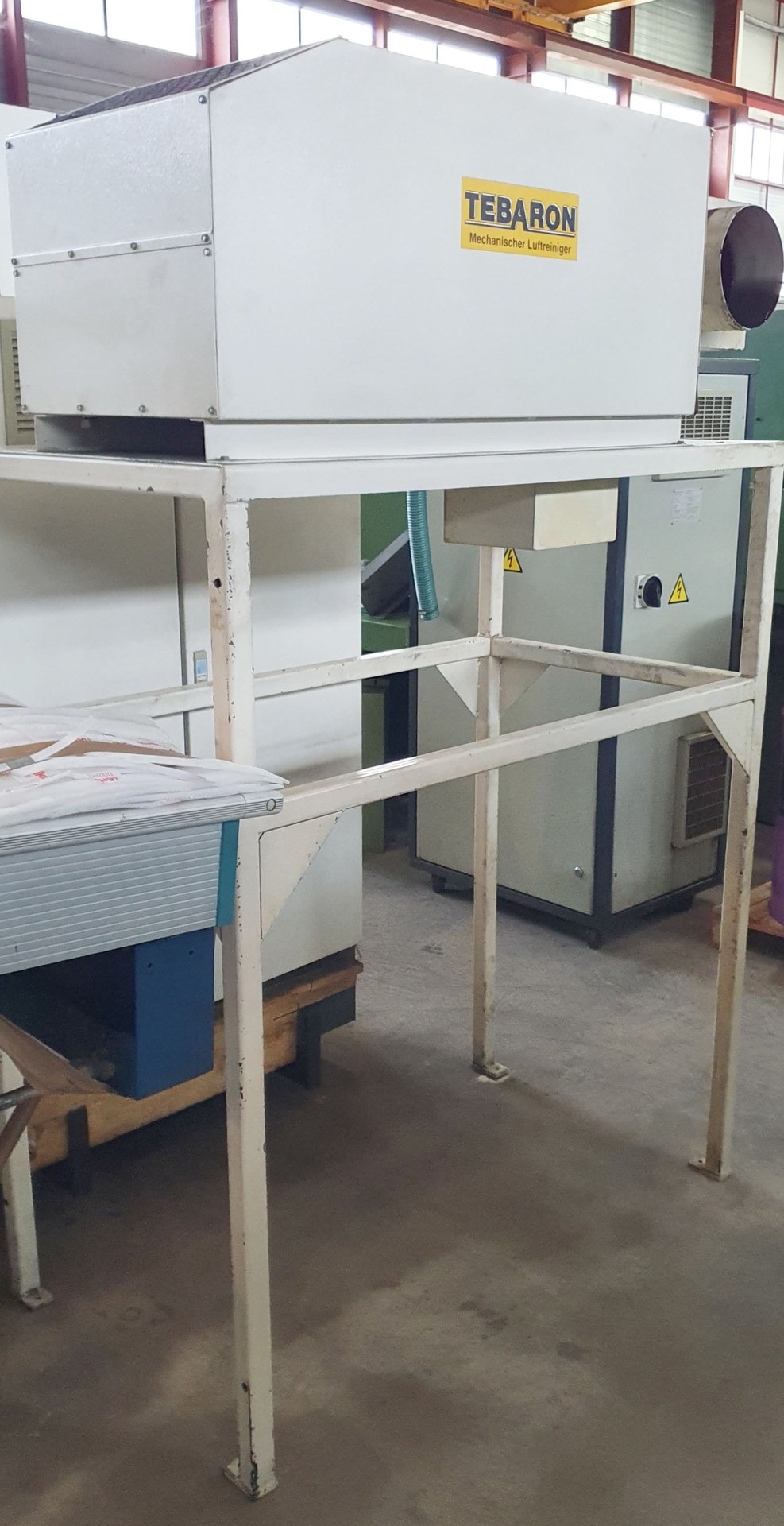

| Oil mist extractor | TEBARON |
