ANGELINI Clipper
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
ANGELINI Clipper is a CNC turning lathe for precision machining, high accuracy and reliable performance. Capacities: 3 axes, 1 spindle, 1 revolver; distance between centres 375 mm; max turning Ø 250 mm; swing over bed 480 mm, over carriage 380 mm; spindle taper ASA 12-5, spindle hole 42 mm; turret 8 positions. Specs: 0–4500 t/min (stepless), spindle motor 7.5 kW, rapid traverse 24 m/min, weight ≈3000 kg, L1800×W1450×H1800 mm. Accessories: 3‑jaw chuck Ø165 mm, hard jaws, collet device, tailstock, parts catcher, chip conveyor, foot pedal, tool holders (radial 1, axial 4, fixed 4), status light. Delivers tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical.
| Number of axis total | 3 |
| Number of spindles | 1 |
| Number of revolvers | 1 |
| Distance between centres | 375 mm |
| Swing diameter over bed | 480 mm |
| Swing diameter over carriage | 380 mm |
| Max. turning diameter | 250 mm |
| Taper in spindle | ASA 12-5 |
| Spindle hole | 42 mm |
| Turret slide: | |
| Number of positions | 8 |
| Driven tools turret | |
| Main spindle: | |
| C axis | |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 4500 t/min |
| Rapid traverse: | 24 m/min |
| Spindle motor | 7.5 kW |
| Machine's weight about | 3000 kg |
| Overall dimensions machine: | |
| Length | 1800 mm |
| Width | 1450 mm |
| Height | 1800 mm |

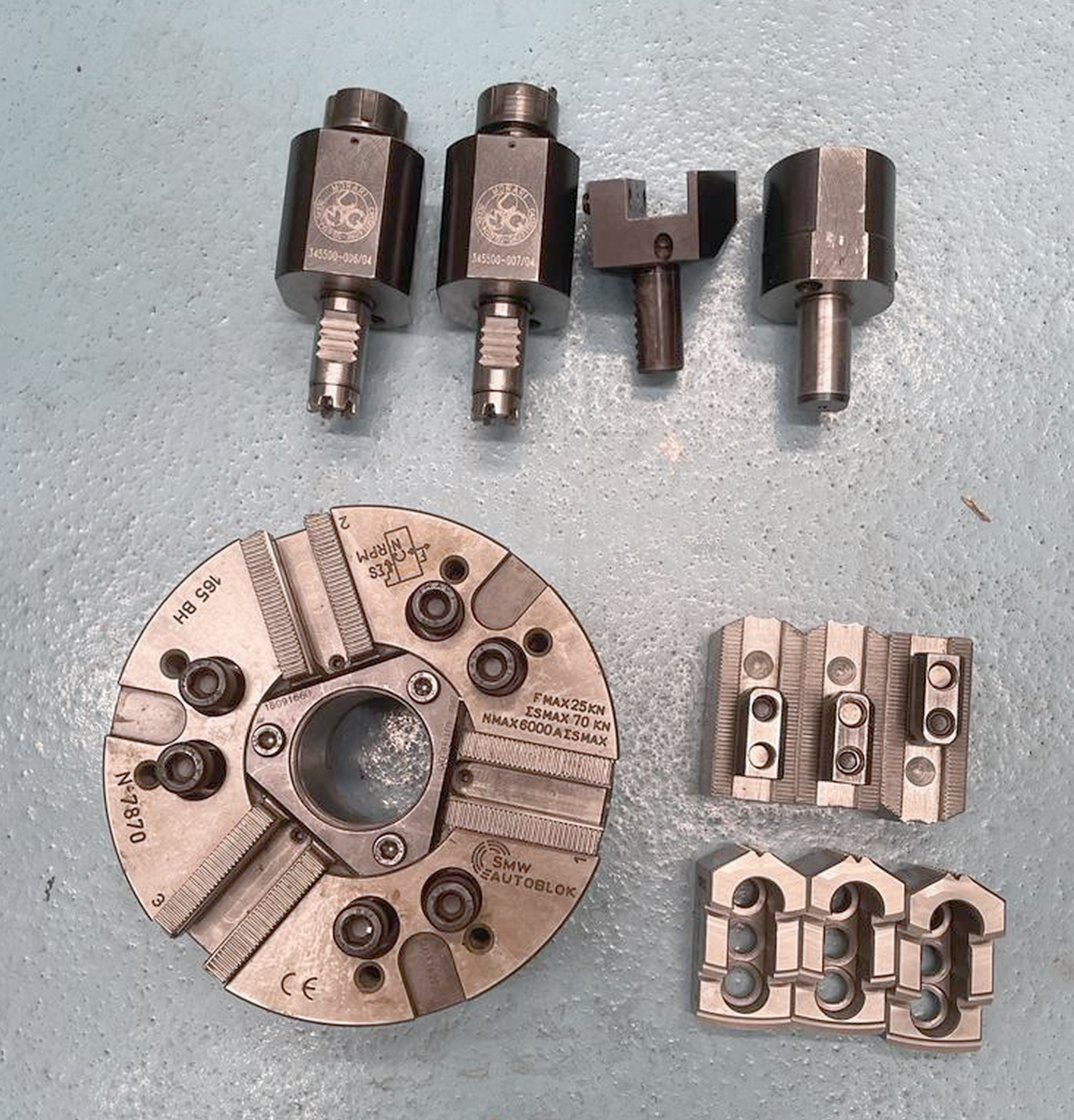

| Various accessories: | |
| 3-jaw chuck diameter | 165 mm |
| Set of hard jaws | |
| Collet device | |
| Tailstock | |
| Parts catcher | |
| Chip conveyor | |
| Foot pedal | |
| Tool holder radial (nbr.) | 1 |
| Tool holders axial (nbr.) | 4 |
| Tool holder fix (nbr.) | 4 |
| Status light |
