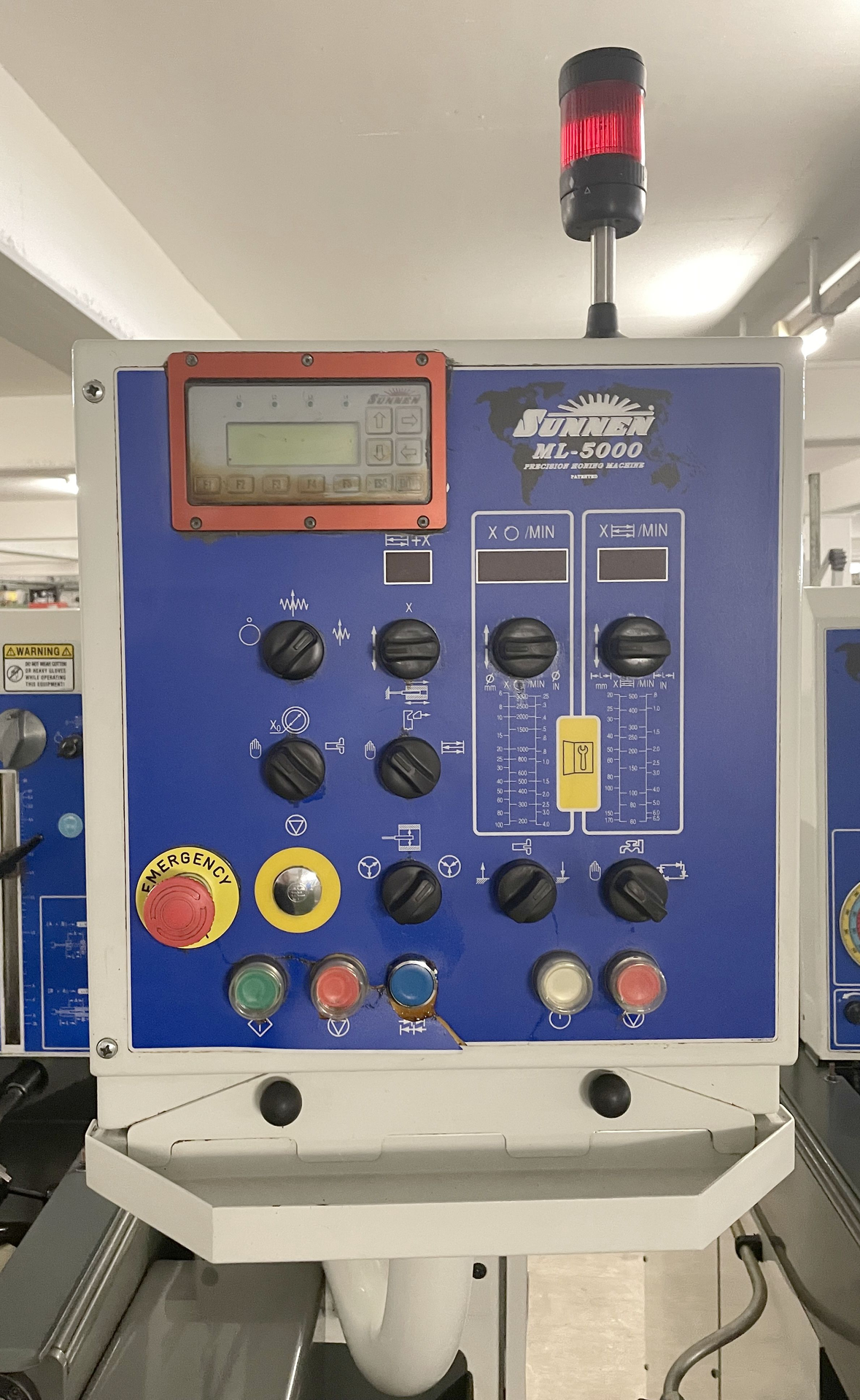

SUNNEN ML 5000 is a honing machine of high precision, accurate and reliable. Capacities Ø 2–165 mm; total stroke 6–170 mm; stroke speed 60–500 c/min. Spindle 200–3000 t/min; spindle motor 4.1 kW; 3x400 V 50 Hz; compressed air 5.5 bar; weight ~725 kg. Achieves tight tolerances; sectors: automotive, aerospace, medical, tooling, watchmaking.
| Min. diameter | 2 mm |
| Max. diameter | 165 mm |
| Spindle speeds: | |
| stepless | |
| from | 200 t/min |
| up to | 3000 t/min |
| Total stroke | 6 - 170 mm |
| Stroke speed: | |
| from | 60 c/min |
| up to | 500 c/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 4.1 kW |
| Compressed air from | 5.5 bar |
| Machine's weight about | 725 kg |
| Overall dimensions machine: | |
| Length | 1600 mm |
| Width | 1200 mm |
| Height | 1900 mm |
