| Number of axis total | 3 |
| Table length | 900 mm |
| Table width | 600 mm |
| Longitudinal travel (X-axis) | 710 mm |
| Transversal travel (y-axis) | 550 mm |
| Vertical travel (z axis) | 500 mm |
| Table load max. | 1600 kg |
| Tool changer: | |
| Number of tools | 30 |
| Tool diameter | 90 mm |
| Diameter with free adjacent pockets | 140 mm |
| Tool lenght | 300 mm |
| Max. tool-weight | 8 kg |
| Time of tool changing | 5 s |
| Spindle nose: ISO | B40 |
| Spindle speeds: | |
| from | 100 t/min |
| up to | 12000 t/min |
| Feeds: | |
| stepless | |
| longitudinal from | 1 mm/min |
| up to | 15000 mm/min |
| transversal from | 1 mm/min |
| up to | 15000 mm/min |
| vertical from | 1 mm/min |
| up to | 1 mm/min |
| Feed range | 10000 mm/min |
| Rapid traverse: long. | 30 m/min |
| Rapid traverse: transversal | 30 m/min |
| Rapid traverse: vertical | 20 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 12 kW |
| Total power required | 40 kW |
| Noise level | 75 dB (A) |
| Machine's weight about | 10000 kg |
| Overall dimensions machine: | |
| Length | 3085 mm |
| Width | 2270 mm |
| Height | 3055 mm |
| Various accessories: | |
| Coolant system | |

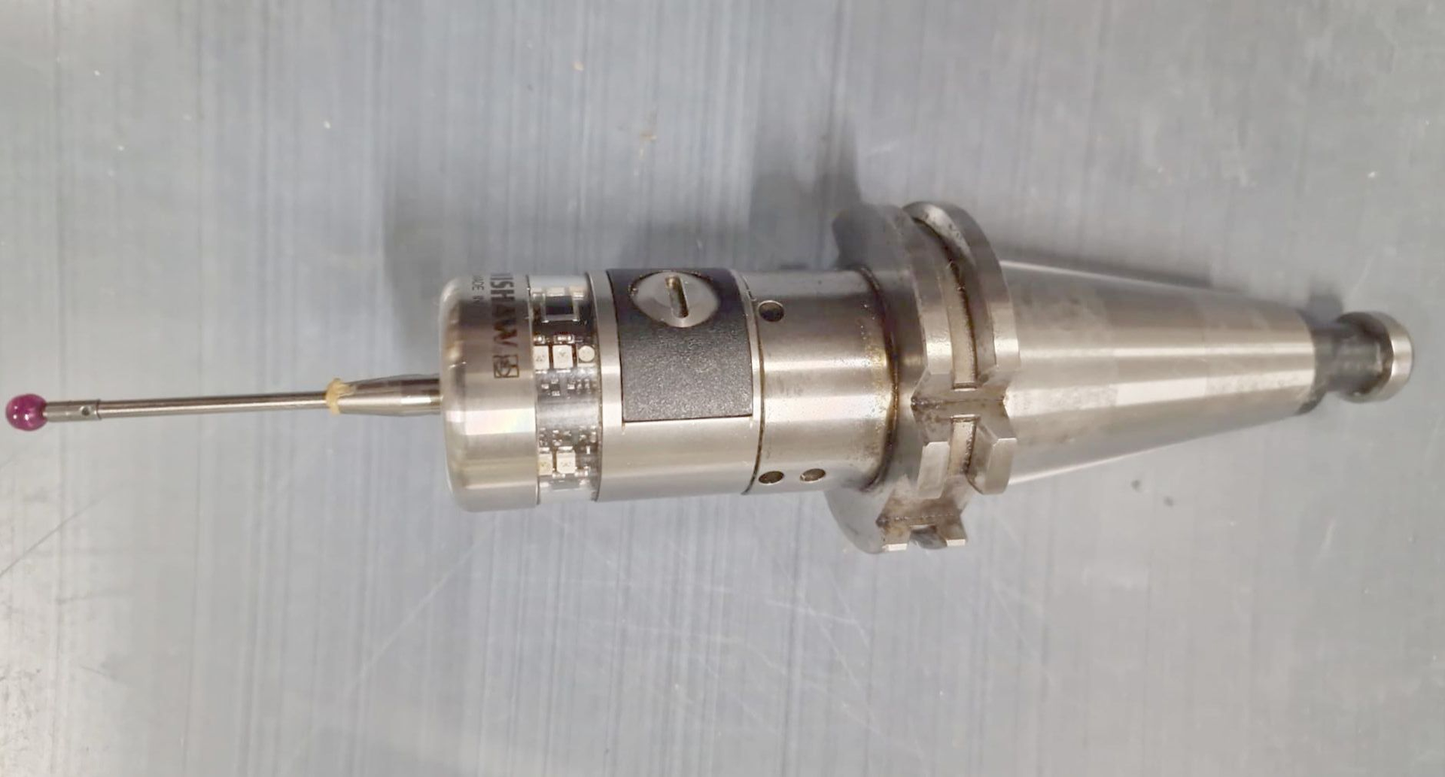

| Touch Probe Renishaw | |
| Chip conveyor | |
| Lamp |
