DECKEL FP 2 is a Universal milling machine designed for precision machining with high accuracy and reliability. Table 700x285 mm; travels X 400 mm, Y 200 mm, Z 400 mm. Spindle taper 40 ISO, 40–2000 t/min; 18 feed steps 8–400 mm/min (X/Y/Z); rapid traverse 1.2 m/min. Voltage 50 Hz 3x380 V; motor output 3.0 CV; weight ~1000 kg; overall dimensions 1400×1600×1650 mm. Accessories: 2‑axis digital readout, lamp. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Table length | 700 mm |
| Table width | 285 mm |
| Longitudinal travel (X-axis) | 400 mm |
| Transversal travel (y axis) | 200 mm |
| Vertical travel (z axis) | 400 mm |
| Spindle speeds: | |
| from | 40 t/min |
| up to | 2000 t/min |
| Taper in spindle | 40 ISO |
| Feeds steps: | 18 |
| longitudinal from | 8.0 mm/min |
| up to | 400 mm/min |
| transversal from | 8.0 mm/min |
| up to | 400 mm/min |
| vertical from | 8.0 mm/min |
| up to | 400 mm/min |
| Rapid traverse: | |
| longitudinal | 1.2 m/min |
| transversal | 1.2 m/min |
| vertical | 1.2 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 3.0 CV |
| Machine's weight about | 1000 kg |
| Overall dimensions machine: | |
| Length | 1400 mm |
| Width | 1600 mm |
| Height | 1650 mm |
| Various accessories: | |

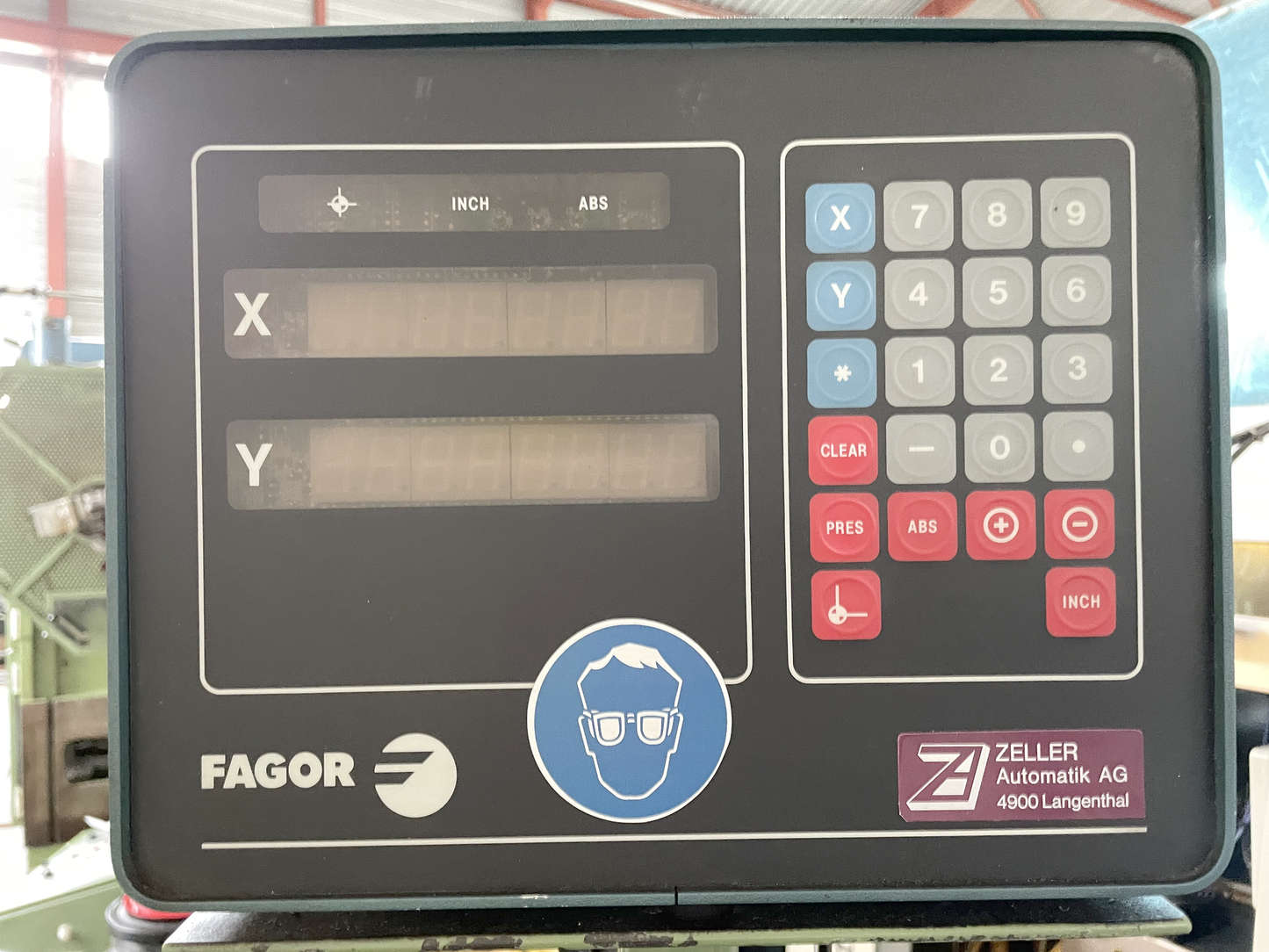

| Digital readout number of axis: | 2 |
| Lamp |
