| Number of spindles | 2 |
| Number of revolvers | 2 |
| Swing over cross-slide | 310 mm |
| Spindle hole | 51 mm |
| Turning diameter | 310 mm |
| Turning length | 255 / 755 mm |
| Carriage 1: | |
| Longitudinal travel (X-axis) | 207.5 mm |
| Transversal strocke (Z axis) | 300 mm |

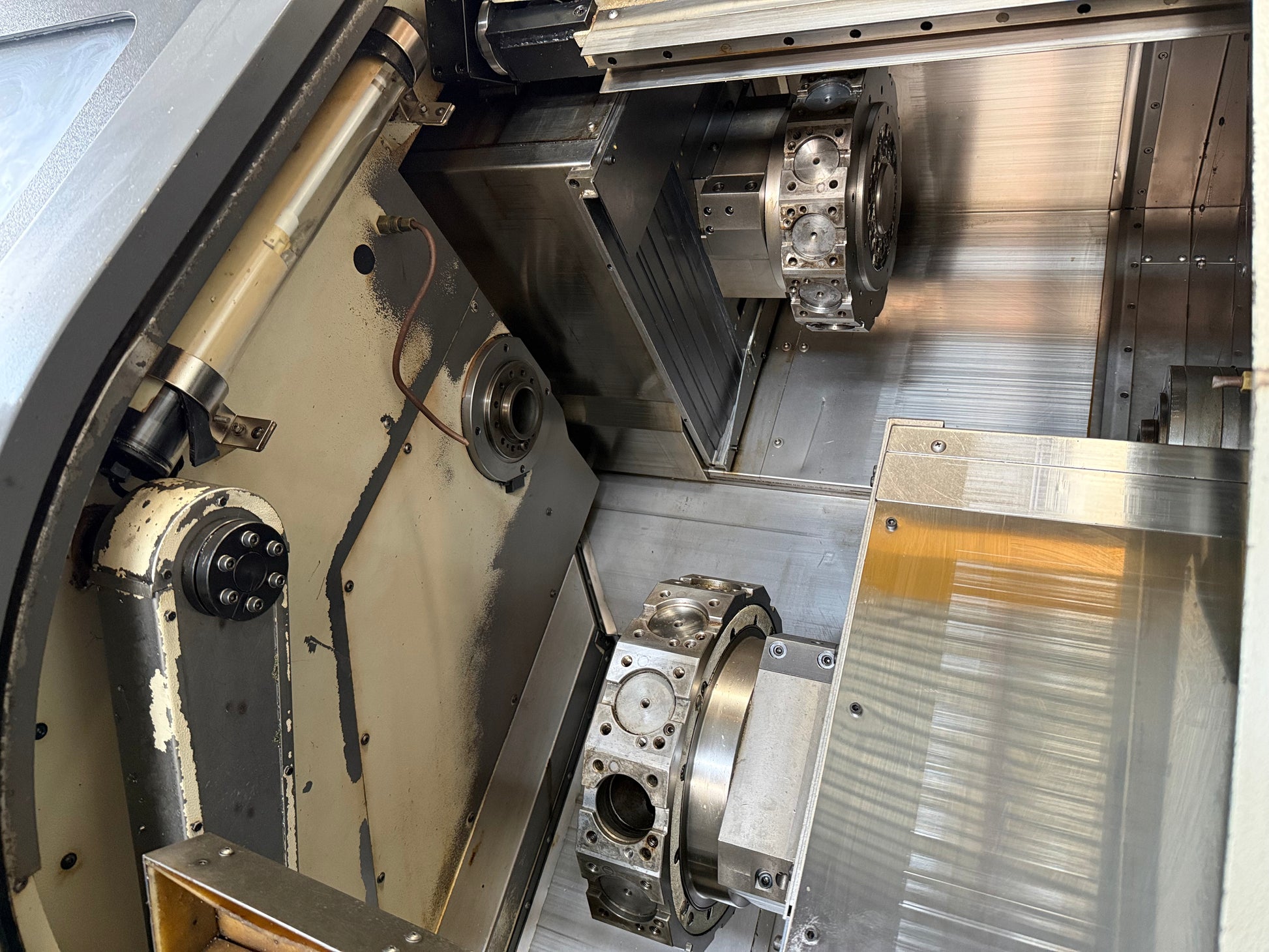

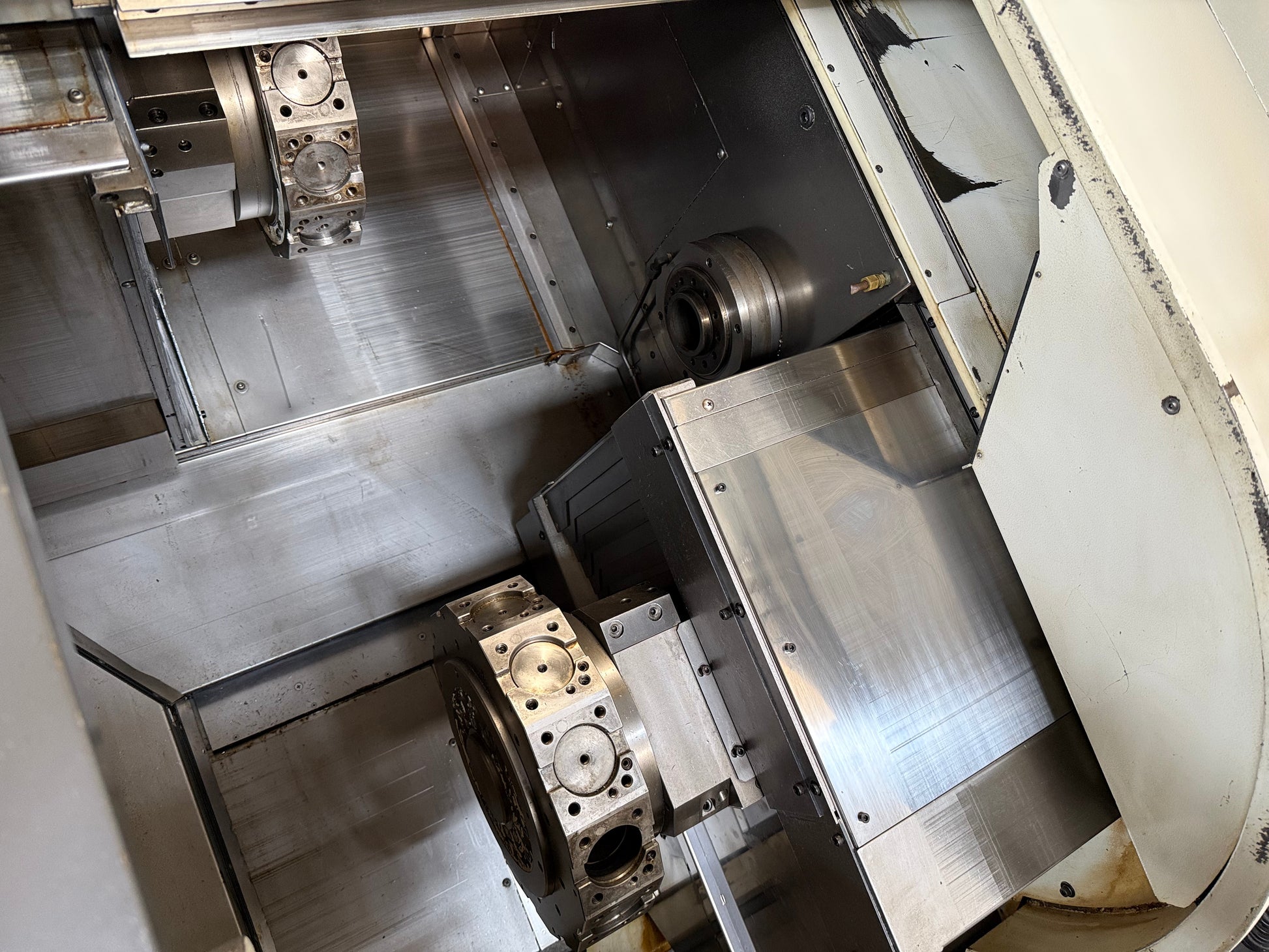

| Turret carriage: | |
| Number of positions turret 1 | 12 |
| Number of positions turret 2 | 12 |
| Driven tools turret 1 | 12 |
| Driven tools turret 2 | 12 |
| Spindle speeds | 60 - 6000 t/min |
| Power of driven tools | 3.2 / 2.7 kW |
| Spindle nose: | |
| Inner cone diameter | 25 mm |
| Taper in spindle: | |
| Camlock | A2-5 |
| C axis (spindle,resolution) | 0.001 ° |
| Back spindle: | |
| max. speed | 6000 t/min |
| Internal spindle diameter | 42 mm |
| Power of back spindle | 7.5 / 5.5 kW |
| Y axis | 2 x +/- 30 mm |
| Rapid traverse: | X=12 / Z=40 m/min |
| Time under power | 84881 Heures |
| Operating time | 22689 Heures |
| Working time | 5534 Heures |
| Spindle motor | 7.5 / 5.5 kW |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 8500 kg |
| Overall dimensions machine: | |
| Length | 3850 mm |
| Width | 2330 mm |
| Height | 2320 mm |
| Various accessories: | |
| Lamp | |

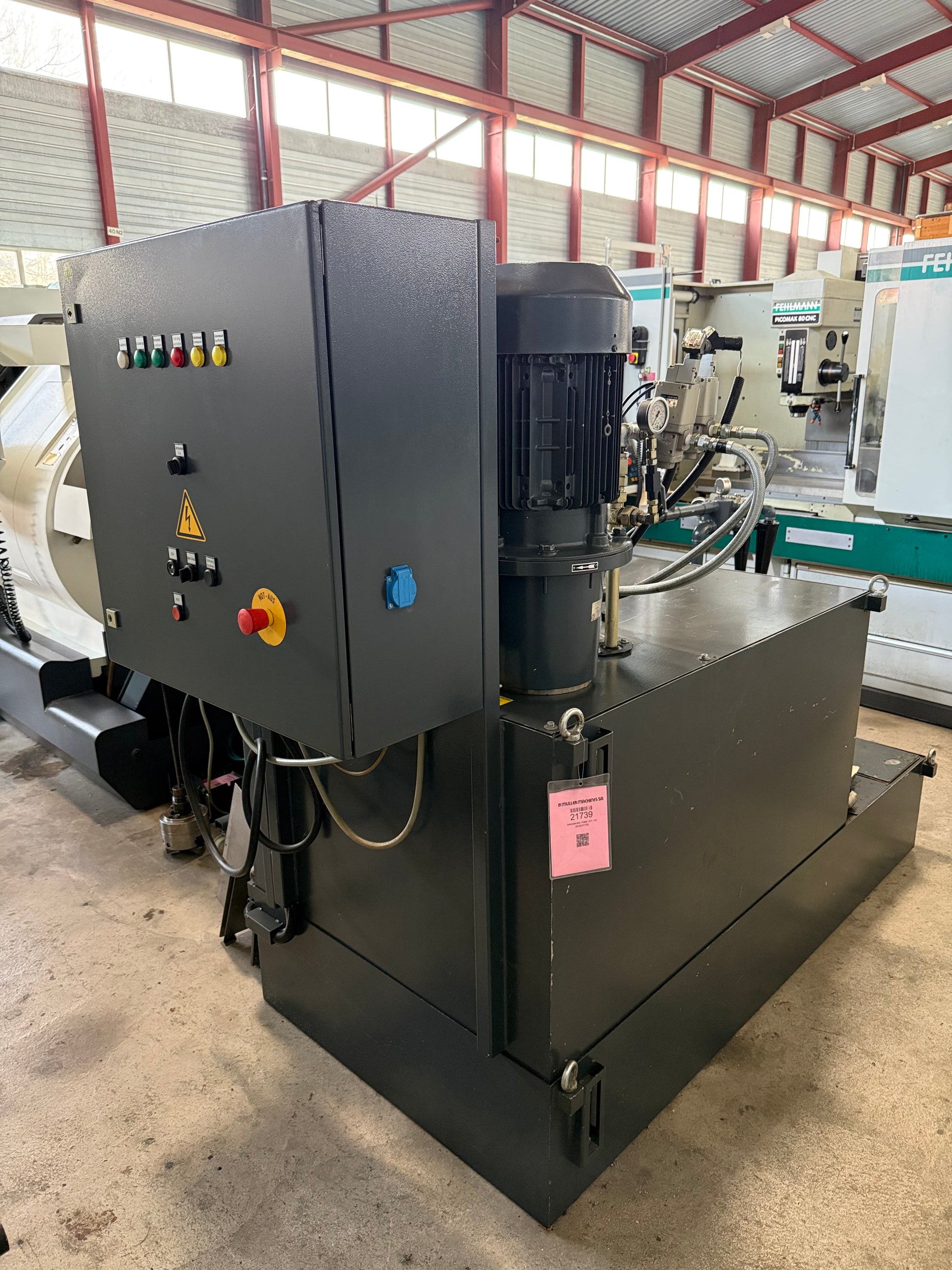

| High pression colant device | |
| Parts catcher | |
| Chip conveyor | |
| Foot pedal | |
| Set of steel holders | |

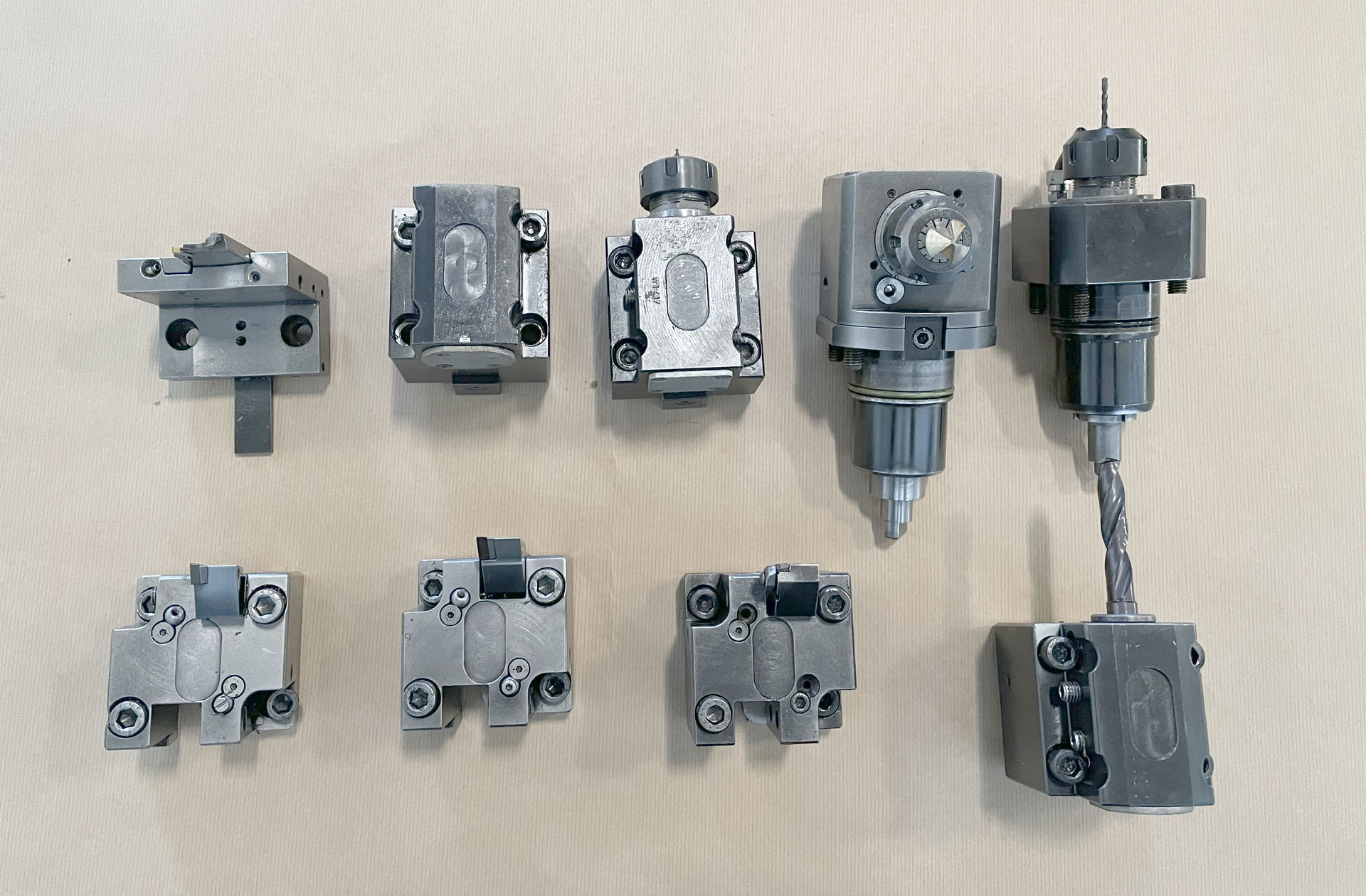

| Set of toolholders |
