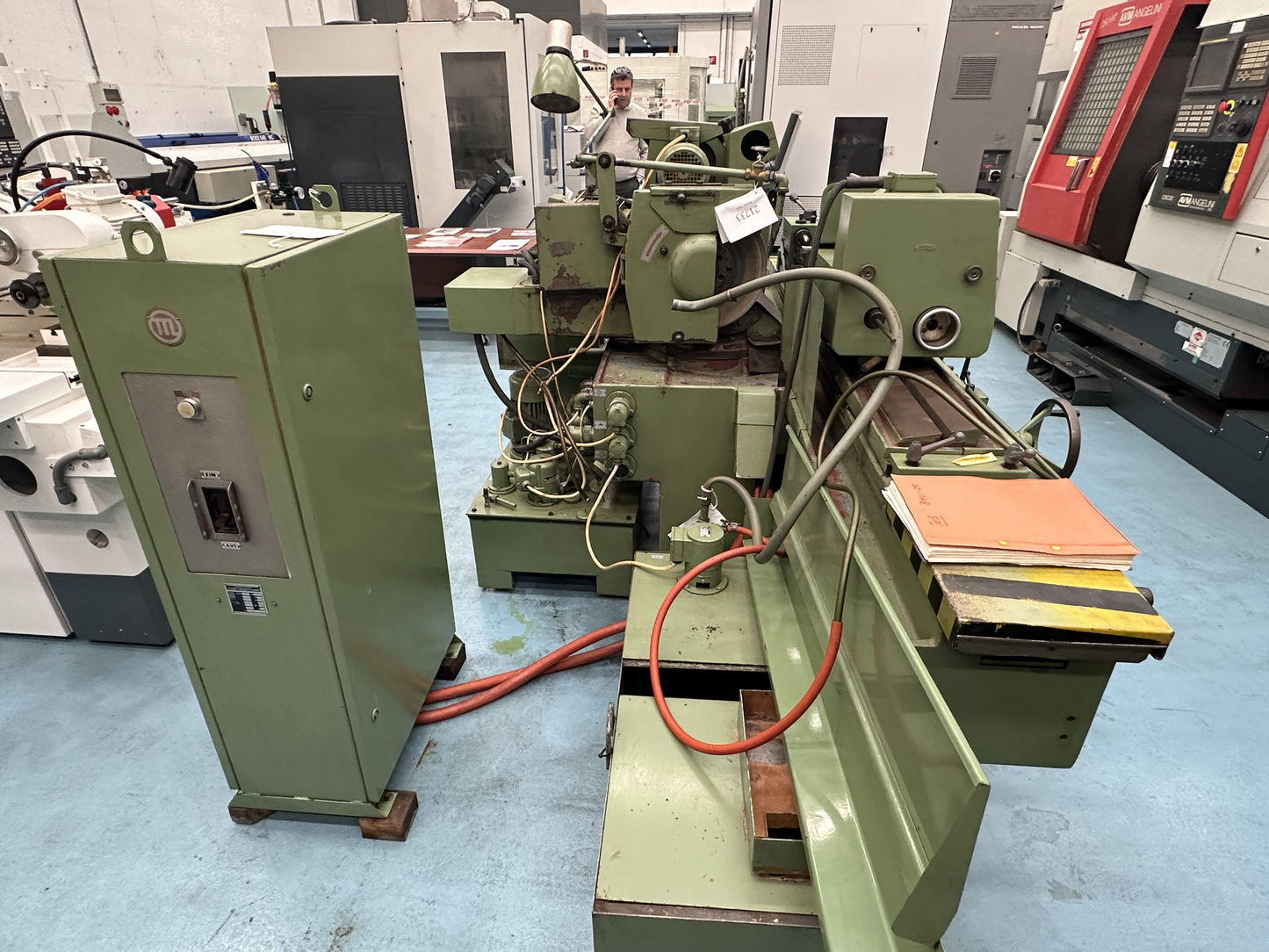

TOS BHU25 is a cylindrical grinder designed for precision, high accuracy and reliability. Capacities: between centres 1000 mm, swing 280 mm, travel 1130×245 mm; wheel Ø400×40 mm; workpiece max 60 kg. Specs: wheel 1570–2050 rpm (2), spindle 22–710 rpm (12); wheel motor 4 kW; total 8 kVA; weight 2500 kg; 3×380 V 50 Hz. Accessories: tailstock fine adjust, redressing device, coolant system, lamp. Enables tight tolerances; applications: automotive, toolmaking, aerospace, medical.
| Distance between centres | 1000 mm |
| Swing diameter | 280 mm |
| Max. Longitudinal travel | 1130 mm |
| Max. transversal travel | 245 mm |
| Grinding wheel: | |
| Diameter | 400 mm |
| Width | 40 mm |
| Bore | 127 mm |
| grinding wheel width | 63 mm |
| Workpiece weight on centres max. | 60 kg |
| Grinding wheel speeds: | |
| number (steps) | 2 |
| from | 1570 t/min |
| up to | 2050 t/min |
| Angular displacement | +/-60 ° |
| Work piece spindle head: | |
| speeds: | |
| number (steps) | 12 |
| from | 22 t/min |
| up to | 710 t/min |
| Swivelling range | 90 ° |
| Spindle taper | 4 CM |
| Taper in tailstock: | 3 CM |
| Table angular displacement | +/- 7 ° |
| Voltage 50 Hz 3x | 380 Volt |
| External Grinding wheel motor | 4 kW |
| Total power required | 8 kVA |
| Machine's weight about | 2500 kg |
| Overall dimensions machine: | |
| Length | 1600 mm |
| Width | 1400 mm |
| Height | 1300 mm |
| Various accessories: | |
| Tailstock with fine adjustement | |
| Redressing device | |
| Coolant system | |
| Lamp |
