| Centre height | 175 mm |
| Distance between centres | 700 mm |
| Max. Longitudinal travel | 700 mm |
| Grinding wheel: | |
| Diameter | 400 mm |
| Width | 50 mm |
| Bore | 127 mm |
| Workpiece weight on centres max. | 80 kg |
| Grinding wheel speeds: | |
| number (steps) | 6 |
| from | 1500 t/min |
| up to | 2400 t/min |
| Peripheral speed | 35 m/s |
| Angular displacement | 0-90 ° |
| Work piece spindle head: | |
| speeds: | |
| stepless | |
| from | 30 t/min |
| up to | 675 t/min |
| rotatable | 90 ° |
| Spindle taper | 5 CM |
| Taper in tailstock: | 3 CM |
| Table angular displacement | 8 ° |
| Table speed: | |
| stepless | |
| from | m/min |
| up to | 6 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| External Grinding wheel motor | 3 kW |
| Total power required | 13 kVA |
| Overall dimensions machine: | |
| Length | 2200 mm |
| Width | 1300 mm |
| Height | 1800 mm |
| Dimensions of the control: | |
| Length | 900 mm |
| Width | 500 mm |
| Height | 1700 mm |

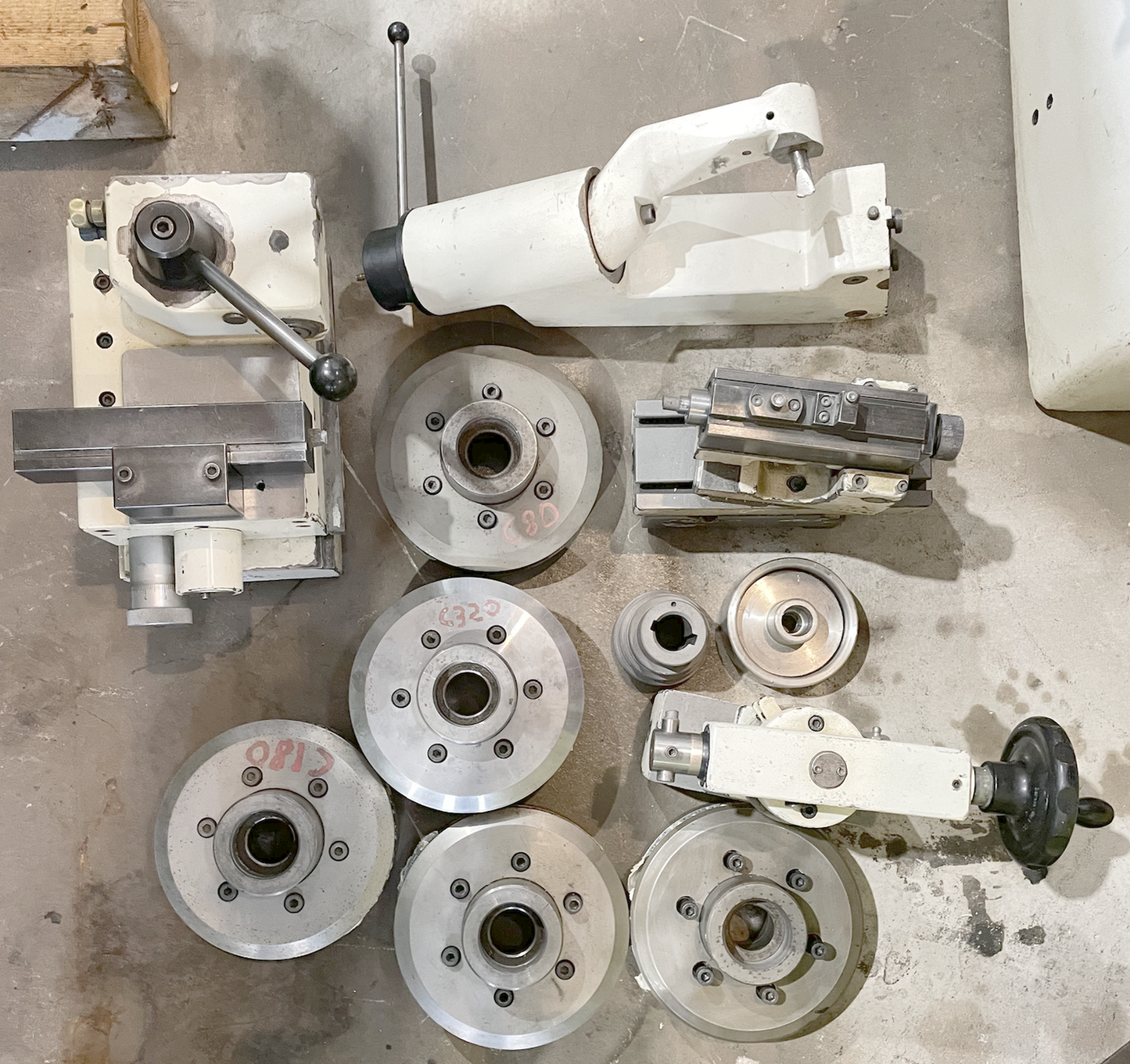

| Various accessories: | |
| Tailstock with fine adjustement | |
| Internal grinding attachment | |
| Spindle speeds | 28000 t/min |
| Redressing device | |
| Laterally pivotable dressing device | |
| Rayon redressing device | |
| Paper filtration system | |
| Set of flanges | |
| Feed SENSITRON | |
| Tailstock with fine adjustement | |
| Grinding wheel guard |
