| Table length | 660 mm |
| Table width | 205 mm |
| Grinding length | 500 mm |
| Grinding width | 200 mm |
| Execution: | |
| hydraulic | |
| Max. distance from table | |
| to spindle-centreline | 425 mm |
| Longitudinal travel (X-axis) | 550 mm |
| Transversal travel (y axis) | 200 mm |
| Automatic cross-feed: | |
| stepless | |
| from | 1 m/min |
| up to | 30 m/min |
| Table speeds: | |
| stepless | |
| from | 1 m/min |
| up to | 22 m/min |

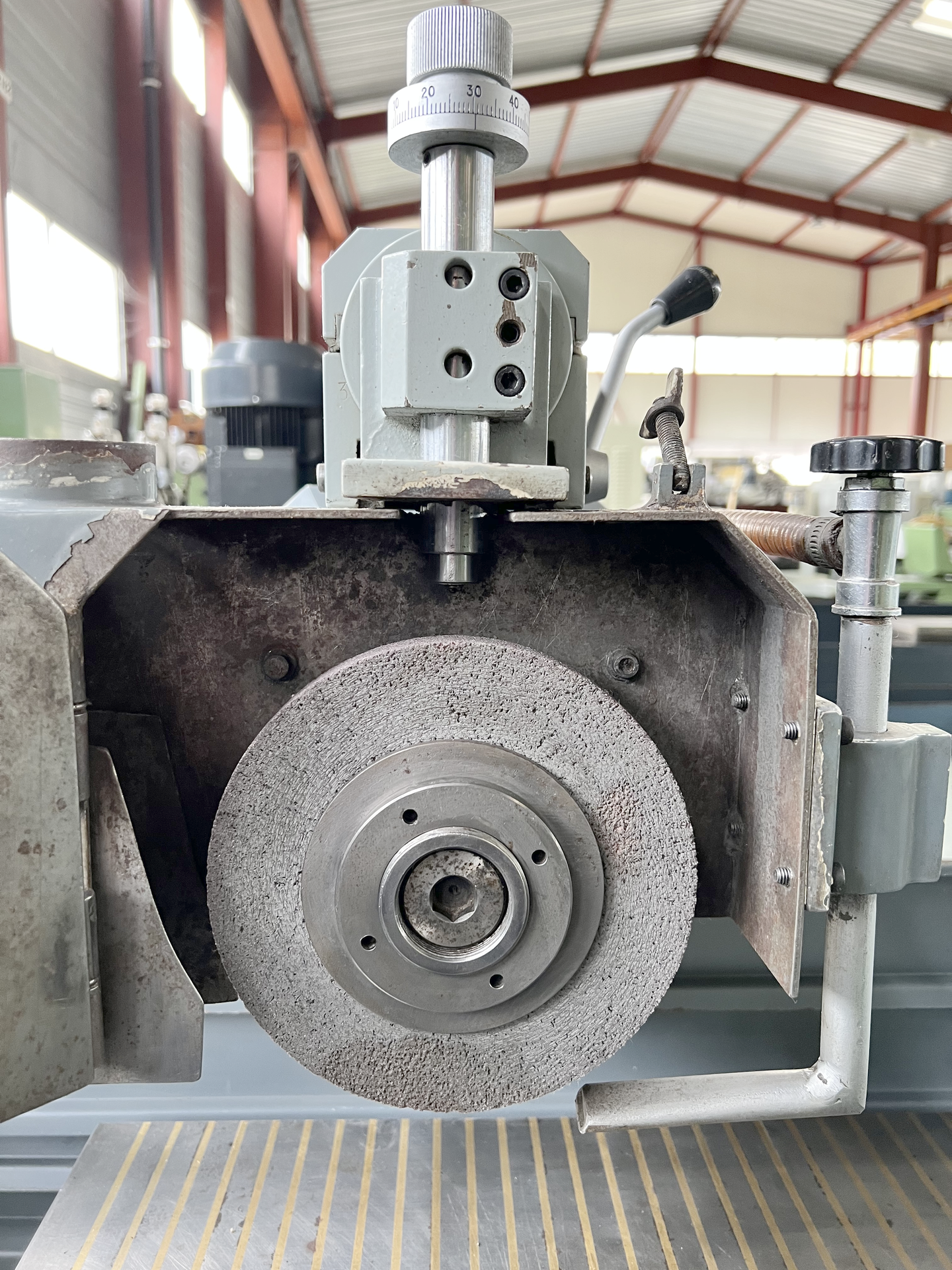

| Diameter of grinding wheel | 225 mm |
| Width of the grinding wheel | 30 mm |
| Grinding wheel speeds: | |
| number (steps) | |
| up to | 2800 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 2.00 CV |
| Total power required | 3.00 CV |
| Machine's weight about | 850 kg |
| Overall dimensions machine: | |
| Length | 1900 mm |
| Width | 1200 mm |
| Height | 1800 mm |
| Various accessories: | |
| Magnetic plate: | |
| Length | 500 mm |
| Width | 250 mm |
| Redressing device | |
| Splash guard |
