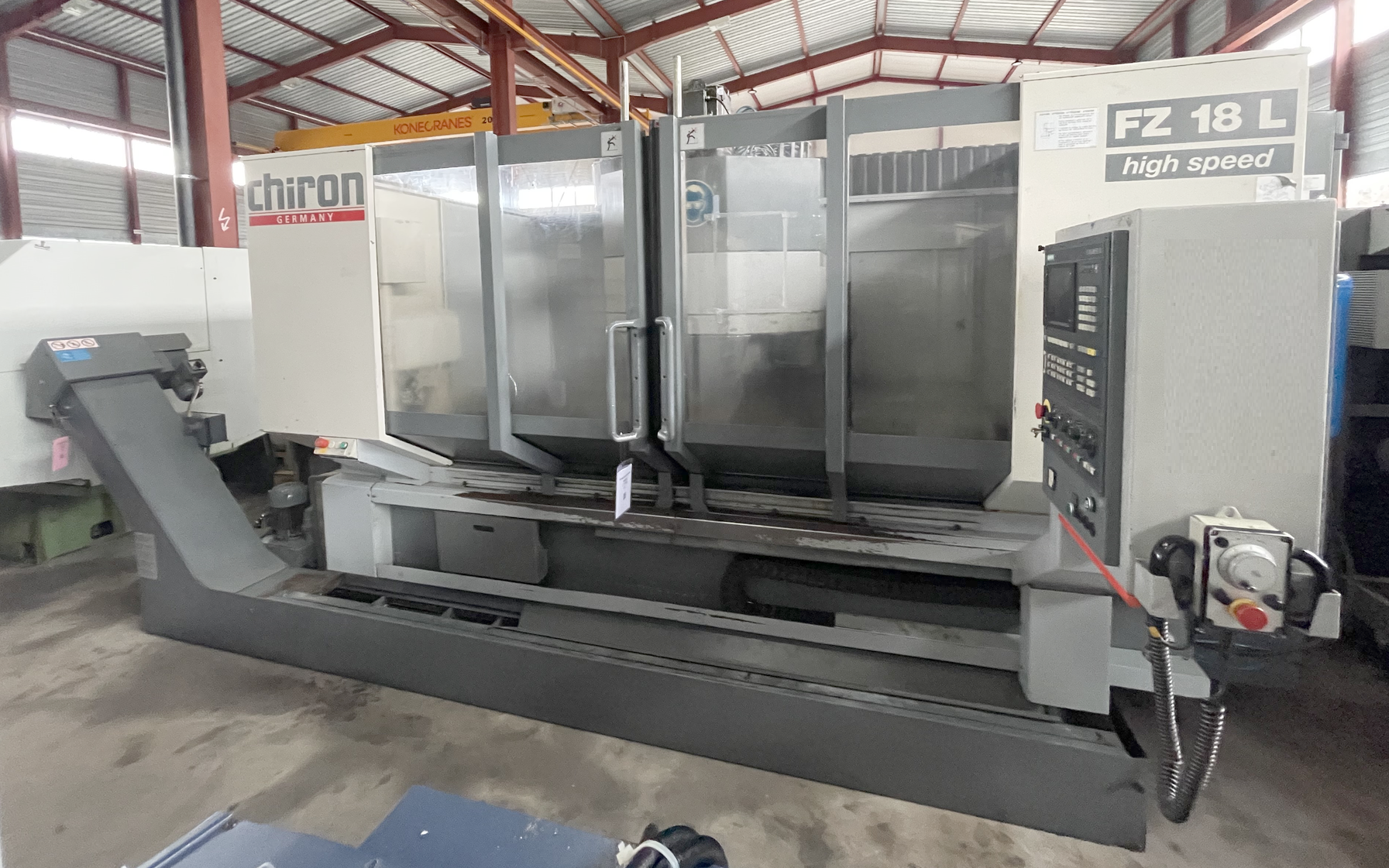

CHIRON FZ 18 L
Type: FZ 18 L
Manufacturer: CHIRON
Group: Machining center
Subgroup: 3-axis machining center

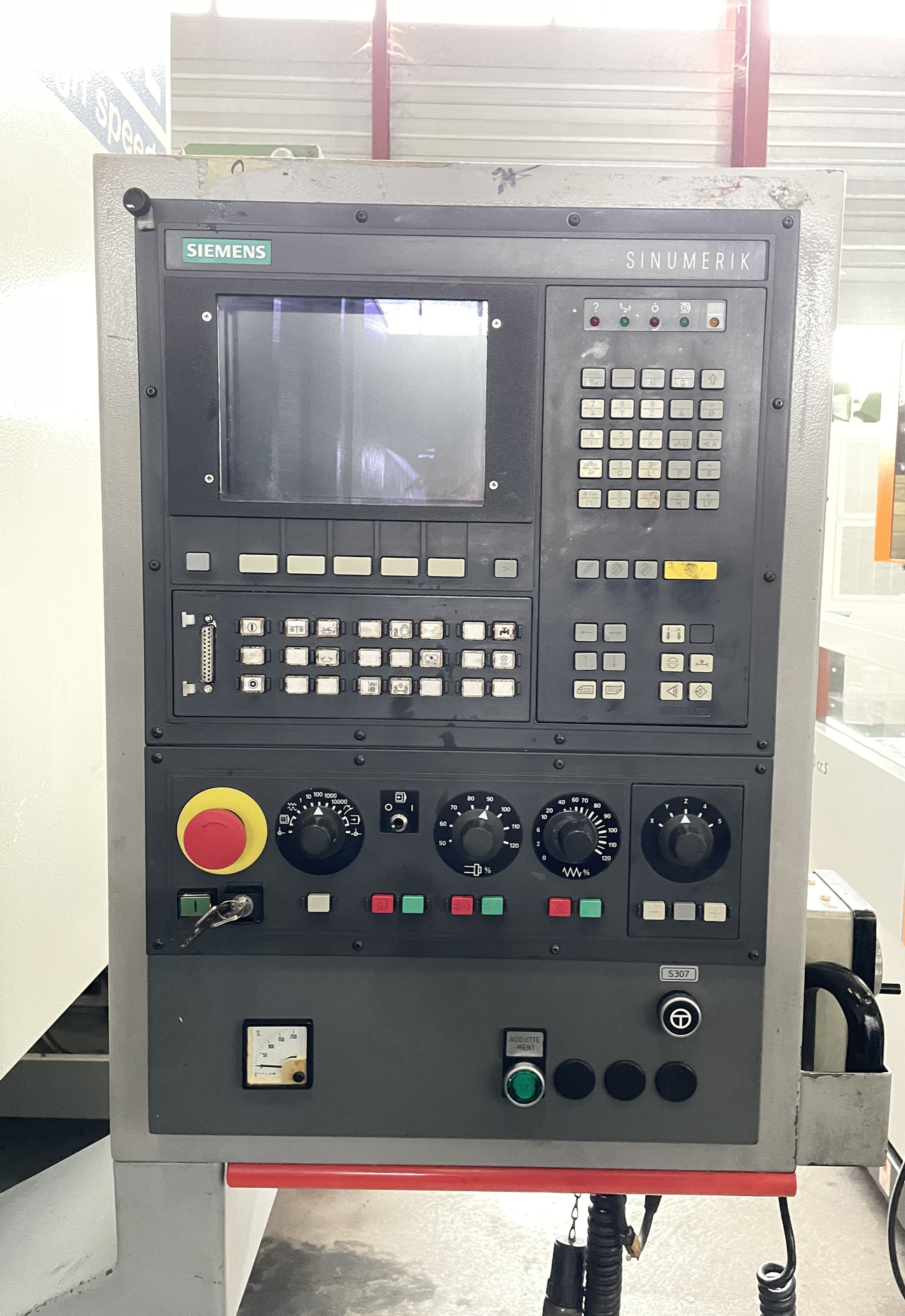

Control: SIEMENS SINUMERIK 810 M
Stock: 021694
Special Price
CHF 10 000
Special offer machines are sold as-is, without any warranty or inspection from us.
CHIRON FZ 18 L is a 3-axis machining center for precision, high accuracy and reliability. Table 2280×450, 3 T-slots (150/18), travels X2000 Y400 Z425. Toolchanger 20 pos (Ø65; Ø180 free pockets), L220, max 8 kg. Spindle SK40, 20–10500 rpm, 18 kW; 3×400 V 50Hz, 31 kVA; air 6 bar; weight ~7200 kg; 4000×3010×3040. Accessories: coolant system, chip conveyor, electronic handwheel. Suited to automotive, aerospace, medical, machine tools and watchmaking.
| Number of axis total | 3 |

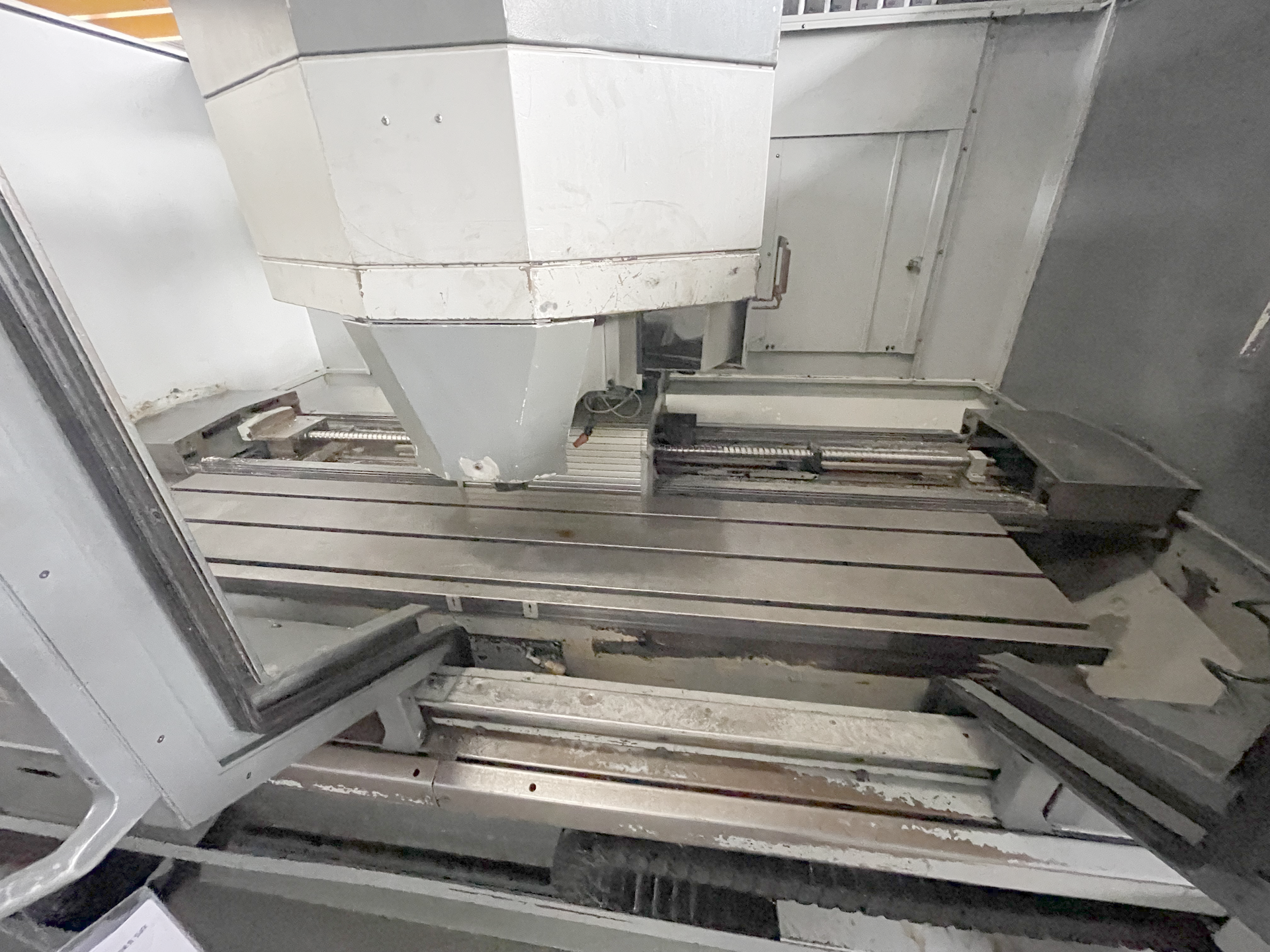

| Table length | 2280 mm |
| Table width | 450 mm |
| Number of T-channels | 3 |
| Distance of the T-slots | 150 mm |
| T-channel width | 18 mm |
| Longitudinal travel (X-axis) | 2000 mm |
| Transversal travel (y-axis) | 400 mm |
| Vertical travel (z axis) | 425 mm |
| Tool changer: | |
| Number of tools | 20 |
| Tool diameter | 65 mm |
| Diameter with free adjacent pockets | 180 mm |
| Tool lenght | 220 mm |
| Max. tool-weight | 8 kg |
| Spindle nose SK | 40 DIN 69871 |
| Vertical spindle speeds: | |
| stepless | |
| from | 20 t/min |
| up to | 10500 t/min |
| Feeds: | |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 18 kW |
| Total power required | 31 kVA |
| Machine's weight about | 7200 kg |
| Overall dimensions machine: | |
| Length | 4000 mm |
| Width | 3010 mm |
| Height | 3040 mm |
| Various accessories: | |
| Coolant system | |

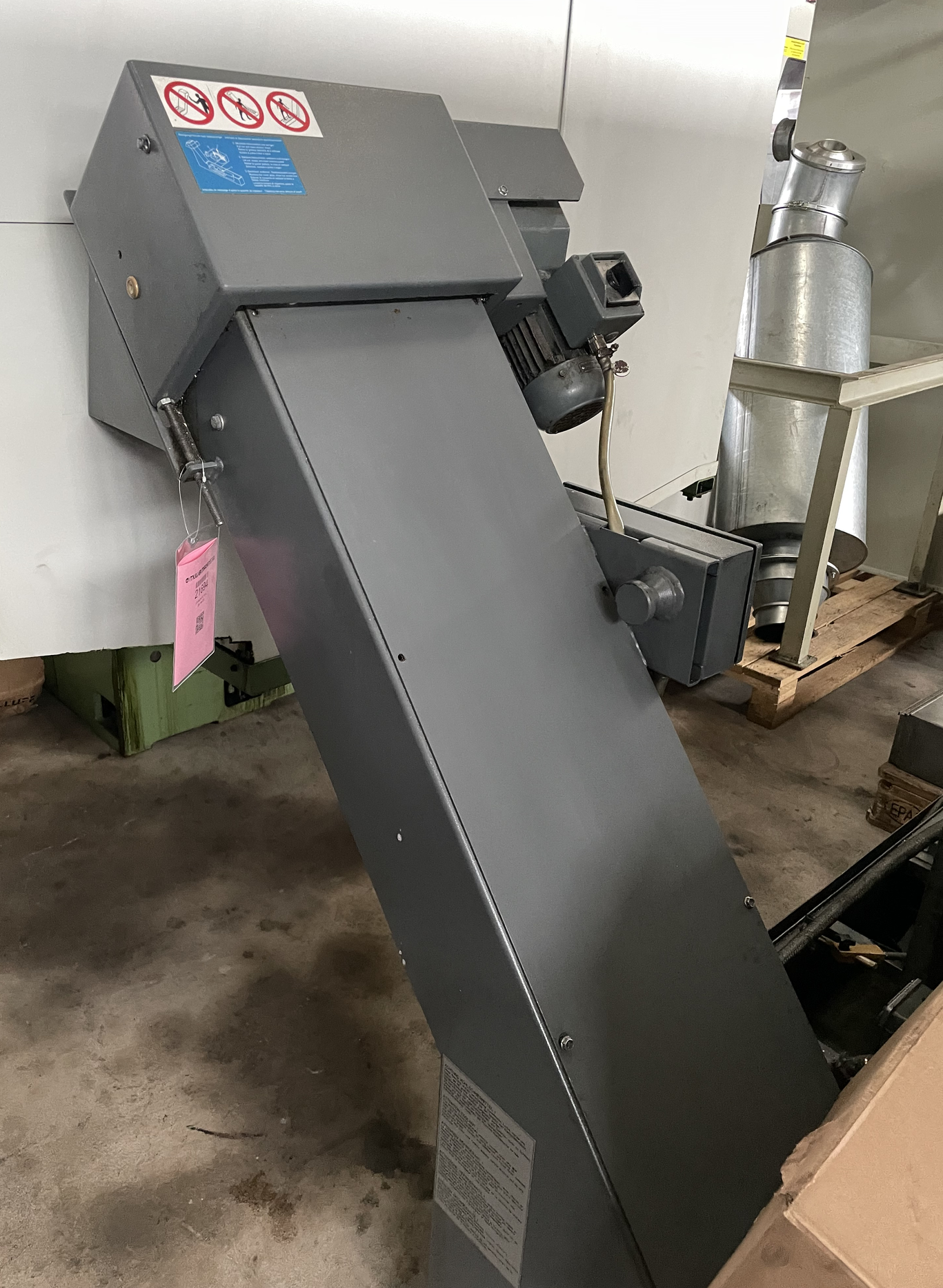

| Chip conveyor | |

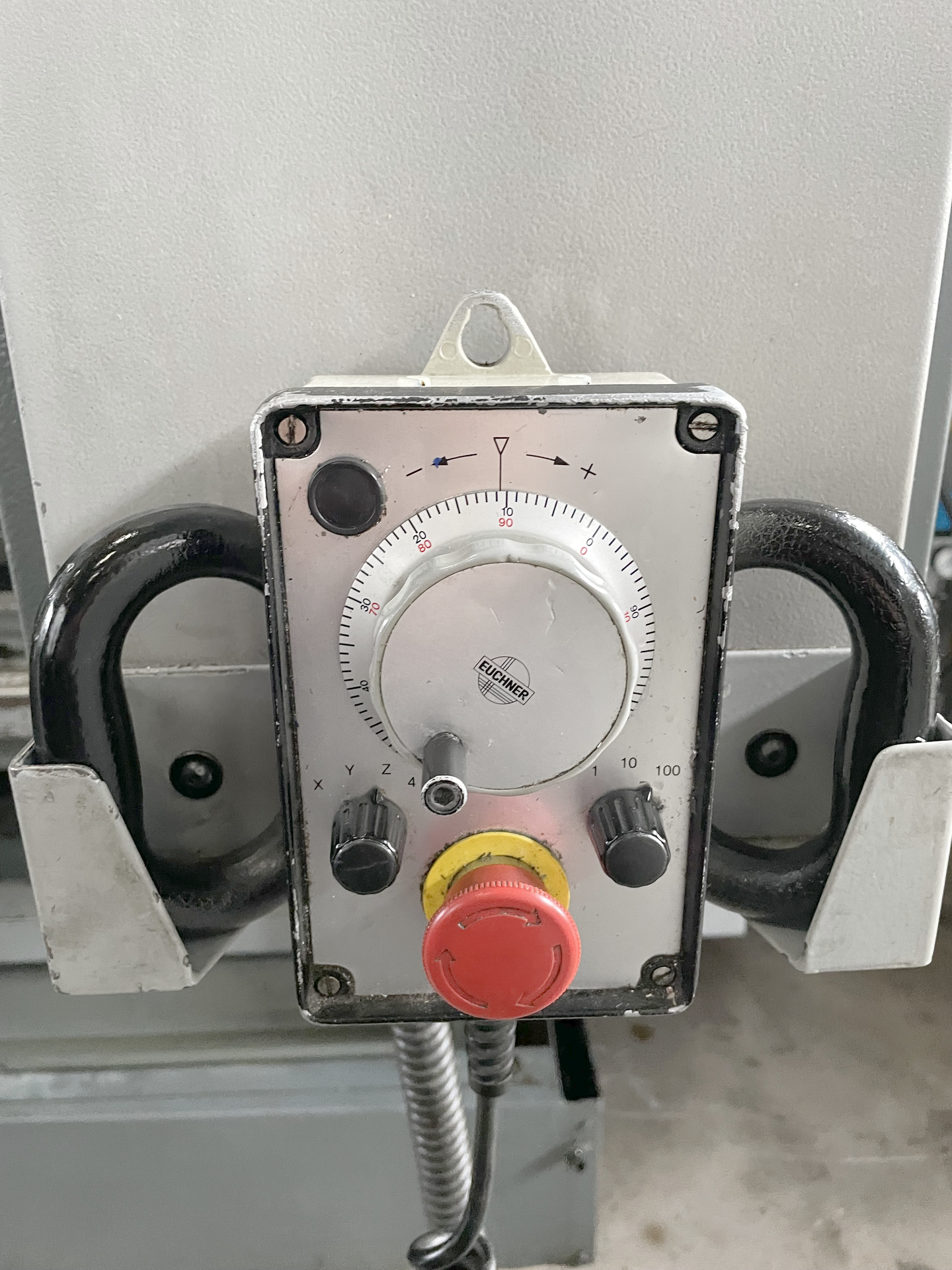

| Handwheel electroinic |
